| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

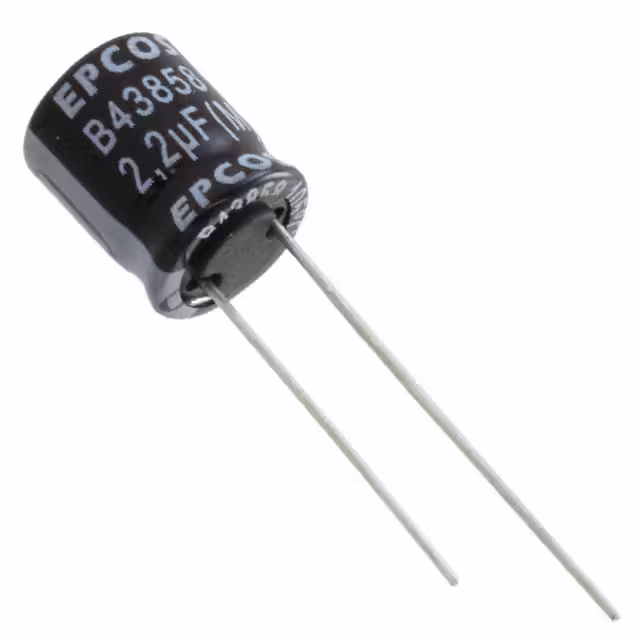

B43858C5225M000CAP ALUM 2.2UF 20% 450V RADIAL |
14,311 | 0.86 |
FFQ |
Datasheet |
Bulk | B43858 | Active | 2.2 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 100 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
B41895A6477M000CAP ALUM 470UF 20% 50V RADIAL |
7,877 | 1.16 |
FFQ |
Datasheet |
Bulk | B41895 | Active | 470 µF | ±20% | 50 V | 48mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.82 A @ 100 kHz | 44 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
B43504A9686M000CAP ALUM 68UF 20% 400V SNAP |
8,371 | 4.19 |
FFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 68 µF | ±20% | 400 V | 1.29Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 100 Hz | - | 1.6 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

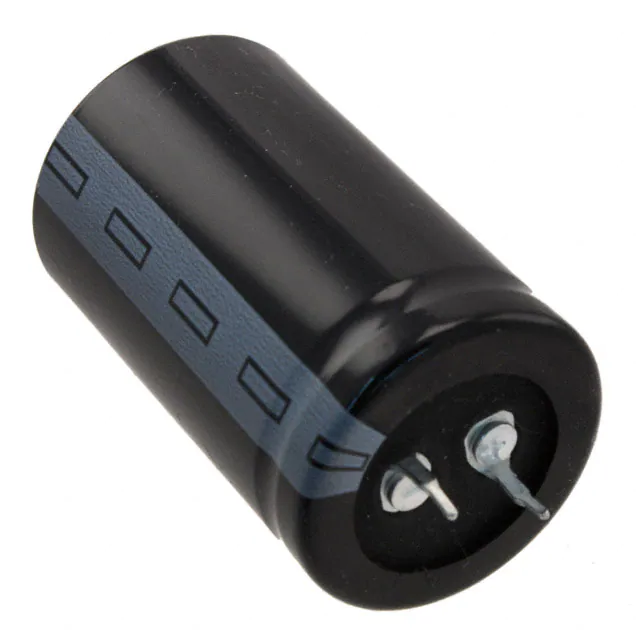

B43504A5337M000CAP ALUM 330UF 20% 450V SNAP |
2,902 | 11.91 |
FFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 330 µF | ±20% | 450 V | 410mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | - | 490 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

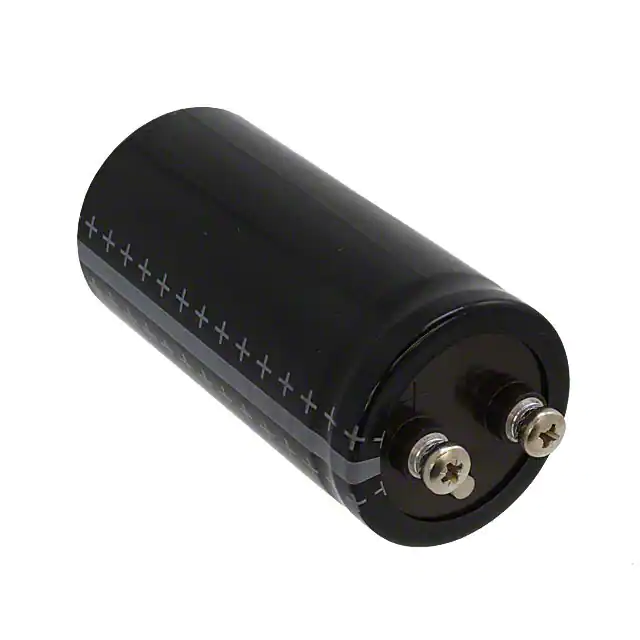

B41458B7100M000CAP ALUM 100000UF 20% 40V SCREW |
1,871 | 68.01 |
FFQ |
Datasheet |
Bulk | B41458 | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 7 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

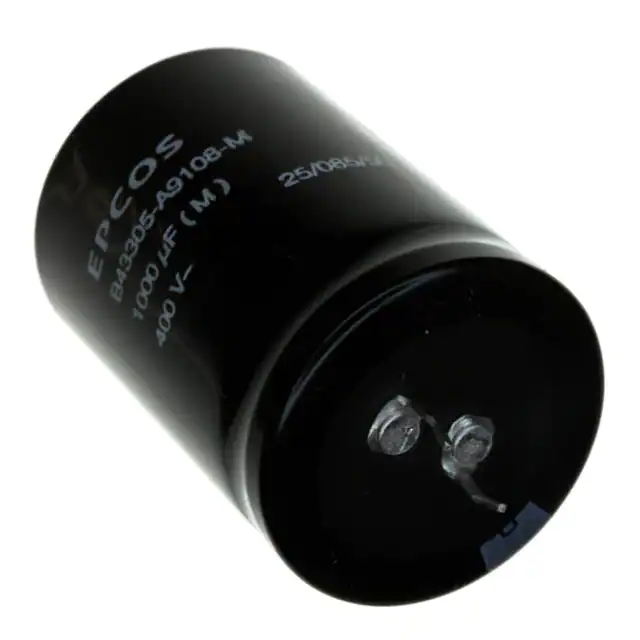

B43305A9108M000CAP ALUM 1000UF 20% 400V SNAP |
4,107 | 21.89 |
FFQ |
Datasheet |
Bulk | B43305 | Not For New Designs | 1000 µF | ±20% | 400 V | 140mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.38 A @ 100 Hz | - | 190 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

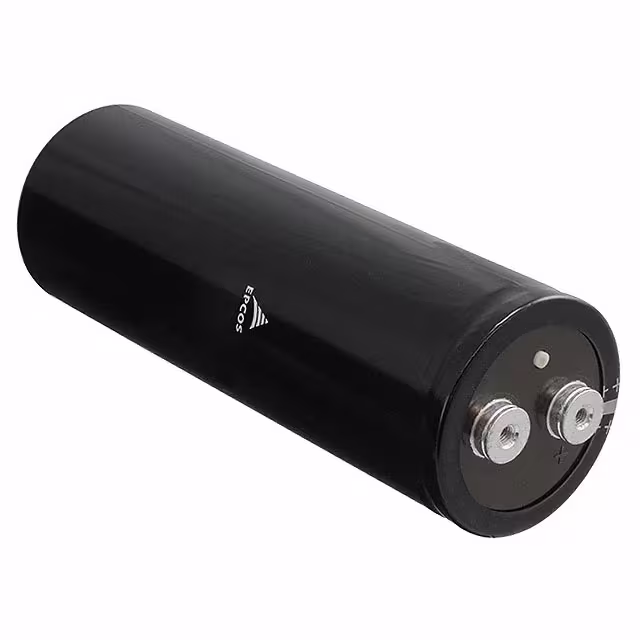

B43456A9129M000CAP ALUM 12000UF 20% 400V SCREW |
417 | 272.05 |
FFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 12000 µF | ±20% | 400 V | 8mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31 A @ 100 Hz | - | 9 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|

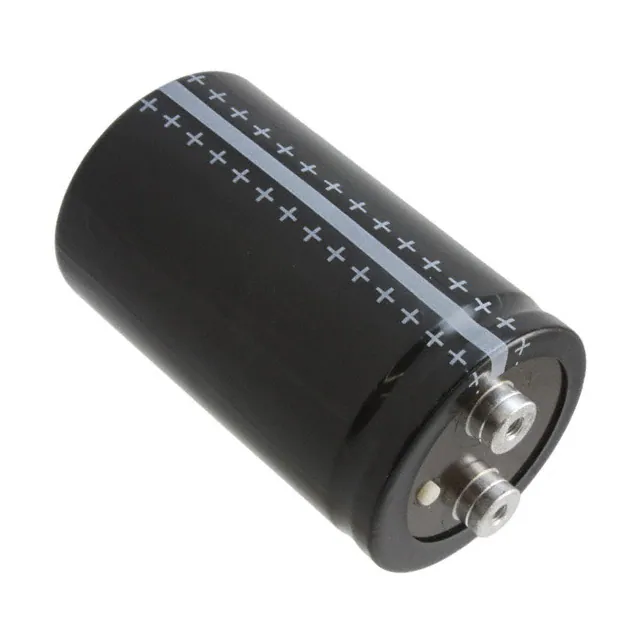

B41560A9159M000CAP ALUM 15000UF 20% 100V SCREW |
3,812 | 64.55 |
FFQ |
Datasheet |
Bulk | B41560 | Active | 15000 µF | ±20% | 100 V | 10mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 10 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|

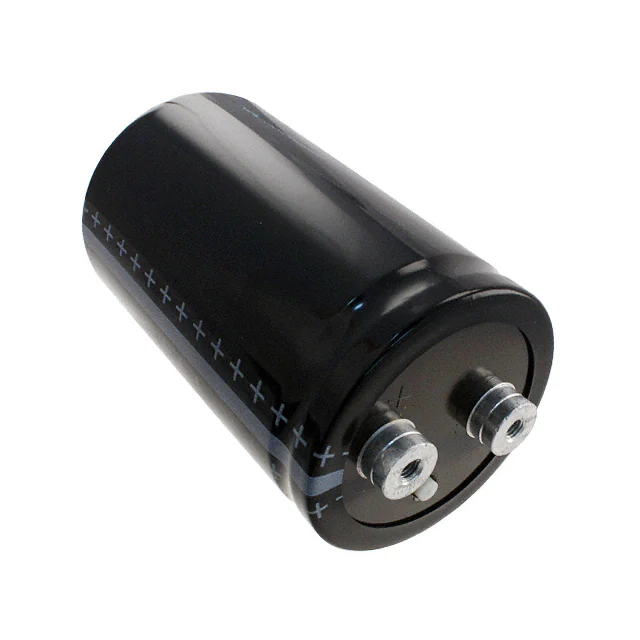

B41456B9229M000CAP ALUM 22000UF 20% 100V SCREW |
3,994 | 68.61 |
FFQ |
Datasheet |
Bulk | B41456 | Active | 22000 µF | ±20% | 100 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 10 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|

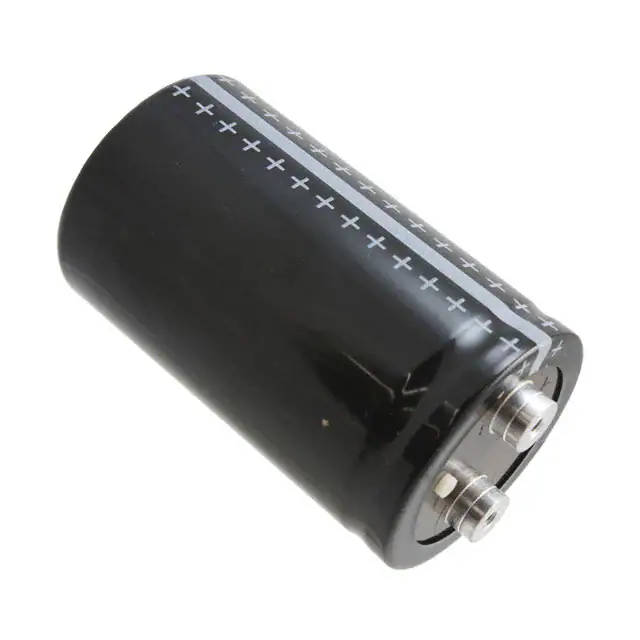

B43456A5228M000CAP ALUM 2200UF 20% 450V SCREW |
3,536 | 88.77 |
FFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 2200 µF | ±20% | 450 V | 50mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 100 Hz | - | 60 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|

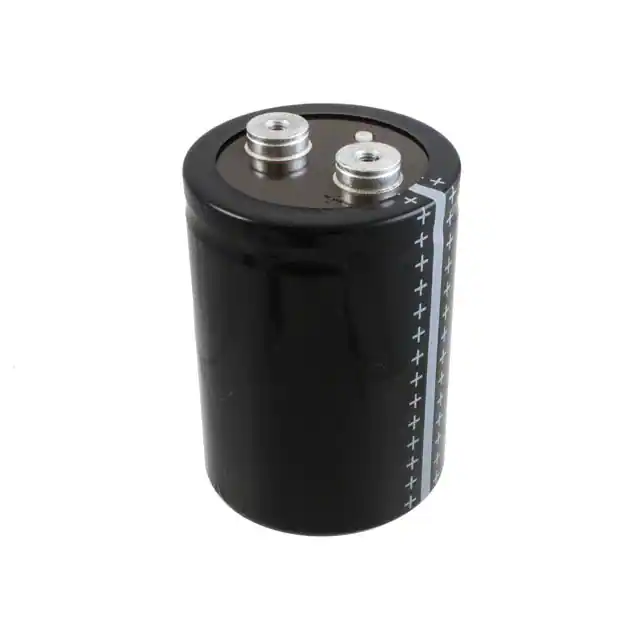

B43456A9478M000CAP ALUM 4700UF 20% 400V SCREW |
415 | 127.00 |
FFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 4700 µF | ±20% | 400 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 17 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B43701A5568M000CAP ALUM 5600UF 20% 450V SCREW |
598 | 127.71 |
FFQ |
Datasheet |
Bulk | B43701 | Active | 5600 µF | ±20% | 450 V | 22mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
|

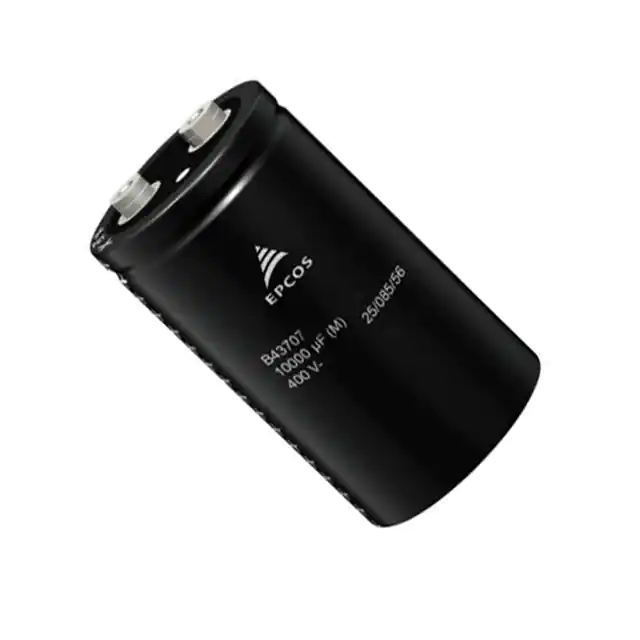

B43707A5109M600CAP ALUM 10000UF 20% 450V SCREW |
923 | 140.12 |
FFQ |
Datasheet |
Bulk | B43707 | Active | 10000 µF | ±20% | 450 V | 11mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | - | 17 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount |
|

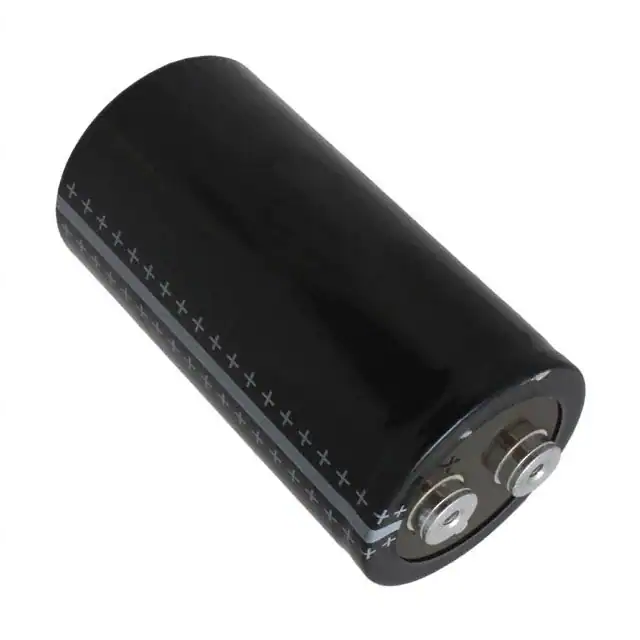

B43456A5568M000CAP ALUM 5600UF 20% 450V SCREW |
685 | 175.15 |
FFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 5600 µF | ±20% | 450 V | 23mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 31 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis Mount |
|

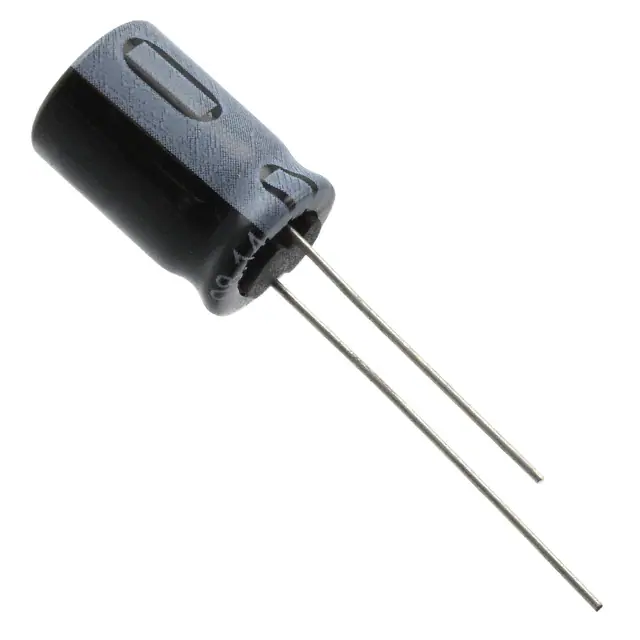

B41851A7477M8CAP ALUM 470UF 20% 35V RADIAL |
10,964 | 0.84 |
FFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | B41851 | Active | 470 µF | ±20% | 35 V | 490mOhm @ 120Hz | 2000 Hrs @ 105°C | - | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

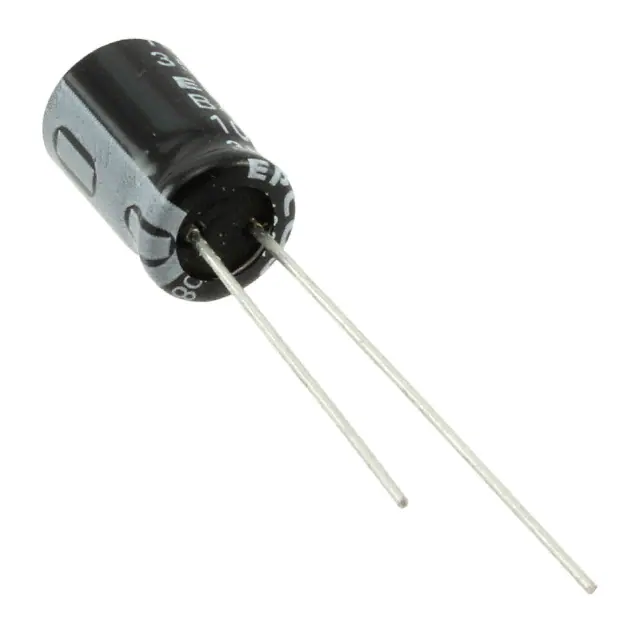

B41821A7107MCAP ALUM 100UF 20% 35V RADIAL |
14,701 | 0.48 |
FFQ |
Datasheet |
Bulk | B41821 | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

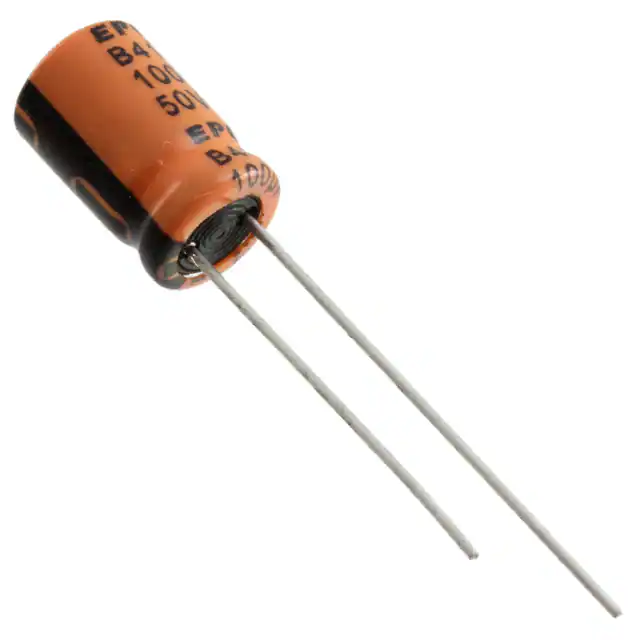

B41888C6107M000CAP ALUM 100UF 20% 50V RADIAL |
14,240 | 0.65 |
FFQ |
Datasheet |
Bulk | B41888 | Active | 100 µF | ±20% | 50 V | 615mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 500 mA @ 100 kHz | 540 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

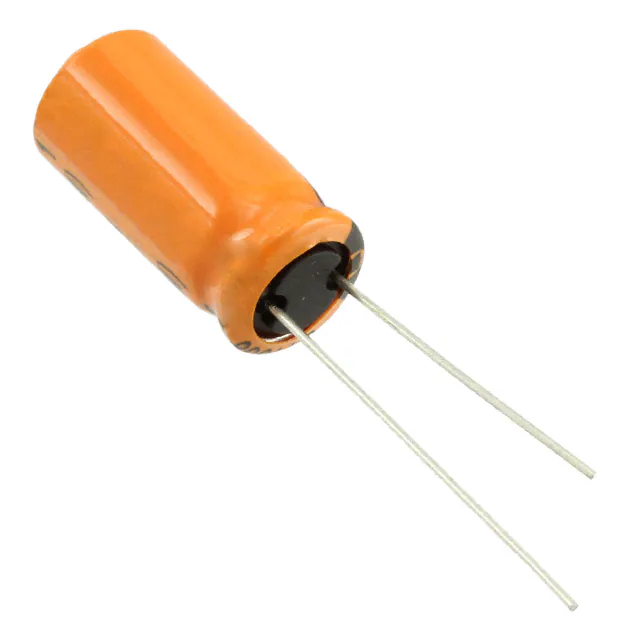

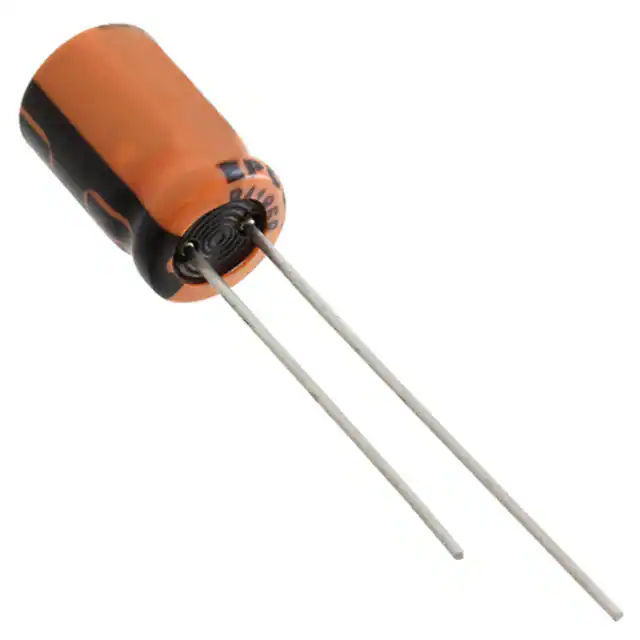

B41858C6107M000CAP ALUM 100UF 20% 50V RADIAL |
11,750 | 0.66 |
FFQ |
Datasheet |
Bulk | B41858 | Active | 100 µF | ±20% | 50 V | 646mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 340 mA @ 100 kHz | 573 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

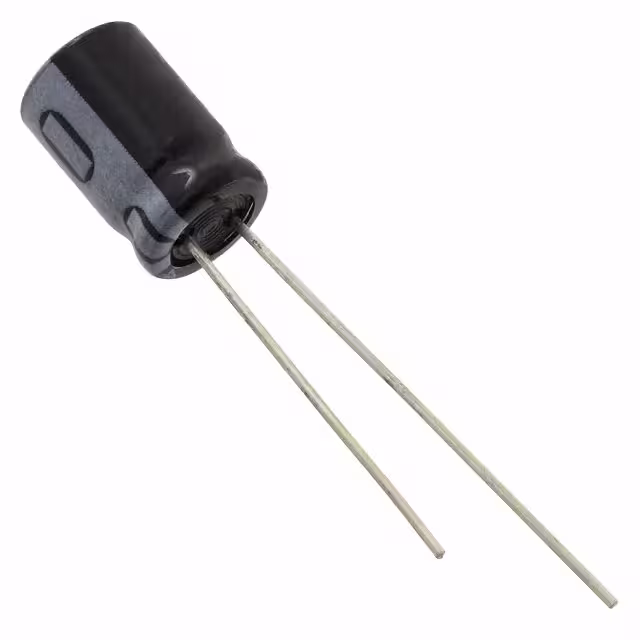

B41851A6107M000CAP ALUM 100UF 20% 50V RADIAL |
10,843 | 0.67 |
FFQ |
Datasheet |
Bulk | B41851 | Not For New Designs | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 105°C | - | Polar | - | General Purpose | 190 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

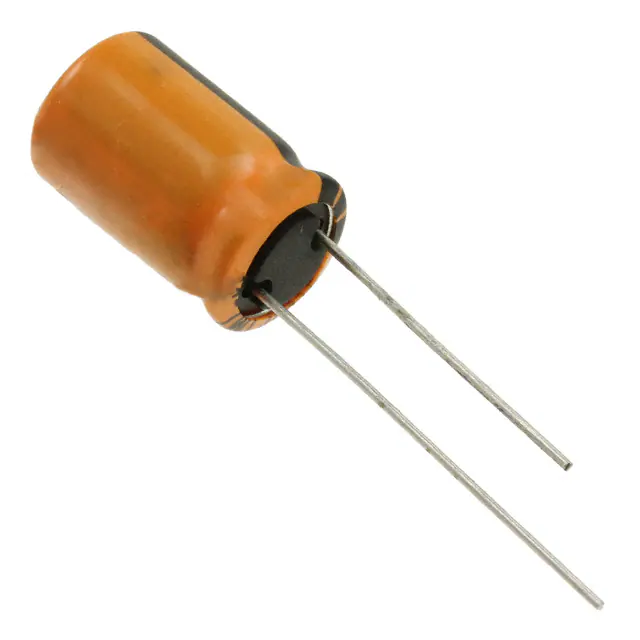

B41858C5477M000CAP ALUM 470UF 20% 25V RADIAL |
11,075 | 0.75 |
FFQ |
Datasheet |
Bulk | B41858 | Active | 470 µF | ±20% | 25 V | 118mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 846 mA @ 100 kHz | 105 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
