Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	ForMeasuring	SensorType	Current-Sensing	NumberofChannels	Output	Sensitivity	Frequency	Linearity	Accuracy	Voltage-Supply	ResponseTime	Current-Supply(Max)	OperatingTemperature	Polarization	MountingType
	VCS10 ISOLATED CURRENT SENSOR Vektrex	803	395.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	10A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount

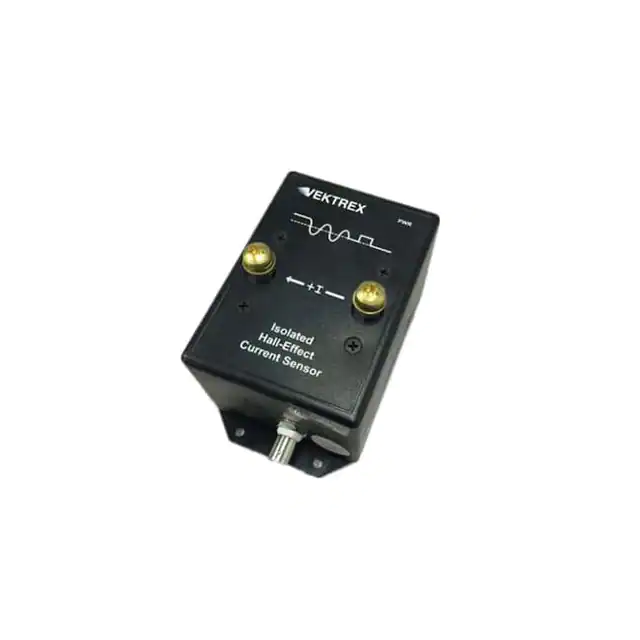

	VCS40 ISOLATED CURRENT SENSOR Vektrex	830	495.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	40A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount
	VCS80 ISOLATED CURRENT SENSOR Vektrex	388	595.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	80A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount
	VCS160 ISOLATED CURRENT SENSOR Vektrex	468	695.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	160A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount
	VCS320 ISOLATED CURRENT SENSOR Vektrex	303	795.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	320A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount
	VCS100 ISOLATED CURRENT SENSOR Vektrex	12,258	0.00	FFQ	Datasheet	Box	VCS	Active	AC/DC	Hall Effect	100A	-	Ratiometric, Voltage	-	DC ~ 650kHz	-	0.5%	9V ~ 18V	-	-	-	-	Chassis Mount
