Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	ForMeasuring	SensorType	Current-Sensing	NumberofChannels	Output	Sensitivity	Frequency	Linearity	Accuracy	Voltage-Supply	ResponseTime	Current-Supply(Max)	OperatingTemperature	Polarization	MountingType
	DS50.2T Ultrafast current sensos Tell-i	3,664	79.00	FFQ	Datasheet	Case	-	Active	AC/DC	Current Sensor	±50A	1	Voltage	42mV/A	DC ~ 7MHz	±1%	-	5V	48ns	20mA	-40°C ~ 125°C	Bidirectional	Through Hole

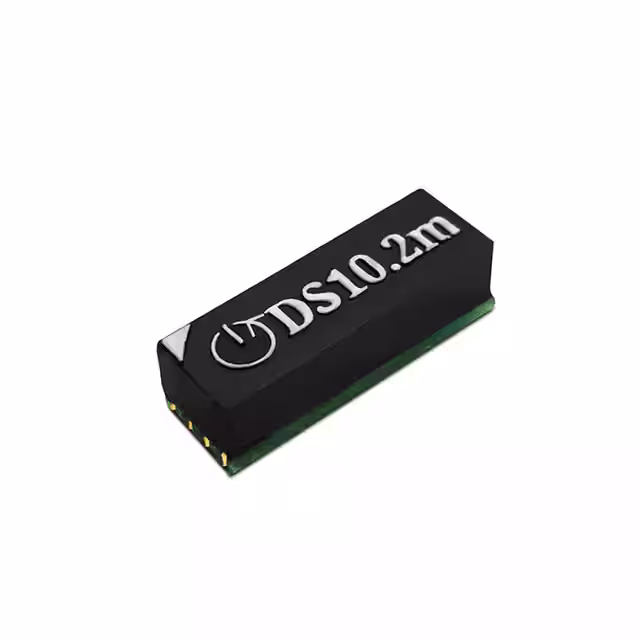

	DS10.2M Ultrafast current sensor for GaN Tell-i	3,785	89.00	FFQ	Datasheet	Box	-	Active	AC/DC	Magnetoresistive	10A	-	Ratiometric, Voltage	70mV/A	3.46MHz	0.01%	-	5V	45ns	20mA	-40°C ~ 125°C	Bidirectional	Surface Mount

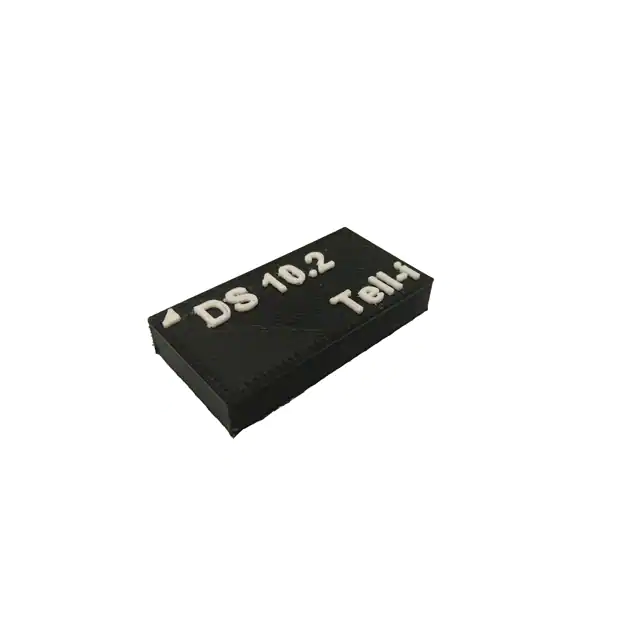

	TELLI_DS10.2 DC-10MHZ 20A CURRENT SENSOR Tell-i	4,780	89.00	FFQ	Datasheet	Box	-	Active	AC/DC	Magnetoresistive, Open Loop	20A	1	Ratiometric, Voltage	64mV/A	10MHz	1%	1%	5V	85ns	20mA	-40°C ~ 125°C	-	Through Hole

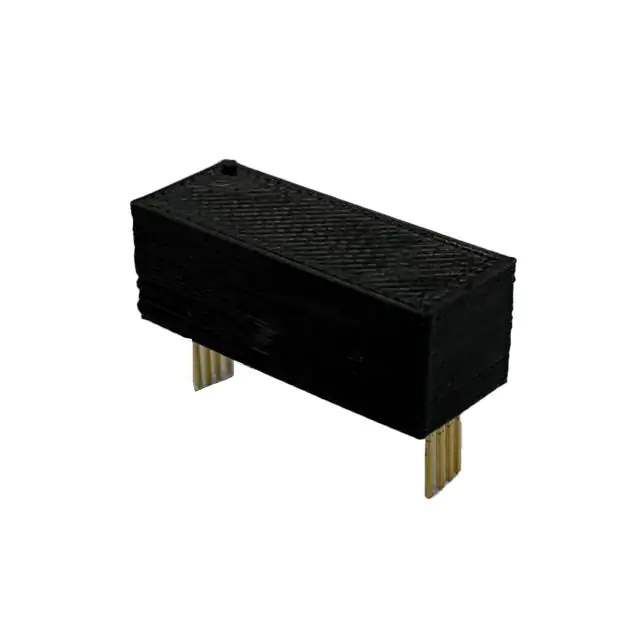

	TELLI_DS10.2S DC-10MHZ 20A CURRENT SENSOR Tell-i	4,121	69.00	FFQ	Datasheet	Box	-	Active	AC/DC	Magnetoresistive, Open Loop	20A	1	Ratiometric, Voltage	85mV/A	10MHz	1%	1%	5V	100ns	20mA	40°C ~ 85°C	Bidirectional	Through Hole
