| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ForMeasuring | SensorType | Current-Sensing | NumberofChannels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage-Supply | ResponseTime | Current-Supply(Max) | OperatingTemperature | Polarization | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

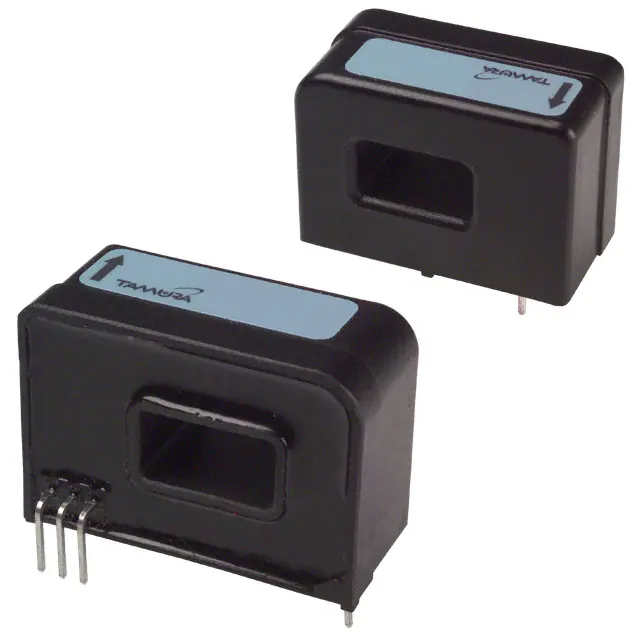

L01Z050S05SENSOR CURRENT HALL 50A AC/DC |
1,183 | 17.94 |
FFQ |
Datasheet |
Bulk | - | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | 5V | 10µs | 15mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|

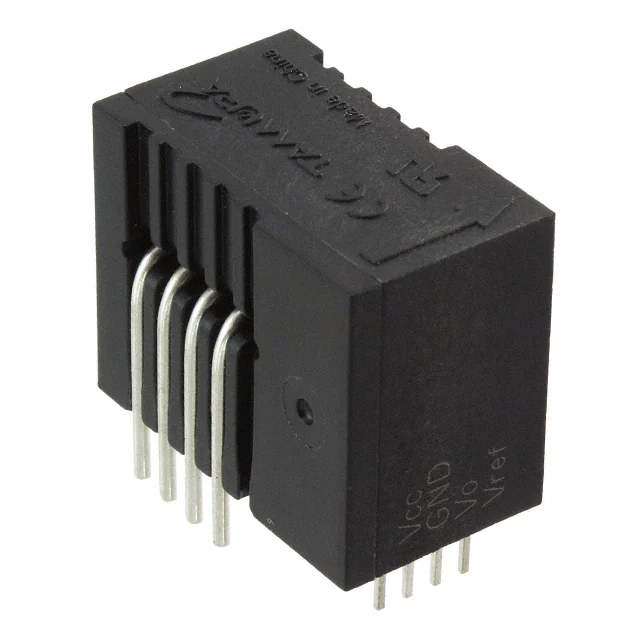

F03P015S05LSENSOR |
4,095 | 17.87 |
FFQ |
Datasheet |
Tray | F03P | Active | AC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±0.1% | - | 4.75V ~ 5.25V | 0.3µs | 30mA | -40°C ~ 105°C | Bidirectional | Through Hole |
|
|
L01Z100S05SENSOR CURRENT HALL 100A AC/DC |
4,284 | 18.14 |
FFQ |
Datasheet |
Bulk | - | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | 5V | 10µs | 15mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|

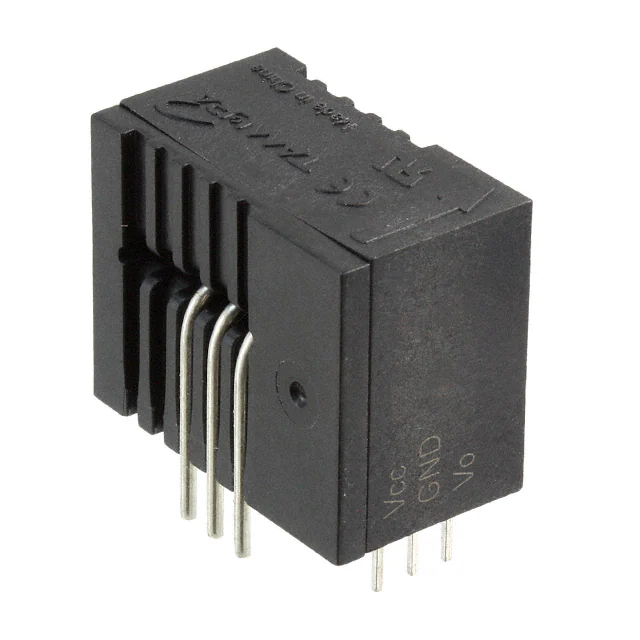

F01P025S05LSENSOR |
2,042 | 16.26 |
FFQ |
Datasheet |
Tray | F01P | Active | AC/DC | Flux Gate, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±1% | ±1.8% | 5V | 0.3µs | 35mA | -40°C ~ 105°C | Bidirectional | Through Hole |
|

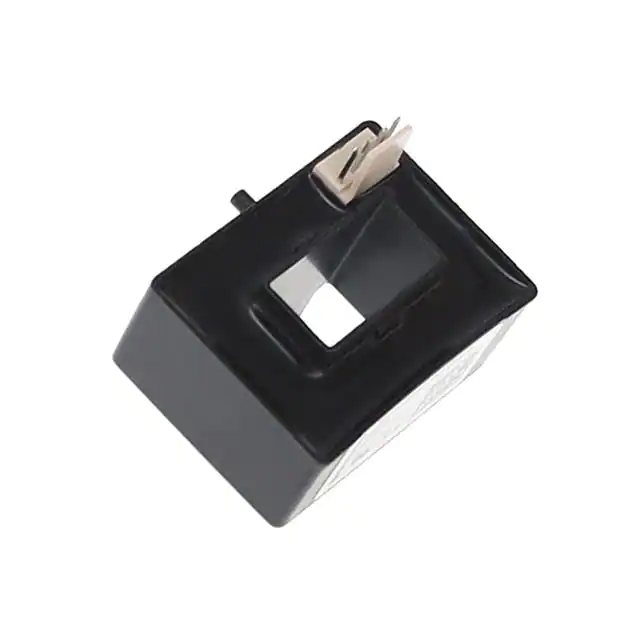

L37S100S05MCURRENT SENSOR (100A; +5V) |
4,947 | 18.01 |
FFQ |
Datasheet |
Tray | L37S S05 | Active | DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | - | 4.75V ~ 5.25V | 5µs | 20mA | -40°C ~ 85°C (TA) | Bidirectional | Chassis Mount |
|
L37S300S05MCURRENT SENSOR (300A; +5V) |
1,608 | 18.76 |
FFQ |
Datasheet |
Tray | L37S S05 | Active | DC | Hall Effect, Open Loop | 300A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | - | 4.75V ~ 5.25V | 5µs | 20mA | -40°C ~ 85°C (TA) | Bidirectional | Chassis Mount |
|
|
L18P003D15-OPCURRENT SENSOR (3A; 15V) |
1,247 | 10.42 |
FFQ |
Datasheet |
Tray | L18PXXXD15 | Active | AC/DC | Hall Effect, Open Loop | 3A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 18mA | -30°C ~ 80°C (TA) | Bidirectional | Through Hole |
|
|
L18P050D15-OPCURRENT SENSOR (50A; 15V) |
4,888 | 11.33 |
FFQ |
Datasheet |
Tray | L18PXXXD15 | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 18mA | -30°C ~ 80°C (TA) | Bidirectional | Through Hole |
|
|
L08P150D15IPVCURRENT SENSOR (150A; 15V) |
3,698 | 13.33 |
FFQ |
Datasheet |
Tray | - | Active | AC/DC | Hall Effect, Open Loop | 150A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 20mA | -40°C ~ 80°C (TA) | Bidirectional | Through Hole |
|

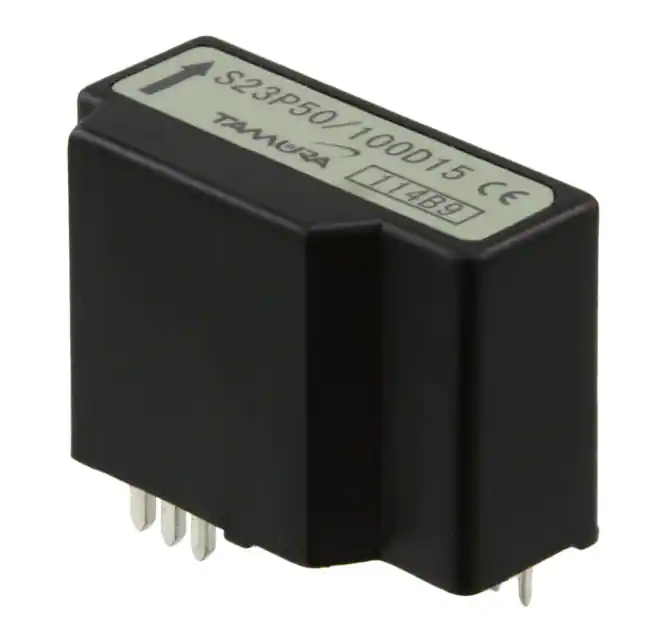

S23P50/100D15SENSOR CURRENT HALL 50A AC/DC |
2,828 | 15.89 |
FFQ |
Datasheet |
Bulk | S23PXXXD15 | Active | AC/DC | Hall Effect, Closed Loop | 50A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.15% | ±0.25% | ±12V ~ 15V | 0.5µs | 25mA | -40°C ~ 85°C | Bidirectional | Through Hole |
|
|
F03P006S05LSENSOR |
2,046 | 17.02 |
FFQ |
Datasheet |
Tray | F03P | Active | AC | Flux Gate, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | - | 4.75V ~ 5.25V | 0.3µs | 25mA | -40°C ~ 105°C | Bidirectional | Through Hole |
|
|
L37S600S05MCURRENT SENSOR (600A; +5V) |
4,746 | 19.92 |
FFQ |
Datasheet |
Tray | L37S S05 | Active | DC | Hall Effect, Open Loop | 600A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | - | 4.75V ~ 5.25V | 5µs | 20mA | -40°C ~ 85°C (TA) | Bidirectional | Chassis Mount |
|
|
L34S500D15TCURRENT SENSOR (500A; 15V) |
4,594 | 34.42 |
FFQ |
Datasheet |
Tray | L34S D15T | Active | AC/DC | Hall Effect, Open Loop | 500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±0.5% | - | ±12V ~ 15V | 5µs | 25mA | -40°C ~ 105°C (TA) | Bidirectional | Chassis Mount |
|
|
L34S1T0D15TCURRENT SENSOR (1000A; 15V) |
3,733 | 36.53 |
FFQ |
Datasheet |
Tray | L34S D15T | Active | AC/DC | Hall Effect, Open Loop | 1000A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±0.5% | - | ±12V ~ 15V | 5µs | 25mA | -40°C ~ 105°C (TA) | Bidirectional | Chassis Mount |
|

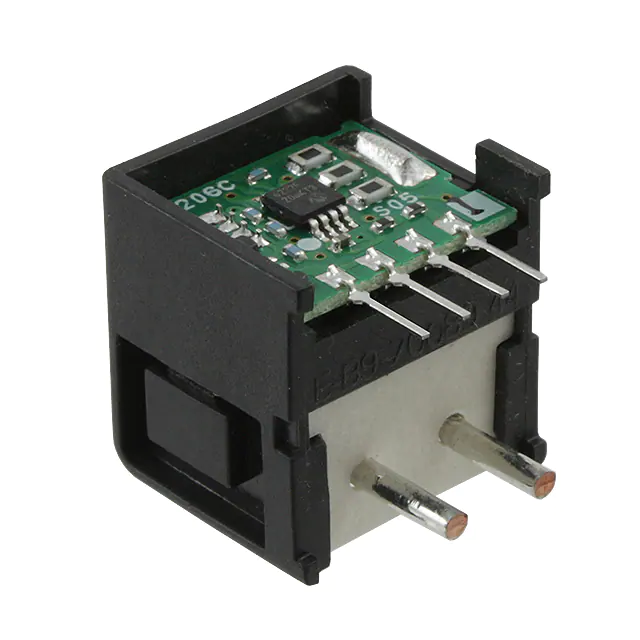

L18P020S05SENSOR CURRENT HALL 20A AC/DC |
3,220 | 13.82 |
FFQ |
Datasheet |
Bulk | L18PXXXS05 | Active | AC/DC | Hall Effect, Open Loop | 20A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | 5V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
|

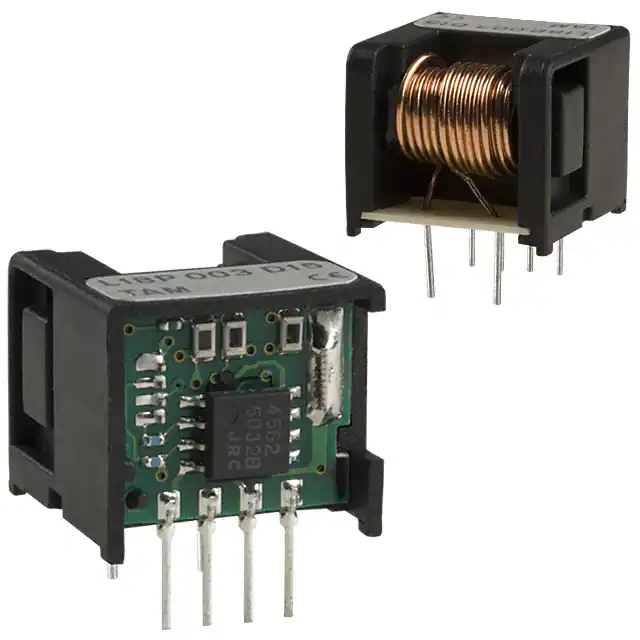

L18P003D15SENSOR CURRENT HALL 3A AC/DC |
3,770 | 11.34 |
FFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 3A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
|
|
F01P006S05LSENSOR |
1,440 | 14.75 |
FFQ |
Datasheet |
Tray | F01P | Active | AC/DC | Flux Gate, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±1% | ±2.5% | 5V | 0.3µs | 25mA | -40°C ~ 105°C | Bidirectional | Through Hole |
|

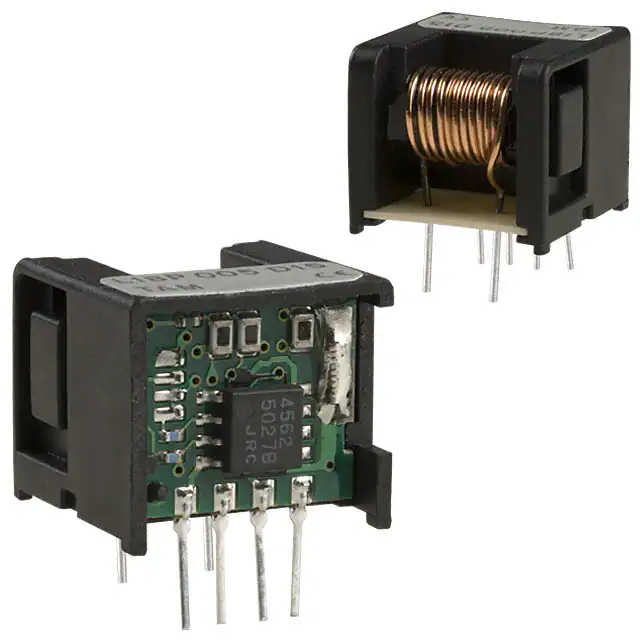

L18P005D15SENSOR CURRENT HALL 5A AC/DC |
3,453 | 11.46 |
FFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 5A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
|
|
S23P50/100D15M2CURRENT SENSOR (50A/100A; 15V) |
4,835 | 15.14 |
FFQ |
Datasheet |
Tray | S23P M2 | Active | AC/DC | Hall Effect, Closed Loop | 50A, 100A | 1 | Ratiometric, Current | - | - | ±0.15% | ±0.25% | ±12V ~ 15V | 500ns | 16mA | -40°C ~ 85°C | Unidirectional | Through Hole |
|

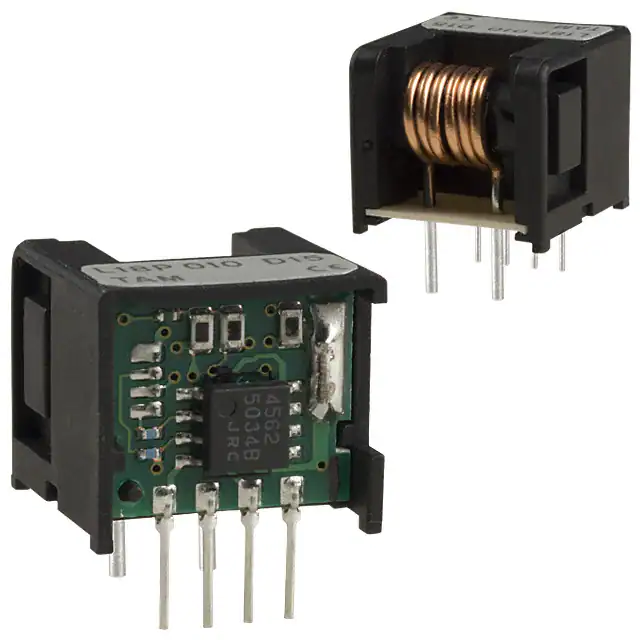

L18P010D15SENSOR CURRENT HALL 10A AC/DC |
662 | 11.57 |
FFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
