Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus DiodeType Voltage-PeakReverse(Max) Current-Max Capacitance@VrF Resistance@IfF PowerDissipation(Max) OperatingTemperature

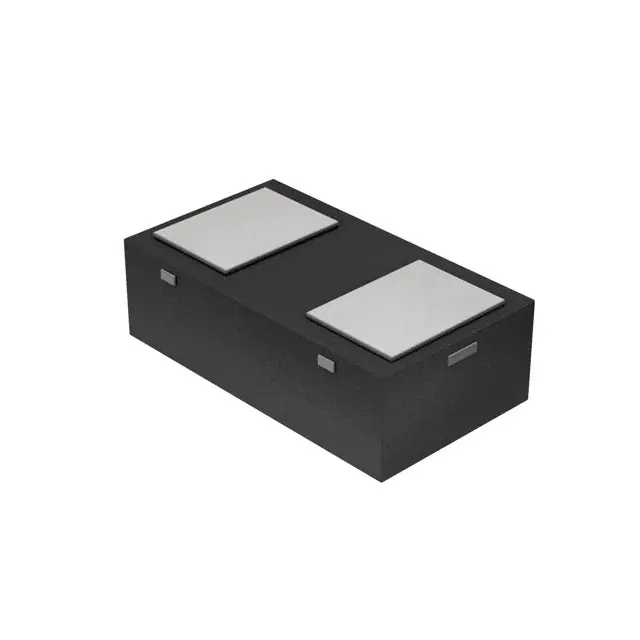

CPINU5208-HF

CPINU5208-HF

RF DIODE PIN 35V 300MW 0603

Comchip Technology

13,739

0.78

FFQ

CPINU5208-HF

Datasheet

Tape & Reel (TR),Cut Tape (CT)

-

Active

PIN - Single

35V

-

0.9pF @ 20V, 100MHz

700mOhm @ 10mA, 100MHz

300 mW

150°C (TJ)

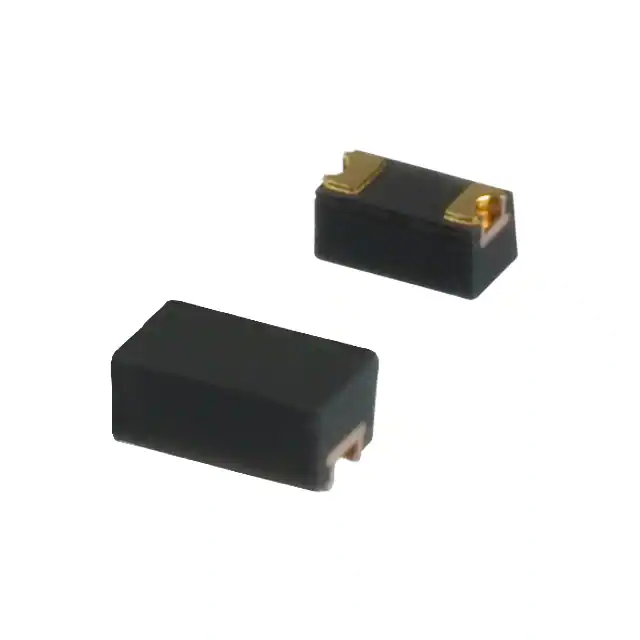

CPINUC5206-HF

CPINUC5206-HF

RF DIODE PIN 180V 300MW 0603C

Comchip Technology

6,275

2.39

FFQ

CPINUC5206-HF

Datasheet

Tape & Reel (TR),Cut Tape (CT)

-

Active

PIN - Single

180V

-

0.22pF @ 40V, 100MHz

1.5Ohm @ 50mA, 100MHz

300 mW

150°C (TJ)

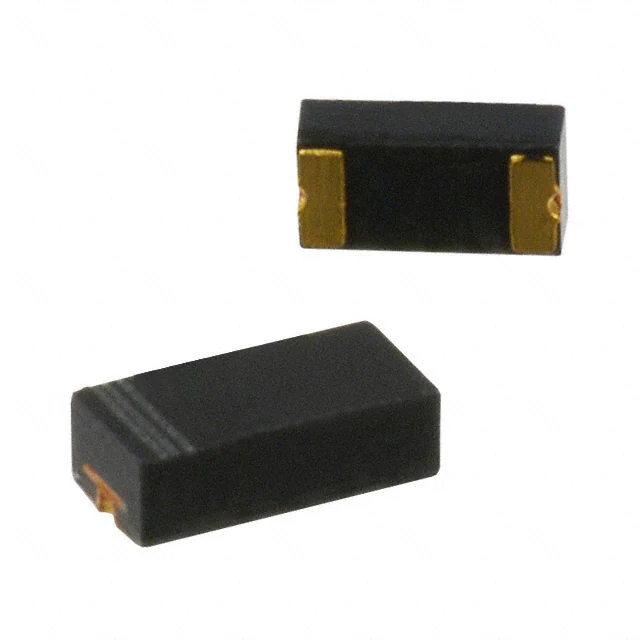

CPINF5204-HF

CPINF5204-HF

RF DIODE PIN 180V 500MW 1005

Comchip Technology

2,009

0.00

FFQ

CPINF5204-HF

Datasheet

Tape & Reel (TR),Cut Tape (CT)

-

Obsolete

PIN - Single

180V

-

0.9pF @ 40V, 100MHz

750mOhm @ 50mA, 100MHz

500 mW

150°C (TJ)
