Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
	1SV307(TPH3,F) RF DIODE STANDARD 30V USC Toshiba Semiconductor and Storage	14,690	0.45	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	30V	50 mA	0.5pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	125°C (TJ)

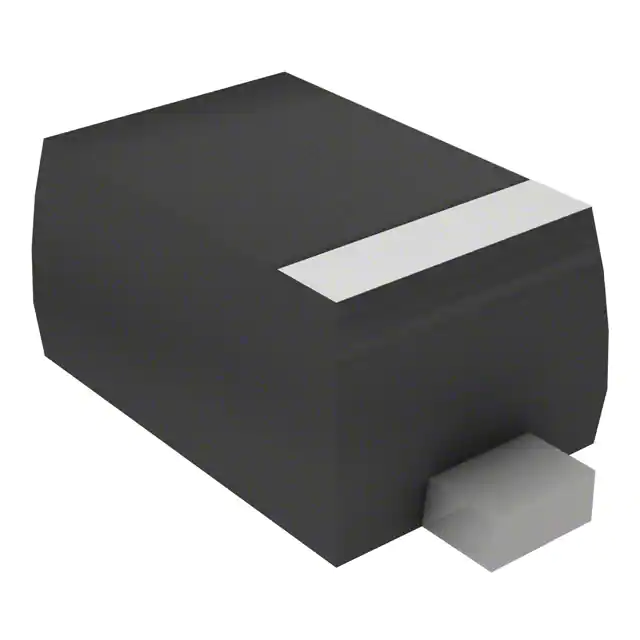

	1SS381,L3F DIODE RF SWITCH 30V 100MA ESC Toshiba Semiconductor and Storage	14,282	0.05	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	PIN - Single	30V	100 mA	1.2pF @ 6V, 1MHz	900mOhm @ 2mA, 100MHz	-	125°C (TJ)
	1SS315TPH3F RF DIODE SCHOTTKY 5V USC Toshiba Semiconductor and Storage	10,906	0.06	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Schottky - Single	5V	30 mA	0.6pF @ 0.2V, 1MHz	-	-	125°C (TJ)
	1SV308,L3F RF DIODE PIN 30V ESC Toshiba Semiconductor and Storage	10,704	0.43	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	125°C (TJ)
	JDV2S07FSTPL3 RF DIODE STANDARD 10V FSC Toshiba Semiconductor and Storage	13,466	0.08	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	10V	-	4.9pF @ 1V, 1MHz	-	-	150°C (TJ)
	JDP2S02AFS(TPL3) RF DIODE PIN 30V FSC Toshiba Semiconductor and Storage	13,003	0.47	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	JDH2S02FSTPL3 RF DIODE SCHOTTKY 10V FSC Toshiba Semiconductor and Storage	11,254	0.47	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	10V	10 mA	0.3pF @ 0.2V, 1MHz	-	-	125°C (TJ)

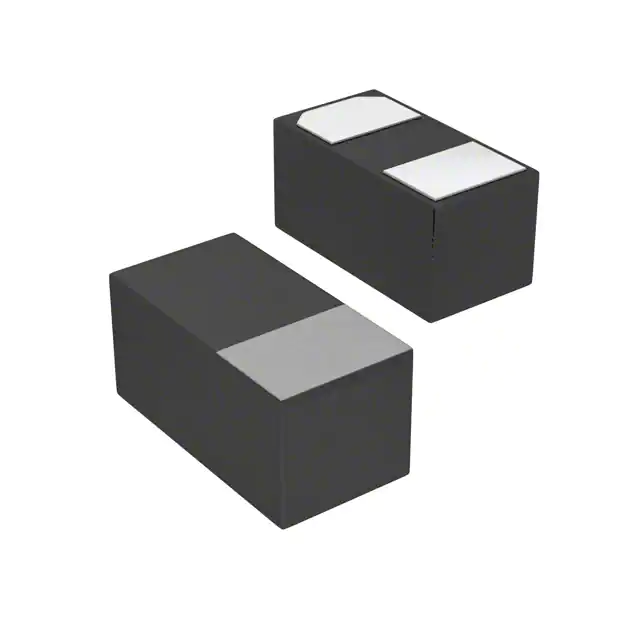

	JDP2S08SC(TPL3) RF DIODE PIN 30V SC2 Toshiba Semiconductor and Storage	12,532	0.48	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	JDP2S02ACT(TPL3) RF DIODE PIN 30V CST2 Toshiba Semiconductor and Storage	11,483	0.48	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	JDV2S10FS(TPL3) RF DIODE STANDARD 10V FSC Toshiba Semiconductor and Storage	14,221	0.43	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	10V	-	3.4pF @ 2.5V, 1MHz	-	-	150°C (TJ)
	JDV2S09FSTPL3 RF DIODE STANDARD 10V FSC Toshiba Semiconductor and Storage	11,943	0.42	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	10V	-	11.1pF @ 1V, 1MHz	-	-	150°C (TJ)
	1SV271TPH3F RF DIODE PIN 50V USC Toshiba Semiconductor and Storage	2,541	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	50V	50 mA	0.4pF @ 50V, 1MHz	4.5Ohm @ 10mA, 100MHz	-	125°C (TJ)
	1SV308(TH3,F) RF DIODE PIN 30V ESC Toshiba Semiconductor and Storage	2,473	0.00	FFQ	Datasheet	Cut Tape (CT)	-	Obsolete	PIN - Single	30V	50 mA	0.5pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	125°C (TJ)
	JDV2S41FS(TPL3) RF DIODE STANDARD 15V FSC Toshiba Semiconductor and Storage	3,904	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Standard - Single	15V	-	16pF @ 2V, 1MHz	-	-	125°C (TJ)

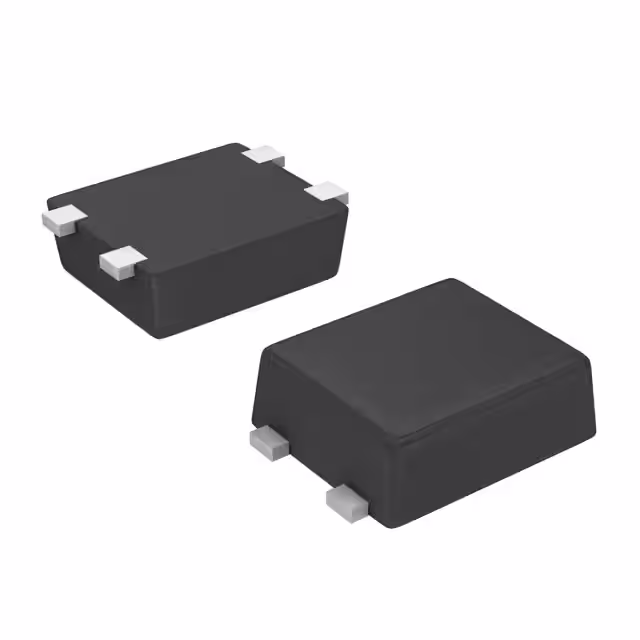

	JDP4P02AT(TE85L) RF DIODE PIN 30V CST4 Toshiba Semiconductor and Storage	3,568	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - 2 Independent	30V	50 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	JDH2S01FSTPL3 RF DIODE SCHOTTKY 4V FSC Toshiba Semiconductor and Storage	3,751	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Schottky - Single	4V	25 mA	0.6pF @ 0.2V, 1MHz	-	-	125°C (TJ)
	JDH3D01STE85LF RF DIODE SCHOTTKY 4V SSM Toshiba Semiconductor and Storage	13,531	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky	4V	25 mA	0.6pF @ 0.2V, 1MHz	-	-	125°C (TJ)
	1SS315[U/D] RF DIODE SCHOTTKY 5V USC Toshiba Semiconductor and Storage	10,975	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Active	Schottky - Single	5V	30 mA	0.06pF @ 200mV, 1MHz	-	-	125°C (TJ)
