Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofCharacters	DisplayFormat	CharacterFormat	DisplayType	DisplayMode	CharacterSize	OutlineLxWxH	ViewingArea	Backlight	Voltage-Supply	DotSize	Interface	ControllerType	OperatingTemperature	TextColor

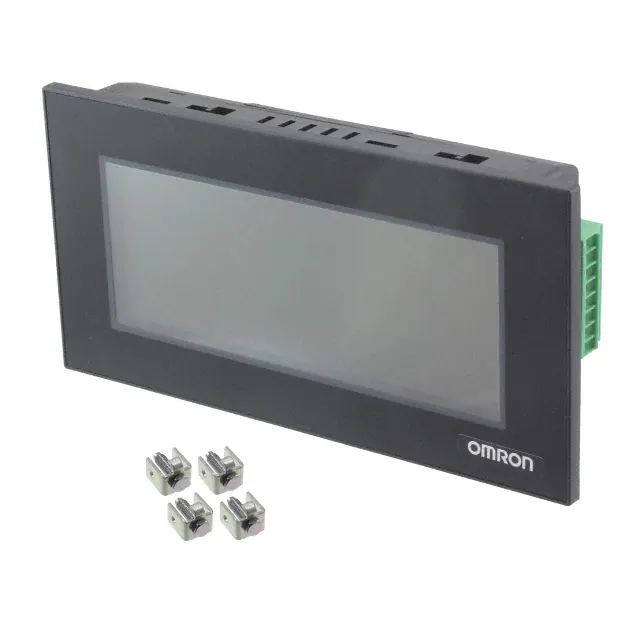

	NV4W-MR21 LCD MODULE 4.6IN MONO P/R/W Omron Automation and Safety	545	1110.82	FFQ		Bulk	NV	Active	-	-	-	LCD - Monochrome	-	-	146.00mm x 74.00mm x 26.00mm	109.00mm L x 41.00mm W	LED - Pink/Red/White	24V	-	RS-232C	-	0°C ~ 50°C	-
	NV4W-MG21 LCD MODULE 4.6IN MONO G/O/R Omron Automation and Safety	680	1110.82	FFQ	Datasheet	Bulk	NV	Active	-	-	-	LCD - Monochrome	-	-	146.00mm x 74.00mm x 26.00mm	109.00mm L x 41.00mm W	LED - Green/Orange/Red	24V	-	RS-232C	-	0°C ~ 50°C	-
	NV4W-MR41 LCD MODULE 4.6IN MONO P/R/W Omron Automation and Safety	764	1154.17	FFQ	Datasheet	Bulk	NV	Active	-	-	-	LCD - Monochrome	-	-	146.00mm x 74.00mm x 26.00mm	109.00mm L x 41.00mm W	LED - Pink/Red/White	24V	-	RS-422/285	-	0°C ~ 50°C	-
	NV4W-MG41 LCD MODULE 4.6IN MONO G/O/R Omron Automation and Safety	783	1154.17	FFQ		Bulk	NV	Active	-	-	-	LCD - Monochrome	-	-	146.00mm x 74.00mm x 26.00mm	109.00mm L x 41.00mm W	LED - Green/Orange/Red	24V	-	RS-422/285	-	0°C ~ 50°C	-
