Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	ProgrammableType	DelayTimetpd(1)Max	VoltageSupply-Internal	NumberofLogicElements/Blocks	NumberofMacrocells	NumberofGates	NumberofI/O	OperatingTemperature	MountingType
	ATF1500A-10JC FLASH PLD, 10NS, 32-CELL, CMOS Atmel	1,325	2.62	FFQ	Datasheet	44-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 100 program/erase cycles)	10 ns	4.75V ~ 5.25V	-	32	-	32	0°C ~ 70°C (TA)	Surface Mount
	ATF1504AS-15JC84 EE PLD, 15NS, 64-CELL, PQCC84 Atmel	10,085	3.68	FFQ	Datasheet	84-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	15 ns	4.75V ~ 5.25V	-	64	-	64	0°C ~ 70°C (TA)	Surface Mount
	ATF1504ASL-20AC100 EE PLD, 20NS, 64-CELL Atmel	7,455	3.69	FFQ	Datasheet	100-TQFP	Tray	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	20 ns	4.75V ~ 5.25V	-	64	-	64	0°C ~ 70°C (TA)	Surface Mount
	ATF2500C-20JC EE PLD, 20NS, 24-CELL, CMOS Atmel	991	3.71	FFQ	Datasheet	44-LCC (J-Lead)	Tube	ATF2500C(L)	Obsolete	In System Programmable	20 ns	4.75V ~ 5.25V	-	24	2500	24	0°C ~ 70°C (TA)	Surface Mount
	ATF1504AS-10AC44 EE PLD, 10NS, 64-CELL, PQFP44 Atmel	1,500	4.24	FFQ	Datasheet	44-TQFP	Tray	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	10 ns	4.75V ~ 5.25V	-	64	-	32	0°C ~ 70°C (TA)	Surface Mount
	ATF750LVC-15SU ATF750 - EE PLD, 15NS, 10-CELL Atmel	9,777	3.09	FFQ	Datasheet	24-SOIC (0.295, 7.50mm Width)	Bulk	ATF750LVC	Active	EE PLD	15 ns	3V ~ 5.5V	-	10	-	10	-40°C ~ 85°C (TA)	Surface Mount
	ATF1504ASVL-20JU44 ATF1504 - EE PLD, 15NS, 64-CELL Atmel	9,615	3.47	FFQ	Datasheet	44-LCC (J-Lead)	Bulk	ATF15xx	Active	In System Programmable (min 10K program/erase cycles)	20 ns	3V ~ 3.6V	-	64	-	32	-40°C ~ 85°C (TA)	Surface Mount
	ATF750C-10NM/883 ATF750 - EE PLD, 10NS, 10-CELL Atmel	3,697	80.38	FFQ	Datasheet	28-CLCC	Bulk	ATF750C(L)	Active	EE PLD	10 ns	4.5V ~ 5.5V	-	10	-	10	-55°C ~ 125°C (TA)	Surface Mount
	ATF1504AS-10JC84 EE PLD, 10NS, 64-CELL, PQCC84 Atmel	3,833	1.00	FFQ	Datasheet	84-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	10 ns	4.75V ~ 5.25V	-	64	-	64	0°C ~ 70°C (TA)	Surface Mount
	ATF1504ASL-20AC44 EE PLD, 20NS, 64-CELL, PQFP44 Atmel	2,102	1.00	FFQ	Datasheet	44-TQFP	Tray	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	20 ns	4.75V ~ 5.25V	-	64	-	32	0°C ~ 70°C (TA)	Surface Mount
	ATF1504ASV-15JC44 EE PLD, 15NS, 64-CELL, CMOS Atmel	3,010	1.00	FFQ	Datasheet	44-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	15 ns	3V ~ 3.6V	-	64	-	32	0°C ~ 70°C (TA)	Surface Mount
	ATF1508ASL-20JC84 EE PLD, 20NS, 128-CELL, PQCC84 Atmel	2,746	1.00	FFQ	Datasheet	84-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	20 ns	4.75V ~ 5.25V	-	128	-	64	0°C ~ 70°C (TA)	Surface Mount
	ATF1508AS-15AC100 EE PLD, 15NS, 128-CELL, PQFP100 Atmel	2,698	1.00	FFQ	Datasheet	100-TQFP	Tray	ATF15xx	Obsolete	In System Programmable (min 10K program/erase cycles)	15 ns	4.75V ~ 5.25V	-	128	-	80	0°C ~ 70°C (TA)	Surface Mount
	ATF1500A-15JC FLASH PLD, 15NS, 32-CELL, CMOS Atmel	2,167	1.00	FFQ	Datasheet	44-LCC (J-Lead)	Tube	ATF15xx	Obsolete	In System Programmable (min 100 program/erase cycles)	15 ns	4.75V ~ 5.25V	-	32	-	32	0°C ~ 70°C (TA)	Surface Mount
	ATF1508ASV-15AU100 ATF1528 - EE PLD, 15NS,128-CELL Atmel	8,193	1.00	FFQ	Datasheet	100-TQFP	Bulk	ATF15xx	Active	In System Programmable (min 10K program/erase cycles)	15 ns	3V ~ 3.6V	-	128	-	80	-40°C ~ 85°C (TA)	Surface Mount
	ATF750CL-15JU ATF750 - EE PLD, 15NS, 10-CELL Atmel	9,855	1.00	FFQ	Datasheet	28-LCC (J-Lead)	Bulk	ATF750C(L)	Active	EE PLD	15 ns	4.5V ~ 5.5V	-	10	-	10	-40°C ~ 85°C (TA)	Surface Mount

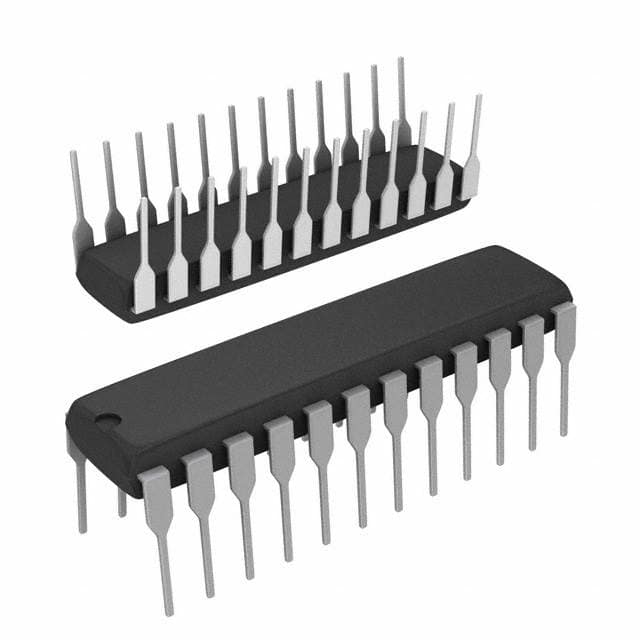

	ATF750C-7PX ATF750 - EE PLD, 7.5NS, 10-CELL Atmel	7,248	1.00	FFQ	Datasheet	24-DIP (0.300, 7.62mm)	Bulk	ATF750C(L)	Active	EE PLD	7.5 ns	4.75V ~ 5.25V	-	10	-	10	0°C ~ 70°C (TA)	Through Hole
	ATF1504ASV-15AU44 ATF1504 - EE PLD, 10NS, 64-CELL Atmel	5,273	1.00	FFQ	Datasheet	44-TQFP	Bulk	ATF15xx	Active	In System Programmable (min 10K program/erase cycles)	15 ns	3V ~ 3.6V	-	64	-	32	-40°C ~ 85°C (TA)	Surface Mount
	ATF1502AS-10AU44 ATF1502 - EE PLD, 10NS, 32-CELL Atmel	6,404	1.00	FFQ	Datasheet	44-TQFP	Bulk	ATF15xx	Active	In System Programmable (min 10K program/erase cycles)	10 ns	4.5V ~ 5.5V	-	32	-	32	-40°C ~ 85°C (TA)	Surface Mount
