Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

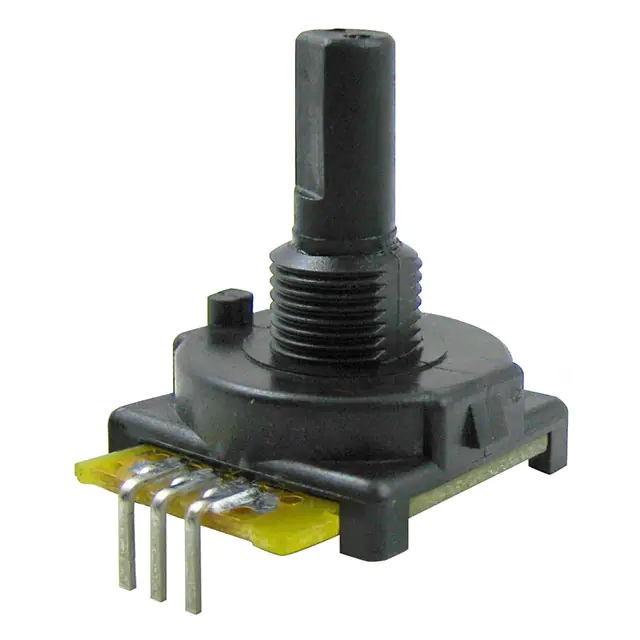

	510E1A48F416PB ROTARY ENCODER MECHANICAL 16PPR Honeywell Sensing and Productivity Solutions	2,117	12.65	FFQ	Datasheet	Box	510	Obsolete	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

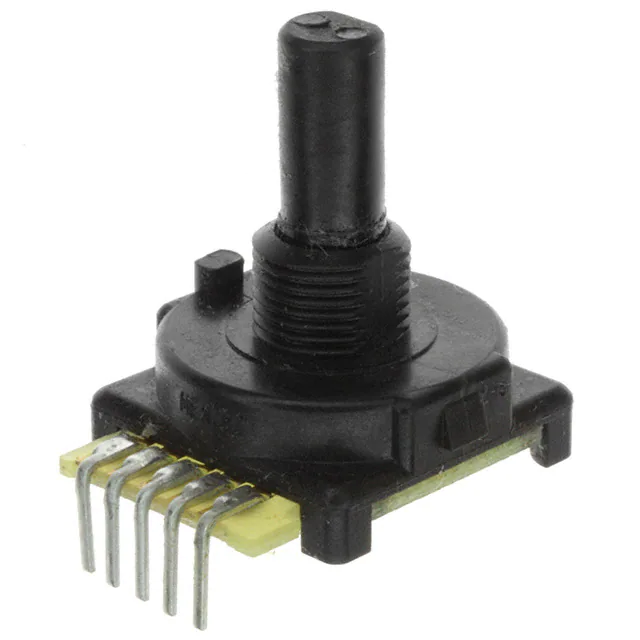

	510E1A48F416PC ROTARY ENCODER MECHANICAL 16PPR Honeywell Sensing and Productivity Solutions	2,616	20.83	FFQ	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

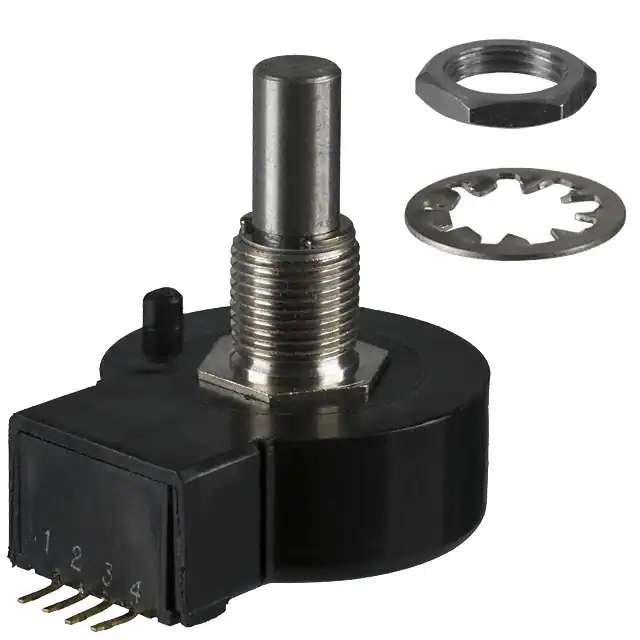

	600128B66 ROTARY ENCODER OPTICAL 128PPR Honeywell Sensing and Productivity Solutions	3,115	0.00	FFQ		Bulk	600	Obsolete	Optical	Quadrature (Incremental)	128	5V	1/4 Dia Round End	No	No	Panel, PCB Through Hole	Right Angle	PC Pin

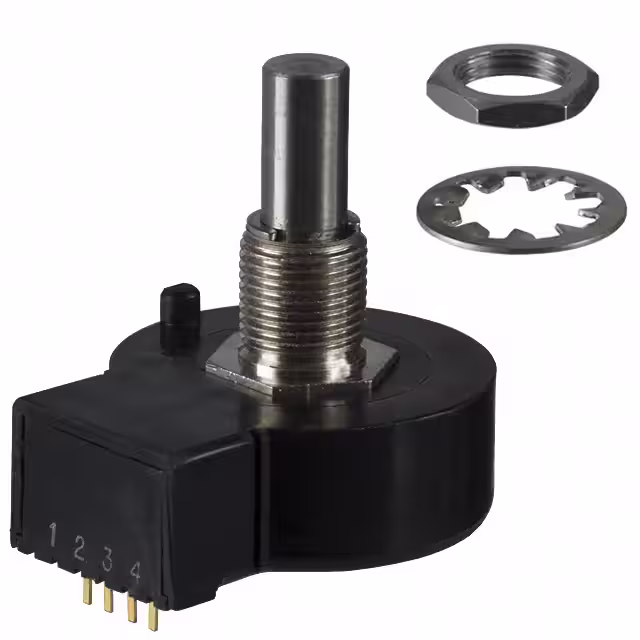

	600128C24 ROTARY ENCODER OPTICAL 128PPR Honeywell Sensing and Productivity Solutions	2,218	0.00	FFQ	Datasheet	Bulk	600	Obsolete	Optical	Quadrature (Incremental)	128	5V	1/4 Dia Round End	No	No	Panel, PCB Through Hole	Vertical	PC Pin
	510E1A48F204PB ROTARY ENCODER MECHANICAL 4PPR Honeywell Sensing and Productivity Solutions	3,920	0.00	FFQ	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	4	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

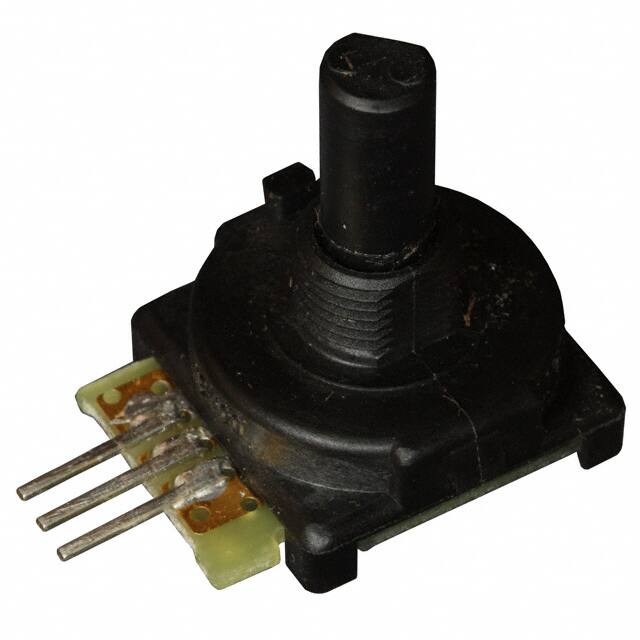

	510E1A48F206PB ROTARY ENCODER MECHANICAL 6PPR Honeywell Sensing and Productivity Solutions	2,403	0.00	FFQ	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	6	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

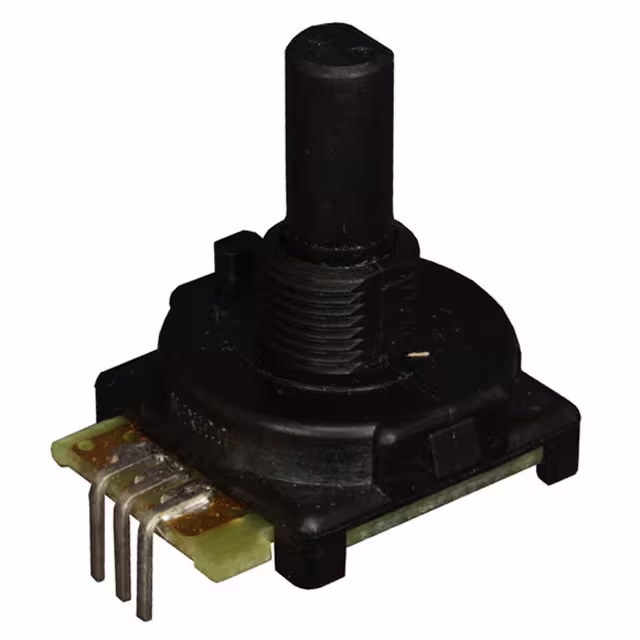

	510E1A48F206PC ROTARY ENCODER MECHANICAL 6PPR Honeywell Sensing and Productivity Solutions	2,254	0.00	FFQ	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	6	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
	510E1A48F209PB ROTARY ENCODER MECHANICAL 9PPR Honeywell Sensing and Productivity Solutions	2,720	22.21	FFQ	Datasheet	Bulk,Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	9	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
	510E1A48F209PC ROTARY ENCODER MECHANICAL 9PPR Honeywell Sensing and Productivity Solutions	2,063	0.00	FFQ	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	9	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

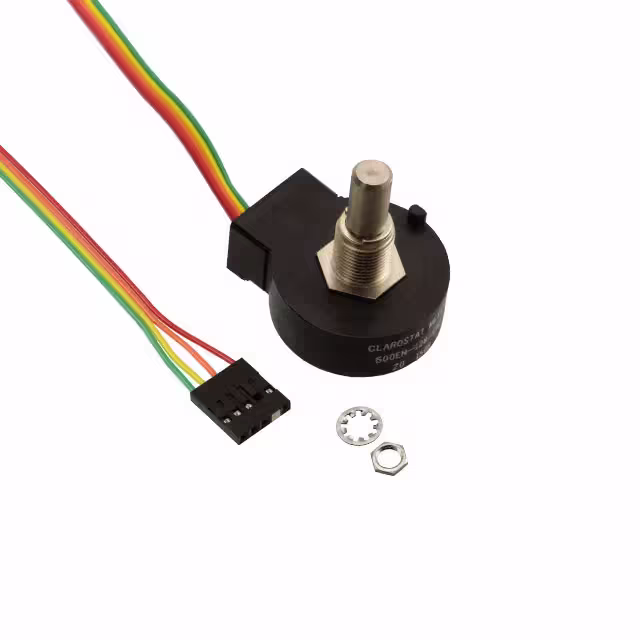

	600128CN1 ROTARY ENCODER OPTICAL 128PPR Honeywell Sensing and Productivity Solutions	2,788	0.00	FFQ	Datasheet	Bulk	600	Obsolete	Optical	Quadrature (Incremental)	128	5V	1/4 Dia Round End	No	No	Panel, PCB Through Hole	Vertical	Cable with Connector
	510E1A48F204PC ROTARY ENCODER MECHANICAL 4PPR Honeywell Sensing and Productivity Solutions	3,443	0.00	FFQ	Datasheet	Box	510	Obsolete	Mechanical	Gray Code (Absolute)	4	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

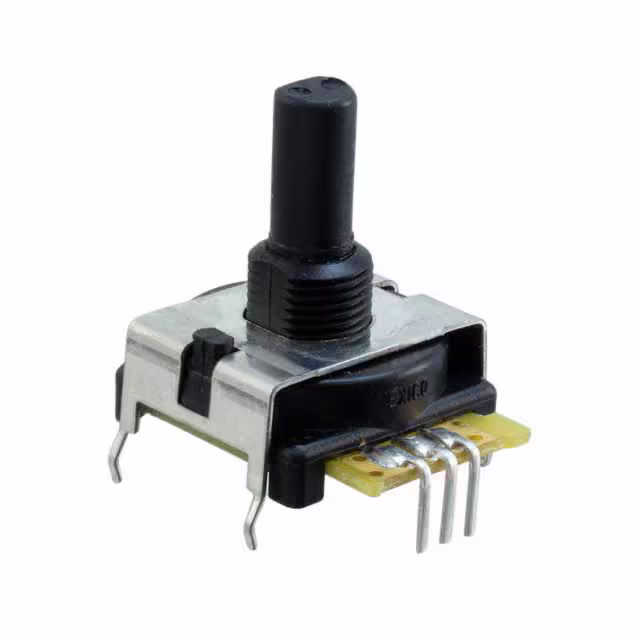

	510E1A48F204PD ROTARY ENCODER MECHANICAL 4PPR Honeywell Sensing and Productivity Solutions	3,195	0.00	FFQ	Datasheet	Box	510	Obsolete	Mechanical	Gray Code (Absolute)	4	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
	600128CB POTENTIOMETER Honeywell Sensing and Productivity Solutions	3,389	0.00	FFQ		Bulk	*	Obsolete	-	-	-	-	-	-	-	-	-	-
