Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

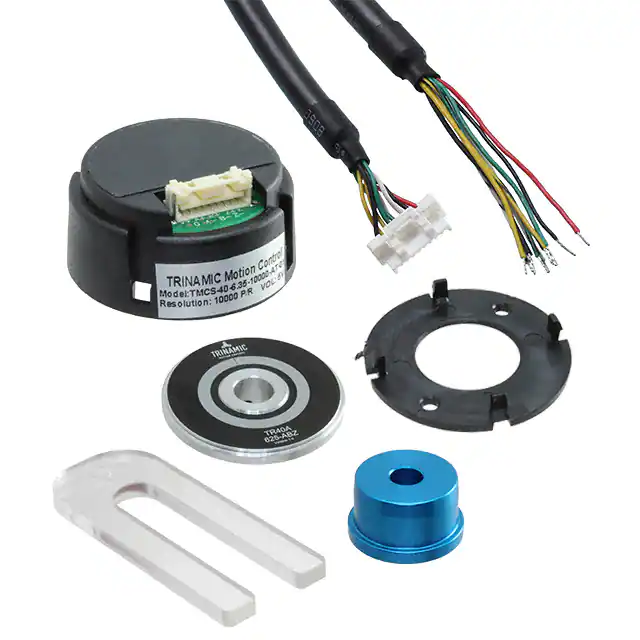

	TMCS-40-10K-KIT ROTARY ENCODER OPTICAL 10000PPR Trinamic Motion Control GmbH	700	106.56	FFQ		Bulk	-	Active	Optical	TTL	10000	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header
	TMCS-20-8K-KIT ROTARY ENCODER OPTICAL 8192PPR Trinamic Motion Control GmbH	3,598	96.02	FFQ	Datasheet	Bulk	-	Active	Optical	TTL	8192	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

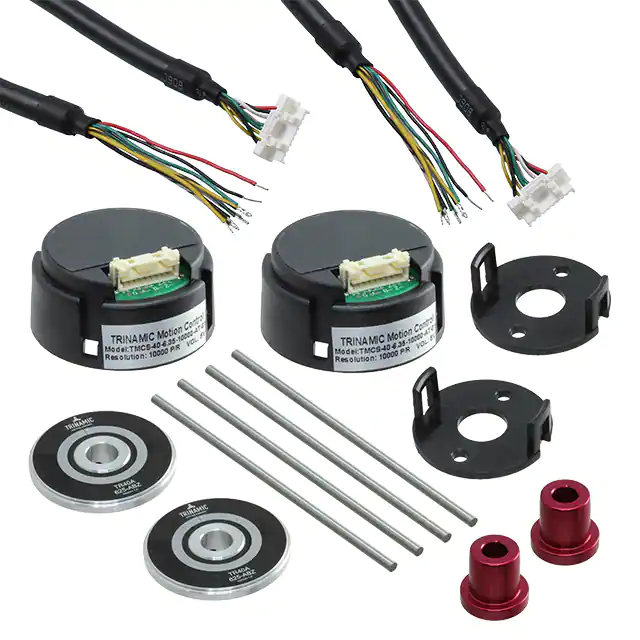

	TMCS-28-10K-KIT ROTARY ENCODER OPTICAL 10000PPR Trinamic Motion Control GmbH	605	182.87	FFQ	Datasheet	Bulk	-	Active	Optical	TTL	10000	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

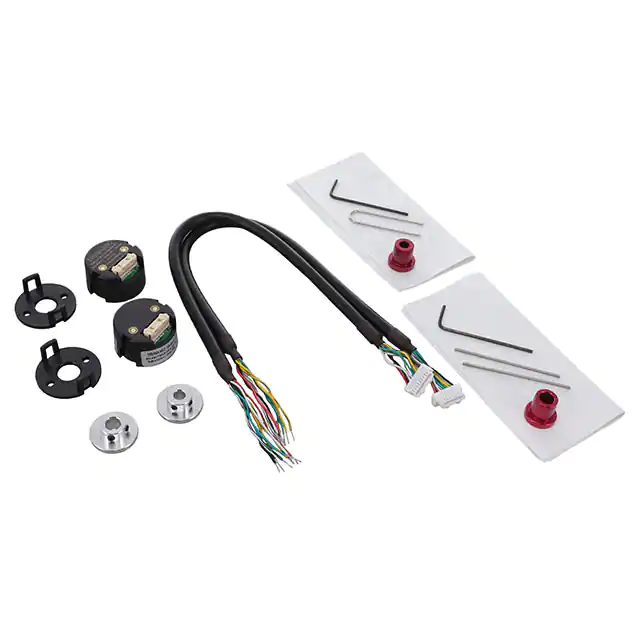

	TMCS-28-1K-KIT OPTICAL ENCODER STARTER KIT A/B/ Trinamic Motion Control GmbH	504	149.93	FFQ	Datasheet	Bulk	-	Active	Optical	TTL	1024	4.5V ~ 5.5V	Hole for Shaft	No	No	-	Right Angle	Pin Header

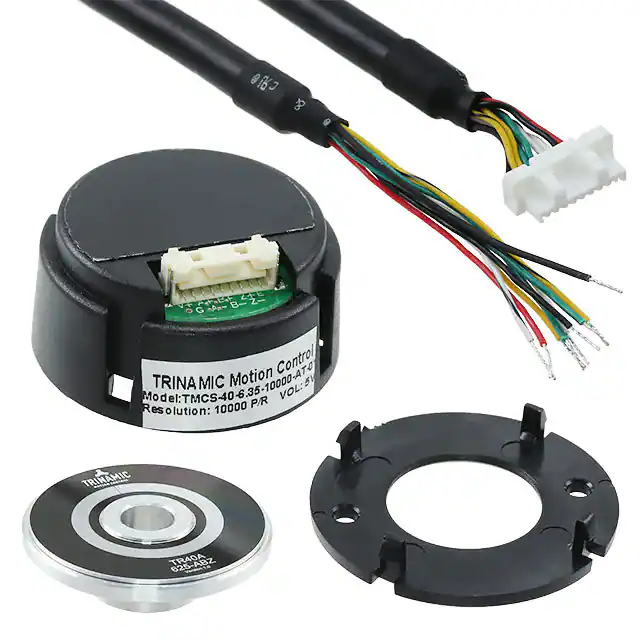

	TMCS-40-6.35-10000-AT-01 ROTARY ENCODER OPTICAL 10000PPR Trinamic Motion Control GmbH	11,892	0.00	FFQ		Bulk	-	Discontinued at Mosen	Optical	TTL	10000	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

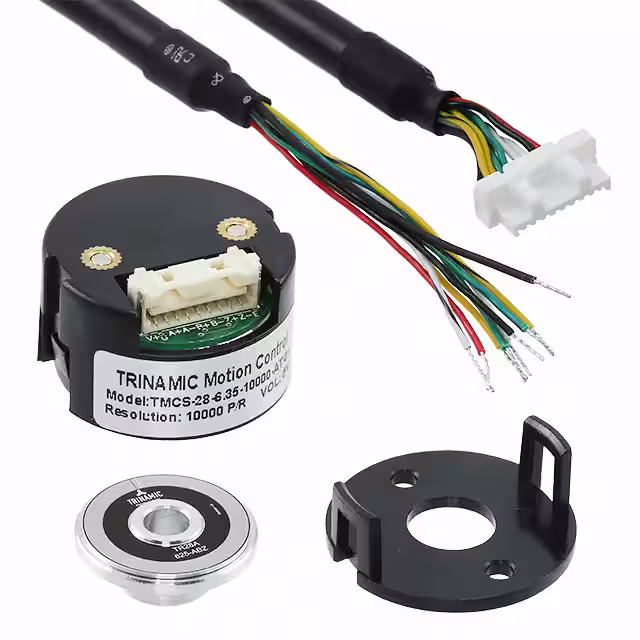

	TMCS-28-6.35-10000-AT-01 ROTARY ENCODER OPTICAL 10000PPR Trinamic Motion Control GmbH	14,366	0.00	FFQ	Datasheet	Bulk	-	Discontinued at Mosen	Optical	TTL	10000	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

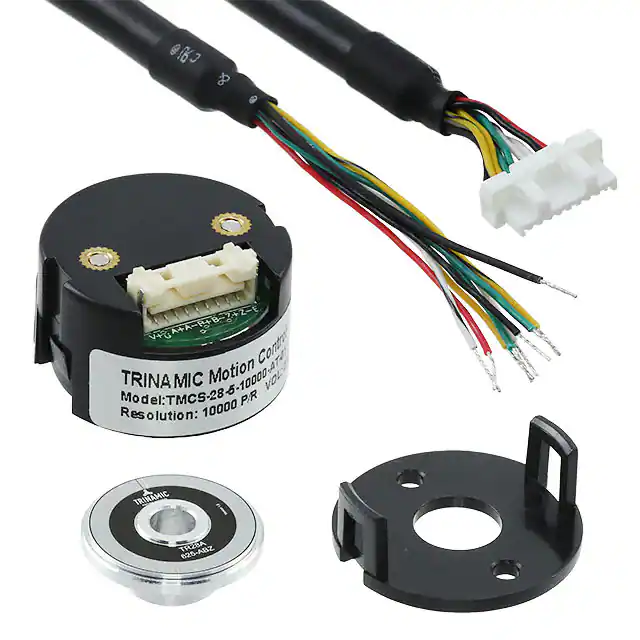

	TMCS-28-5-10000-AT-01 ROTARY ENCODER OPTICAL 10000PPR Trinamic Motion Control GmbH	11,154	0.00	FFQ	Datasheet	Bulk	-	Discontinued at Mosen	Optical	TTL	10000	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

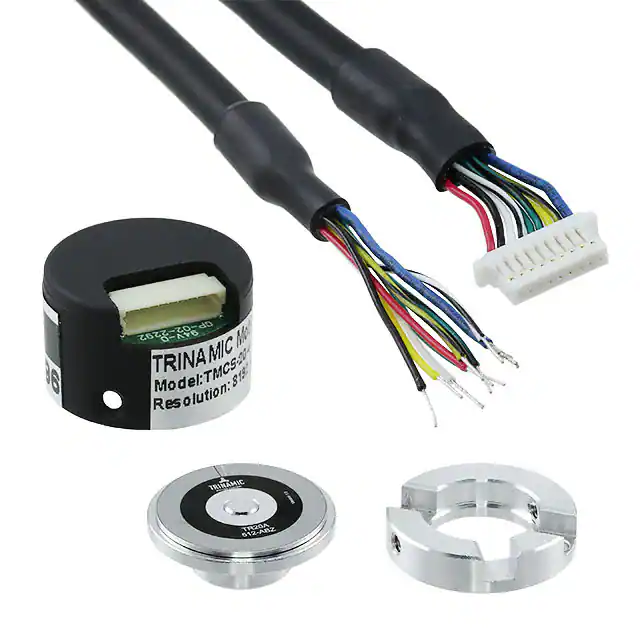

	TMCS-20-4-8192-AT-01 ROTARY ENCODER OPTICAL 8192PPR Trinamic Motion Control GmbH	12,673	0.00	FFQ		Bulk	-	Discontinued at Mosen	Optical	TTL	8192	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header
	TMCS-28-5-1024-AT-01 HIGH RES OPTICAL ENCODER A/B/N 4 Trinamic Motion Control GmbH	14,280	0.00	FFQ	Datasheet	Bulk	-	Discontinued at Mosen	Optical	TTL	1024	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header

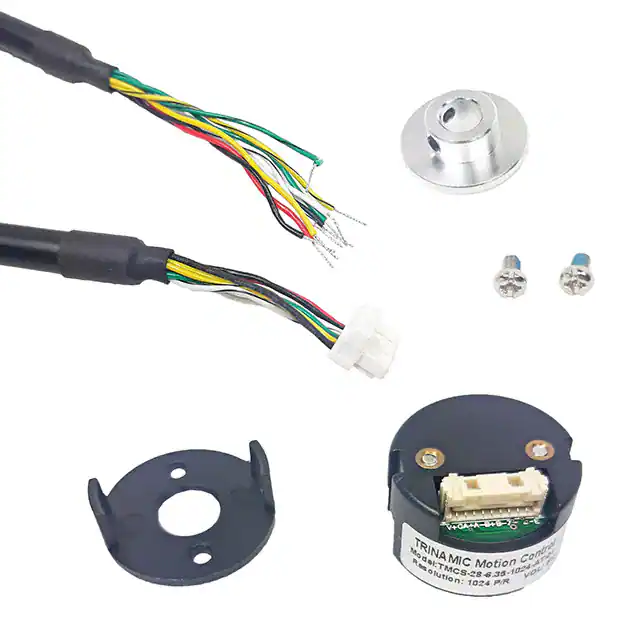

	TMCS-28-6.35-1024-AT-01 HIGH RES OPTICAL ENCODER A/B/N 4 Trinamic Motion Control GmbH	13,150	0.00	FFQ	Datasheet	Bulk	-	Discontinued at Mosen	Optical	TTL	1024	4.5V ~ 5.5V	Shaft	No	No	Chassis Mount	Vertical	Pin Header
