Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Current-Output/Channel	OutputsandType	Voltage-Output	Features	Voltage-Input	SuppliedContents

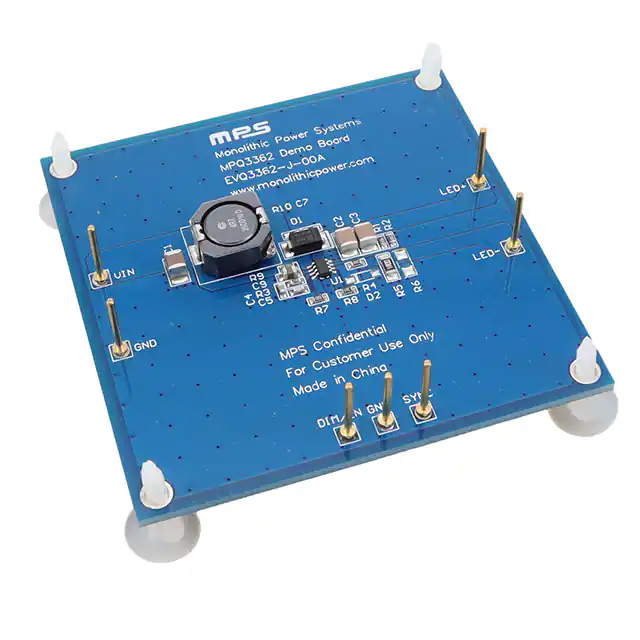

	EVQ3362-J-00A EVAL BOARD FOR MPQ3362 Monolithic Power Systems Inc.	2,553	50.00	FFQ	Datasheet	Box	-	Active	200mA	1, Non-Isolated	40V	Dimmable	3V ~ 36V	Board(s)

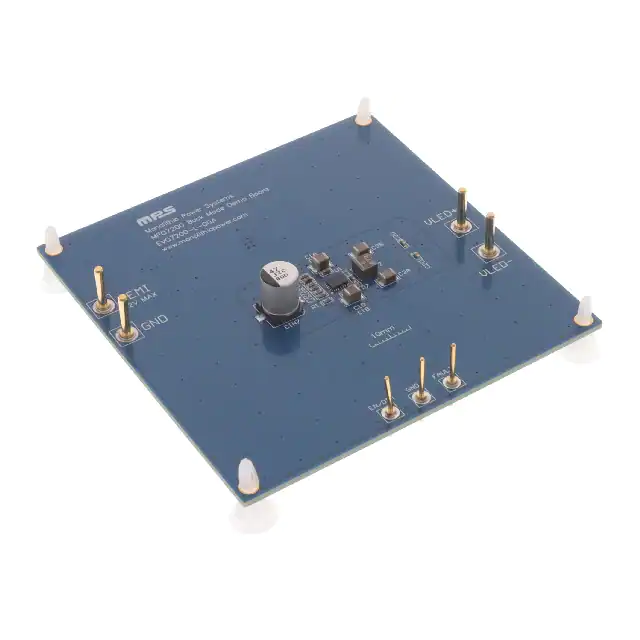

	EVQ7200-L-00A 42V, 3A SYNCHRONOUS, BUCK MODE L Monolithic Power Systems Inc.	4,796	50.00	FFQ	Datasheet	Box	-	Active	3A	1, Non-Isolated	-	Dimmable	6V ~ 42V	Board(s)
	EV3363-J-00A EVAL BOARD FOR MP3363 Monolithic Power Systems Inc.	3,323	50.00	FFQ	Datasheet	Box	-	Active	40mA	1, Non-Isolated	36V	Dimmable	1.8V ~ 36V	Board(s)
	EVQ3326-R-00A EVAL BOARD FOR MPQ3326 Monolithic Power Systems Inc.	4,237	75.00	FFQ		Box	-	Active	50mA	16, Non-Isolated	-	Dimmable	4V ~ 16V	Board(s), Cable(s)
	EVQ3367A-R-00A EVAL BOARD FOR MPQ3367A Monolithic Power Systems Inc.	4,143	100.00	FFQ	Datasheet	Box	-	Active	150mA	6, Non-Isolated	50V	Dimmable	3.5V ~ 36V	Board(s)

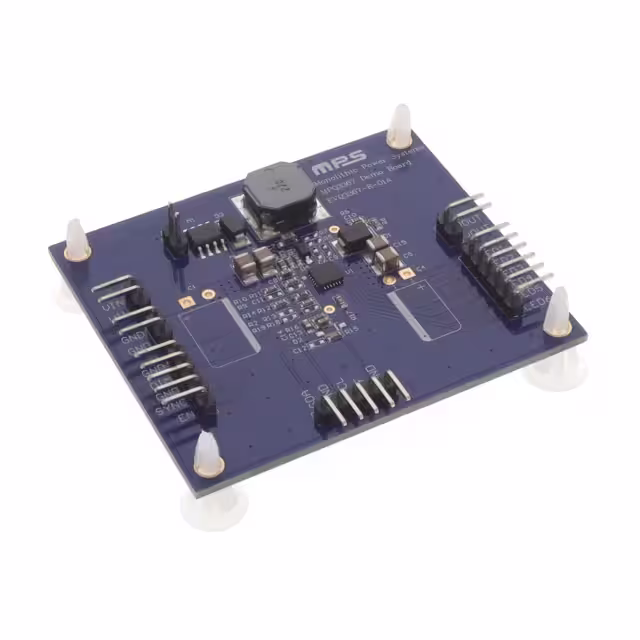

	EVQ3367-R-01A EVAL BOARD FOR MPQ3367 Monolithic Power Systems Inc.	4,033	100.00	FFQ	Datasheet	Box	-	Active	150mA	6, Non-Isolated	50V	Dimmable	3.5V ~ 36V	Board(s)

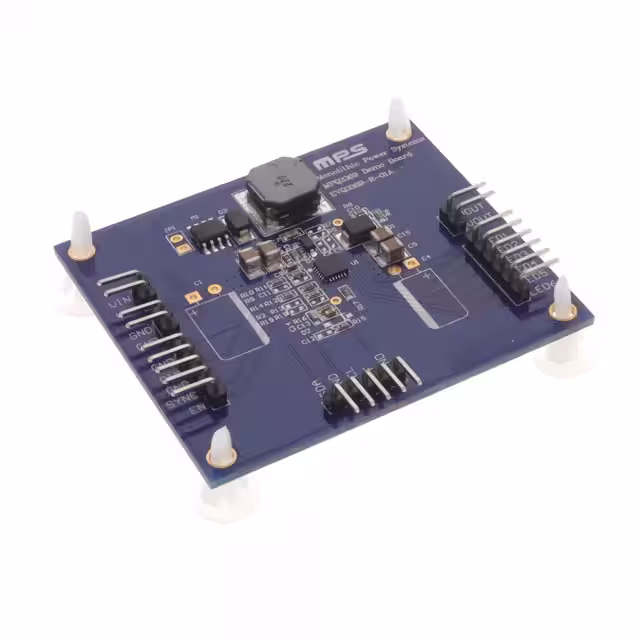

	EVQ3369-R-01A EVAL BOARD FOR MPQ3369 Monolithic Power Systems Inc.	2,737	100.00	FFQ	Datasheet	Box	-	Active	100mA	6, Non-Isolated	50V	Dimmable	3.5V ~ 36V	Board(s)

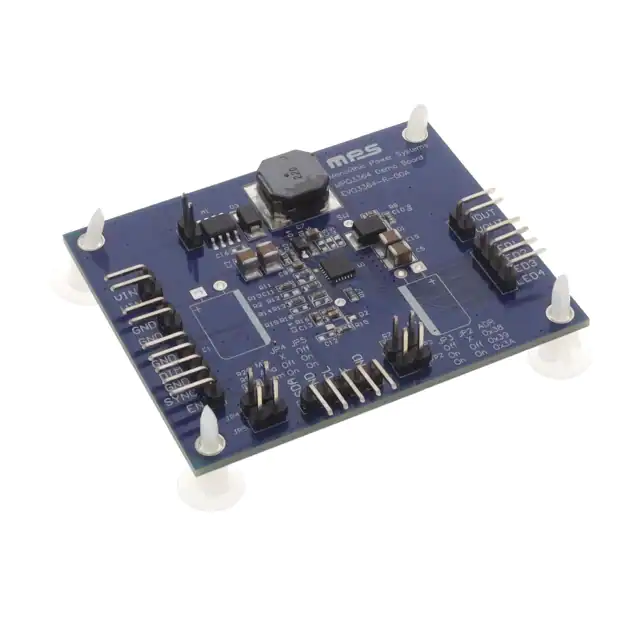

	EVQ3364-R-00A EVAL BOARD FOR MPQ3364 Monolithic Power Systems Inc.	4,585	100.00	FFQ	Datasheet	Box	-	Active	150mA	4, Non-Isolated	50V	Dimmable	3.5V ~ 36V	Board(s)
	EVQ4425A-QB-00A HIGH EFFICIENCY 1.5A, 36V, 2.2MH Monolithic Power Systems Inc.	4,871	50.00	FFQ	Datasheet	Box	-	Active	1.5A	1, Non-Isolated	-	Dimmable	4V ~ 36V	Board(s)
	EVQ3369-R-00A 6 CHANNELS, MAX.100MA/CH BOOST W Monolithic Power Systems Inc.	2,943	100.00	FFQ	Datasheet	Box	-	Active	50mA	6, Non-Isolated	-	Dimmable	3.5V ~ 36V	Board(s)

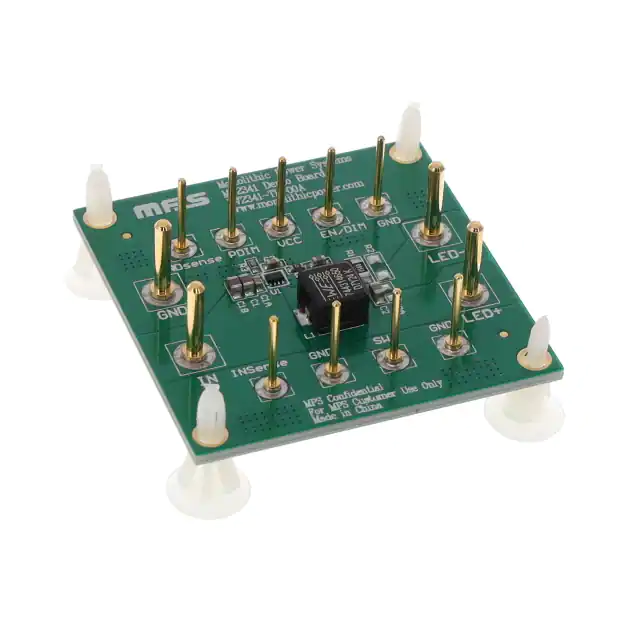

	EV2341-TL-00A HIGH-EFFICIENCY, SYNCHRONOUS STE Monolithic Power Systems Inc.	4,728	25.00	FFQ	Datasheet	Box	-	Active	2A	1, Non-Isolated	5.9V	Dimmable	8V ~ 24V	Board(s)
	EV3372-R-00A 8-CHANNEL, SYNCHRONOUS BOOST WLE Monolithic Power Systems Inc.	4,846	50.00	FFQ	Datasheet	Box	-	Active	50mA	8, Non-Isolated	45V	Dimmable	3V ~ 30V	Board(s)

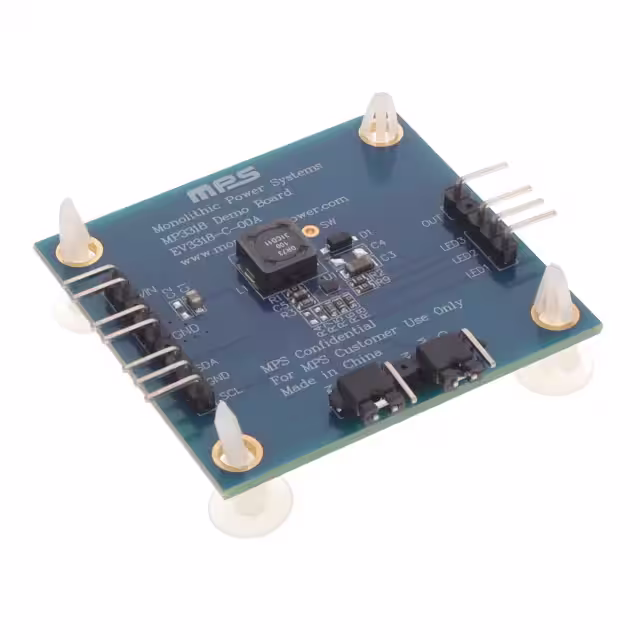

	EV3318-C-00A EVAL BOARD FOR MP3318 Monolithic Power Systems Inc.	3,363	45.00	FFQ	Datasheet	Box	-	Active	25mA	3, Non-Isolated	38V	Dimmable	2.7V ~ 5.5V	Board(s)
