Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Current-Output/Channel	OutputsandType	Voltage-Output	Features	Voltage-Input	SuppliedContents

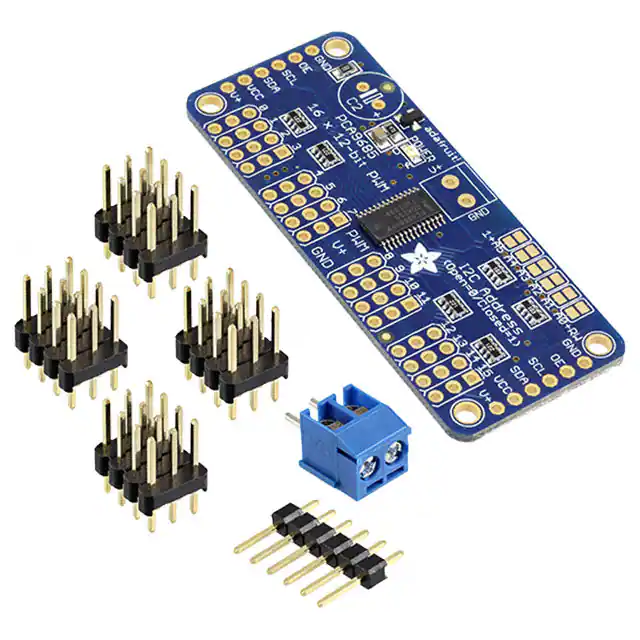

	815 EVAL BOARD 16CH 12BIT PWM Adafruit Industries LLC	2,742	14.95	FFQ	Datasheet	Box	-	Active	-	16, Non-Isolated	-	I²C	3V ~ 5V	Board(s)

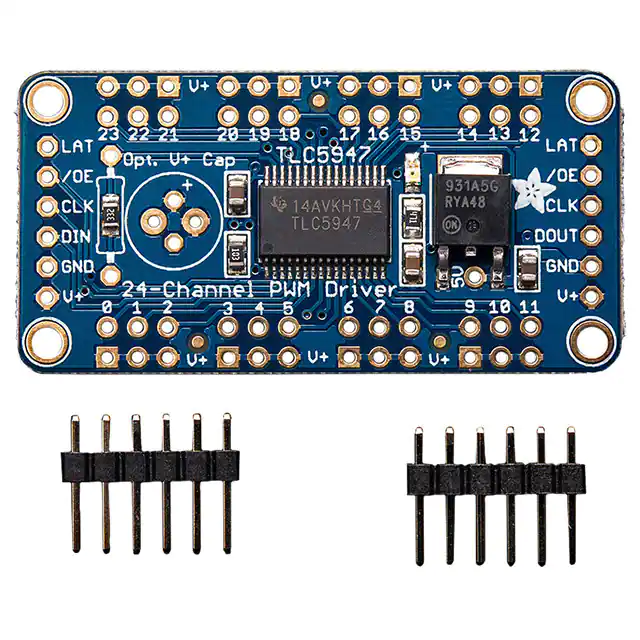

	1429 BREAKOUT PWM LED DVR SPI 24CH Adafruit Industries LLC	2,585	14.95	FFQ	Datasheet	Bulk	-	Active	-	24, Non-Isolated	-	SPI digital interface	5V ~ 24V	Board(s)

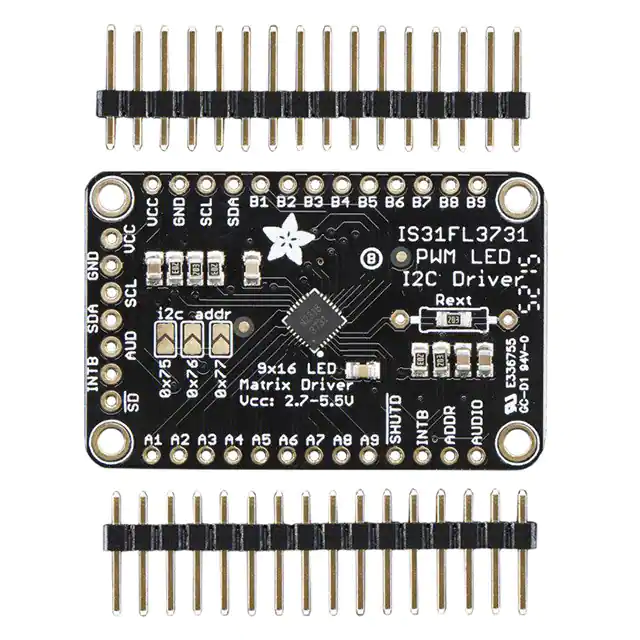

	2946 ADAFRUIT 16X9 CHARLIEPLEXED PWM Adafruit Industries LLC	9,981	5.95	FFQ	Datasheet	Bulk	-	Active	-	-	-	Dimmable	2.7V ~ 5.5V	Board(s)

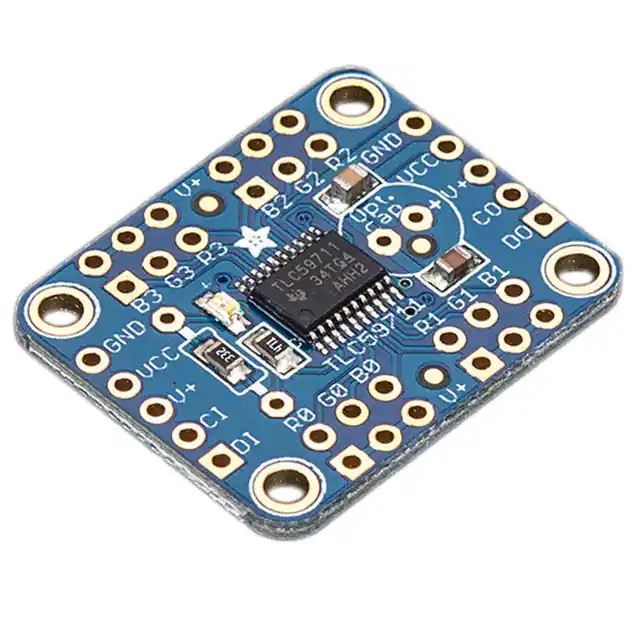

	1455 EVAL BOARD LED DRIVER Adafruit Industries LLC	9,951	7.50	FFQ	Datasheet	Box	-	Active	-	12, Non-Isolated	-	SPI digital interface	3V ~ 5V	Board(s)

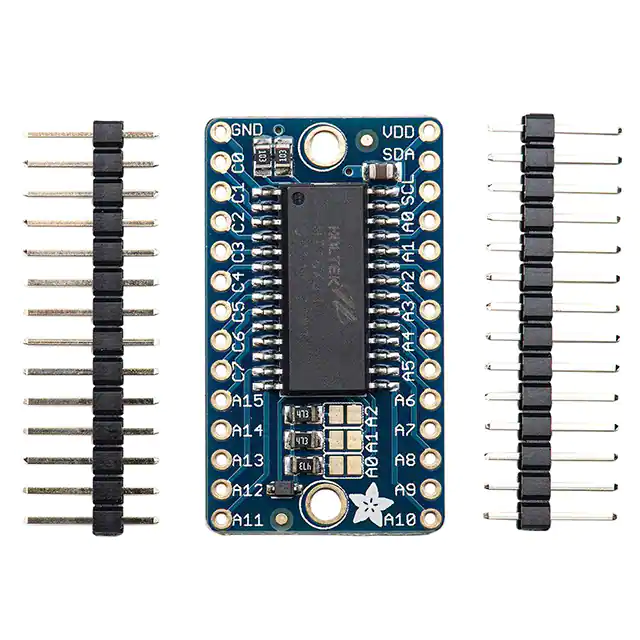

	1427 16X8 LED MATRIX DRIVER BACKPACK Adafruit Industries LLC	7,819	7.95	FFQ	Datasheet	Bulk	-	Active	-	16, Non-Isolated	-	I²C	-	Board(s)

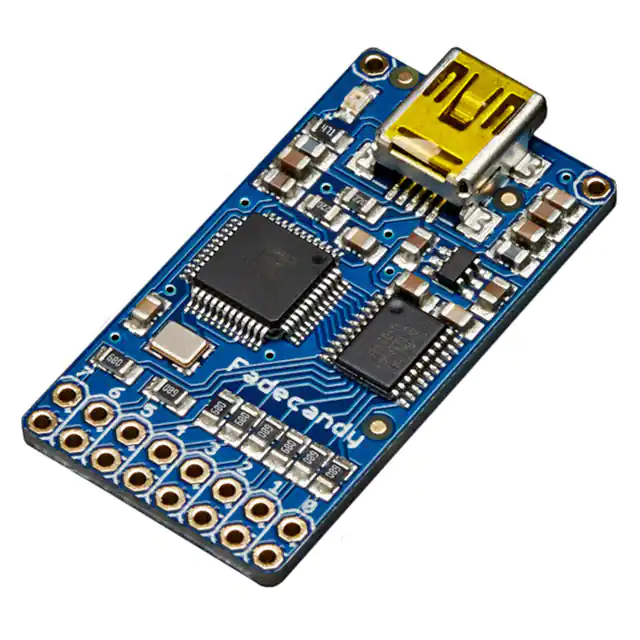

	1689 FADECANDY USB CTRL DVR NEOPIXEL Adafruit Industries LLC	3,851	0.00	FFQ	Datasheet	Bulk	Neopixel	Obsolete	-	8, Non-Isolated	-	-	-	Board(s)
	1453 LED VIDEO WALL CONTROLLER SET Adafruit Industries LLC	2,335	0.00	FFQ		Bulk	-	Obsolete	10mA, 30mA	8, Non-Isolated	-	-	5V	Board(s)
