Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension

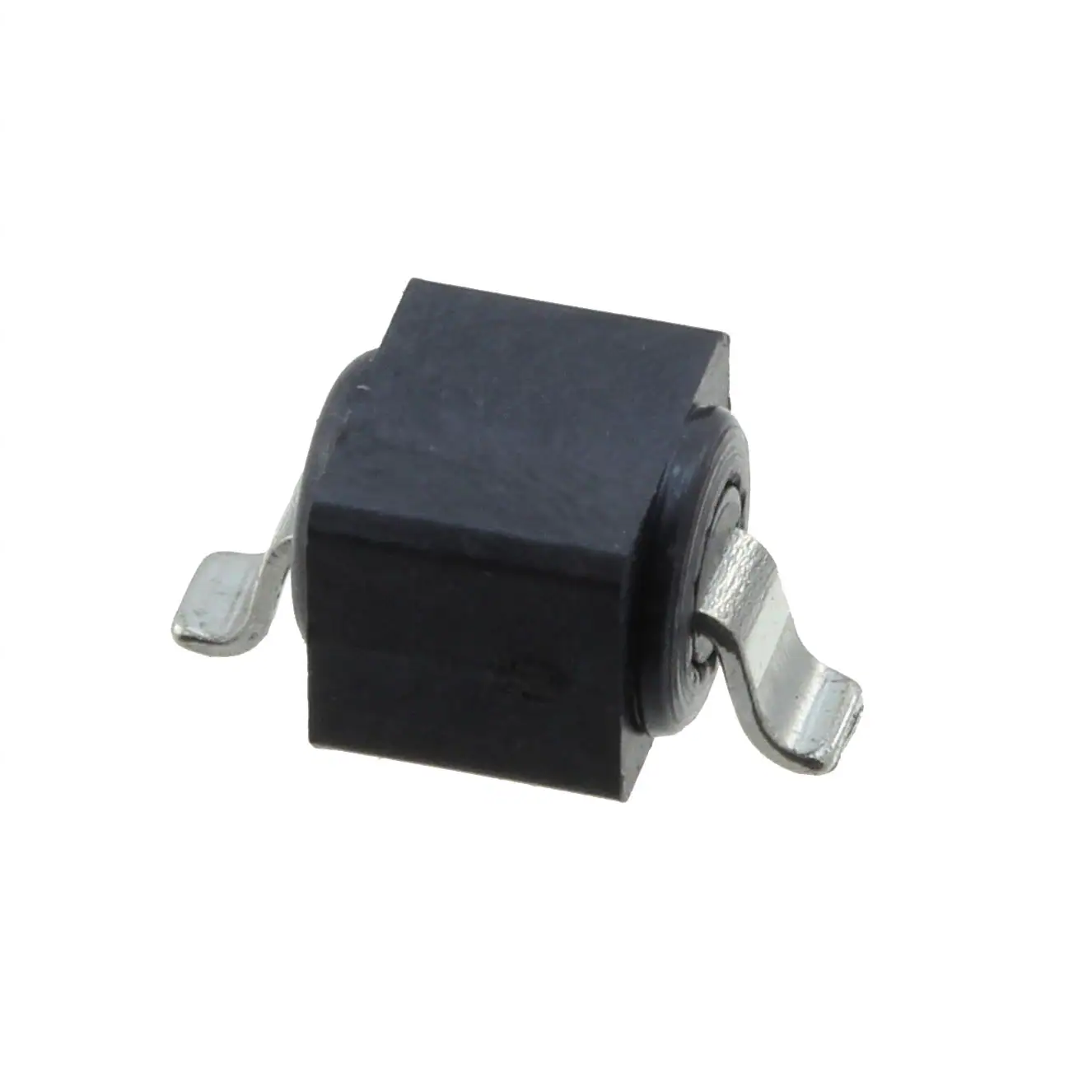

	AB 3X2X3SM FERRITE BEAD 2SMD GW 1LN Toshiba Semiconductor and Storage	5,683	1.60	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Amobeads®	Active	-	1	-	6A (Typ)	-	-	-	Surface Mount	0.169 (4.30mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)

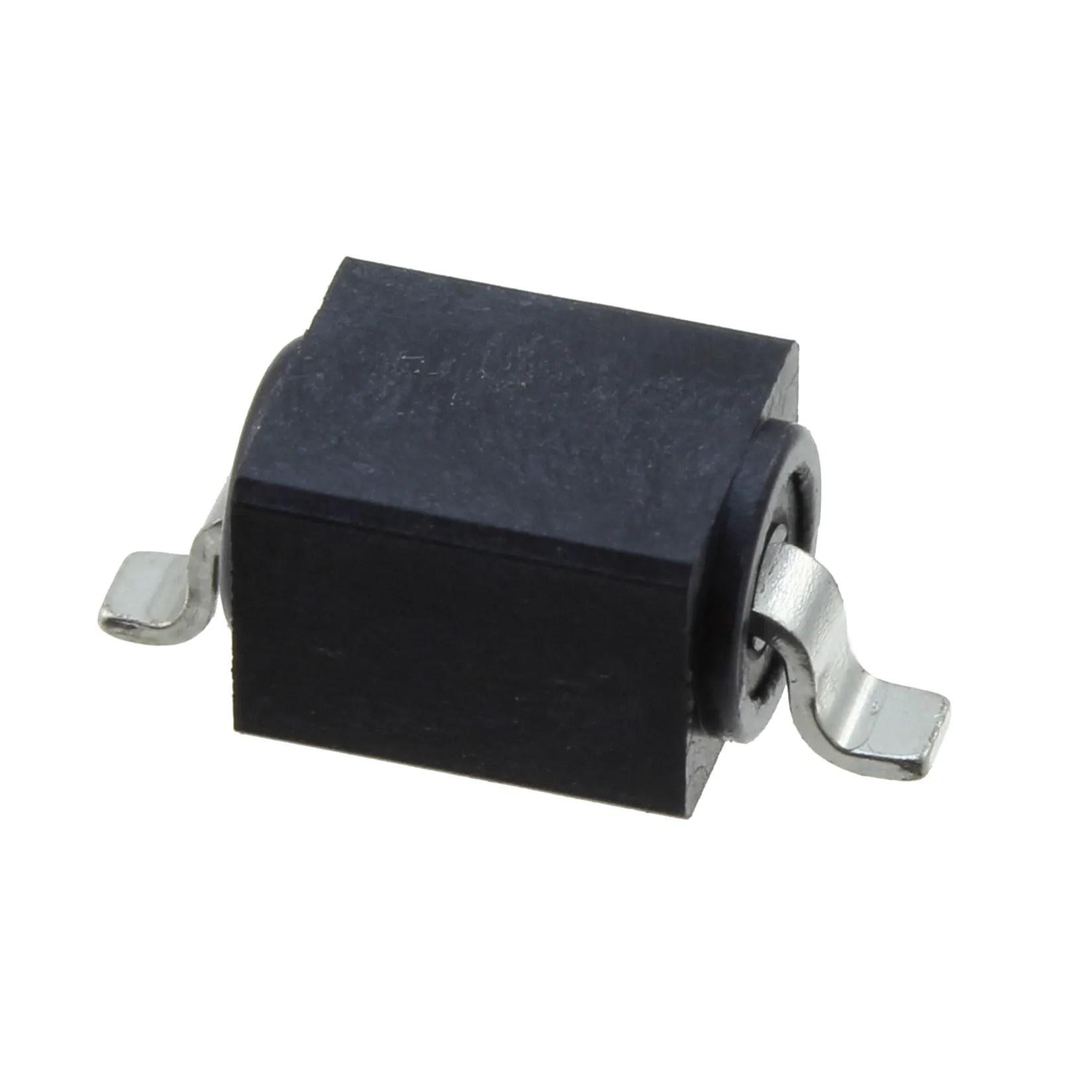

	AB4X2X6SM FERRITE BEAD 2SMD GW 1LN Toshiba Semiconductor and Storage	8,118	1.69	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Amobeads®	Active	-	1	-	9A (Typ)	-	-	-	Surface Mount	0.209 (5.30mm)	0.315 L x 0.236 W (8.00mm x 6.00mm)

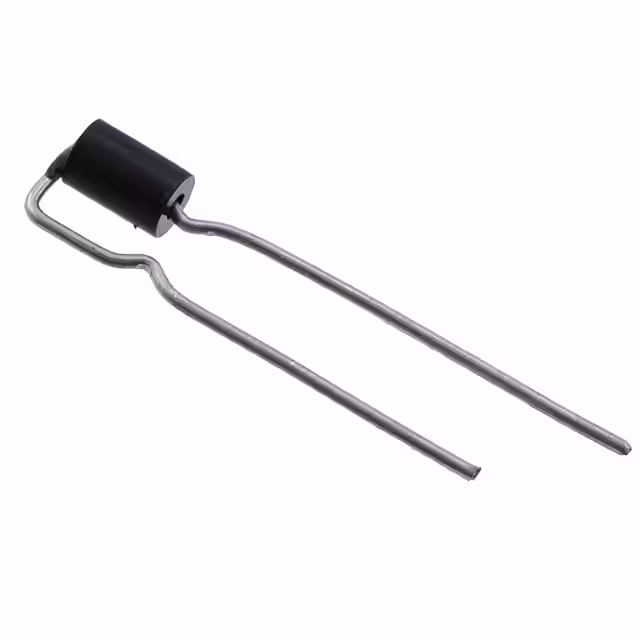

	LB 2.8X4.5U FERRITE BEAD AXIAL 1LN Toshiba Semiconductor and Storage	10,335	0.23	FFQ		Cut Tape (CT),Tape & Box (TB)	Amobeads®	Active	-	1	-	5A (Typ)	-	-	-	Through Hole	-	-
	LB2.8X4.5U AMORPHOUS CORE - AMOBEAD Toshiba Semiconductor and Storage	14,577	0.23	FFQ		Tape & Box (TB)	LB	Active	-	3	-	-	-	-	-	Through Hole	-	-
	AB3X2X3SM AMORPHOUS CORE - AMOBEAD Toshiba Semiconductor and Storage	7,623	1.60	FFQ		Tape & Reel (TR),Cut Tape (CT)	AB	Active	-	3	-	-	-	-	-	Surface Mount	0.169 (4.30mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)

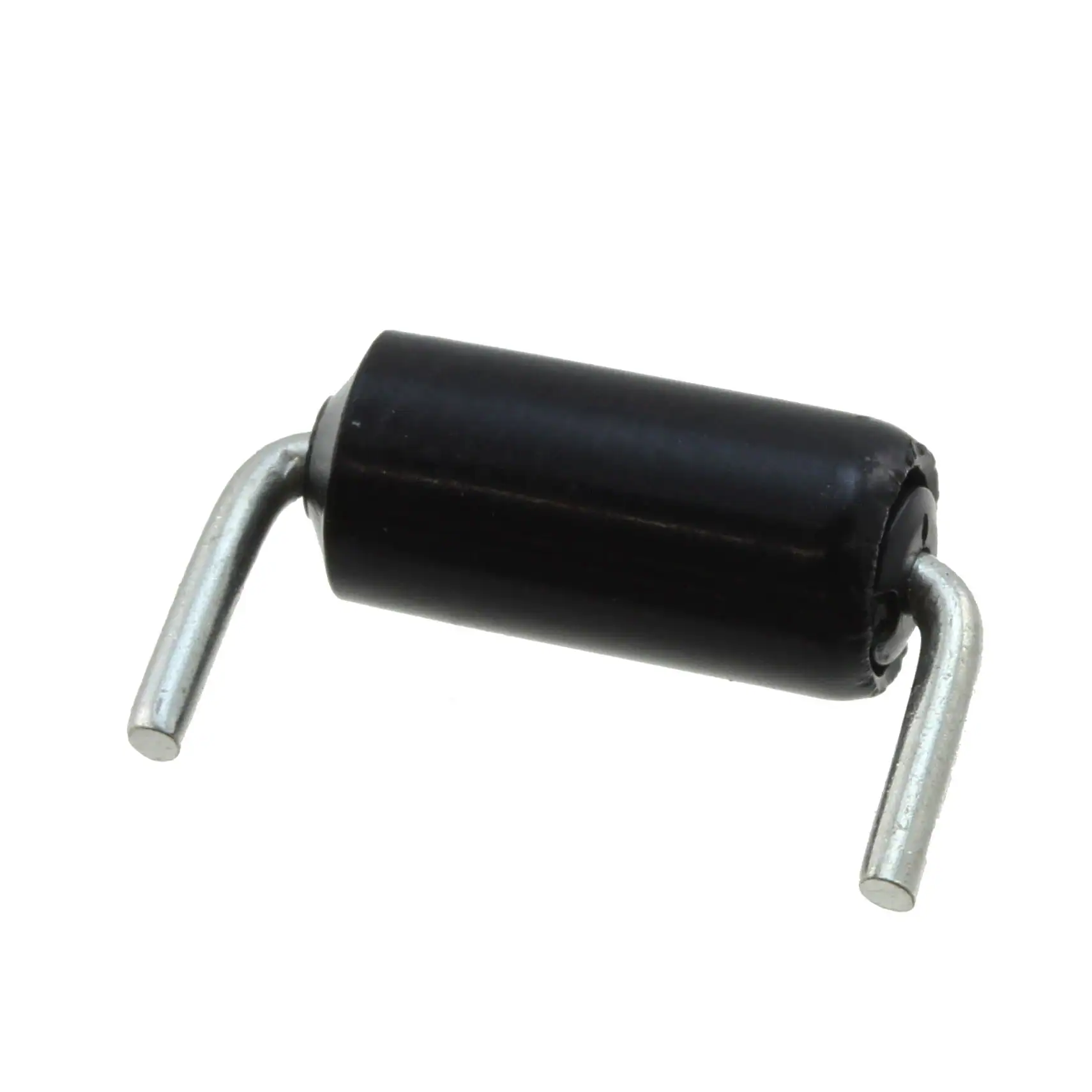

	LB 4X2X8F FERRITE BEAD AXIAL 1LN Toshiba Semiconductor and Storage	5,949	1.00	FFQ	Datasheet	Bulk	Amobeads®	Active	-	1	-	8A (Typ)	-	-	-	Through Hole	-	0.236 Dia x 0.472 L (6.00mm x 12.00mm)
	LB4X2X8F AMORPHOUS CORE - AMOBEAD Toshiba Semiconductor and Storage	6,876	1.00	FFQ		Bag	LB	Active	-	1	-	-	-	-	-	Through Hole	0.630 (16.00mm)	-

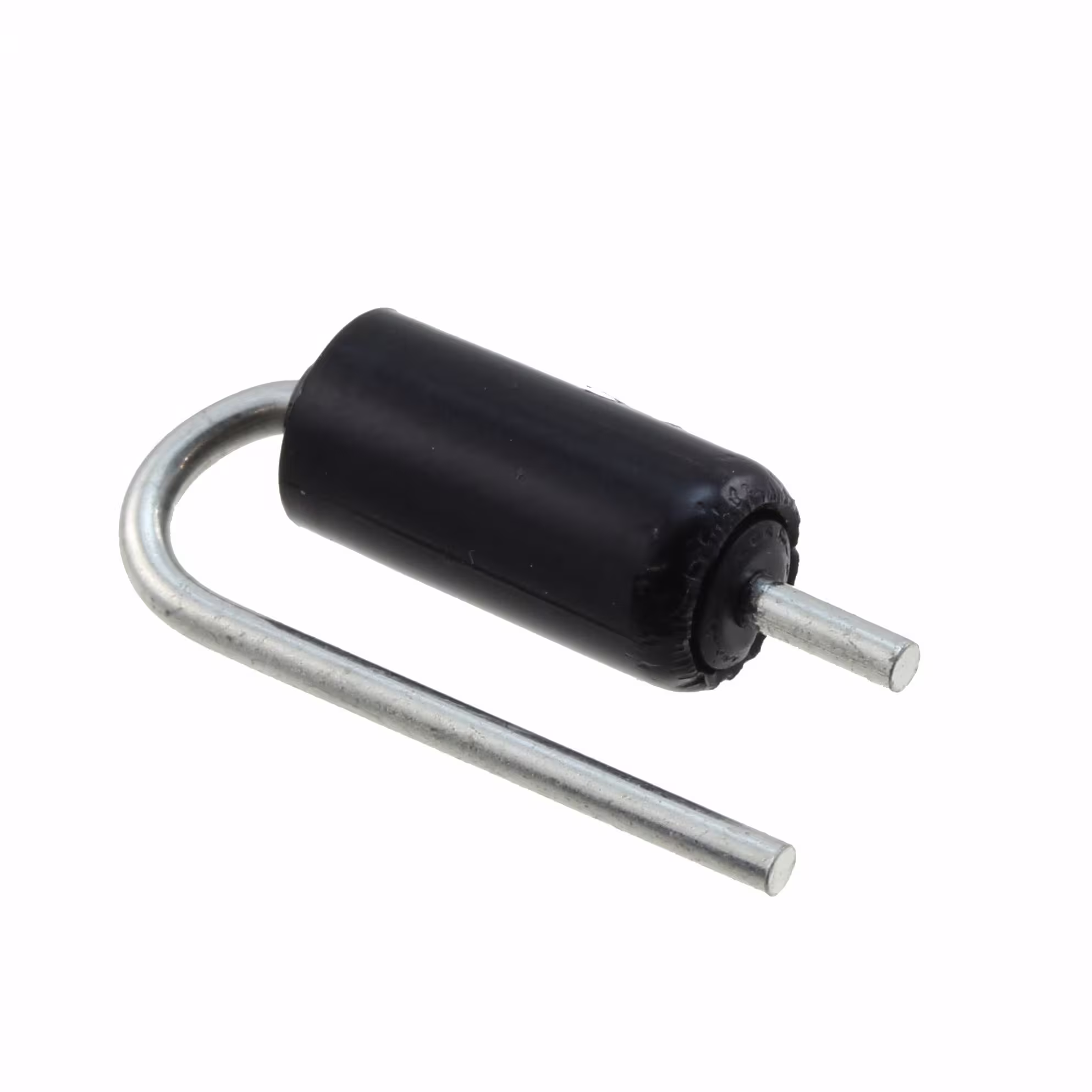

	LB4X2X8U FERRITE BEAD AXIAL 1LN Toshiba Semiconductor and Storage	7,038	1.21	FFQ	Datasheet	Bulk	Amobeads®	Active	-	1	-	8A (Typ)	-	-	-	Through Hole	-	0.236 Dia x 0.472 L (6.00mm x 12.00mm)
