Ferrite Beads and Chips

Manufacturer	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
Abracon LLC Allied Components International API Delevan Inc. Bourns Inc. CAL-CHIP ELECTRONICS, INC. Central Technologies Chilisin Electronics COILCRAFT Eaton - Electronics Division EPCOS - TDK Electronics Fair-Rite Products Corp. Ferroxcube INPAQ Technology Co., Ltd KEMET Laird-Signal Integrity Products Mag Layers Murata Electronics Panasonic Electronic Components Pulse Electronics Network Pulse Electronics Power Samsung Electro-Mechanics Shenzhen Sunlord Electronics Co., Ltd. Taiyo Yuden TDK Corporation TE Connectivity AMP Connectors TE Connectivity Passive Product Toshiba Semiconductor and Storage Viking Tech Vishay Dale Walsin Technology Corporation Würth Elektronik	- Bag Box Bulk Cut Tape (CT),Tape & Box (TB) Strip Tape & Box (TB) Tape & Reel (TR) Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tray Tube	* - 0402 0603 0805 0805RB 1206 1210 1612 1806 1812 2220 28 28C0236 28F 28L0138 29 29F 3312 35 35F 4211R 4212 4212R 4214 4214R 4221 4221R 4222 4222R AB ABBK ABGK ABNQ ABPY ABSJ ABSY ABUP ACB ACC ACML ACML-1206 ACML-H ACML-HC ACSB ACSB-05 ALFB Amobeads® AWBC B B-01 B-02 B-03 B-06 B82114 BBBK BBFJ BBFY BBGK BBHV BBNQ BBPY BBSJ BBSY BBUP BK BKH BKP BLE32P BLM BLM15E BLM15EG BLM15H BLM15P BLM18KG BLM18PG BLT BMB-A BMB-B BMB-B, Sigma Inductors BMB-L BMB-P BMB-R BMC CB CBM CIB05 CIB10 CIB21 CIB31 CIB32 CIB41 CIC05 CIC05Y CIC10 CIC21 CIC31 CIC41 CIM03 CIM05 CIM10 CIM21 CIM31 CIS CIS10P CIV05 ct274f CTCB CTCB060302F CTCBA1206F CTCBF CTWBF DA DM EMI0603R EMI0805 EMI0805R EMI1206 EMI1206R EMI1210R EMI1806R EMI1812 EMI1812R EMIFIL®, BL01RN EMIFIL®, BL02EN EMIFIL®, BL03RN EMIFIL®, BLA2 EMIFIL®, BLA31 EMIFIL®, BLE18 EMIFIL®, BLE32 EMIFIL®, BLF02 EMIFIL®, BLM02 EMIFIL®, BLM02A EMIFIL®, BLM03 EMIFIL®, BLM15 EMIFIL®, BLM18 EMIFIL®, BLM18H EMIFIL®, BLM21 EMIFIL®, BLM31 EMIFIL®, BLM41 EMIFIL®, BLM_P EMIFIL®, NFZ2MSM EMIFIL®, NFZ32BW EMIFIL®, NFZ5BBW EPZ EXC16CT EXC28B EXC3B EXCCL EXCEL EXCML FB FBA FBH FBU FL FP GMLB-100505-A GMLB-100505-SJ GMLB-160808-A GMLB-160808-GK GMLB-160808-L GMLB-160808-N2 GMLB-160808-N8 GMLB-160808-N8A GMLB-160808-P GMLB-160808-PY GMLB-160808-SJ GMLB-201209-A GMLB-201209-N8 GMLB-201209-P GMLB-201209-PY GMLB-321611-PY GZ GZ-C HF HF-ACB HF-ACC HFB HI HPZ HR HZ ILAS-1206 ILB-1206 ILBB-0402 ILBB-0603 ILBB-0805 ILBB-1210 ILBB-1806 ILBB-1812 ILHB KMZ-HR KPZ-HR LAMG LB LBMC LBMG LCMC LCMG LI LLMC LLMG LMMC LMMG LSMC LSMG MA MAF MCB05 MCB10 MDF MFBA2V1005 MFBA2V1608 MFBA2V2012 MFBM1V1005 MFBM1V1608 MFBM1V2012 MFBM1V3216 MFBW1V1005 MFBW1V1608 MFBW1V2012 MFBW1V3216 MG MH MHC-P MHC-S MHF MI MLB03 MLB05 MLB10 MMZ MMZ-E MMZ-H MMZ-HE MMZ-V MPZ MPZ-E MPZ-H MPZ-J MPZ-N MPZ-V MU MZ MZA NFZ PB PFB PM2000 PMC PMH PZ SMB2.5 SMB2.5R SZ TZ UCB04 UCB10 UCB15 UPZ VAF VFS WE-CBA WE-CBF WE-CBF HF WE-MLS WE-MPSA WE-MPSB WE-PBF WE-PF WE-SUKW WE-TMSB WE-UKW WRF Z-PMS Z-PWS Z-PWZ Z-SMS	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete	- Differential Mode - 2 Line Array Differential Mode - Single Power Line Power, Signal Line Signal Line	- 1 2 3 4 5 8	- 0 Ohms @ 100 MHz 1 kOhms @ 100 MHz 1 kOhms @ 2.4 GHz 1 kOhms @ 50 MHz 1 kOhms @ 70 MHz 1 kOhms @ 900 MHz 1 Ohms @ 100 MHz 1.07 kOhms @ 100 MHz 1.1 kOhms @ 100 MHz 1.14 kOhms @ 100 MHz 1.18 kOhms @ 100 MHz 1.2 kOhms @ 100 MHz 1.2 kOhms @ 50 MHz 1.24 kOhms @ 100 MHz 1.248 kOhms @ 100 MHz 1.3 kOhms @ 100 MHz 1.3 kOhms @ 60 MHz 1.5 kOhms @ 100 MHz 1.5 kOhms @ 50 MHz 1.5 kOhms @ 70 MHz 1.5 kOhms @ 900 MHz 1.6 kOhms @ 100 MHz 1.8 kOhms @ 100 MHz 1.8 Ohms @ 100 MHz 10 Ohms @ 1 MHz 10 Ohms @ 100 MHz 100 Ohms @ 1 MHz 100 Ohms @ 10 MHz 100 Ohms @ 100 MHz 100 Ohms @ 900 MHz 1000 Ohms @ 100 MHz 103 Ohms @ 25 MHz 105 Ohms @ 100 MHz 109 Ohms @ 100 MHz 11 Ohms @ 100 MHz 110 Ohms @ 1 MHz 110 Ohms @ 100 MHz 112 Ohms @ 100 MHz 115 Ohms @ 100 MHz 118 Ohms @ 25 MHz 119 Ohms @ 100 MHz 12 Ohms @ 1 MHz 12 Ohms @ 100 MHz 12 Ohms @ 2 MHz 12 Ohms @ 900 MHz 120 Ohms @ 100 MHz 120 Ohms @ 50 MHz 125 Ohms @ 100 MHz 126 Ohms @ 100 MHz 13 Ohms @ 100 MHz 130 Ohms @ 10 MHz 130 Ohms @ 100 MHz 132 Ohms @ 100 MHz 135 Ohms @ 100 MHz 138 Ohms @ 25 MHz 14 Ohms @ 1 MHz 140 Ohms @ 1 MHz 140 Ohms @ 100 MHz 143 Ohms @ 100 MHz 15 Ohms @ 1 MHz 15 Ohms @ 10 MHz 15 Ohms @ 100 MHz 150 Ohms @ 1 MHz 150 Ohms @ 10 MHz 150 Ohms @ 100 MHz 153 Ohms @ 100 MHz 16 Ohms @ 100 MHz 160 Ohms @ 100 MHz 162 Ohms @ 25 MHz 163 Ohms @ 100 MHz 17 Ohms @ 1 MHz 17 Ohms @ 100 MHz 170 Ohms @ 10 MHz 170 Ohms @ 100 MHz 18 Ohms @ 100 MHz 18 Ohms @ 2 MHz 180 Ohms @ 10 MHz 180 Ohms @ 100 MHz 185 Ohms @ 100 MHz 187 Ohms @ 25 MHz 19 Ohms @ 1 MHz 19 Ohms @ 100 MHz 190 Ohms @ 100 MHz 2 kOhms @ 100 MHz 2 kOhms @ 30 MHz 2 kOhms @ 50 MHz 2 kOhms @ 70 MHz 2 Ohms @ 1 MHz 2 Ohms @ 100 MHz 2.2 kOhms @ 100 MHz 2.2 kOhms @ 70 MHz 2.2 Ohms @ 100 MHz 2.25 kOhms @ 100 MHz 2.5 kOhms @ 100 MHz 2.5 kOhms @ 50 MHz 2.5 Ohms @ 100 MHz 2.6 kOhms @ 900 MHz 2.7 kOhms @ 100 MHz 2.9 Ohms @ 1 MHz 20 Ohms @ 10 MHz 20 Ohms @ 100 MHz 200 Ohms @ 100 MHz 21 Ohms @ 1 MHz 21 Ohms @ 100 MHz 216 Ohms @ 100 MHz 22 Ohms @ 1 MHz 22 Ohms @ 100 MHz 220 Ohms @ 1 MHz 220 Ohms @ 100 MHz 220 Ohms @ 5 GHz 228 Ohms @ 25 MHz 23 Ohms @ 100 MHz 240 Ohms @ 100 MHz 245 Ohms @ 100 MHz 248 Ohms @ 100 MHz 249 Ohms @ 100 MHz 25 Ohms @ 100 MHz 250 Ohms @ 10 MHz 250 Ohms @ 100 MHz 26 Ohms @ 100 MHz 260 Ohms @ 100 MHz 264 Ohms @ 100 MHz 266 Ohms @ 100 MHz 27 Ohms @ 100 MHz 27 Ohms @ 2 MHz 270 Ohms @ 10 MHz 270 Ohms @ 100 MHz 28 Ohms @ 100 MHz 280 Ohms @ 10 MHz 280 Ohms @ 100 MHz 290 Ohms @ 1 MHz 290 Ohms @ 100 MHz 3 Ohms @ 100 MHz 3.3 Ohms @ 1 MHz 3.5 kOhms @ 900 MHz 3.6 Ohms @ 1 MHz 30 Ohms @ 10 MHz 30 Ohms @ 100 MHz 300 Ohms @ 100 MHz 31 Ohms @ 1 MHz 31 Ohms @ 100 MHz 32 Ohms @ 1 MHz 32 Ohms @ 100 MHz 320 Ohms @ 10 MHz 320 Ohms @ 100 MHz 325 Ohms @ 100 MHz 33 Ohms @ 100 MHz 330 Ohms @ 100 MHz 330 Ohms @ 900 MHz 334 Ohms @ 100 MHz 342 Ohms @ 100 MHz 35 Ohms @ 100 MHz 35 Ohms @ 50 MHz 36 Ohms @ 100 MHz 375 Ohms @ 100 MHz 38 Ohms @ 100 MHz 380 Ohms @ 100 MHz 385 Ohms @ 100 MHz 39 Ohms @ 100 MHz 390 Ohms @ 100 MHz 397 Ohms @ 100 MHz 4 Ohms @ 1 MHz 4.5 Ohms @ 1 MHz 4.6 kOhms @ 900 MHz 40 Ohms @ 10 MHz 40 Ohms @ 100 MHz 400 Ohms @ 10 MHz 400 Ohms @ 100 MHz 416 Ohms @ 100 MHz 42 Ohms @ 1 MHz 42 Ohms @ 100 MHz 42 Ohms @ 2 MHz 420 Ohms @ 100 MHz 425 Ohms @ 100 MHz 430 Ohms @ 100 MHz 440 Ohms @ 100 MHz 45 Ohms @ 1 MHz 45 Ohms @ 100 MHz 45 Ohms @ 50 MHz 450 Ohms @ 1 MHz 450 Ohms @ 100 MHz 46 Ohms @ 100 MHz 460 Ohms @ 100 MHz 460 Ohms @ 900 MHz 469 Ohms @ 100 MHz 47 Ohms @ 100 MHz 470 Ohms @ 100 MHz 470 Ohms @ 900 MHz 48 Ohms @ 100 MHz 480 Ohms @ 100 MHz 490 Ohms @ 100 MHz 5 Ohms @ 1 MHz 5 Ohms @ 100 MHz 50 Ohms @ 100 MHz 500 Ohms @ 100 MHz 500 Ohms @ 2.4 GHz 510 Ohms @ 100 MHz 52 Ohms @ 1 MHz 52 Ohms @ 100 MHz 530 Ohms @ 100 MHz 54 Ohms @ 100 MHz 55 Ohms @ 100 MHz 550 Ohms @ 10 MHz 550 Ohms @ 100 MHz 56 Ohms @ 100 MHz 560 Ohms @ 100 MHz 565 Ohms @ 100 MHz 575 Ohms @ 100 MHz 580 Ohms @ 100 MHz 6 Ohms @ 100 MHz 6.7 Ohms @ 1 MHz 6.8 Ohms @ 1 MHz 60 Ohms @ 1 MHz 60 Ohms @ 10 MHz 60 Ohms @ 100 MHz 60 Ohms @ 2 MHz 60 Ohms @ 5 GHz 60 Ohms @ 50 MHz 600 Ohms @ 100 MHz 600 Ohms @ 50 MHz 6000 Ohms @ 37 MHz 61 Ohms @ 1 MHz 61 Ohms @ 100 MHz 62 Ohms @ 100 MHz 620 Ohms @ 1 MHz 620 Ohms @ 100 MHz 65 Ohms @ 1 MHz 65 Ohms @ 100 MHz 650 Ohms @ 100 MHz 675 Ohms @ 100 MHz 68 Ohms @ 100 MHz 680 Ohms @ 100 MHz 7 Ohms @ 100 MHz 7.4 Ohms @ 1 MHz 7.5 kOhms @ 100 MHz 7.5 Ohms @ 100 MHz 7.6 Ohms @ 1 MHz 70 Ohms @ 1 MHz 70 Ohms @ 100 MHz 700 Ohms @ 100 MHz 72 Ohms @ 100 MHz 73 Ohms @ 25 MHz 74 Ohms @ 100 MHz 75 Ohms @ 100 MHz 750 Ohms @ 100 MHz 760 Ohms @ 100 MHz 770 Ohms @ 900 MHz 78 Ohms @ 100 MHz 780 Ohms @ 100 MHz 785 Ohms @ 100 MHz 8 Ohms @ 100 MHz 8.4 Ohms @ 1 MHz 8.5 Ohms @ 100 MHz 80 Ohms @ 10 MHz 80 Ohms @ 100 MHz 800 Ohms @ 100 MHz 800 Ohms @ 400 MHz 82 Ohms @ 100 MHz 82 Ohms @ 25 MHz 820 Ohms @ 100 MHz 83 Ohms @ 100 MHz 835 Ohms @ 100 MHz 85 Ohms @ 100 MHz 85 Ohms @ 50 MHz 850 Ohms @ 100 MHz 86 Ohms @ 100 MHz 88 Ohms @ 100 MHz 880 Ohms @ 1 MHz 9 Ohms @ 1 MHz 9 Ohms @ 100 MHz 9.8 Ohms @ 1 MHz 90 Ohms @ 10 MHz 90 Ohms @ 100 MHz 90 Ohms @ 50 MHz 900 Ohms @ 100 MHz 900 Ohms @ 200 MHz 900 Ohms @ 60 MHz 91 Ohms @ 100 MHz 915 Ohms @ 100 MHz 915 Ohms @ 30 MHz 93 Ohms @ 25 MHz 946 Ohms @ 100 MHz 95 Ohms @ 100 MHz 950 Ohms @ 100 MHz 96 Ohms @ 100 MHz 961 Ohms @ 100 MHz 97 Ohms @ 100 MHz 98 Ohms @ 100 MHz 998 Ohms @ 100 MHz	- 1.05A 1.1A 1.25A 1.2A 1.35A 1.3A 1.4A 1.55A 1.5A 1.61A 1.65A 1.6A 1.74A 1.75A 1.7A 1.85A 1.8A 1.9A 10.5A 100mA 10A 115mA 11A 120mA 125mA 12A 130mA 135mA 140mA 150mA 160mA 170mA 175mA 180mA 18A 190mA 1A 2.05A 2.1A 2.25A 2.2A 2.3A 2.4A 2.55A 2.5A 2.6A 2.7A 2.8A 2.9A 200mA 210mA 215mA 220mA 230mA 23mA 240mA 250mA 260mA 270mA 275mA 280mA 2A 3.1A 3.2A 3.3A 3.4A 3.5A 3.6A 3.7A 3.8A 3.9A 300mA 305mA 310mA 325mA 330mA 350mA 360mA 380mA 390mA 3A 4.1A 4.2A 4.4A 4.5A 4.7A 400mA 420mA 425mA 440mA 450mA 480mA 4A 5.1A 5.2A 5.4A 5.5A 500mA 50mA 520mA 540mA 550mA 5A 5A (Typ) 6.5A 600mA 60mA 640mA 650mA 680mA 6A 6A (Typ) 7.5A 700mA 740mA 750mA 780mA 7A 8.5A 800mA 80mA 850mA 860mA 8A 8A (Typ) 9.5A 900mA 920mA 950mA 9A 9A (Typ)	- 0.5mOhm 0.6mOhm 0.75mOhm 0.8mOhm (Typ) 0.9mOhm 1.05Ohm 1.15Ohm 1.16Ohm 1.1mOhm 1.1Ohm 1.25Ohm 1.2mOhm 1.2Ohm 1.32Ohm 1.35Ohm 1.38Ohm 1.3Ohm 1.45Ohm 1.4Ohm 1.5Ohm 1.65Ohm 1.6mOhm 1.6Ohm 1.7Ohm 1.8Ohm 1.9Ohm 100mOhm 100Ohm 105mOhm 106.8mOhm 10mOhm 110mOhm 11mOhm 120mOhm 127mOhm 12mOhm 130mOhm 140mOhm 144mOhm 14mOhm 150mOhm 155mOhm 15mOhm 160mOhm 16mOhm 170mOhm 17mOhm 180mOhm 185mOhm 186mOhm 18mOhm 19.5mOhm 190mOhm 1mOhm 1Ohm 2.14Ohm 2.1Ohm 2.2Ohm 2.3Ohm 2.4Ohm 2.5Ohm 2.6Ohm 2.74Ohm 2.8Ohm 2.9Ohm 200mOhm 20mOhm 210mOhm 216mOhm 220mOhm 22mOhm 230mOhm 235mOhm 23mOhm 24.7mOhm 240mOhm 245mOhm 250mOhm 250mOhm (Typ) 25mOhm 260mOhm 264mOhm 26mOhm 270mOhm 270mOhm (Typ) 273mOhm 28.8mOhm 280mOhm 288mOhm 28mOhm 29.9mOhm 290mOhm 295mOhm 29mOhm 2Ohm 3.1Ohm 3.24Ohm 3.2Ohm 3.5Ohm 3.8mOhm 3.8Ohm 300mOhm 30mOhm 310mOhm 311mOhm 320mOhm 32mOhm 330mOhm 33mOhm 340mOhm 350mOhm 351mOhm 354mOhm 35mOhm 360mOhm 364mOhm 36mOhm 370mOhm 375mOhm 37mOhm 380mOhm 385mOhm 38mOhm 390mOhm 3mOhm 3mOhm (Typ) 3Ohm 4.2mOhm 400mOhm 405mOhm 40mOhm 410mOhm 420mOhm 42mOhm 43.2mOhm 440mOhm 450mOhm 456mOhm 45mOhm 460mOhm 46mOhm 470mOhm 47mOhm 48mOhm 490mOhm 4mOhm 4Ohm 5.26Ohm 50.7mOhm 500mOhm 50mOhm 50Ohm 520mOhm 530mOhm 53mOhm 540mOhm 54mOhm 550mOhm 55mOhm 560mOhm 57.6mOhm 570mOhm 580mOhm 590mOhm 5mOhm 6.2mOhm 600mOhm 60mOhm 620mOhm 63.6mOhm 650mOhm 65mOhm 68.4mOhm 680mOhm 684mOhm 690mOhm 6mOhm 700mOhm 70mOhm 71.5mOhm 710mOhm 730mOhm 750mOhm 75mOhm 76.8mOhm 760mOhm 7mOhm 800mOhm 80mOhm 810mOhm 822mOhm 850mOhm 85mOhm 860mOhm 880mOhm 8mOhm 900mOhm 90mOhm 91.2mOhm 910mOhm 91mOhm 950mOhm 95mOhm 972mOhm 9mOhm 9Ohm	- AEC-Q200	- -20°C ~ 60°C -20°C ~ 70°C -25°C ~ 105°C -25°C ~ 125°C -25°C ~ 65°C -25°C ~ 85°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 150°C -40°C ~ 85°C -45°C ~ 125°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 175°C -55°C ~ 85°C	- Free Hanging Surface Mount Surface Mount, Epoxy Through Hole	- 0.009 (0.22mm) 0.011 (0.29mm) 0.013 (0.32mm) 0.013 (0.33mm) 0.014 (0.35mm) 0.015 (0.37mm) 0.017 (0.43mm) 0.018 (0.45mm) 0.020 (0.50mm) 0.022 (0.55mm) 0.022 (0.56mm) 0.024 (0.60mm) 0.026 (0.65mm) 0.028 (0.70mm) 0.030 (0.75mm) 0.031 (0.80mm) 0.032 (0.80mm) 0.033 (0.85mm) 0.034 (0.87mm) 0.035 (0.90mm) 0.037 (0.94mm) 0.037 (0.95mm) 0.039 (1.00mm) 0.041 (1.05mm) 0.043 (1.09mm) 0.043 (1.10mm) 0.047 (1.20mm) 0.049 (1.25mm) 0.051 (1.30mm) 0.053 (1.35mm) 0.055 (1.40mm) 0.057 (1.45mm) 0.059 (1.50mm) 0.06 (1.5mm) 0.063 (1.60mm) 0.065 (1.65mm) 0.067 (1.70mm) 0.069 (1.75mm) 0.070 (1.77mm) 0.071 (1.80mm) 0.073 (1.85mm) 0.075 (1.90mm) 0.077 (1.95mm) 0.078 (1.97mm) 0.079 (2.00mm) 0.081 (2.05mm) 0.083 (2.10mm) 0.087 (2.20mm) 0.087 (2.22mm) 0.090 (2.28mm) 0.094 (2.40mm) 0.098 (2.48mm) 0.098 (2.50mm) 0.100 (2.55mm) 0.106 (2.70mm) 0.110 (2.80mm) 0.114 (2.90mm) 0.115 (2.92mm) 0.116 (2.94mm) 0.118 (3.00mm) 0.120 (3.05mm) 0.122 (3.10mm) 0.124 (3.15mm) 0.128 (3.25mm) 0.130 (3.30mm) 0.134 (3.40mm) 0.136 (3.45mm) 0.138 (3.50mm) 0.140 (3.55mm) 0.146 (3.70mm) 0.152 (3.85mm) 0.160 (4.06mm) 0.165 (4.19mm) 0.169 (4.30mm) 0.173 (4.40mm) 0.175 (4.45mm) 0.177 (4.50mm) 0.183 (4.65mm) 0.190 (4.83mm) 0.197 (5.00mm) 0.198 (5.04mm) 0.200 (5.08mm) 0.201 (5.10mm) 0.207 (5.25mm) 0.209 (5.30mm) 0.217 (5.50mm) 0.236 (6.00mm) 0.248 (6.30mm) 0.250 (6.35mm) 0.256 (6.50mm) 0.264 (6.70mm) 0.276 (7.00mm) 0.280 (7.11mm) 0.295 (7.50mm) 0.299 (7.60mm) 0.308 (7.82mm) 0.315 (8.00mm) 0.335 (8.51mm) 0.350 (8.90mm) 0.354 (9.00mm) 0.374 (9.50mm) 0.394 (10.00mm) 0.394 (10.01mm) 0.404 (10.25mm) 0.406 (10.31mm) 0.411 (10.44mm) 0.413 (10.50mm) 0.416 (10.57mm) 0.433 (11.00mm) 0.449 (11.40mm) 0.465 (11.80mm) 0.472 (12.00mm) 0.492 (12.50mm) 0.512 (13.00mm) 0.528 (13.40mm) 0.543 (13.80mm) 0.551 (14.00mm) 0.571 (14.50mm) 0.575 (14.61mm) 0.591 (15.00mm) 0.626 (15.90mm) 0.630 (16.00mm) 0.650 (16.50mm)	- 0.016 L x 0.008 W (0.40mm x 0.20mm) 0.024 L x 0.012 W (0.60mm x 0.30mm) 0.024 L x 0.012 W (0.61mm x 0.30mm) 0.035 L x 0.027 W (0.90mm x 0.68mm) 0.037 Dia x 0.150 L (0.93mm x 3.80mm) 0.039 L x 0.020 W (1.00mm x 0.50mm) 0.039 L x 0.022 W (1.00mm x 0.55mm) 0.039 L x 0.024 W (1.00mm x 0.60mm) 0.039 L x 0.027 W (1.00mm x 0.68mm) 0.040 L x 0.020 W (1.01mm x 0.50mm) 0.047 Dia x 0.150 L (1.20mm x 3.80mm) 0.047 L x 0.025 W (1.19mm x 0.64mm) 0.049 L x 0.039 W (1.25mm x 1.00mm) 0.054 Dia x 0.091 L (1.38mm x 2.30mm) 0.063 L x 0.031 W (1.60mm x 0.79mm) 0.063 L x 0.031 W (1.60mm x 0.80mm) 0.063 L x 0.032 W (1.60mm x 0.80mm) 0.065 L x 0.031 W (1.65mm x 0.80mm) 0.079 L x 0.039 W (2.00mm x 1.00mm) 0.079 L x 0.047 W (2.00mm x 1.20mm) 0.079 L x 0.049 W (2.00mm x 1.25mm) 0.079 L x 0.049 W (2.01mm x 1.24mm) 0.079 L x 0.063 W (2.00mm x 1.60mm) 0.080 L x 0.050 W (2.03mm x 1.27mm) 0.081 L x 0.049 W (2.05mm x 1.25mm) 0.087 L x 0.047 W (2.20mm x 1.20mm) 0.090 L x 0.068 W (2.29mm x 1.73mm) 0.091 Dia (2.30mm) 0.094 Dia (2.40mm) 0.094 Dia x 0.315 L (2.40mm x 8.00mm) 0.098 Dia x 0.177 L (2.50mm x 4.50mm) 0.098 L x 0.079 W (2.50mm x 2.00mm) 0.100 L x 0.120 W (2.54mm x 3.05mm) 0.100 L x 0.180 W (2.54mm x 4.57mm) 0.112 Dia x 0.423 L (2.85mm x 10.74mm) 0.120 L x 0.100 W (3.05mm x 2.54mm) 0.126 L x 0.063 W (3.20mm x 1.60mm) 0.126 L x 0.098 W (3.20mm x 2.50mm) 0.134 Dia (3.40mm) 0.134 Dia x 0.173 L (3.40mm x 4.40mm) 0.134 Dia x 0.295 L (3.40mm x 7.50mm) 0.134 Dia x 0.512 L (3.40mm x 13.00mm) 0.138 Dia (3.50mm) 0.138 Dia (3.51mm) 0.138 Dia x 0.175 L (3.51mm x 4.44mm) 0.138 Dia x 0.175 L (3.51mm x 4.45mm) 0.138 Dia x 0.177 L (3.50mm x 4.50mm) 0.138 Dia x 0.206 L (3.51mm x 5.23mm) 0.138 Dia x 0.236 L (3.50mm x 6.00mm) 0.138 Dia x 0.236 L (3.51mm x 5.99mm) 0.138 Dia x 0.263 L (3.51mm x 6.68mm) 0.138 Dia x 0.300 L (3.51mm x 7.62mm) 0.138 Dia x 0.315 L (3.50mm x 8.00mm) 0.138 Dia x 0.350 L (3.51mm x 8.89mm) 0.138 Dia x 0.354 L (3.50mm x 9.00mm) 0.138 Dia x 0.370 L (3.51mm x 9.40mm) 0.138 Dia x 0.375 L (3.51mm x 9.52mm) 0.138 Dia x 0.450 L (3.51mm x 11.43mm) 0.138 Dia x 0.545 L (3.51mm x 13.84mm) 0.138 Dia x 0.550 L (3.51mm x 13.97mm) 0.138 Dia x 2.323 L (3.51mm x 59.00mm) 0.140 Dia x 0.110 L (3.55mm x 2.79mm) 0.142 Dia x 0.197 L (3.60mm x 5.00mm) 0.142 L x 0.098 W (3.60mm x 2.50mm) 0.150 Dia (3.80mm) 0.150 Dia x 0.209 L (3.80mm x 5.30mm) 0.150 Dia x 0.366 L (3.80mm x 9.30mm) 0.157 L x 0.118 W (4.00mm x 3.00mm) 0.157 L x 0.122 W (4.00mm x 3.10mm) 0.160 L x 0.120 W (4.06mm x 3.05mm) 0.165 Dia (4.20mm) 0.165 Dia x 0.236 L (4.20mm x 6.00mm) 0.177 L x 0.063 W (4.50mm x 1.60mm) 0.177 L x 0.098 W (4.50mm x 2.50mm) 0.177 L x 0.126 W (4.50mm x 3.20mm) 0.181 L x 0.120 W (4.59mm x 3.05mm) 0.181 L x 0.122 W (4.60mm x 3.10mm) 0.190 L x 0.177 W (4.83mm x 4.50mm) 0.197 Dia (5.00mm) 0.197 L x 0.120 W (5.00mm x 3.05mm) 0.197 L x 0.197 W (5.00mm x 5.00mm) 0.201 Dia x 0.250 L (5.10mm x 6.35mm) 0.201 L x 0.120 W (5.10mm x 3.05mm) 0.217 L x 0.117 W (5.50mm x 2.97mm) 0.217 L x 0.197 W (5.50mm x 5.00mm) 0.220 L x 0.189 W (5.60mm x 4.80mm) 0.220 L x 0.197 W (5.60mm x 5.00mm) 0.220 L x 0.200 W (5.59mm x 5.08mm) 0.222 L x 0.122 W (5.65mm x 3.10mm) 0.224 L x 0.197 W (5.70mm x 5.00mm) 0.236 Dia (5.99mm) 0.236 Dia (6.00mm) 0.236 Dia x 0.394 L (5.99mm x 10.01mm) 0.236 Dia x 0.394 L (6.00mm x 10.00mm) 0.236 Dia x 0.472 L (6.00mm x 12.00mm) 0.236 Dia x 0.590 L (6.00mm x 15.00mm) 0.236 Dia x 0.825 L (6.00mm x 20.96mm) 0.236 Dia x 0.906 L (6.00mm x 23.00mm) 0.236 Dia x 3.404 L (6.00mm x 84.46mm) 0.236 L x 0.236 W (6.00mm x 6.00mm) 0.240 L x 0.177 W (6.10mm x 4.50mm) 0.248 L x 0.197 W (6.30mm x 5.00mm) 0.252 L x 0.177 W (6.40mm x 4.50mm) 0.252 L x 0.197 W (6.40mm x 5.00mm) 0.256 Dia x 0.394 L (6.50mm x 10.00mm) 0.264 Dia x 0.394 L (6.70mm x 10.00mm) 0.276 Dia (7.00mm) 0.276 L x 0.098 W (7.00mm x 2.50mm) 0.295 Dia (7.50mm) 0.295 L x 0.098 W (7.50mm x 2.50mm) 0.300 L x 0.200 W (7.62mm x 5.08mm) 0.303 L x 0.096 W (7.70mm x 2.45mm) 0.305 L x 0.187 W (7.75mm x 4.75mm) 0.307 L x 0.187 W (7.80mm x 4.75mm) 0.307 L x 0.305 W (7.80mm x 7.75mm) 0.315 L x 0.236 W (8.00mm x 6.00mm) 0.315 L x 0.299 W (8.00mm x 7.60mm) 0.335 L x 0.118 W (8.50mm x 3.00mm) 0.335 L x 0.120 W (8.50mm x 3.05mm) 0.335 L x 0.120 W (8.51mm x 3.05mm) 0.335 L x 0.122 W (8.50mm x 3.10mm) 0.335 L x 0.183 W (8.50mm x 4.65mm) 0.335 L x 0.220 W (8.51mm x 5.60mm) 0.350 L x 0.187 W (8.90mm x 4.75mm) 0.354 Dia (9.00mm) 0.354 L x 0.146 W (9.00mm x 3.70mm) 0.358 L x 0.122 W (9.10mm x 3.10mm) 0.364 L x 0.181 W (9.25mm x 4.60mm) 0.374 L x 0.120 W (9.50mm x 3.05mm) 0.378 L x 0.120 W (9.60mm x 3.05mm) 0.385 Dia x 0.450 L (9.78mm x 11.43mm) 0.385 Dia x 0.550 L (9.78mm x 13.97mm) 0.385 Dia x 0.650 L (9.78mm x 16.51mm) 0.394 Dia (10.00mm) 0.394 L x 0.200 W (10.00mm x 5.08mm) 0.428 L x 0.216 W (10.88mm x 5.49mm) 0.428 L x 0.328 W (10.87mm x 8.33mm) 0.428 L x 0.328 W (10.88mm x 8.34mm) 0.428 L x 0.428 W (10.87mm x 10.87mm) 0.428 L x 0.428 W (10.88mm x 10.88mm) 0.433 L x 0.197 W (11.00mm x 5.00mm) 0.441 L x 0.441 W (11.20mm x 11.20mm) 0.450 L x 0.177 W (11.43mm x 4.50mm) 0.460 L x 0.283 W (11.68mm x 7.20mm) 0.472 L x 0.472 W (12.00mm x 12.00mm) 0.528 L x 0.428 W (13.42mm x 10.88mm) 0.77 Dia x 0.409 L (1.95mm x 10.40mm) 0.787 Dia x 0.746 L (20.00mm x 18.95mm) 0.827 Dia x 1.142 L (21.00mm x 29.00mm)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension

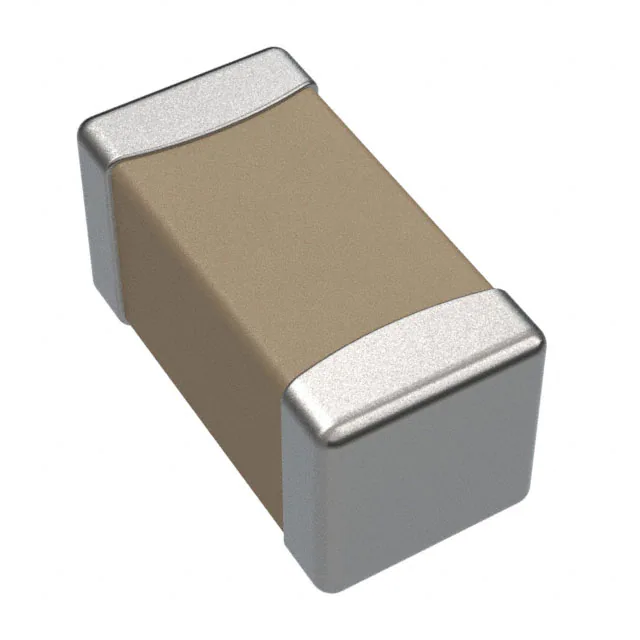

Z0603C101BPWZT FERRITE BEAD 100 OHM 0603 1LN KEMET	10,163	0.22	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	100 Ohms @ 100 MHz	2A	35mOhm	-	-40°C ~ 125°C	Surface Mount	0.035 (0.90mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)

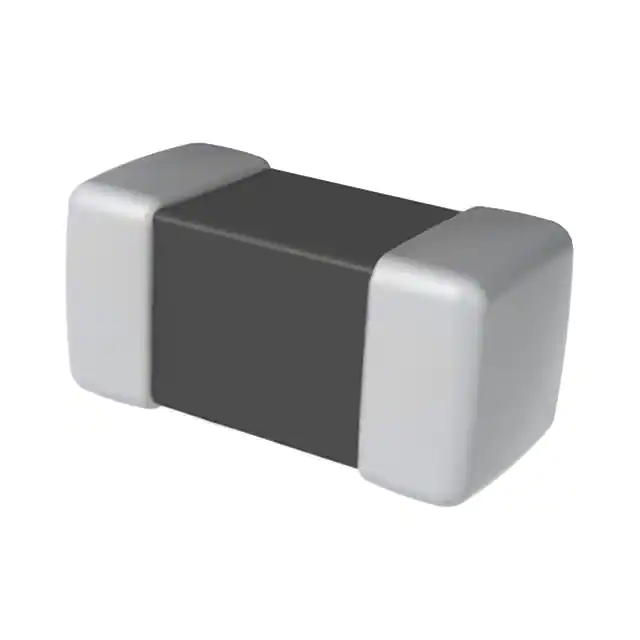

Z0603C221BPWZT POWER LINE HIGH IMPEDANCE FERRIT KEMET	13,729	0.22	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	220 Ohms @ 100 MHz	1.5A	70mOhm	-	-40°C ~ 125°C	Surface Mount	0.035 (0.90mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)

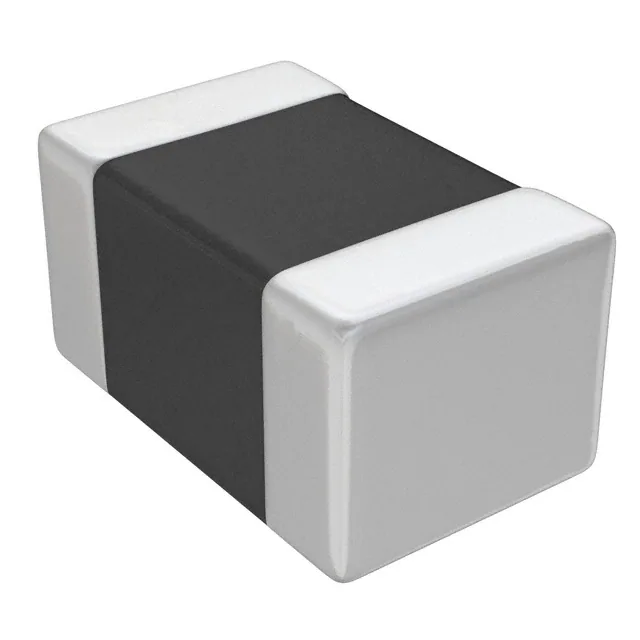

Z0805C420APWST FERRITE BEAD 42 OHM 0805 1LN KEMET	10,636	0.20	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWS	Last Time Buy	Power Line	1	42 Ohms @ 100 MHz	4A	8mOhm	-	-40°C ~ 125°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
Z0805C330BPWST FERRITE BEAD 33 OHM 0805 1LN KEMET	11,864	0.20	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWS	Last Time Buy	Power Line	1	33 Ohms @ 100 MHz	4A	8mOhm	-	-40°C ~ 125°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)

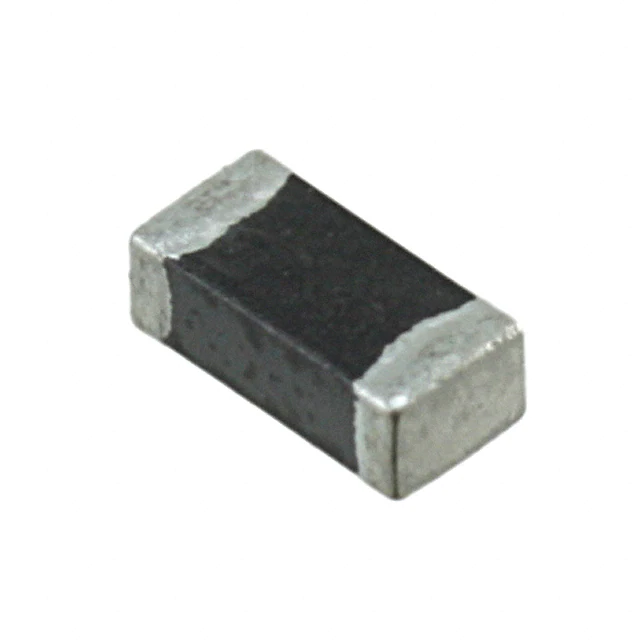

Z1206C800APWST FERRITE BEAD 80 OHM 1206 1LN KEMET	13,063	0.24	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWS	Last Time Buy	Power Line	1	80 Ohms @ 100 MHz	4A	10mOhm	-	-40°C ~ 125°C	Surface Mount	0.071 (1.80mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)

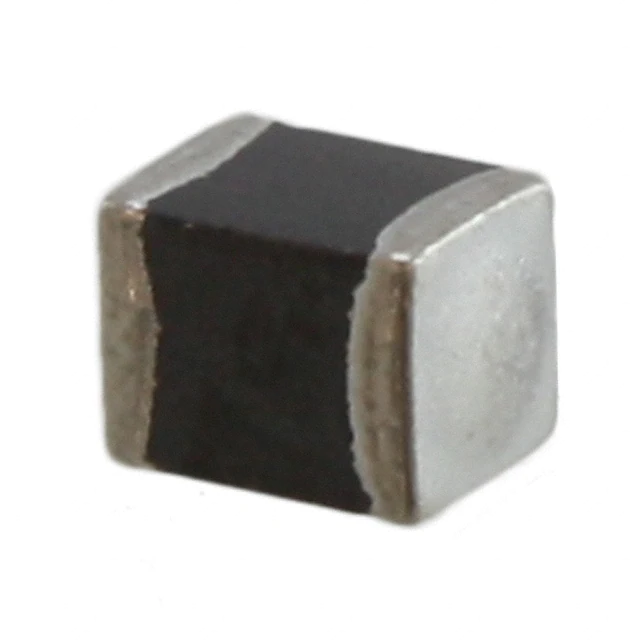

Z1210C601BPWZT FERRITE BEAD 600 OHM 1210 1LN KEMET	13,320	0.60	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	600 Ohms @ 100 MHz	3A	42mOhm	-	-40°C ~ 125°C	Surface Mount	0.110 (2.80mm)	0.126 L x 0.098 W (3.20mm x 2.50mm)
Z1812C132BPWZT POWER LINE HIGH IMPEDANCE FERRIT KEMET	12,967	0.81	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	1.3 kOhms @ 100 MHz	3A	60mOhm	-	-40°C ~ 125°C	Surface Mount	0.138 (3.50mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)

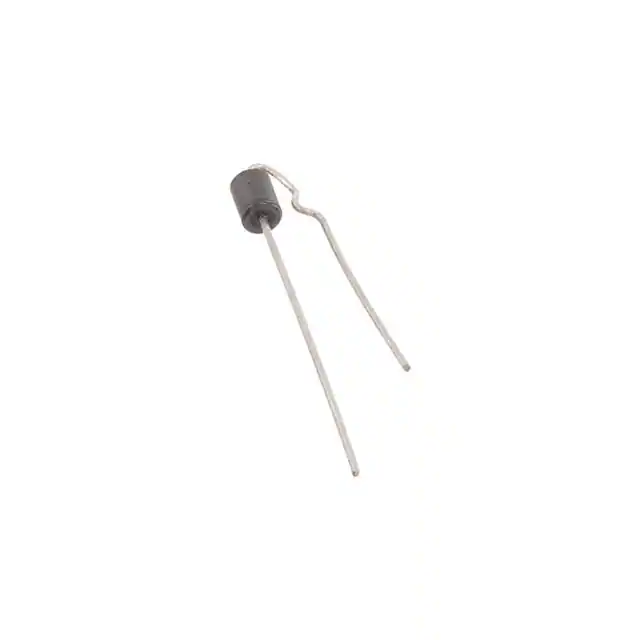

B-01-A1 BEAD (LEAD), 2OHM, 5A KEMET	10,672	0.59	FFQ	Datasheet	Bulk	B-01	Active	Signal Line	1	2 Ohms @ 1 MHz	5A	-	-	-20°C ~ 70°C	Through Hole	0.134 (3.40mm)	0.134 Dia (3.40mm)
B-01-A2 BEAD (LEAD), 2OHM, 5A KEMET	13,368	0.59	FFQ	Datasheet	Bulk	B-01	Active	Signal Line	1	2 Ohms @ 1 MHz	5A	-	-	-20°C ~ 70°C	Through Hole	0.134 (3.40mm)	0.134 Dia (3.40mm)

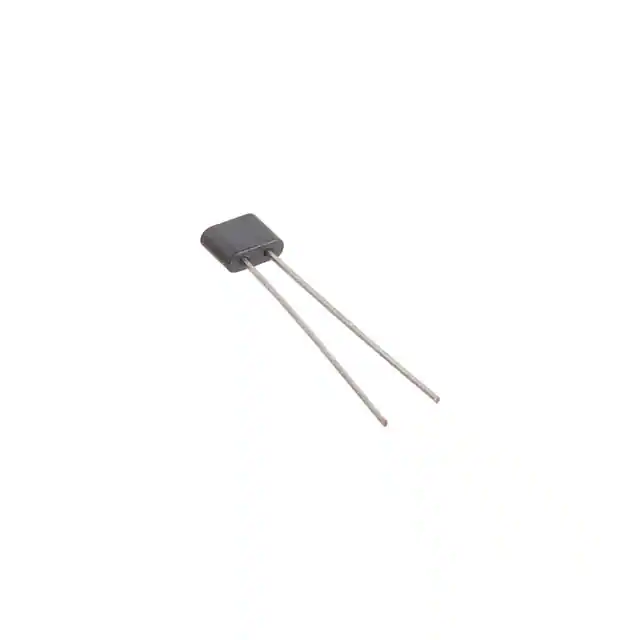

B-06-R-25 BEAD (LEAD), 40OHM, 5A KEMET	14,140	0.92	FFQ	Datasheet	Bulk	B-06	Active	Signal Line	1	40 Ohms @ 10 MHz	5A	-	-	-20°C ~ 70°C	Through Hole	0.236 (6.00mm)	0.276 L x 0.098 W (7.00mm x 2.50mm)

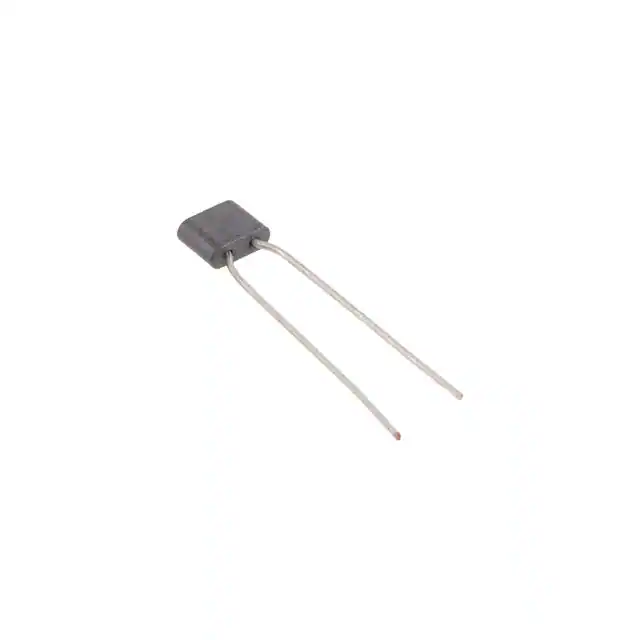

B-06-R-50 BEAD (LEAD), 40OHM, 5A KEMET	13,487	0.92	FFQ	Datasheet	Bulk	B-06	Active	Signal Line	1	40 Ohms @ 10 MHz	5A	-	-	-20°C ~ 70°C	Through Hole	0.394 (10.00mm)	0.276 L x 0.098 W (7.00mm x 2.50mm)

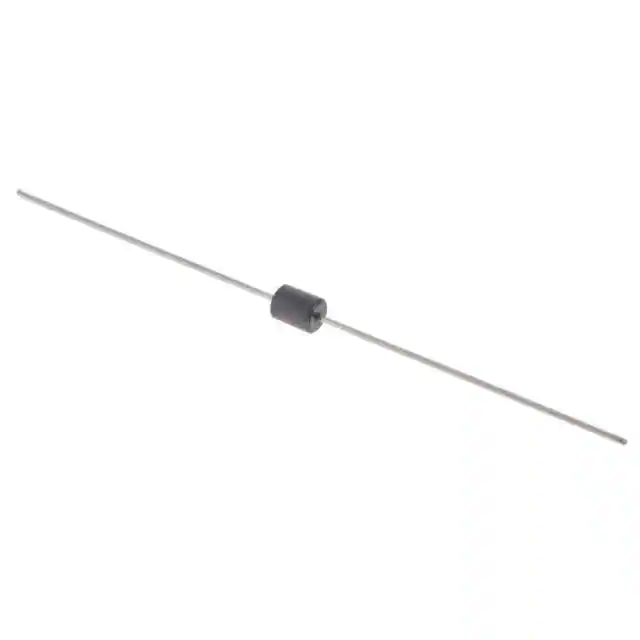

B-01-A BEAD (LEAD), 2OHM, 5A KEMET	13,017	0.59	FFQ	Datasheet	Bulk	B-01	Active	Signal Line	1	2 Ohms @ 1 MHz	5A	-	-	-20°C ~ 70°C	Through Hole	0.173 (4.40mm)	0.134 Dia (3.40mm)

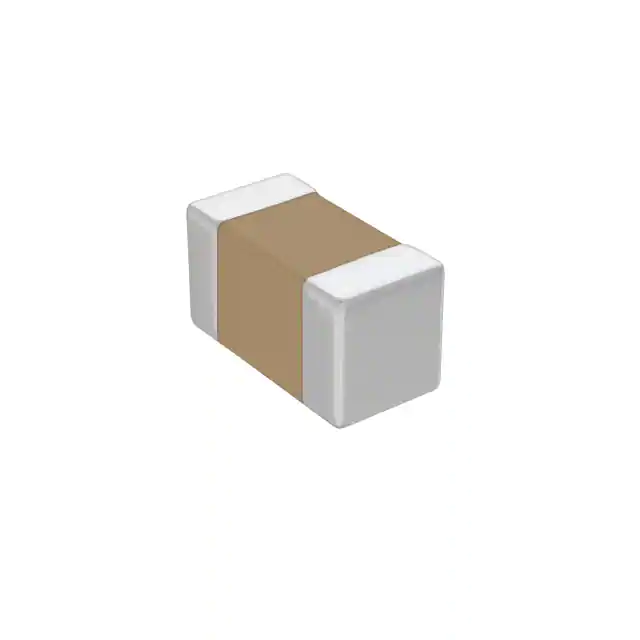

Z0402C121CSMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	3,265	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	120 Ohms @ 100 MHz	350mA	450mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
Z0402C241BSMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	3,337	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	240 Ohms @ 100 MHz	300mA	360mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
Z0402C471BSMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	2,891	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	470 Ohms @ 100 MHz	250mA	560mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
Z0402C800ASMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	2,445	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	80 Ohms @ 100 MHz	-	100mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
Z0402C680ASMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	3,551	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	68 Ohms @ 100 MHz	600mA	130mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
Z0402C431ASMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	2,421	0.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	430 Ohms @ 100 MHz	-	450mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

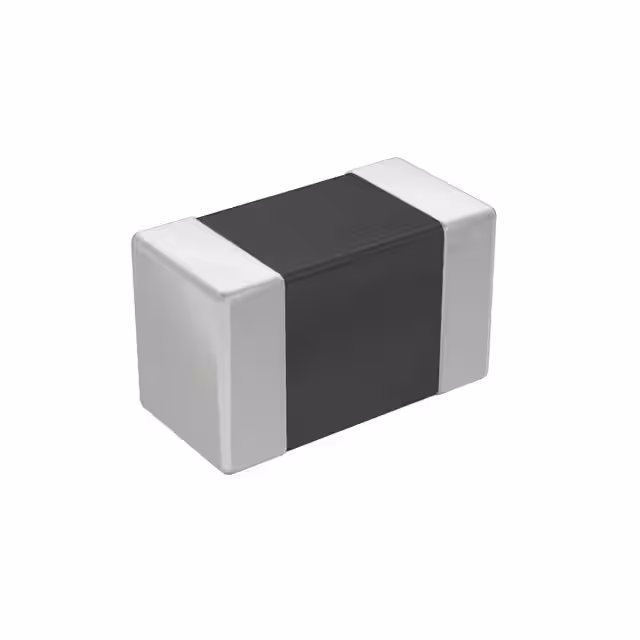

Z0603C470ASMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	3,450	0.12	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	47 Ohms @ 100 MHz	900mA	100mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
Z0603C560CSMST SIGNAL LINE EMI FERRITE CHIP BEA KEMET	3,986	0.12	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-SMS	Obsolete	Signal Line	1	56 Ohms @ 100 MHz	400mA	300mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
