Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
	B82114RC1 FERRITE BEAD 800 OHM AXIAL EPCOS - TDK Electronics	3,643	0.00	FFQ	Datasheet	Tape & Reel (TR)	B82114	Obsolete	-	-	800 Ohms @ 100 MHz	-	-	-	-	Through Hole	-	0.256 Dia x 0.394 L (6.50mm x 10.00mm)
	B82114RC4 FERRITE BEAD 900 OHM AXIAL EPCOS - TDK Electronics	2,271	0.00	FFQ	Datasheet	Tape & Reel (TR)	B82114	Obsolete	-	-	900 Ohms @ 60 MHz	-	-	-	-	Through Hole	-	0.264 Dia x 0.394 L (6.70mm x 10.00mm)

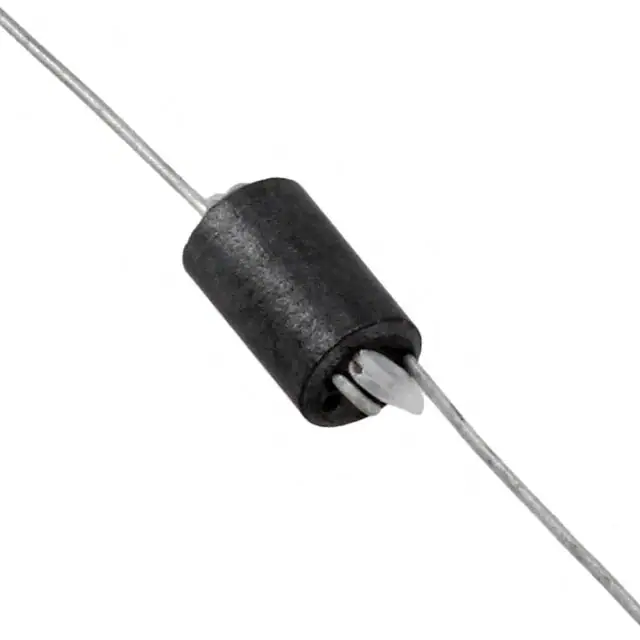

	B82114RA1 FERRITE BEAD 800 OHM AXIAL EPCOS - TDK Electronics	2,511	0.00	FFQ	Datasheet	Bulk	B82114	Obsolete	-	-	800 Ohms @ 100 MHz	-	-	-	-	Through Hole	-	0.256 Dia x 0.394 L (6.50mm x 10.00mm)
	B82114RA4 FERRITE BEAD 900 OHM AXIAL EPCOS - TDK Electronics	2,357	0.00	FFQ	Datasheet	Bulk	B82114	Obsolete	-	-	900 Ohms @ 60 MHz	-	-	-	-	Through Hole	-	0.256 Dia x 0.394 L (6.50mm x 10.00mm)
