Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
HF90T14X7X8 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	14,560	0.99	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	0.551 (14.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.276 (7.00mm)
HF60T104X20X80 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,781	77.23	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.787 (20.00mm)

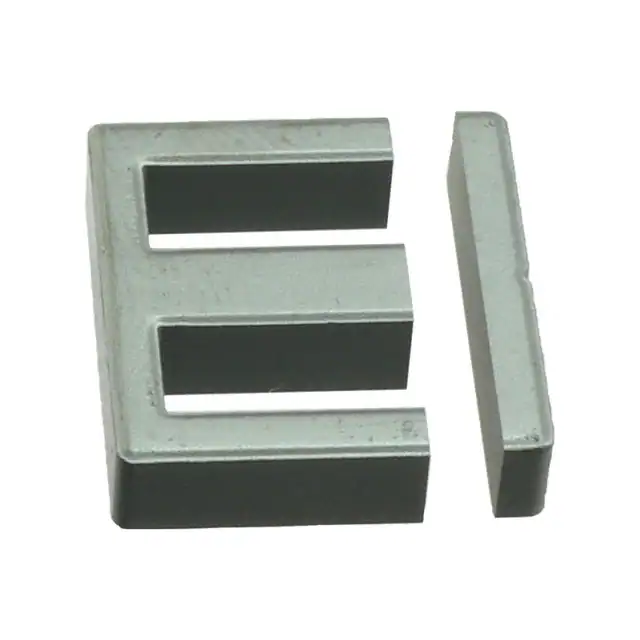

PC47EI40-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	8,011	4.42	FFQ	Datasheet	Tray	E	Active	E	-	PC47	-	4.86 µH	±25%	Ungapped	-	2500	0.52	77	148	-	11400	Uncoated	-

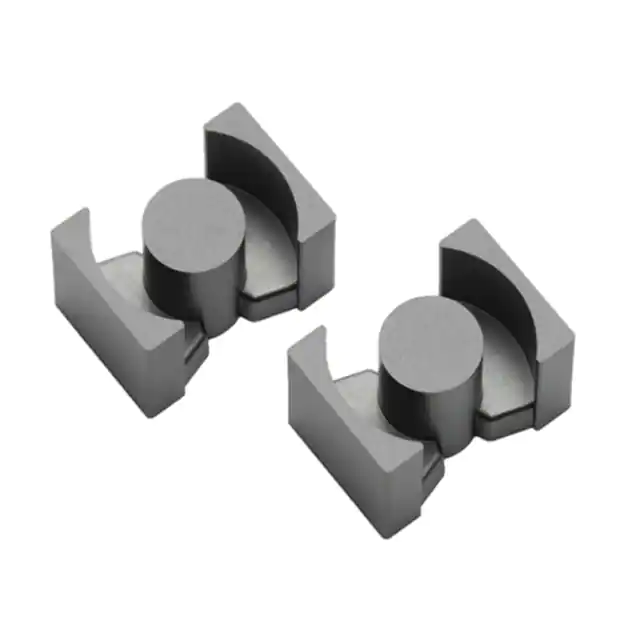

PC95PQ60/52-Z FERRITE CORE PQ 11.2UH 2PC SET TDK Corporation	4,893	46.18	FFQ	Datasheet	Tray	Large PQ	Active	PQ	PQ 60 x 52	PC95	-	11.2 µH	±25%	Ungapped	-	-	0.25	118	477	-	56237	Uncoated	2.028 (51.50mm)

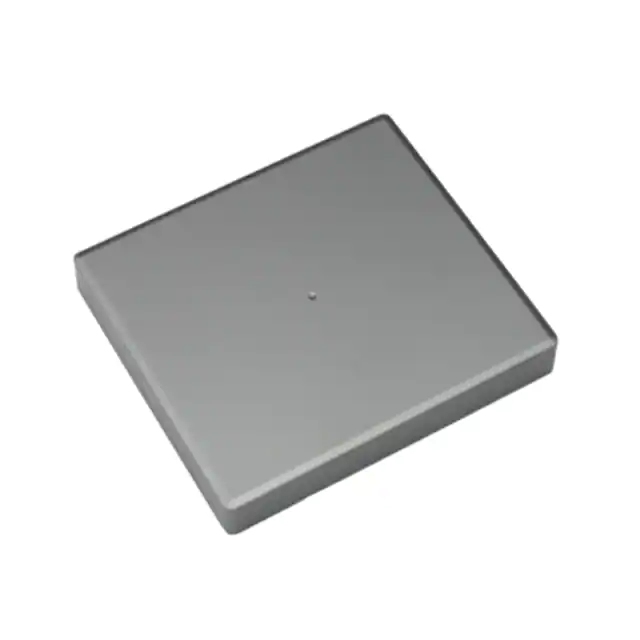

PC95SP110X40X20 FERRITE CORE SP 1PCS TDK Corporation	4,934	48.38	FFQ	Datasheet	Tray	SP	Active	SP	SP 110 x 40 x 20	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
PC95PQ65/44-Z FERRITE CORE PQ 15.5UH 2PC SET TDK Corporation	4,717	54.69	FFQ	Datasheet	Tray	Large PQ	Active	PQ	PQ 65 x 44	PC95	-	15.5 µH	±25%	Ungapped	-	-	0.17	103	604	-	62460	Uncoated	1.713 (43.50mm)
PC47EI35-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	7,777	3.29	FFQ	Datasheet	Tray	E	Active	E	-	PC47	-	3.8 µH	±25%	Ungapped	-	2500	0.664	67.1	101	-	6780	Uncoated	-
PC95PQ26/25Z-12 FERRITE CORE PQ 6.52UH 2PC SET TDK Corporation	5,757	8.39	FFQ	Datasheet	Tray	PQ	Active	PQ	PQ 26 x 25	PC95	-	6.52 µH	±25%	Ungapped	-	-	0.47	55.5	118	-	6530	Uncoated	0.974 (24.75mm)
PC47EI30-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	7,362	2.97	FFQ	Datasheet	Tray	E	Active	E	-	PC47	-	4.69 µH	±25%	Ungapped	-	2500	0.522	58	111	-	6440	Uncoated	-
PC95PQ20/16Z-12 FERRITE CORE PQ 4.48UH 2PC SET TDK Corporation	5,436	7.99	FFQ	Datasheet	Tray	PQ	Active	PQ	PQ 20 x 16	PC95	-	4.48 µH	±25%	Ungapped	-	-	0.61	37.4	62	-	2310	Uncoated	0.638 (16.20mm)

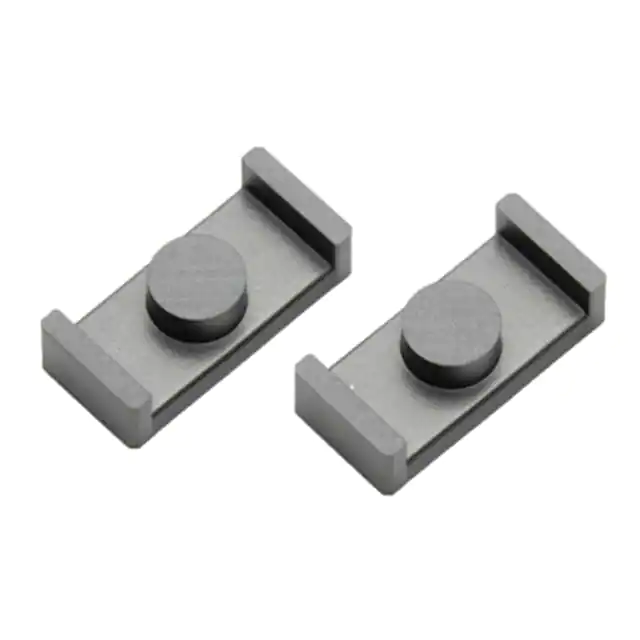

PC95ER9.5/5-Z FERRITE CORE ER 1.19UH 2PC SET TDK Corporation	14,421	0.80	FFQ	Datasheet	Tray	Planar	Active	ER	ER 9.5 x 5	PC95	-	1.19 µH	±25%	Ungapped	-	-	1.67	8.47	14.2	7.6	120	Uncoated	0.098 (2.50mm)

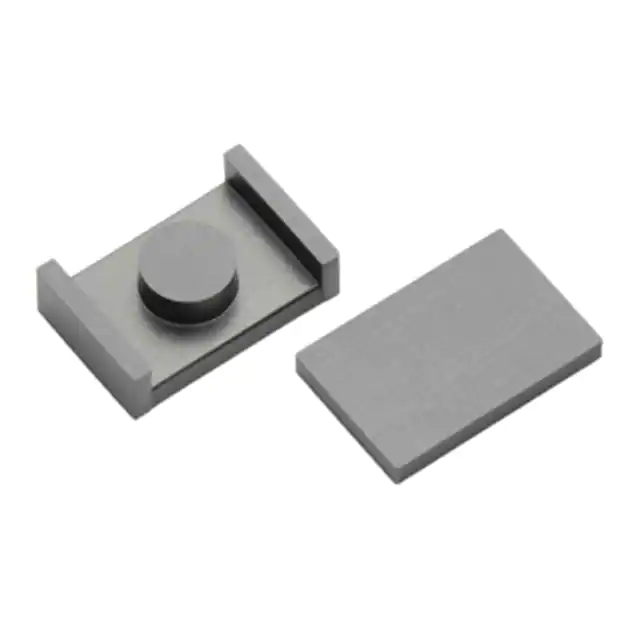

PC95EIR14/4.5/9-Z FERRITE CORE EIR 2.8UH 1SET TDK Corporation	7,707	1.71	FFQ	Datasheet	Tray	Planar	Active	HER, PLT	EIR 14 x 4.5 x 9	PC95	-	2.8 µH	±25%	Ungapped	-	-	0.68	22.7	15.4	21.2	349	Uncoated	0.177 (4.50mm)

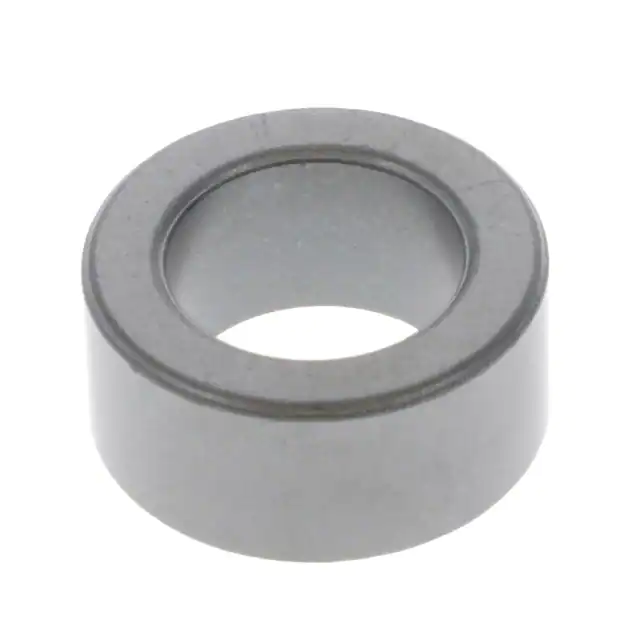

HF60T22X10X14 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	8,772	1.86	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	0.866 (22.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.394 (10.00mm)

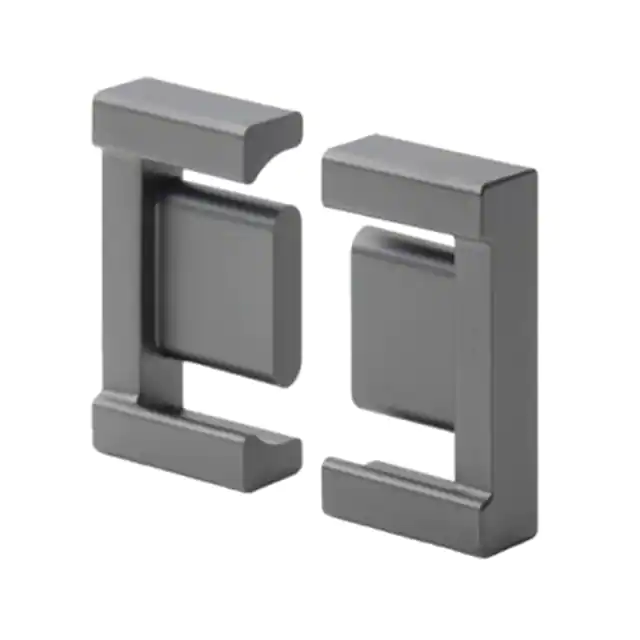

PC47EPC19-Z FERRITE CORE EPC 940NH 2PC SET TDK Corporation	5,375	2.25	FFQ	Datasheet	Tray	EPC	Active	EPC	EPC 19	PC47	-	940 nH	±25%	Ungapped	-	-	2.03	46.1	22.7	-	1050	Uncoated	0.384 (9.78mm)

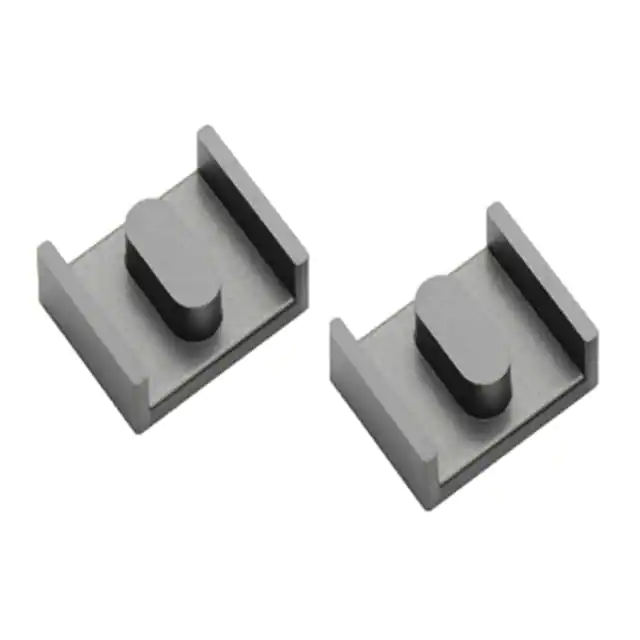

PC95EL20X7.7-Z FERRITE CORE EL 5.63UH 2PC SET TDK Corporation	5,595	2.28	FFQ	Datasheet	Tray	Planar	Active	EL	EL 20 x 7.7	PC95	-	5.63 µH	±25%	Ungapped	-	-	0.47	54.6	25.6	52.9	1400	Uncoated	0.151 (3.83mm)
PC47EI60-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	5,973	9.81	FFQ	Datasheet	Tray	E	Active	E	-	PC47	-	5.67 µH	±25%	Ungapped	-	2500	0.441	109	247	-	26900	Uncoated	-
HF60T80X20X50 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,641	46.98	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.787 (20.00mm)

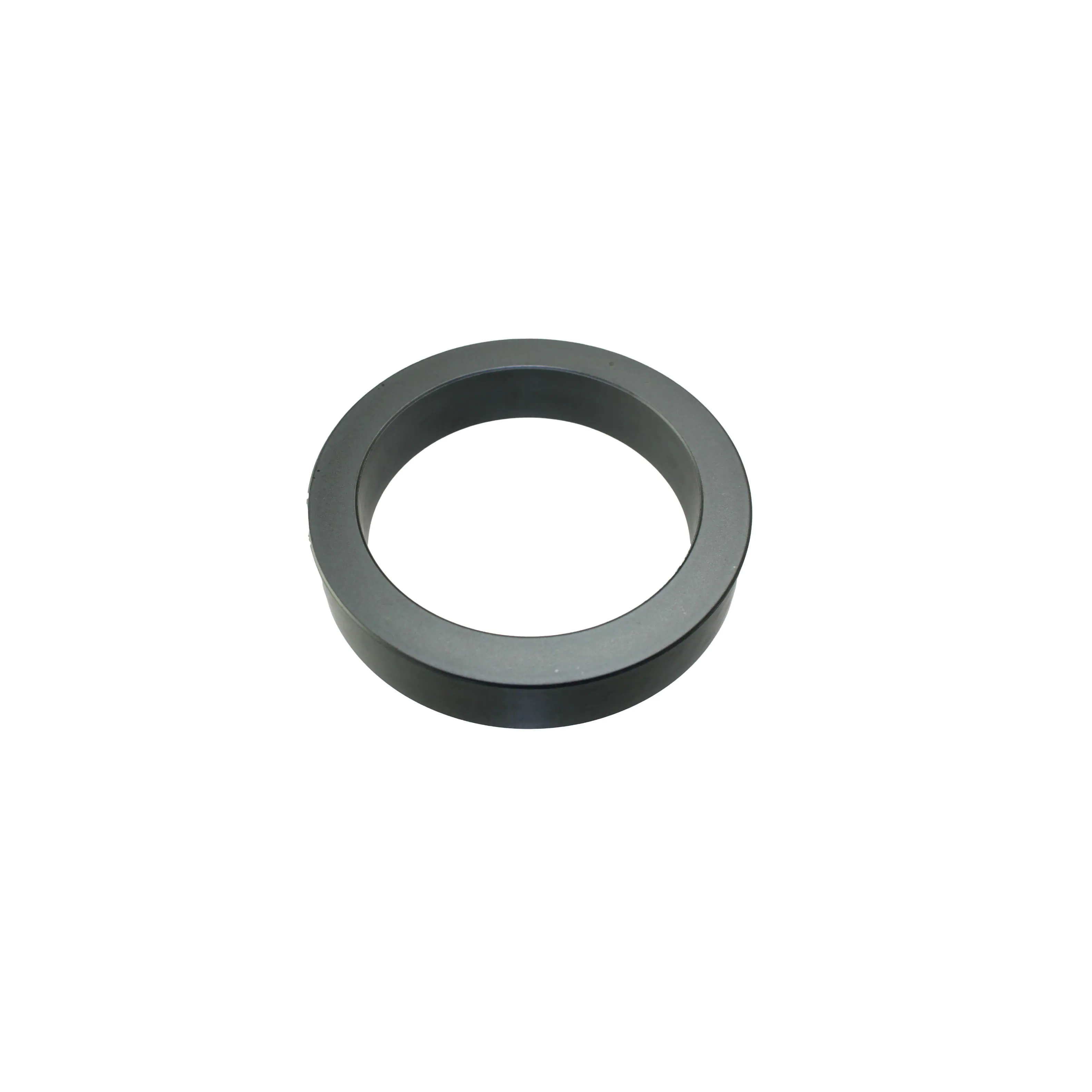

HF90T104X20X80 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,621	73.71	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.787 (20.00mm)

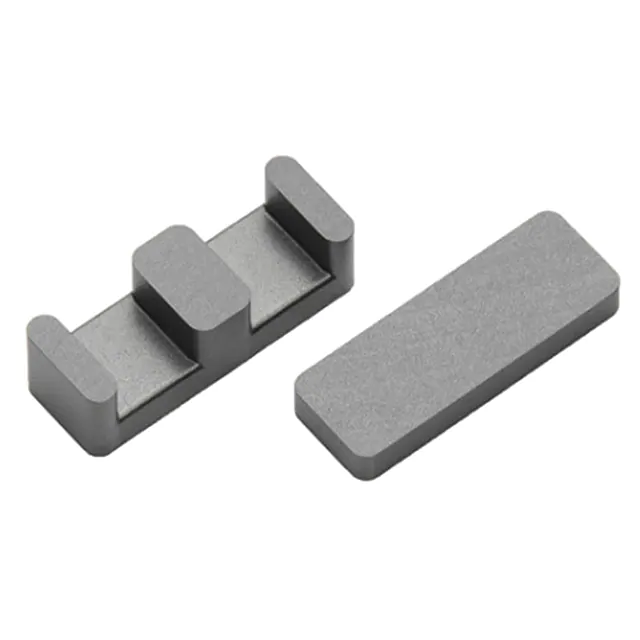

PC95EI18/6/10-Z FERRITE CORE EI 4.72UH 1SET TDK Corporation	7,824	1.71	FFQ	Datasheet	Tray	Planar	Active	HE, PLT	EI 18 x 6 x 10	PC95	-	4.72 µH	±25%	Ungapped	-	-	0.51	40	20.3	40	811	Uncoated	0.236 (6.00mm)
HF60T25X13X15 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	7,853	1.98	FFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
