Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	R@25°C	Tolerance	Current-SteadyStateMax	R@Current	Diameter	LeadSpacing

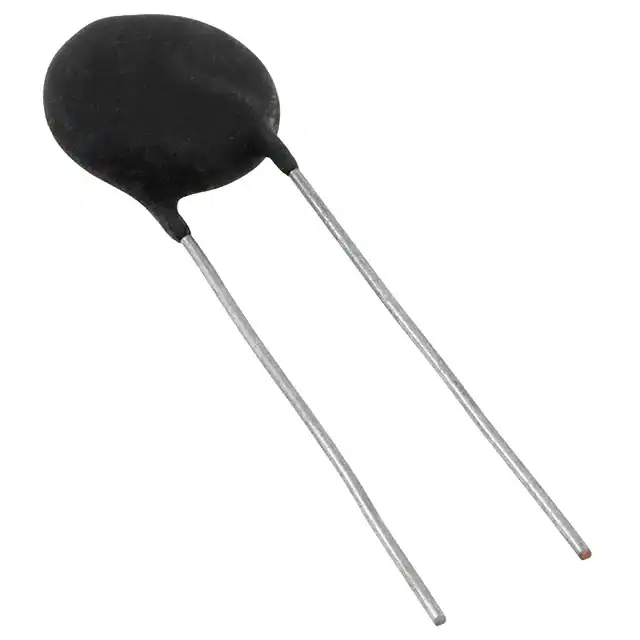

	ICL155R006-01 ICL 5 OHM 20% 6A 15MM Honeywell Sensing and Productivity Solutions	9,468	6.85	FFQ	Datasheet	Bulk	-	Active	5 Ohms	±20%	6 A	100 mOhms	0.591 (15.00mm)	0.310 (7.87mm)

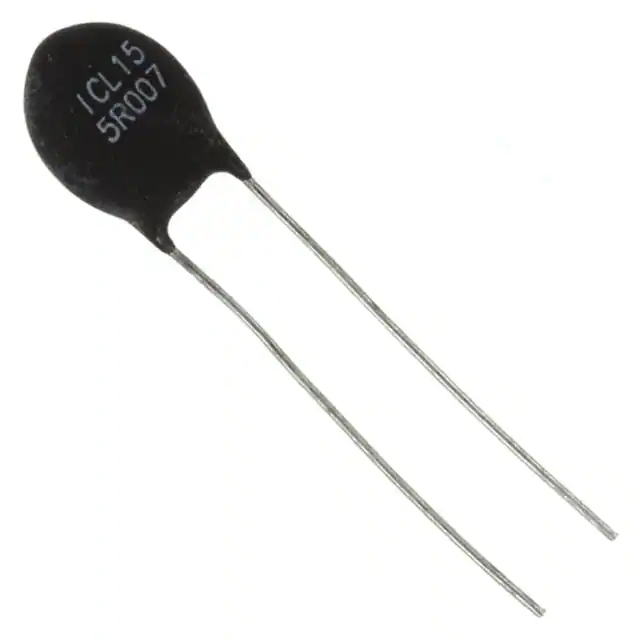

	ICL155R007-01 ICL 5 OHM 20% 7A 15MM Honeywell Sensing and Productivity Solutions	6,523	7.78	FFQ	Datasheet	Bulk	-	Active	5 Ohms	±20%	7 A	70 mOhms	0.591 (15.00mm)	0.310 (7.87mm)

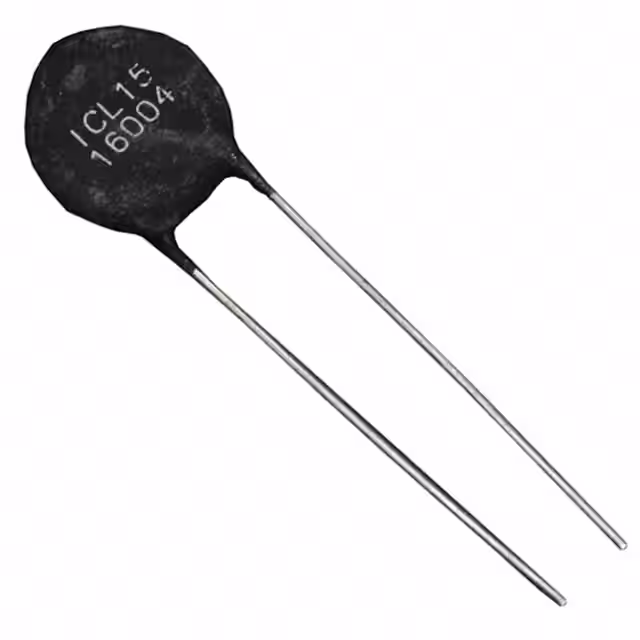

	ICL1516004-01 ICL 16 OHM 20% 4A 15MM Honeywell Sensing and Productivity Solutions	693	8.46	FFQ	Datasheet	Bulk	-	Obsolete	16 Ohms	±20%	4 A	270 mOhms	0.591 (15.00mm)	0.310 (7.87mm)

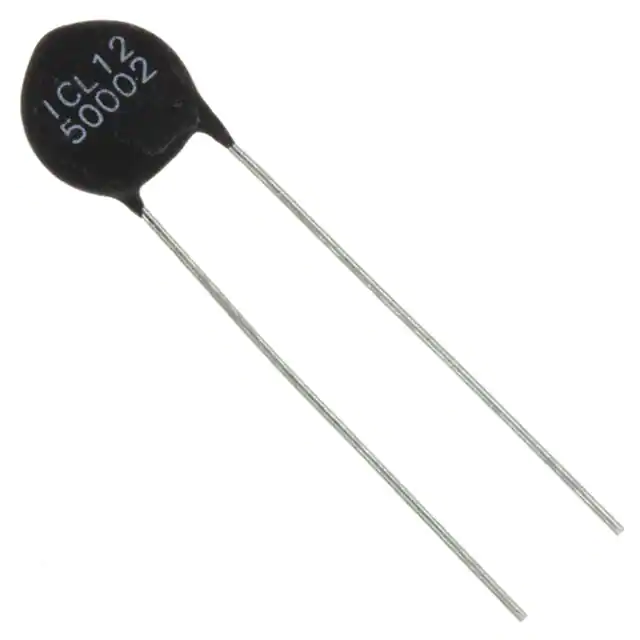

	ICL1250002-01 ICL 50 OHM 20% 2A 11.5MM Honeywell Sensing and Productivity Solutions	322	8.94	FFQ	Datasheet	Bulk	-	Obsolete	50 Ohms	±20%	2 A	720 mOhms	0.453 (11.50mm)	0.310 (7.87mm)

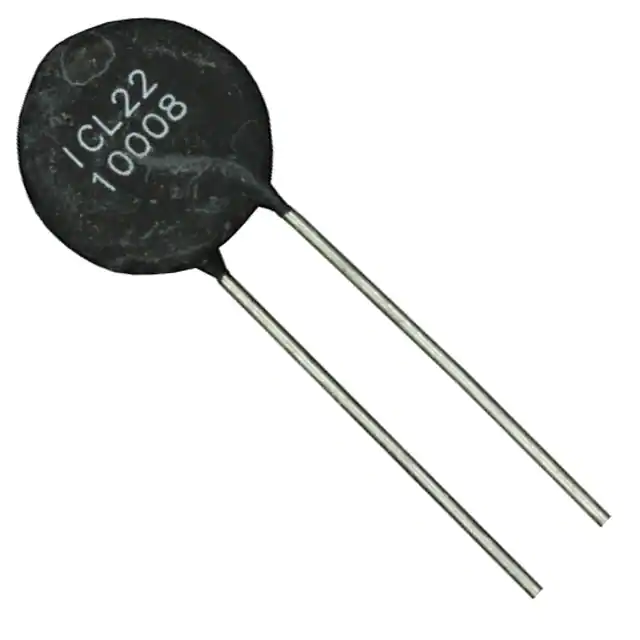

	ICL2210008-01 ICL 10 OHM 20% 8A 22MM Honeywell Sensing and Productivity Solutions	4,772	11.57	FFQ	Datasheet	Bulk	-	Active	10 Ohms	±20%	8 A	100 mOhms	0.866 (22.00mm)	0.310 (7.87mm)

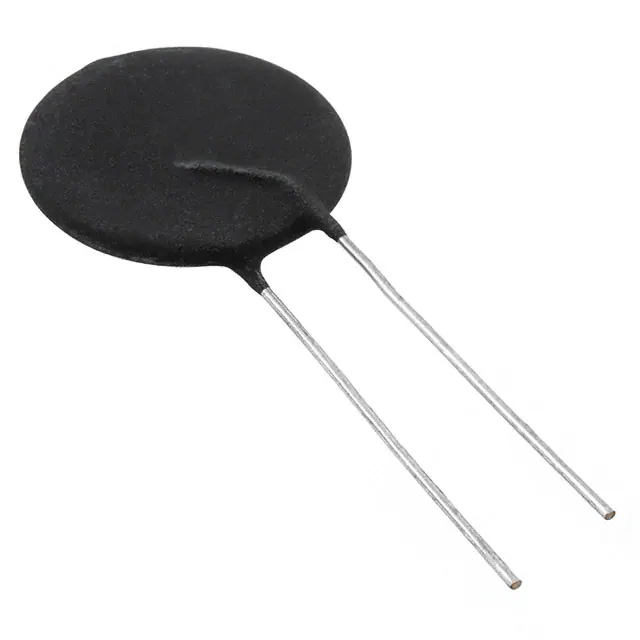

	ICL321R030-01 ICL 1 OHM 20% 30A 32MM Honeywell Sensing and Productivity Solutions	3,016	12.02	FFQ	Datasheet	Bulk	-	Active	1 Ohms	±20%	30 A	20 mOhms	1.260 (32.00mm)	0.310 (7.87mm)
	ICL1010004-01 THERMAL-THERMISTORS Honeywell Sensing and Productivity Solutions	8,551	3.80	FFQ		Bulk	*	Active	-	-	-	-	-	-
	ICL1580003-01 THERMAL-THERMISTORS Honeywell Sensing and Productivity Solutions	9,388	5.33	FFQ		Bulk	*	Active	-	-	-	-	-	-

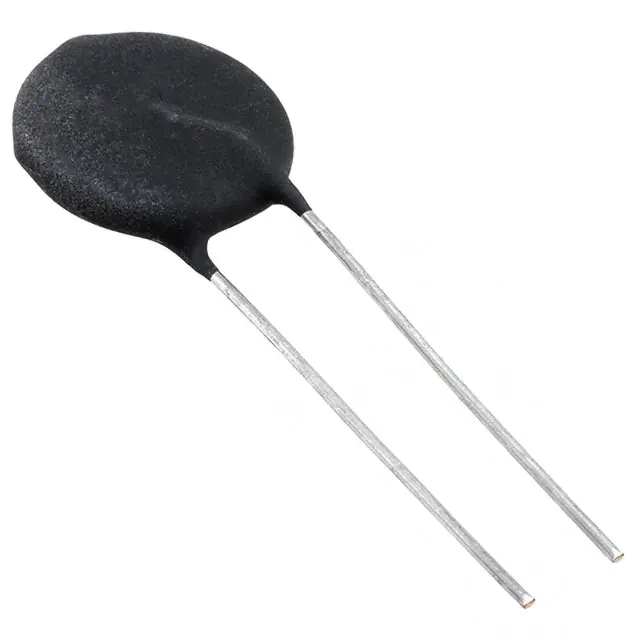

	ICL222R508-01 ICL 2.5 OHM 20% 8A 22MM Honeywell Sensing and Productivity Solutions	3,715	9.42	FFQ	Datasheet	Bulk	-	Obsolete	2.5 Ohms	±20%	8 A	60 mOhms	0.866 (22.00mm)	0.310 (7.87mm)

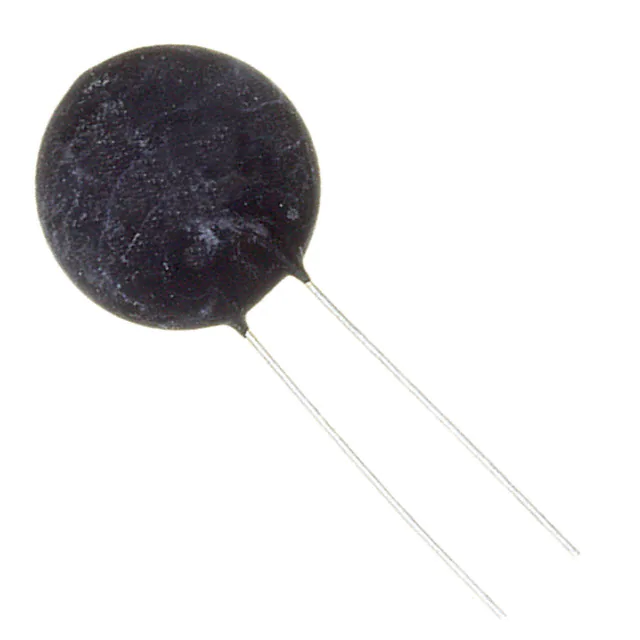

	ICL320R530-01 ICL 500 MOHM 20% 30A 32MM Honeywell Sensing and Productivity Solutions	850	9.76	FFQ	Datasheet	Bulk,Bulk	-	Obsolete	500 mOhms	±20%	30 A	10 mOhms	1.260 (32.00mm)	0.310 (7.87mm)
	ICL222R018-01 ICL 2 OHM 20% 18A 22MM Honeywell Sensing and Productivity Solutions	7,159	4.52	FFQ	Datasheet	Bulk,Bulk	-	Active	2 Ohms	±20%	18 A	30 mOhms	0.866 (22.00mm)	0.310 (7.87mm)

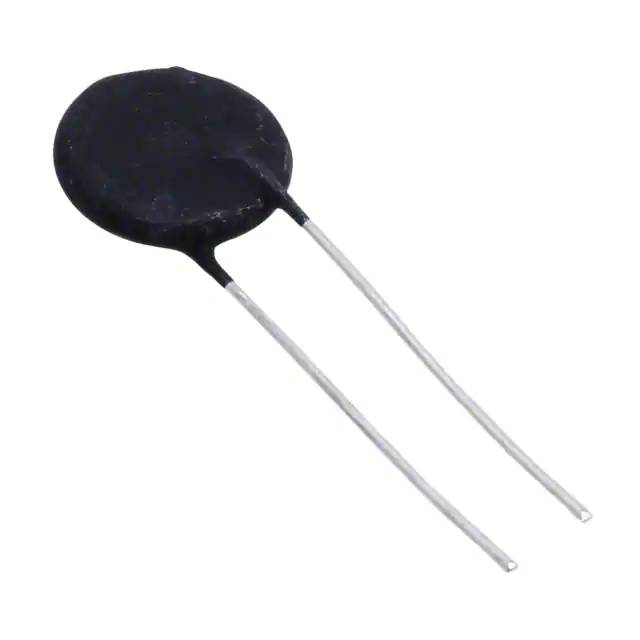

	ICL222R515-01 ICL 2.5 OHM 20% 15A 22MM Honeywell Sensing and Productivity Solutions	3,834	0.00	FFQ	Datasheet	Bulk	-	Obsolete	2.5 Ohms	±20%	15 A	30 mOhms	0.866 (22.00mm)	0.310 (7.87mm)
	ICL1010003-01 ICL 10 OHM 20% 3A 10.16MM Honeywell Sensing and Productivity Solutions	3,179	0.00	FFQ	Datasheet	Bulk	-	Obsolete	10 Ohms	±20%	3 A	400 mOhms	0.400 (10.16mm)	0.310 (7.87mm)
	ICL1510006-01 ICL 10 OHM 20% 6A 15MM Honeywell Sensing and Productivity Solutions	2,394	0.00	FFQ	Datasheet	Bulk	-	Obsolete	10 Ohms	±20%	6 A	150 mOhms	0.591 (15.00mm)	0.310 (7.87mm)
	ICL221R020-01 ICL 1 OHM 20% 20A 22MM Honeywell Sensing and Productivity Solutions	2,432	0.00	FFQ	Datasheet	Bulk	-	Obsolete	1 Ohms	±20%	20 A	20 mOhms	0.866 (22.00mm)	0.310 (7.87mm)
	ICL227R010-01 ICL 7 OHM 20% 10A 22MM Honeywell Sensing and Productivity Solutions	2,980	0.00	FFQ	Datasheet	Bulk	-	Obsolete	7 Ohms	±20%	10 A	80 mOhms	0.866 (22.00mm)	0.310 (7.87mm)
	ICL152R503-01 THERMAL-THERMISTORS Honeywell Sensing and Productivity Solutions	13,598	0.00	FFQ		Bulk	*	Active	-	-	-	-	-	-
