Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Topology	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output	Current-Output(Max)	Power(Watts)	Dimming	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension	ApprovalAgency

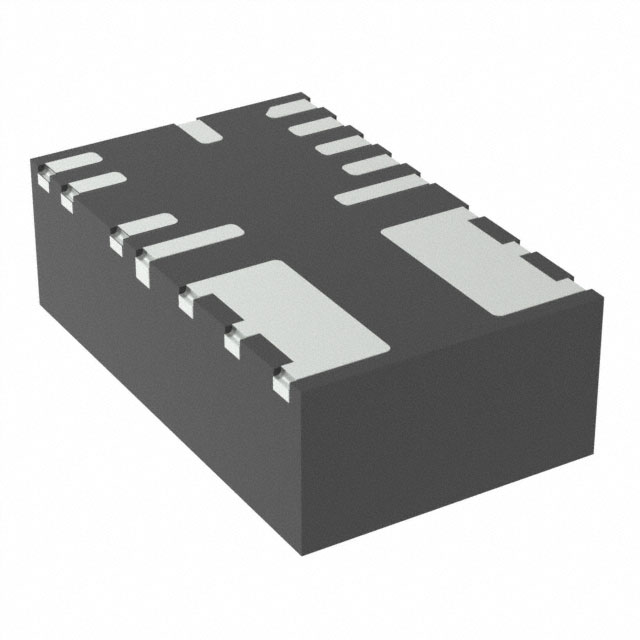

	MPM6010GQVE-AEC1-Z HIGH EFFICIENCY 36V/1.5A MODULE Monolithic Power Systems Inc.	8,081	7.49	FFQ	Datasheet		Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)
	MPM6010GQVE-AEC1-P HIGH EFFICIENCY 36V/1.5A MODULE Monolithic Power Systems Inc.	7,148	7.87	FFQ	Datasheet		Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)

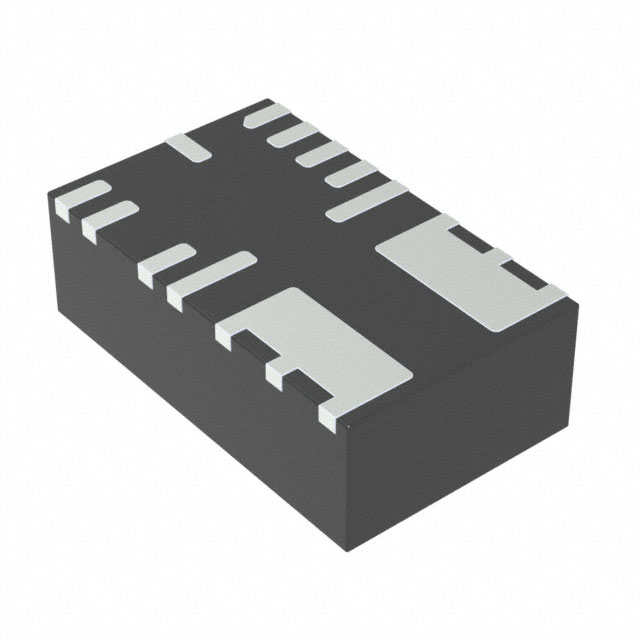

	MPM6010GQV-Z HIGH EFFICIENCY 36V/1.5A MODULES Monolithic Power Systems Inc.	7,753	3.15	FFQ	Datasheet		Tape & Reel (TR)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)
	MPM6010GQV-P HIGH EFFICIENCY 36V/1.5A MODULES Monolithic Power Systems Inc.	9,187	3.96	FFQ	Datasheet		Tape & Reel (TR)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)
	MPM6010GQV-AEC1-Z HIGH EFFICIENCY 36V/1.5A MODULE Monolithic Power Systems Inc.	7,678	4.05	FFQ	Datasheet		Tape & Reel (TR)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)
	MPM6010GQV-AEC1-P HIGH EFFICIENCY 36V/1.5A MODULE Monolithic Power Systems Inc.	5,827	4.68	FFQ	Datasheet		Tape & Reel (TR)	Automotive, AEC-Q100	Active	Constant Current	Buck	1	4V	36V	-	1.5A	-	PWM	OCP, OTP, SCP, UVLO	-40°C ~ 125°C	-	Surface Mount, Wettable Flank	17-PowerLQFN Module	0.12 L x 0.20 W x 0.06 H (3.0mm x 5.0mm x 1.7mm)
