Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
	LTW-5630SD458 LED 5630 458NM 4SMD Lite-On Inc.	10,982	0.24	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	-	458nm (Typ)	150mA	3.1V	19 lm/W	-	9lm (Typ)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
	LTW-5630SD530 LED 5630 GREEN 530NM 4SMD Lite-On Inc.	13,558	0.35	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	Green	530nm (520nm ~ 540nm)	150mA	3.2V	77 lm/W	150mA	37lm (30lm ~ 48lm)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad

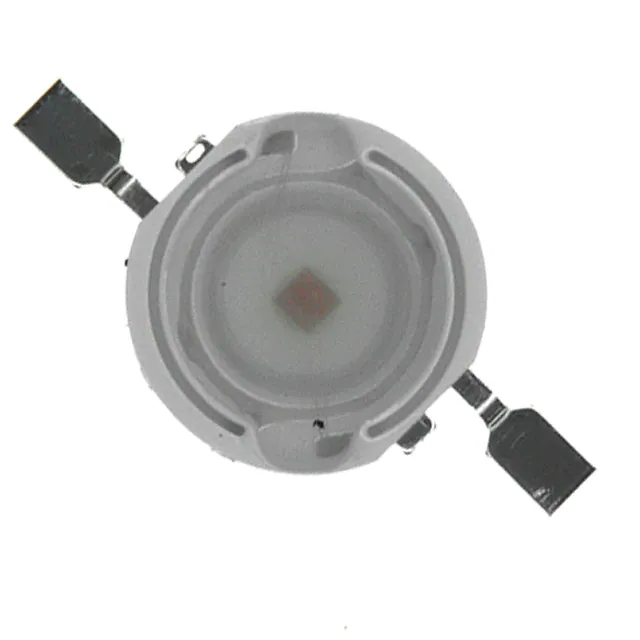

	LOPL-E001A LED LOPL AMBER 590NM SMD Lite-On Inc.	2,039	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Amber	590nm (Typ)	350mA	2.57V	40 lm/W	350mA	36lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad

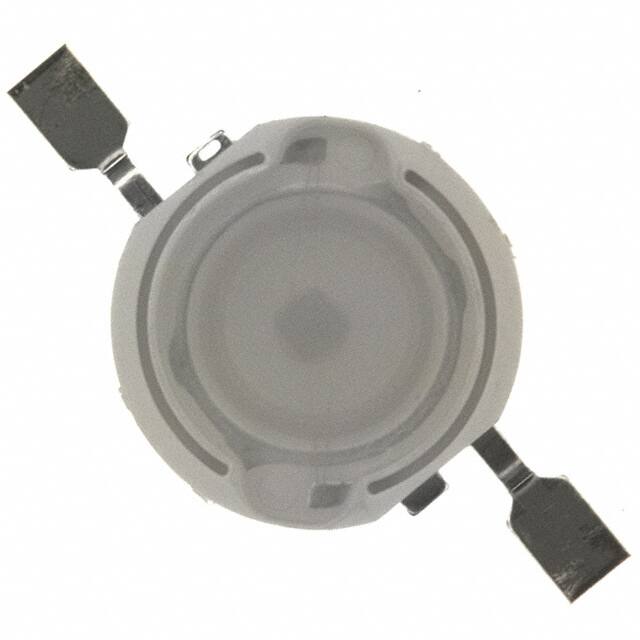

	LOPL-E001B LED LOPL BLUE 465NM SMD Lite-On Inc.	2,611	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Blue	465nm (Typ)	350mA	3.8V	7 lm/W	350mA	9lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad

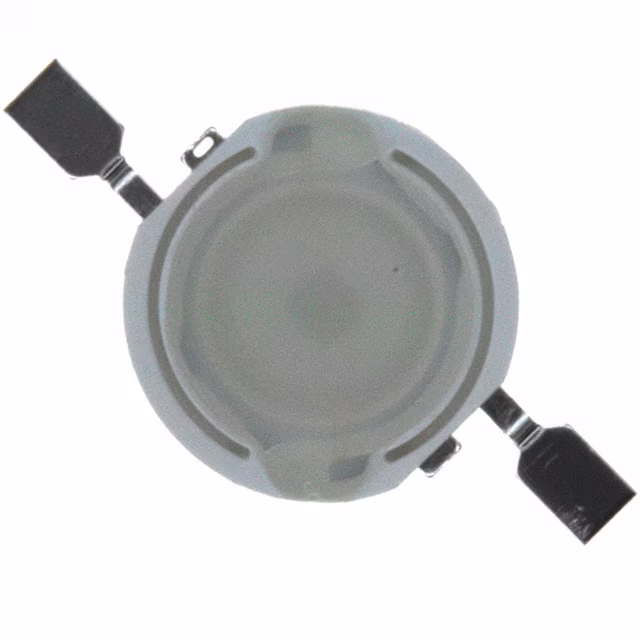

	LOPL-E001C LED LOPL CYAN 505NM SMD Lite-On Inc.	2,938	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Cyan	505nm (Typ)	350mA	3.7V	27 lm/W	350mA	35lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad

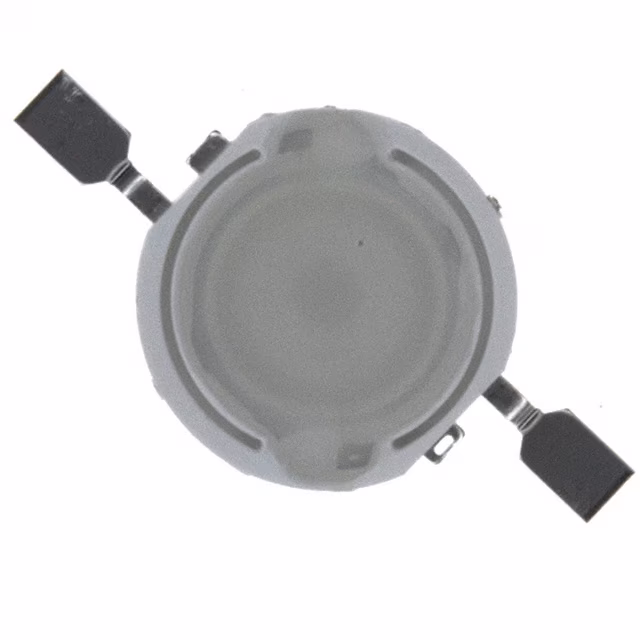

	LOPL-E001G LED LOPL GREEN 525NM SMD Lite-On Inc.	2,856	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Green	525nm (Typ)	350mA	3.7V	39 lm/W	350mA	51lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LOPL-E001H LED LOPL RED 617NM SMD Lite-On Inc.	3,468	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Red	617nm (Typ)	350mA	2.57V	49 lm/W	350mA	44lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad

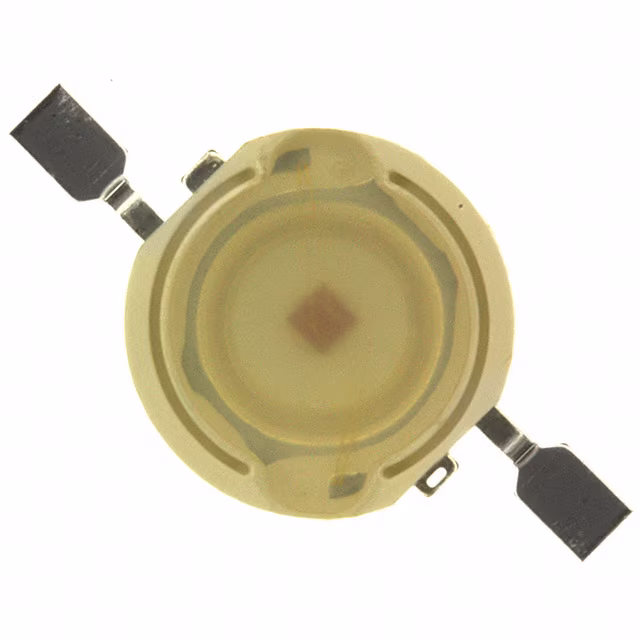

	LOPL-E001R LED LOPL RED 625NM SMD Lite-On Inc.	2,770	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LOPL	Obsolete	Red	625nm (Typ)	350mA	2.57V	41 lm/W	350mA	37lm (Typ)	25°C	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P011A LED LTPL AMBER 1 WATT SMD Lite-On Inc.	3,019	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Amber	-	350mA	-	-	1A	38lm (Typ)	-	120°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P011B LED LTPL BLUE SMD Lite-On Inc.	2,517	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Blue	-	350mA	-	-	1A	12lm (Typ)	-	120°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P011G LED LTPL GREEN SMD Lite-On Inc.	3,528	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Green	-	350mA	-	-	1A	65lm (Typ)	-	120°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P011H LED LTPL RED-ORANGE SMD Lite-On Inc.	2,088	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Red-Orange	-	350mA	-	-	1A	38lm (Typ)	-	120°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P011R LED LTPL RED 1 WATT SMD Lite-On Inc.	3,857	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Red	-	350mA	-	-	1A	37lm (Typ)	-	120°	Surface Mount	2-SMD, Gull Wing Exposed Pad
	LTPL-P013B LED 3 WATT BLUE SMD Lite-On Inc.	3,020	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	Blue	-	350mA	-	-	1A	14lm (Typ)	-	110°	Surface Mount	2-SMD, Gull Wing Exposed Pad

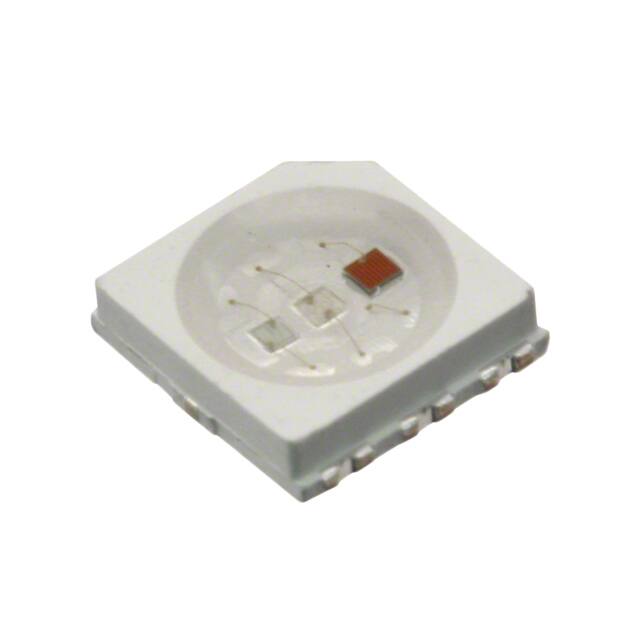

	LTPL-P001RGBS LED RED/GREEN/BLUE Lite-On Inc.	3,134	0.00	FFQ		Tape & Reel (TR),Cut Tape (CT)	LTPL	Obsolete	-	-	-	-	-	-	-	-	-	Surface Mount	6-SMD, No Lead
	LTW-5630SP660 LED 5630 RED 642NM 4SMD Lite-On Inc.	12,679	0.00	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	Red	642nm (Typ)	150mA	2.2V	24 lm/W	200mA	8lm (Typ)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
	LTW-5630SD630 LED 5630 630NM 4SMD Lite-On Inc.	10,560	0.00	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	-	630nm (Typ)	150mA	2.4V	44 lm/W	-	16lm (Typ)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
	LTW-5630SD590 LED 5630 590NM 4SMD Lite-On Inc.	14,762	0.00	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	-	590nm (Typ)	150mA	2.5V	69 lm/W	-	26lm (Typ)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
	LTW-5630SP750 LED 5630 RED 4SMD Lite-On Inc.	12,133	0.00	FFQ	Datasheet	Tape & Reel (TR)	5630	Active	Red	-	150mA	2V	-	200mA	85mW (75mW ~ 121mW)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
