Logic - Gates and Inverters

Manufacturer	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
ABLIC Inc. AC Electronics ADSANTEC Advanced Micro Devices Advanced Micro Lites Agile Focus Designs aimtec AMD Xilinx Amphenol Piher Sensing Systems Apex Tool Group Applied Photon Technology Berkeley Nuclonics Corporation (Directed Energy Inc) Burr Brown Cita Technologies, LLC. CML Innovative Technologies LTD Construction Resource Management, LLC CTS Electrocomponents Cypress Semiconductor Corp Daburn Electronics Digital Power Corporation Diodes Incorporated E-Switch Effulgent Inc. Electroswitch ETA-USA Euri Lighting Fairchild Semiconductor Floyd Bell Inc Freescale Semiconductor GAPTEC Electronic Harris Corporation IBM IDT, Integrated Device Technology Inc Infineon Technologies Intel Intematix Corporation IRTouch Systems Lantiq Lattice Semiconductor Corporation Luxmux Technology Corp Mag-LED Solutions Micrel Inc. Microchip Technology MICROSS/On Semiconductor Motorola Moujen National Semiconductor NEW TRY Nexperia USA Inc. NTE Electronics, Inc NXP Semiconductors NXP USA Inc. onsemi Optiks Mechatronics Pvt. Ltd. Osela Oshino Lamps America, Ltd P-DUKE Technology, Inc. P-tec Pericom Philips Polymer Optics Ltd. Quarton Inc. RCA REES, Inc Renesas Electronics America Inc Rochester Electronics, LLC Rohm Semiconductor Sanyo SOIL Spansion STMicroelectronics Texas Instruments Torex Semiconductor Ltd Toshiba Semiconductor and Storage TT Electronics/Power Partners Inc. UTD Semiconductor Xilinx Inc. Zettler Magnetics	Bag Bulk Bulk,Bulk Bulk,Bulk,Bulk Bulk,Bulk,Tube Bulk,Tube Bulk,Tube,Tube Bulk,Tube,Tube,Tube Cut Tape (CT) Cut Tape (CT),Digi-Reel® Digi-Reel® Strip Tape & Reel (TR) Tape & Reel (TR),Bulk Tape & Reel (TR),Bulk,Bulk Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Bulk Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk,Bulk Tape & Reel (TR),Digi-Reel®,Bulk Tape & Reel (TR),Tape & Reel (TR) Tape & Reel (TR),Tape & Reel (TR),Bulk Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Tray Tray Tube Tube,Tube Tube,Tube,Tube	* - 100S 10H 17SH 17SHT 17SV 17SZ 17SZU 27WZ 37WZ 4000 4000B 4S 54AC 54AHC 54AHCT 54ALS 54AS 54HC 54LS 54LVC 54S 7400 74ABT 74AC 74ACT 74ACTQ 74AHC 74AHCT 74AHCU 74AHCV 74ALS 74ALVC 74AS 74AUC 74AUP 74AXP 74C 74F 74FCT 74HC 74HCS 74HCT 74HCU 74LCX 74LS 74LV 74LVC 74LVCE 74LVCU 74LVQ 74LVT 74LVU 74LVX 74LVXU 74LX 74S 74ST 74STX 74UL 74V 74VCX 74VHC 74VHCT 74VHCU 74WL 7NP 7NZ 7S 7SET 7SH 7SHU 7SP 7ST 7SU 7SV 7SVL 7SVU 7SZ 7SZU 7UL 7W 7WH 7WHU 7WP 7WT 7WU 7WV 7WZ 7WZU 81LS Automotive, AEC-Q100 Automotive, AEC-Q100, 17SZ Automotive, AEC-Q100, 18SZ Automotive, AEC-Q100, 18VHC Automotive, AEC-Q100, 27WZ Automotive, AEC-Q100, 28WZ Automotive, AEC-Q100, 37WZ Automotive, AEC-Q100, 4000 Automotive, AEC-Q100, 4000B Automotive, AEC-Q100, 74AC Automotive, AEC-Q100, 74ACT Automotive, AEC-Q100, 74AHC Automotive, AEC-Q100, 74AHCT Automotive, AEC-Q100, 74AHCU Automotive, AEC-Q100, 74ALVC Automotive, AEC-Q100, 74AUP Automotive, AEC-Q100, 74HC Automotive, AEC-Q100, 74HCS Automotive, AEC-Q100, 74HCT Automotive, AEC-Q100, 74HCU Automotive, AEC-Q100, 74LCX Automotive, AEC-Q100, 74LV Automotive, AEC-Q100, 74LVC Automotive, AEC-Q100, 74LVCU Automotive, AEC-Q100, 74LVU Automotive, AEC-Q100, 74LVX Automotive, AEC-Q100, 74VHC Automotive, AEC-Q100, 74VHCT Automotive, AEC-Q101 MC MiniGate™ S-75L S-75V TC TC4S TC74AC TC74ACT TC74LCX TC74LVX TC74VCX TC74VHC TC74VHCT TC7PG TC7PZ TC7S TC7SET TC7SH TC7SHU TC7SU TC7SZ TC7SZU TC7W TC7WH TC7WHU TC7WU TC7WZ TC7WZU	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete	- AND Gate AND, OR Buffer, Non-Inverting Inverter NAND Gate NOR Gate OR Gate XNOR (Exclusive NOR) XOR (Exclusive OR)	- 1 2 3 4 6 9	- 1 13 2 3 4 4, 3, 3 4,2,3,2 5 6 8	- 1 of 4 AND/NAND Output 1 of 4 OR/NOR Output 3 Outputs 3-State Adjustable Output Amplitude and Frequency Response, Heat Sink on Top CML, Differential, Low Jitter Low Jitter, CML, Differential Open Collector Open Drain Schmitt Trigger Schmitt Trigger Input Schmitt Trigger, Open Drain Strobe	- -4.2V ~ -5.5V -4.2V ~ -5.7V -4.94V ~ -5.46V 0.7V ~ 2.75V 0.7V ~ 2.75V, 1.2V ~ 5.5V 0.8V ~ 2.7V 0.8V ~ 3.6V 0.9V ~ 3.6V 1.2V ~ 3.6V 1.2V ~ 5.5V 1.4V ~ 3.6V 1.4V ~ 5.5V 1.5V ~ 5.5V 1.65V ~ 3.6V 1.65V ~ 5.5V 1.6V ~ 5.5V 1.8V ~ 3.6V 1.8V ~ 5.5V 1V ~ 3.6V 1V ~ 5.5V 2.1V ~ 6V 2.3V ~ 3.6V 2.7V ~ 3.6V 20V 2V ~ 3.6V 2V ~ 5.5V 2V ~ 6V 3.1V ~ 3.5V 3.3V ~ 5V 3V ~ 12V 3V ~ 15V 3V ~ 16V 3V ~ 18V 3V ~ 20V 3V ~ 3.6V 3V ~ 5.5V 4.2V ~ 5.7V 4.5V ~ 15.5V 4.5V ~ 15V 4.5V ~ 5.5V 4.75V ~ 5.25V 5.5V, 0.7V ~ 2.75V ±2.9V ~ 3.3V	- 0.1 µA 1 µA 1.1 mA 1.2 mA 1.2 µA 1.35 mA 1.5 mA 1.8 mA 10 mA 10 µA 100 mA 100 nA 100 µA 11 mA 11.5 mA 12 mA 12.9 mA 125 mA 13 mA 13.8 mA 14 mA 15 mA 15 µA 15.3 mA 16 mA 16 µA 17 mA 18 mA 19 mA 19 µA 2 mA 2 µA 2.1 mA 2.2 mA 2.4 µA 2.5 µA 20 mA 20 µA 200 µA 21 mA 22 mA 24 mA 25 mA 25 µA 27 mA 28 mA 3 mA 3 µA 3.3 mA 3.5 mA 3.6 mA 30 µA 32 mA 33 mA 36 mA 360 µA 38 mA 4 mA 4 µA 4.2 mA 4.3 mA 4.4 mA 4.5 mA 40 mA 40 µA 44 µA 48 mA 5 µA 5.1 mA 5.4 mA 5.5 mA 50 mA 50 µA 500 nA 500 µA 54 mA 58 mA 6 mA 6.5 mA 6.6 mA 6.8 mA 60 mA 600 nA 65 mA 7 mA 7.7 mA 75 mA 8 mA 8 µA 8.5 mA 8.8 mA 80 µA 800 µA 85 mA 9.5 mA 9.7 mA 9.8 mA 90 mA 900 nA	- -, 100mA -, 12mA -, 136mA -, 160mA -, 16mA -, 2.6mA -, 20mA -, 24mA -, 32mA -, 4.8mA -, 40mA -, 48mA -, 4mA -, 5.2mA -, 60mA -, 64mA -, 68mA -, 7.8mA -, 8mA -, 9mA 1.2mA, 24mA 1.2mA, 3mA 1.2mA, 48mA 1.5mA, 24mA 1.8mA, 4.2mA 100µA, 4mA 100µA, 8mA 10mA, 10mA 10mA, 40mA 120µA, 12mA 125mA 12mA 12mA, 12mA 12mA, 48mA 15mA, 20mA 15mA, 24mA 15mA, 64mA 16mA, 16mA 16mA, 40mA 18mA, 16mA 1mA, 16mA 1mA, 20mA 1mA, 8mA 2.4mA, 2.4mA 2.6mA, 2.6mA 2.6mA, 24mA 20mA, 1mA 20mA, 32mA 20mA, 9mA 24mA 24mA, 15mA 24mA, 24mA 250µA, 16mA 250µA, 20mA 250µA, 24mA 250µA, 30mA 250µA, 48mA 2mA, 20mA 2mA, 2mA 3.4mA, 3.4mA 3.5mA, 3.5mA 3.5mA, 8.8mA 32mA 32mA, 32mA 3mA, 20mA 3mA, 36mA 3mA, 3mA 3mA, 60mA 4.2mA, 4.2mA 4.3mA, 24mA 4.8mA, 4.8mA 400µA, 16mA 400µA, 4mA 400µA, 8mA 40mA, 60mA 42.4mA, 48mA 48mA 48mA, 48mA 4mA, - 4mA, 400µA 4mA, 4mA 4mA, 5.2mA 5.2mA 5.2mA, 24mA 5.2mA, 5.2mA 5.2mA, 7.8mA 500nA, 5.2mA 50mA, 50mA 6.8mA, 6.8mA 60mA, 40mA 67mA, 160mA 6mA, 6mA 7.2mA, 29mA 7.8mA 7.8mA, 7.8mA 8.8mA, 8.8mA 800µA, 16mA 85mA 8mA, 48mA 8mA, 8mA 90mA 9mA, 9mA	- -1.48V 0.07V ~ 0.55V 0.08V ~ 0.55V 0.09V ~ 0.95V 0.12V ~ 0.8V 0.12V ~ 1.2V 0.15V ~ 0.88V 0.15V ~ 0.8V 0.15V ~ 1.65V 0.1V ~ 0.26V 0.1V ~ 0.36V 0.1V ~ 0.3V 0.1V ~ 0.44V 0.1V ~ 0.45V 0.1V ~ 0.4V 0.1V ~ 0.52V 0.1V ~ 0.55V 0.1V ~ 0.6V 0.1V ~ 0.88V 0.1V ~ 0.8V 0.1V ~ 36V 0.22V ~ 0.58V 0.25V ~ 0.8V 0.25V ~ 0.9V 0.25V ~ 1.2V 0.28V ~ 0.8V 0.2V ~ 0.55V 0.2V ~ 0.5V 0.2V ~ 0.75V 0.2V ~ 0.8V 0.2V ~ 0.9V 0.2V ~ 1.2V 0.35V ~ 0.5V 0.35V ~ 0.6V 0.35V ~ 0.8V 0.36V 0.39V ~ 1.87V 0.3V 0.3V ~ 0.6V 0.3V ~ 0.8V 0.3V ~ 1.16V 0.3V ~ 1.1V 0.3V ~ 1.2V 0.3V ~ 1.45V 0.3V ~ 1.4V 0.3V ~ 1.5V 0.3V ~ 1.65V 0.3V ~ 1V 0.41V ~ 0.8V 0.46V ~ 1.58V 0.4V 0.4V ~ 0.5V 0.4V ~ 0.65V 0.4V ~ 0.6V 0.4V ~ 0.7V 0.4V ~ 0.8V 0.4V ~ 1.2V 0.4V ~ 2.3V 0.53V ~ 0.8V 0.55V 0.58 ~ 0.8V 0.58V ~ 0.8V 0.5V 0.5V ~ 0.6V 0.5V ~ 0.8V 0.5V ~ 1.1V 0.5V ~ 1.4V 0.5V ~ 1.65V 0.5V ~ 1.8V 0.5V ~ 1.9V 0.5V ~ 1V 0.64V ~ 0.85V 0.64V ~ 2.29V 0.65V ~ 1.45V 0.6V 0.6V ~ 0.85V 0.6V ~ 0.8V 0.6V ~ 1.1V 0.6V ~ 1.24V 0.75V 0.75V ~ 0.85V 0.75V ~ 1.5V 0.75V ~ 1.9V 0.75V ~ 2.35V 0.75V ~ 2.48V 0.75V ~ 2.9V 0.76V ~ 1.13V 0.78V ~ 2.27V 0.7V 0.7V ~ 0.8V 0.7V ~ 0.9V 0.7V ~ 1.5V 0.7V ~ 2.1V 0.7V ~ 2.5V 0.8V 0.8V ~ 1.3V 0.9V 0.9V ~ 1.1V 0.9V ~ 1.65V 0.9V ~ 2.3V 0.9V ~ 2.6V 0.9V ~ 4V 0V ~ 0.26V 0V ~ 0.7V 1.1V 1.1V ~ 1.5V 1.1V ~ 2.5V 1.1V ~ 3.3V 1.25V ~ 3.4V 1.2V ~ 1.4V 1.49V 1.5V ~ 2.9V 1.5V ~ 2V 1.5V ~ 4.5V 1.5V ~ 4V 1.675V 1.6V 1.6V ~ 4.6V 1V ~ 2.5V 1V ~ 3.2V 1V ~ 3V 2.8V ~ 9.6V 2V ~ 2.48V	- -1.13V 0.1V ~ 0.4V 0.1V ~ 3.8V 0.5V ~ 1.56V 0.65V ~ 2.32V 0.65V ~ 2.6V 0.6V ~ 2.29V 0.6V ~ 2.6V 0.75V ~ 2.1V 0.75V ~ 2.48V 0.75V ~ 2.6V 0.7V ~ 2.2V 0.86V ~ 2.05V 0.88V 0.8V ~ 2.1V 0.94 ~ 2.1V 0.94V ~ 2.1V 0.95V ~ 3.4V 0.9V ~ 1.5V 0.9V ~ 1.7V 0.9V ~ 2V 0V ~ 3.6V 1.05V ~ 3.7V 1.08V ~ 2.4V 1.08V ~ 2V 1.14V ~ 2.79V 1.16V ~ 3.33V 1.1V ~ 1.16V 1.1V ~ 1.19V 1.24V ~ 2V 1.28V ~ 4.6V 1.29V ~ 4V 1.2V ~ 2.1V 1.2V ~ 2.2V 1.2V ~ 2V 1.2V ~ 3.2V 1.2V ~ 3.33V 1.2V ~ 3.85V 1.2V ~ 4.11V 1.32V ~ 2.88V 1.35V ~ 2.2V 1.3V ~ 2.2V 1.3V ~ 2V 1.45V ~ 2.3V 1.45V ~ 2V 1.4V ~ 1.9V 1.4V ~ 2.2V 1.4V ~ 2V 1.4V ~ 3.4V 1.4V ~ 3.6V 1.4V ~ 3.7V 1.4V ~ 3.85V 1.4V ~ 3.9V 1.4V ~ 4V 1.5V 1.5V ~ 2.4V 1.5V ~ 2V 1.5V ~ 3.6V 1.5V ~ 3.85V 1.5V ~ 4.2V 1.65V ~ 3.85V 1.65V ~ 4.5V 1.6V 1.6V ~ 2.1V 1.6V ~ 2.6V 1.6V ~ 2V 1.75V ~ 3.5V 1.7V 1.7V ~ 2.2V 1.7V ~ 2.7V 1.7V ~ 2V 1.7V ~ 3.8V 1.7V ~ 4.4V 1.7V ~ 4.8V 1.85V ~ 2V 1.8V ~ 2.2V 1.8V ~ 3.6V 1.8V ~ 5.5V 1.998V ~ 5.8V 1.9V 1.9V ~ 2.1V 1.9V ~ 2.6V 1.9V ~ 3.8V 1.9V ~ 4.4V 1.9V ~ 4.5V 1.9V ~ 5.8V 1.9V ~ 5.9V 1V ~ 2.4V 1V ~ 2V 1V ~ 3.6V 1V ~ 3V 2.15V 2.1V ~ 2.5V 2.1V ~ 3.85V 2.25V ~ 3.7V 2.2V 2.2V ~ 2.48V 2.2V ~ 3.85V 2.2V ~ 3.9V 2.420V 2.4V 2.56V ~ 4.86V 2.56V ~ 5.4V 2.5V 2.75V ~ 8.25V 2.99V ~ 5.49V 2.9V ~ 4.4V 2.9V ~ 5.4V 2V 2V ~ 2.48V 2V ~ 4.5V 2V ~ 5.81V 2V ~ 5.8V 3.35V ~ 10.6V 3.4V 3.4V ~ 10.5V 3.5V ~ 10.5V 3.5V ~ 11V 3.5V ~ 8V 3.6V ~ 10.8V 3.6V ~ 12.7V 3.75V ~ 11.6V 3.94V ~ 4.5V 3.98V ~ 4.4V 3.98V ~ 5.4V 3V ~ 9V 4.3V ~ 12.9V 4.4V ~ 4.86V 4.95V ~ 14.95V 4V ~ 12.5V 4V ~ 12V	- 1.25ns @ -5.2V, - 1.2ns @ 2.5V, 30pF 1.3ns @ -5.2V, - 1.3ns @ 2.5V, 30pF 1.55ns @ -5.2V, - 1.5ns @ -5.2V, - 1.5ns @ 2.5V, 30pF 1.6ns @ -5.2V, - 1.6ns @ 2.5V, 30pF 1.6ns @ 5V, 50pF 1.75ns @ -5.2V, - 1.7ns @ -5.2V, - 1.7ns @ 2.5V, 30pF 1.7ns @ 5V, 50pF 1.8ns @ -5.2V, - 1.8ns @ 2.5V, 30pF 1.8ns @ 5V, 50pF 1.9ns @ 2.5V, 30pF 10.1ns @ 3.3V, 50pF 10.3ns @ 5V, 50pF 10.5ns @ 3.3V, 30pF 10.5ns @ 5V, 15pF 10.5ns @ 5V, 50pF 10.6ns @ 3.3V, 30pF 10.6ns @ 3.3V, 50pF 10.6ns @ 5V, 50pF 10.8ns @ 5V, 50pF 10.9ns @ 5V, 50pF 100ns @ 15V, 50pF 10ns @ 3.3V, 30pF 10ns @ 3.3V, 50pF 10ns @ 3V, 25pF 10ns @ 4.5V, 50pF 10ns @ 5V, - 10ns @ 5V, 150pF 10ns @ 5V, 15pF 10ns @ 5V, 50pF 10ns @ 6V, 50pF 11.4ns @ 3.3V, 50pF 11.4ns @ 5V, 50pF 11.5ns @ 3.3V, 50pF 11.5ns @ 5V, 50pF 110ns @ 15V, 50pF 11ns @ 4.5V, 50pF 11ns @ 5V, 50pF 11ns @ 6V, 50pF 12.1ns @ 5V, 50pF 12.2ns @ 5V, 50pF 12.5ns @ 5V, 50pF 12.7ns @ 3.3V, 30pF 12.8ns @ 3.3V, 50pF 12.9ns @ 5V, 50pF 120ns @ 15V, 50pF 12ns @ 3V, 25pF 12ns @ 4.5V, 50pF 12ns @ 5V, 15pF 12ns @ 5V, 50pF 12ns @ 6V, 50pF 13.2ns @ 5V, 50pF 13.5ns @ 3.3V, 50pF 13.5ns @ 5V, 50pF 130ns @ 15V, 50pF 13ns @ 3.3V, 50pF 13ns @ 4.5V, 50pF 13ns @ 5V, 15pF 13ns @ 5V, 50pF 13ns @ 6V, 50pF 14.1ns @ 3.3V, 50pF 14.5ns @ 5V, 50pF 14.6ns @ 5V, 50pF 140ns @ 15V, 50pF 14ns @ 4.5V, 50pF 14ns @ 5V, 50pF 14ns @ 6V, 50pF 15.4ns @ 3.3V, 50pF 150ns @ 10V, 15pF 15ns @ 3.3V, 50pF 15ns @ 4.5V, 50pF 15ns @ 5.5V, 50pF 15ns @ 5V, 15pF 15ns @ 5V, 50pF 15ns @ 6V, 50pF 160ns @ 15V, 50pF 16ns @ 5.5V, 50pF 16ns @ 5V, 50pF 16ns @ 6V, 50pF 17ns @ 5.5V, 50pF 17ns @ 5V, 50pF 17ns @ 6V, 50pF 18ns @ 4.5V, 50pF 18ns @ 5.5V, 50pF 18ns @ 5V, 150pF 18ns @ 5V, 50pF 18ns @ 6V, 50pF 19ns @ 4.5V, 50pF 19ns @ 5V, 50pF 19ns @ 6V, 50pF 2.1ns @ 2.5V, 30pF 2.1ns @ 3.3V, 50pF 2.2ns @ 3.3V, 50pF 2.3ns @ 3.3V, 50pF 2.3ns @ 3V, 30pF 2.4ns @ 3.3V, 50pF 2.5ns @ 2.5V, 30pF 2.5ns @ 5V, 50pF 2.6ns @ 3.3V, 50pF 2.7ns @ 2.5V, 30pF 2.7ns @ 2.5V, 5pF 2.7ns @ 3.3V, 50pF 2.7ns @ 5V, 50pF 2.8ns @ 2.5V, 5pF 2.8ns @ 3.3V, 30pF 2.8ns @ 3.3V, 50pF 2.8ns @ 5V, 50pF 2.9ns @ 3.3V, 50pF 2.9ns @ 5V, 50pF 200ns @ 10V, 50pF 20ns @ 4.5V, 50pF 20ns @ 5V, 15pF 20ns @ 5V, 50pF 20ns @ 6V, 50pF 21ns @ 4.5V, 50pF 21ns @ 6V, 50pF 22ns @ 4.5V, 50pF 22ns @ 5.5V, 50pF 22ns @ 5V, 150pF 22ns @ 5V, 15pF 22ns @ 5V, 45pF 22ns @ 5V, 50pF 22ns @ 6V, 50pF 23ns @ 4.5V, 50pF 23ns @ 5V, 15pF 23ns @ 5V, 50pF 23ns @ 6V, 50pF 24ns @ 4.5V, 50pF 24ns @ 5V, 15pF 24ns @ 5V, 45pF 250ns @ 5V, 50pF 25ns @ 15V, 50pF 25ns @ 4.5V, 50pF 25ns @ 5V, 50pF 25ns @ 6V, 50pF 26ns @ 5.5V, 50pF 26ns @ 6V, 50pF 27ns @ 4.5V, 50pF 27ns @ 5V, 15pF 27ns @ 6V, 50pF 28ns @ 4.5V, 50pF 28ns @ 5.5V, 50pF 2ns @ -5.2V, - 2ns @ 2.5V, 30pF 2ns @ 3.3V, 50pF 3.2ns @ 2.5V, 5pF 3.2ns @ 3.3V, 50pF 3.2ns @ 5V, 50pF 3.3ns @ 3.3V, 15pF 3.3ns @ 3.3V, 30pF 3.3ns @ 3.3V, 50pF 3.3ns @ 3V, 30pF 3.3ns @ 5V, 50pF 3.4ns @ 3.3V, 50pF 3.4ns @ 5V, 50pF 3.5ns @ 3.3V, 50pF 3.5ns @ 3V, 30pF 3.5ns @ 5V, 50pF 3.6ns @ 3.3V, 50pF 3.6ns @ 5V, 50pF 3.7ns @ 3.3V, 50pF 3.7ns @ 5V, 50pF 3.8ns @ 2.5V, 5pF 3.8ns @ 3.3V, 30pF 3.8ns @ 3.3V, 50pF 3.8ns @ 5V, 50pF 3.9ns @ 3.3V, 50pF 3.9ns @ 5V, 50pF 30ns @ 10V, 50pF 30ns @ 15V, 50pF 30ns @ 4.5V, 50pF 30ns @ 5.5V, 50pF 30ns @ 5V, 150pF 30ns @ 5V, 15pF 30ns @ 5V, 50pF 30ns @ 6V, 50pF 31ns @ 5.5V, 50pF 31ns @ 6V, 50pF 32ns @ 4.5V, 50pF 32ns @ 5V, 15pF 32ns @ 5V, 45pF 32ns @ 5V, 50pF 32ns @ 6V, 50pF 33ns @ 4.5V, 50pF 33ns @ 5V, 50pF 34ns @ 4.5V, 50pF 35ns @ 15V, 50pF 35ns @ 5V, 15pF 38ns @ 4.5V, 50pF 3ns @ 2.5V, 30pF 3ns @ 2.5V, 5pF 3ns @ 3.3V, 30pF 3ns @ 3.3V, 50pF 3ns @ 3V, 30pF 3ns @ 5V, 50pF 4.1ns @ 2.5V, 5pF 4.1ns @ 3.3V, 50pF 4.2ns @ 3.3V, 50pF 4.2ns @ 5V, 50pF 4.3ns @ 3.3V, 30pF 4.3ns @ 3.3V, 50pF 4.3ns @ 5V, 50pF 4.4ns @ 3.3V, 15pF 4.4ns @ 3.3V, 30pF 4.4ns @ 3.3V, 50pF 4.4ns @ 3.6V, 30pF 4.4ns @ 5V, 50pF 4.5ns @ 3.3V, 50pF 4.5ns @ 3V, 30pF 4.5ns @ 5V, 30pF 4.5ns @ 5V, 50pF 4.6ns @ 3.3V, 50pF 4.6ns @ 5V, 30pF 4.7ns @ 3.3V, 30pF 4.7ns @ 3.3V, 50pF 4.7ns @ 5V, 30pF 4.7ns @ 5V, 50pF 4.8ns @ 3.3V, 30pF 4.8ns @ 3.3V, 50pF 4.8ns @ 5V, 30pF 4.8ns @ 5V, 50pF 4.9ns @ 3.3V, 30pF 4.9ns @ 3.3V, 50pF 4.9ns @ 5V, 50pF 40ns @ 10V, 15pF 40ns @ 15V, 50pF 42ns @ 5V, 50pF 45ns @ 15V, 50pF 45ns @ 5V, 15pF 45ns @ 5V, 50pF 48ns @ 5V, 150pF 4ns @ 3.3V, 30pF 4ns @ 3.3V, 50pF 4ns @ 3.6V, 50pF 4ns @ 5V, 50pF 5.1ns @ 3.3V, 50pF 5.1ns @ 5V, 30pF 5.1ns @ 5V, 50pF 5.2ns @ 3.3V, 30pF 5.2ns @ 3.3V, 50pF 5.4ns @ 3.3V, 30pF 5.4ns @ 3.3V, 50pF 5.4ns @ 3.6V, 30pF 5.4ns @ 5V, 50pF 5.5ns @ 3.3V, 30pF 5.5ns @ 3.3V, 50pF 5.5ns @ 5V, 50pF 5.6ns @ 5V, - 5.6ns @ 5V, 50pF 5.7ns @ 3.3V, 50pF 5.7ns @ 5V, 50pF 5.8ns @ 5V, 50pF 5.9ns @ 3.3V, 50pF 5.9ns @ 5V, 50pF 50ns @ 15V, 50pF 50ns @ 5V, 50pF 51ns @ 5V, 50pF 54ns @ 5V, 50pF 55ns @ 15V, 50pF 55ns @ 5V, 15pF 5ns @ 3.3V, 50pF 5ns @ 5.5V, 50pF 5ns @ 5V, 50pF 5ns @ 6V, 50pF 6.1ns @ 3.3V, 30pF 6.1ns @ 3.6V, 30pF 6.2ns @ 3.3V, 30pF 6.2ns @ 3.3V, 50pF 6.2ns @ 5V, 50pF 6.3ns @ 3.3V, 50pF 6.3ns @ 5V, 50pF 6.4ns @ 3.3V, 30pF 6.4ns @ 3.3V, 50pF 6.5ns @ 2.5V, 50pF 6.5ns @ 3.3V, 30pF 6.5ns @ 3.3V, 50pF 6.5ns @ 5.5V, 50pF 6.5ns @ 5V, 50pF 6.5ns @ 5V, 5pF 6.6ns @ 5V, 50pF 6.7ns @ 3.3V, 30pF 6.8ns @ 3.3V, 30pF 6.8ns @ 5V, 50pF 6.9ns @ 3.3V, 30pF 60ns @ 10V, 50pF 60ns @ 15V, 50pF 65ns @ 10V, 15pF 65ns @ 15V, 50pF 69ns @ 5V, 50pF 6ns @ 3.3V, 50pF 6ns @ 4.5V, 50pF 6ns @ 5V, 150pF 6ns @ 5V, 15pF 6ns @ 5V, 50pF 7.1ns @ 3.3V, 30pF 7.2ns @ 3.3V, 50pF 7.2ns @ 5V, 50pF 7.3ns @ 5V, 50pF 7.4ns @ 5V, 50pF 7.5ns @ 3.3V, 50pF 7.5ns @ 5V, - 7.5ns @ 5V, 50pF 7.7ns @ 5V, 50pF 7.8ns @ 3.3V, 30pF 7.9ns @ 5V, 15pF 7.9ns @ 5V, 50pF 700ps @ -5V, - 70ns @ 10V, 50pF 70ns @ 15V, 50pF 75ns @ 15V, 50pF 7ns @ 2.5V, 50pF 7ns @ 3.3V, 30pF 7ns @ 3.3V, 50pF 7ns @ 5.5V, 50pF 7ns @ 5V, 30pF 7ns @ 5V, 50pF 7ns @ 6V, 50pF 8.1ns @ 5V, 50pF 8.2ns @ 5V, 50pF 8.3ns @ 5V, 50pF 8.5ns @ 3.3V, 50pF 8.5ns @ 5V, - 8.5ns @ 5V, 50pF 8.7ns @ 5V, 50pF 8.8ns @ 5V, 50pF 80ns @ 15V, 50pF 84ns @ 5V, 50pF 8ns @ 3.3V, 30pF 8ns @ 3.3V, 50pF 8ns @ 5V, 50pF 8ns @ 6V, 50pF 9.2ns @ 3.3V, 30pF 9.3ns @ 5V, 50pF 9.5ns @ 3.3V, 50pF 9.5ns @ 5V, 50pF 9.6ns @ 5V, 50pF 9.7ns @ 3.3V, 50pF 9.7ns @ 5V, 50pF 9.8ns @ 5V, 50pF 90ns @ 15V, 50pF 9ns @ 3.3V, 50pF 9ns @ 3V, 25pF 9ns @ 5V, - 9ns @ 5V, 150pF 9ns @ 5V, 50pF	- -25°C ~ 125°C (TJ) -25°C ~ 85°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 85°C -40°C ~ 85°C (TA) -55°C ~ 115°C -55°C ~ 125°C -55°C ~ 125°C (TA) -55°C ~ 85°C 0°C ~ 70°C 0°C ~ 70°C (TA) 0°C ~ 75°C 0°C ~ 85°C 25°C 25°C ~ 70°C	- Surface Mount Through Hole

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
NTE4012BT IC GATE NAND 2CH 4-INP 14SOIC NTE Electronics, Inc	13,773	0.82	FFQ	Datasheet	Bag	4000B	Active	NAND Gate	2	4	-	3V ~ 18V	1 µA	8.8mA, 8.8mA	1.5V ~ 4V	3.5V ~ 11V	100ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
NTE4069 IC INVERTER 6CH 1-INP 14DIP NTE Electronics, Inc	10,577	0.82	FFQ	Datasheet	Bag	4000	Active	Inverter	6	1	-	3V ~ 18V	30 µA	8.8mA, 8.8mA	1V ~ 2.5V	4V ~ 12.5V	55ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
NTE74LS05 IC INVERT OPEN COL 6CH 1IN 14DIP NTE Electronics, Inc	6,170	1.06	FFQ	Datasheet	Bag	74LS	Active	Inverter	6	1	Open Collector	4.75V ~ 5.25V	-	-, 8mA	0.8V	2V	32ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE4000 IC GATE NOR 3CH 3-INP 14DIP NTE Electronics, Inc	6,218	1.06	FFQ	Datasheet	Bag	4000	Active	NOR Gate	3	3	-	3V ~ 18V	1 µA	1.8mA, 4.2mA	1V ~ 2.5V	4V ~ 12.5V	80ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
NTE40106B IC INVERT SCHMITT 6CH 1-IN 14DIP NTE Electronics, Inc	8,136	1.32	FFQ	Datasheet	Bag	4000B	Active	Inverter	6	1	Schmitt Trigger	3V ~ 18V	20 µA	6.8mA, 6.8mA	0.9V ~ 4V	3.6V ~ 10.8V	120ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
NTE74LS04 IC INVERTER 6CH 1-INP 14DIP NTE Electronics, Inc	6,930	1.40	FFQ	Datasheet	Bag	74LS	Active	Inverter	6	1	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	15ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE74HC32 IC GATE OR 4CH 2-INP 14DIP NTE Electronics, Inc	5,796	1.40	FFQ	Datasheet	Bag	74HC	Active	OR Gate	4	2	-	2V ~ 6V	20 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	20ns @ 6V, 50pF	-40°C ~ 85°C (TA)	Through Hole

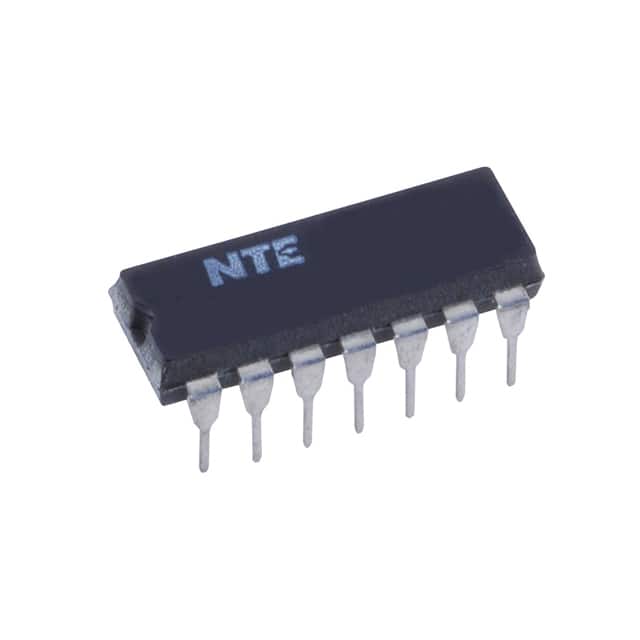

NTE74LS86 IC GATE XOR 4CH 2-INP 14DIP NTE Electronics, Inc	8,553	1.62	FFQ	Datasheet	Bag	74LS	Active	XOR (Exclusive OR)	4	2	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	30ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE4071B IC GATE OR 4CH 2-INP 14DIP NTE Electronics, Inc	8,204	1.64	FFQ	Datasheet	Bag	4000B	Active	OR Gate	4	2	-	3V ~ 18V	1 µA	8.8mA, 8.8mA	1.5V ~ 4V	3.5V ~ 11V	100ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
NTE74LS32 IC GATE OR 4CH 2-INP 14DIP NTE Electronics, Inc	5,358	1.64	FFQ	Datasheet	Bag	74LS	Active	OR Gate	4	2	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	22ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE74C14 IC INVERT SCHMITT 6CH 1-IN 14DIP NTE Electronics, Inc	7,662	2.85	FFQ	Datasheet	Bag	74C	Active	Inverter	6	1	Schmitt Trigger	3V ~ 15V	15 µA	8mA, 8mA	0.7V ~ 2.1V	4.3V ~ 12.9V	200ns @ 10V, 50pF	-40°C ~ 85°C (TA)	Through Hole
NTE7430 IC-TTL NAND GATE 14-LEAD DIP NTE Electronics, Inc	14,687	0.90	FFQ	Datasheet	Bag	-	Active	NAND Gate	1	8	-	4.75V ~ 5.25V	6 mA	400µA, 16mA	0.8V	2V	22ns @ 5V, 15pF	0°C ~ 70°C	Through Hole
NTE74LS08 IC-TTL AND GATE 14-LEAD DIP NTE Electronics, Inc	5,370	1.40	FFQ	Datasheet	Bag	-	Active	AND Gate	4	2	-	4.75V ~ 5.25V	8.8 mA	400µA, 8mA	0.8V	2V	20ns @ 5V, 15pF	0°C ~ 70°C	Through Hole
NTE74HC08 IC GATE AND 4CH 2-INP 14DIP NTE Electronics, Inc	8,448	1.28	FFQ	Datasheet	Bag	74HC	Active	AND Gate	4	2	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	19ns @ 6V, 50pF	-55°C ~ 125°C (TA)	Through Hole
NTE74HCT14T IC INV SCHMITT 6CH 1-IN 14SOIC NTE Electronics, Inc	10,747	0.73	FFQ	Datasheet	Bag	74HCT	Active	Inverter	6	1	Schmitt Trigger	4.5V ~ 5.5V	10 µA	4.8mA, 4.8mA	0.5V ~ 1.4V	1.2V ~ 2.1V	25ns @ 5V, 50pF	-40°C ~ 85°C (TA)	Surface Mount
NTE4077B IC GATE XNOR 4CH 2-INP 14DIP NTE Electronics, Inc	13,954	0.75	FFQ	Datasheet	Bag	4000B	Active	XNOR (Exclusive NOR)	4	2	-	3V ~ 18V	1 µA	8.8mA, 8.8mA	1.5V ~ 4V	3.5V ~ 11V	110ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
NTE74HCT14 IC INVERT SCHMITT 6CH 1-IN 14DIP NTE Electronics, Inc	13,546	0.85	FFQ	Datasheet	Bag	74HCT	Active	Inverter	6	1	Schmitt Trigger	4.5V ~ 5.5V	10 µA	4.8mA, 4.8mA	0.5V ~ 1.4V	1.2V ~ 2.1V	25ns @ 5V, 50pF	-40°C ~ 85°C (TA)	Through Hole
NTE74HC04 IC INVERTER 6CH 1-INP 14DIP NTE Electronics, Inc	12,352	0.90	FFQ	Datasheet	Bag	74HC	Active	Inverter	6	1	-	2V ~ 6V	40 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	16ns @ 6V, 50pF	-40°C ~ 125°C (TA)	Through Hole

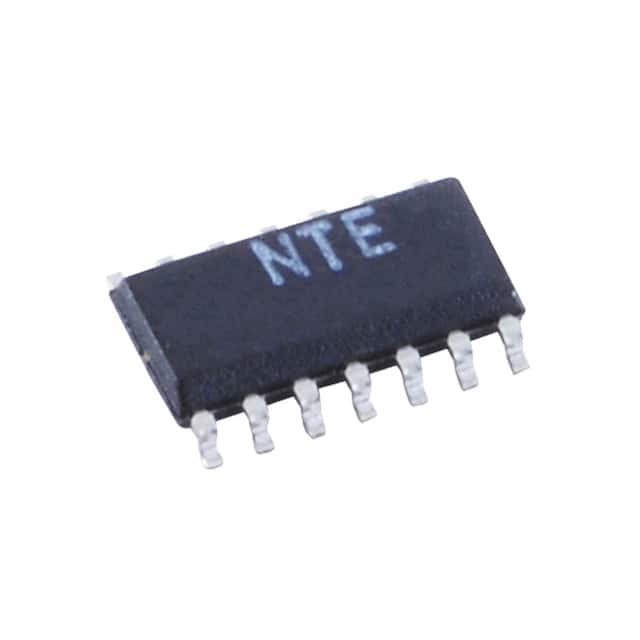

NTE4000T IC GATE NOR 3CH 3-INP 14SOIC NTE Electronics, Inc	11,915	0.92	FFQ	Datasheet	Bag	4000	Active	NOR Gate	3	3	-	3V ~ 18V	1 µA	1.8mA, 4.2mA	1V ~ 2.5V	4V ~ 12.5V	80ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
NTE4001B IC GATE NOR 4CH 2-INP 14DIP NTE Electronics, Inc	12,378	0.95	FFQ	Datasheet	Bag	4000B	Active	NOR Gate	4	2	-	3V ~ 18V	1 µA	3.4mA, 3.4mA	1.5V ~ 4V	3.5V ~ 11V	80ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
