Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Technology	Axis	OutputType	SensingRange	Voltage-Supply	Current-Supply(Max)	Current-Output(Max)	Resolution	Bandwidth	OperatingTemperature	Features	MountingType

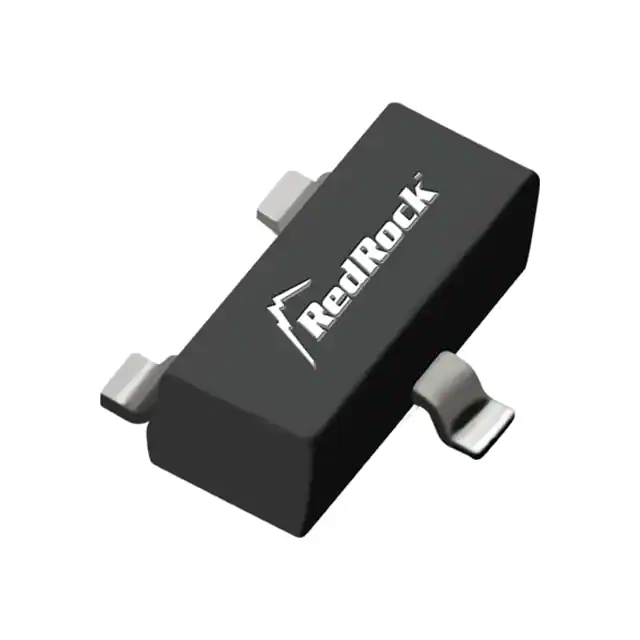

	RR112-1G42-531 TMR ANLG MAGNETIC SENSOR Coto Technology	7,983	1.87	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RedRock® RR112	Active	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	1.5µA (Typ)	20mA	-	-	-40°C ~ 85°C	-	SOT-23-3
	RR112-1G42-532 TMR ANLG MAGNETIC SENSOR Coto Technology	9,305	2.03	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RedRock® RR112	Active	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	1.5µA (Typ)	20mA	-	-	-40°C ~ 85°C	-	4-LGA (1.45x1.45)

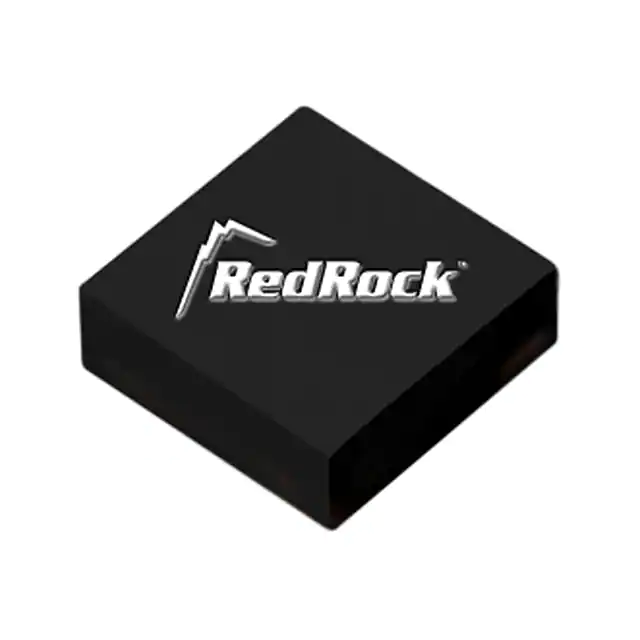

	RR111-1DC2-332 SENSOR MR ANALOG 4LGA Coto Technology	3,299	1.59	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RedRock™ 111	Obsolete	Magnetoresistive	Single	Analog Voltage	±1mT	2.7V ~ 3.6V	2.7mA	-	-	-	-40°C ~ 85°C	-	4-LGA (1.4x1.4)

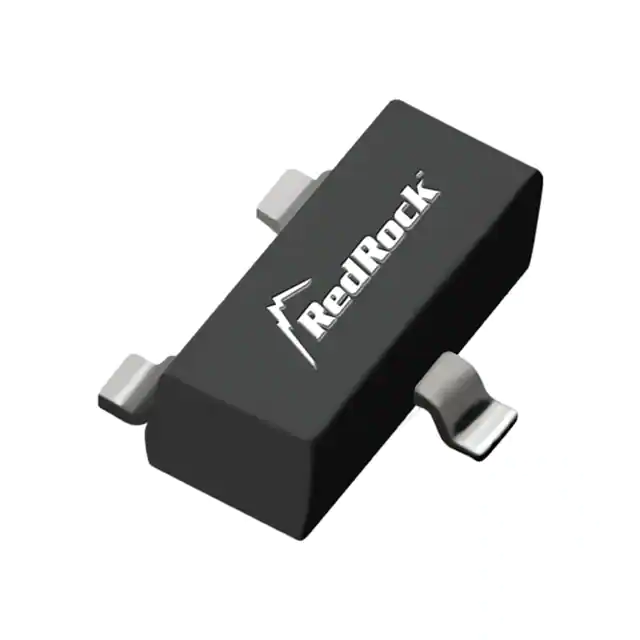

	RR112-1G43-531 TMR ANALOG SENSOR OMNI/-80/80/-5 Coto Technology	10,881	0.69	FFQ	Datasheet	Tape & Reel (TR)	RedRock® RR112	Active	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	1.5µA (Typ)	20mA	-	-	-40°C ~ 125°C	-	SOT-23-3

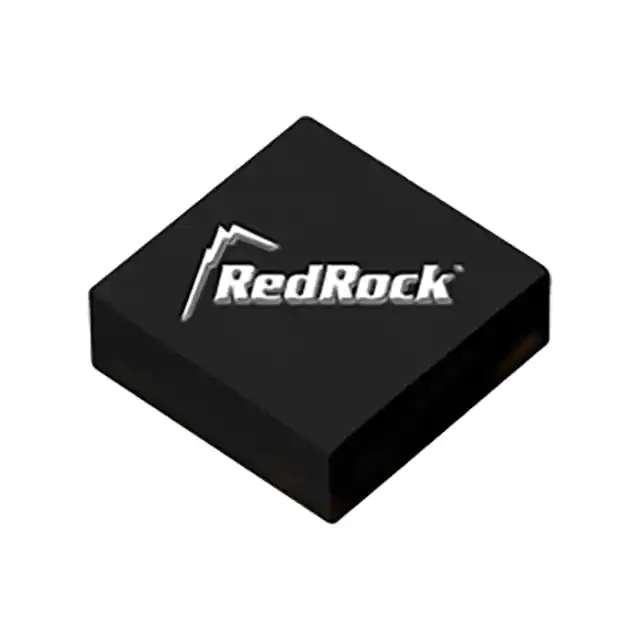

	RR112-1G43-532 TMR ANALOG SENSOR OMNI/-80/80/-5 Coto Technology	13,026	0.73	FFQ	Datasheet	Tape & Reel (TR)	RedRock® RR112	Active	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	1.5µA (Typ)	20mA	-	-	-40°C ~ 125°C	-	4-LGA (1.45x1.45)
	RR110-A111-00 SENSOR MR ANALOG SOT23-3 Coto Technology	2,234	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RedRock™ 110	Obsolete	Magnetoresistive	Single	Analog Voltage	1mT ~ 7mT	15V	1mA	-	-	-	-40°C ~ 85°C (TA)	-	SOT-23-3
	RR111-1DC2-331 SENSOR MR ANALOG SOT23-3 Coto Technology	2,194	0.00	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RedRock™ 111	Obsolete	Magnetoresistive	Single	Analog Voltage	±1mT	2.7V ~ 3.6V	2.7mA	-	-	-	-40°C ~ 85°C	-	SOT-23-3
	RR142-1B13-542 TMR DUAL WAKE UP SENSOR OMNI/30/ Coto Technology	2,001	0.00	FFQ		Tape & Reel (TR)	RedRock® 142	Obsolete	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	60nA (Typ)	20mA	-	-	-40°C ~ 125°C	-	4-LGA (1.45x1.45)
	RR142-1B12-542 TMR DUAL WAKE UP SENSOR OMNI/30/ Coto Technology	3,818	0.00	FFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
	RR142-1B12-545 TMR DUAL WAKE UP SENSOR OMNI/30/ Coto Technology	3,087	0.00	FFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
	RR142-1B13-545 TMR DUAL WAKE UP SENSOR OMNI/30/ Coto Technology	3,984	0.00	FFQ		Tape & Reel (TR)	RedRock® 142	Obsolete	Magnetoresistive	X	Analog Voltage	±8mT	1.7V ~ 5.5V	60nA (Typ)	20mA	-	-	-40°C ~ 125°C	-	SOT-23-3
