Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Technology	Axis	OutputType	SensingRange	Voltage-Supply	Current-Supply(Max)	Current-Output(Max)	Resolution	Bandwidth	OperatingTemperature	Features	MountingType
	CT310LS-HT8-M TMR SENSOR: 8-LEAD TSSOP (6.4 X Murata Electronics	8,767	7.11	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT310	Active	-	X, Y	Analog Voltage	20mT ~ 80mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 125°C	-	8-TSSOP
	CT100LW-IS6-M TMR SENSOR: 6-LEAD SOT23 (2.9 X Murata Electronics	6,900	4.30	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT100	Active	-	Single	Analog Voltage	±50mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 85°C	-	SOT-23-6

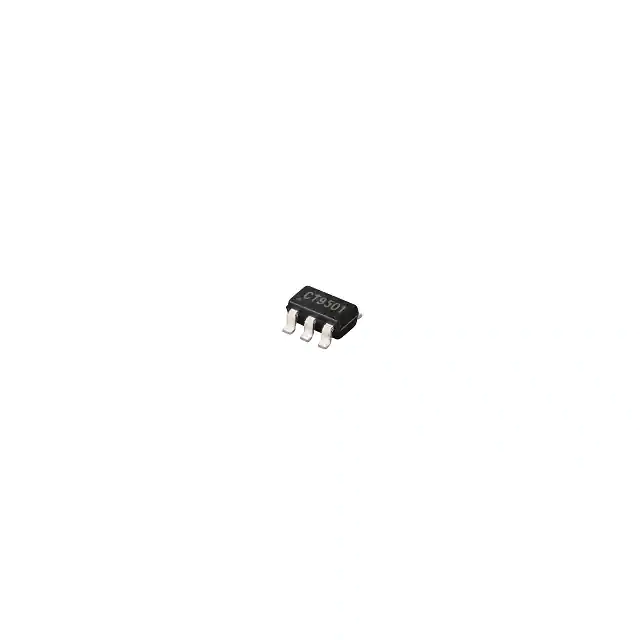

	CT100LW-ID6-M TMR SENSOR: 6-LEAD DFN (1.5 X 1. Murata Electronics	5,629	4.56	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT100	Active	-	Single	Analog Voltage	±50mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 85°C	-	6-DFN (1.5x1.5)
	CT100LW-HS6-M TMR SENSOR: 6-LEAD SOT23 (2.9 X Murata Electronics	7,349	4.75	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT100	Active	-	Single	Analog Voltage	±50mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 125°C	-	SOT-23-6
	CT310LS-IT8-M TMR SENSOR: 8-LEAD TSSOP (6.4 X Murata Electronics	6,618	6.47	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT310	Active	-	X, Y	Analog Voltage	20mT ~ 80mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 85°C	-	8-TSSOP

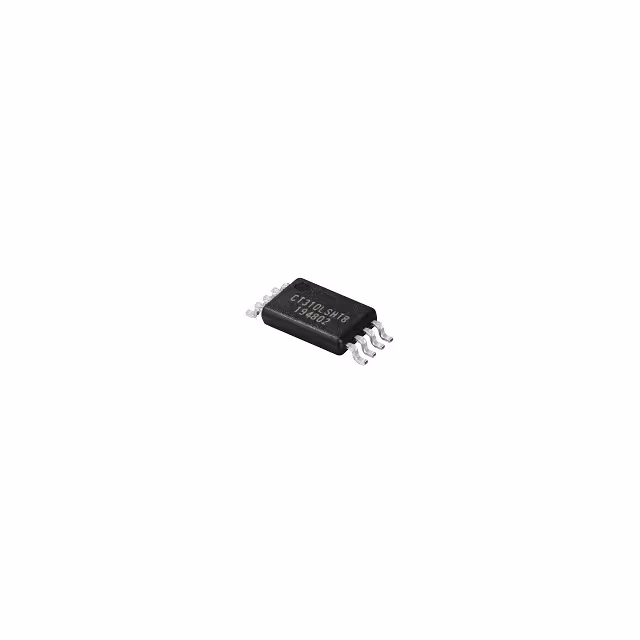

	CT310LS-ID8-M TMR SENSOR: 8-LEAD DFN (2.0 X 2. Murata Electronics	6,378	6.73	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT310	Active	-	X, Y	Analog Voltage	20mT ~ 80mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 85°C	-	8-DFN (2x2)
	CT310LS-HD8-M TMR SENSOR: 8-LEAD DFN (2.0 X 2. Murata Electronics	7,035	7.14	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT310	Active	-	X, Y	Analog Voltage	20mT ~ 80mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 125°C	-	8-DFN (2x2)
	CT100LW-HD6-M TMR SENSOR: 6-LEAD DFN (1.5 X 1. Murata Electronics	5,373	4.90	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CT100	Active	-	Single	Analog Voltage	±50mT	1V ~ 5.5V	-	-	-	-	-40°C ~ 125°C	-	6-DFN (1.5x1.5)
