Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Type OutputType ActuatorMaterial TerminationStyle Frequency Voltage-Supply MustOperate MustRelease OperatingTemperature

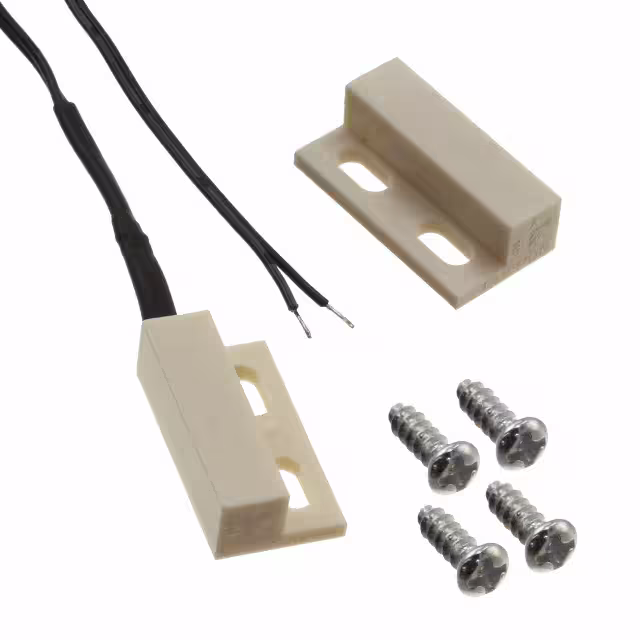

WBP-DO-01-3F

WBP-DO-01-3F

RES DOOR SENSOR 3FT CABLE

Digital Six Labs

2,311

25.00

FFQ

WBP-DO-01-3F

Datasheet

Bulk

Whisker.Block®

Active

Reed Switch

SPST-NO

Magnet

Wire Leads

-

-

-

-

-

Request a Quote
