Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Type OutputType ActuatorMaterial TerminationStyle Frequency Voltage-Supply MustOperate MustRelease OperatingTemperature

SSH-G01-002-AB

SSH-G01-002-AB

HALL-EFFECT SPEED SENSOR

Amphenol Piher Sensing Systems

1,346

64.46

FFQ

SSH-G01-002-AB

Datasheet

Bulk

SSH-G01

Active

Hall Effect

-

Ferrous Metals, Gear Tooth

Wire Leads

-

4V ~ 24V

-

-

-40°C ~ 125°C

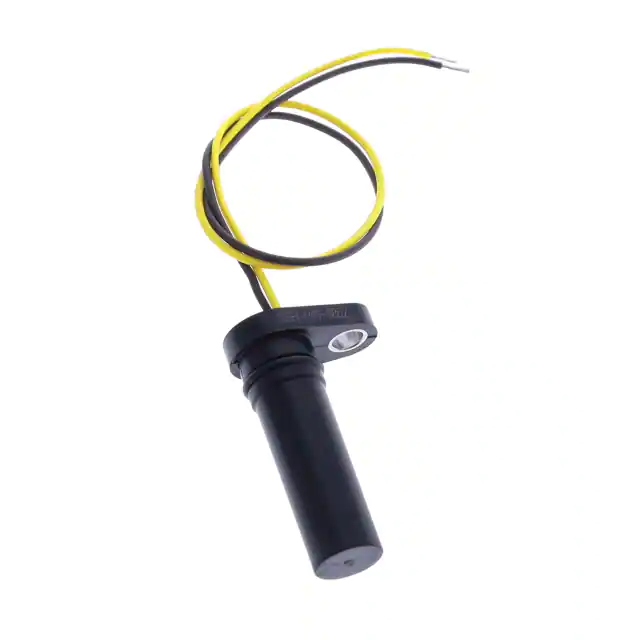

SSH-G01-002-CP-R

SSH-G01-002-CP-R

HALL-EFFECT SPEED SENSOR

Amphenol Piher Sensing Systems

2,281

64.46

FFQ

SSH-G01-002-CP-R

Datasheet

Bulk

SSH-G01

Active

Hall Effect

Current

Ferrous Metals, Gear Tooth

Wire Leads

-

4V ~ 24V

-

-

-40°C ~ 125°C
