Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	ActuatorMaterial	TerminationStyle	Frequency	Voltage-Supply	MustOperate	MustRelease	OperatingTemperature
	800-001700 THE M100T AND M5000T ARE COMPACT Electro-Sensors, Inc.	536	481.25	FFQ	Datasheet	Box	-	Active	Switch	SPDT	Magnet	-	60 Hz	115 ~ 230VAC, 12 ~ 24VDC	-	-	-40°C ~ 60°C

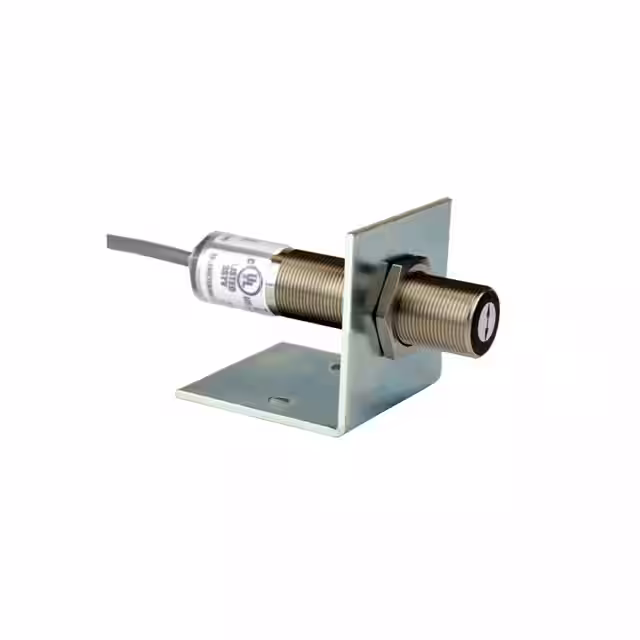

	800-001621 THE PATENTED ST420 DETECTS PASSI Electro-Sensors, Inc.	619	293.75	FFQ	Datasheet	Box	-	Active	-	Analog	Magnet	Cable Leads	-	8V ~ 30V	-	-	-20°C ~ 80°C

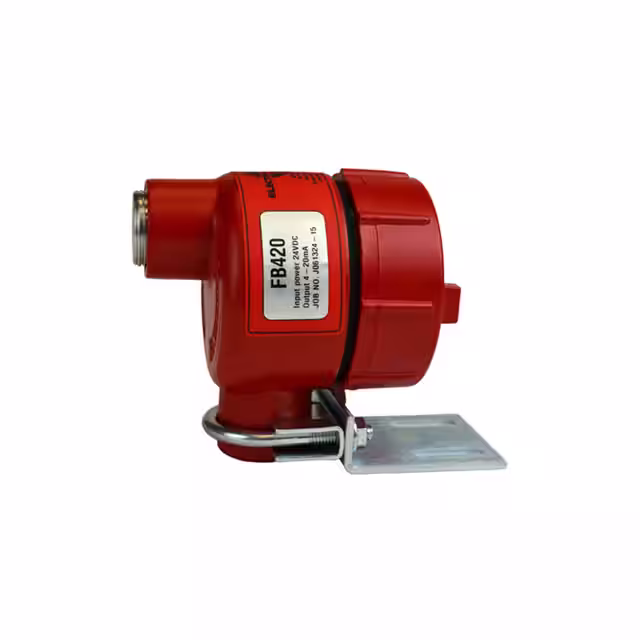

	800-045000 THE ELECTRO-SENSORS FB420 SPEED Electro-Sensors, Inc.	957	543.75	FFQ	Datasheet	Box	-	Active	-	Analog, SPDT	Magnet	-	9.999 kHz	21.6V ~ 26.4V	-	-	-40°C ~ 65°C

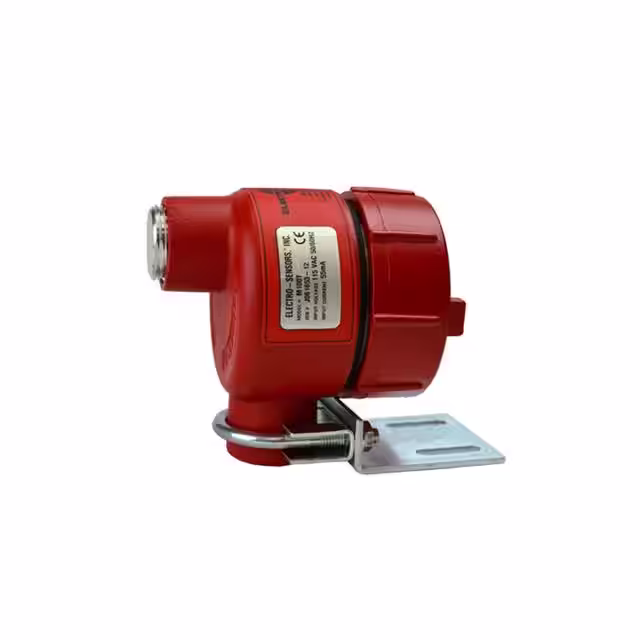

	800-001710 THE M5000T IS A COMPACT, SELF-CO Electro-Sensors, Inc.	678	481.25	FFQ	Datasheet	Box	-	Active	Switch	SPDT	Magnet	-	60 Hz	115V ~ 230V, 12V ~ 24V	-	-	-40°C ~ 60°C
