Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	ActuatorMaterial	TerminationStyle	Frequency	Voltage-Supply	MustOperate	MustRelease	OperatingTemperature

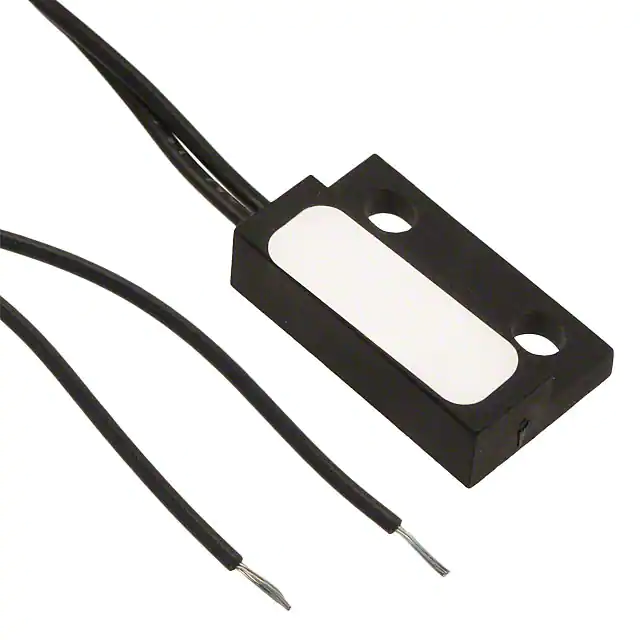

	MP201802 SENSOR REED SW SPST-NC W LEADS ZF Electronics	8,291	5.54	FFQ		Bulk,Box	MP2	Active	Reed Switch	SPST-NC	Magnet	Wire Leads	-	-	6.35mm	17.80mm	-40°C ~ 105°C (TA)

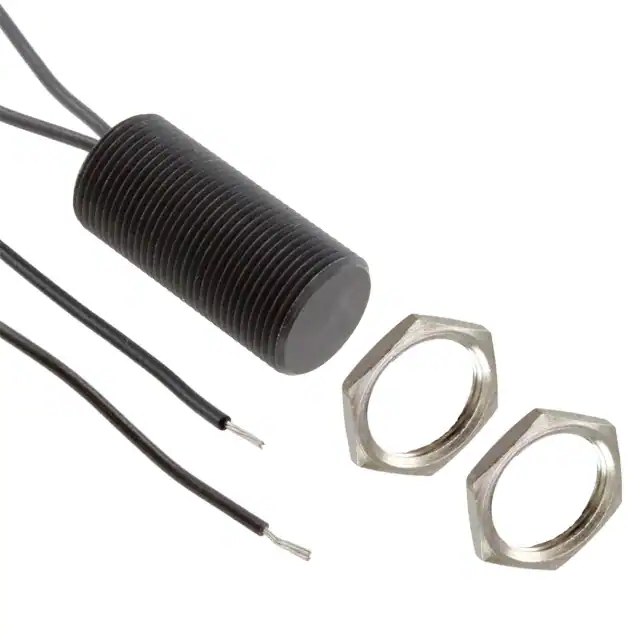

	MP200701 SENSOR REED SW SPST-NO W LEADS ZF Electronics	2,611	10.84	FFQ	Datasheet	Bulk,Box	MP2	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)

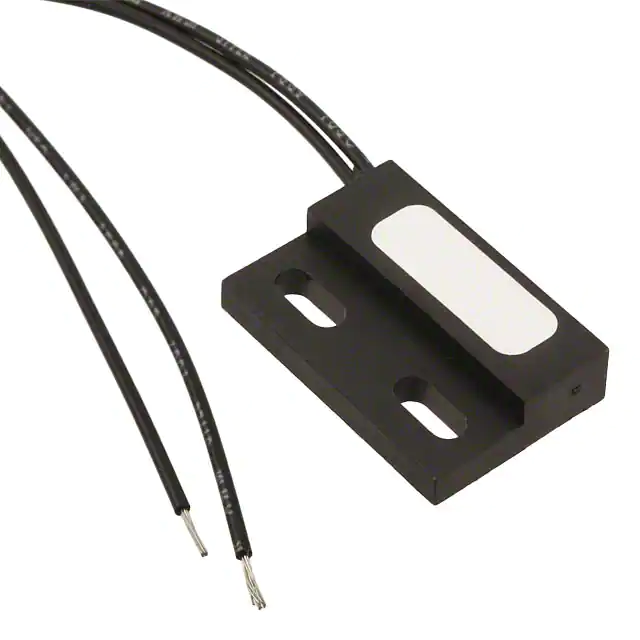

	MP201901 SENSOR REED SW SPST-NO W LEADS ZF Electronics	5,294	5.06	FFQ		Bulk	MP2	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	10.16mm	22.86mm	-40°C ~ 105°C (TA)
	MP201801 SENSOR REED SW SPST-NO W LEADS ZF Electronics	8,592	5.09	FFQ		Bulk	MP2	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	6.35mm	17.80mm	-40°C ~ 105°C (TA)

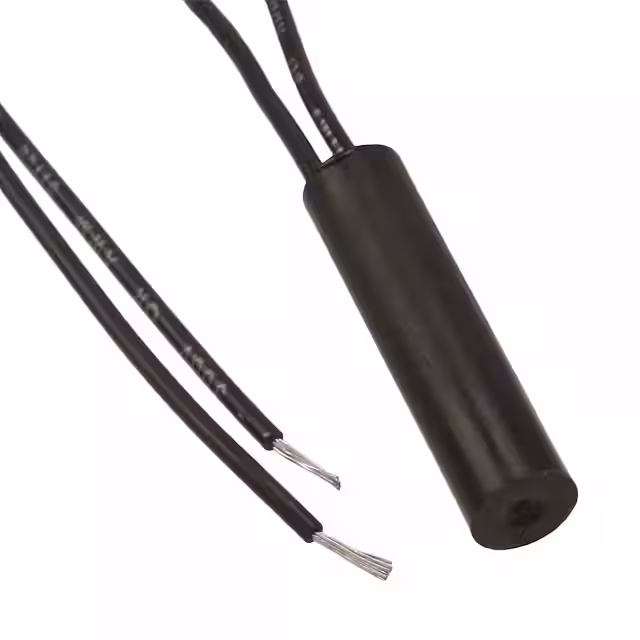

	MP201701 SENSOR REED SW SPST-NO W LEADS ZF Electronics	7,267	4.63	FFQ		Bulk	MP2	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)

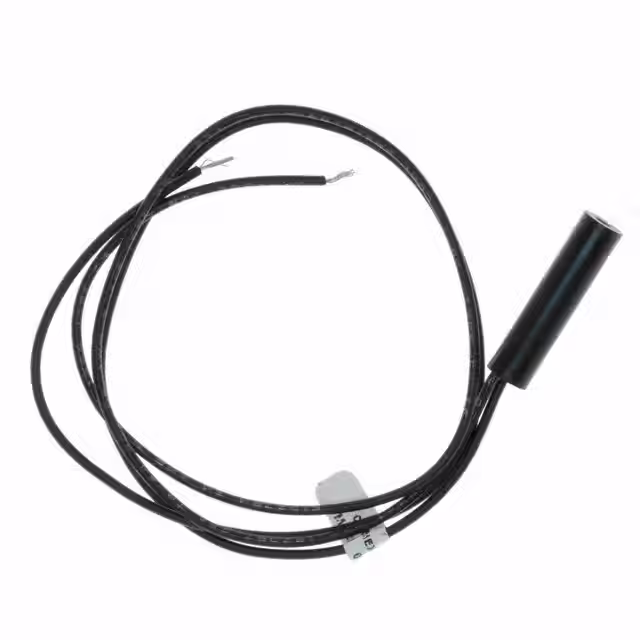

	MP201702 SENSOR REED SW SPST-NC W LEADS ZF Electronics	9,649	5.48	FFQ		Bulk,Bulk	MP2	Active	Reed Switch	SPST-NC	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)

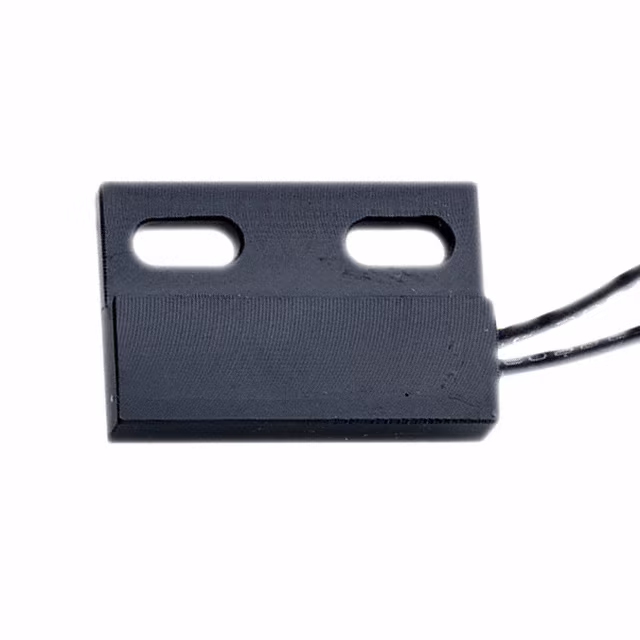

	MP201902 SENSOR REED SW SPST-NC W LEADS ZF Electronics	5,379	6.02	FFQ		Bulk,Bulk	MP2	Active	Reed Switch	SPST-NC	Magnet	Wire Leads	-	-	10.16mm	22.86mm	-40°C ~ 105°C (TA)

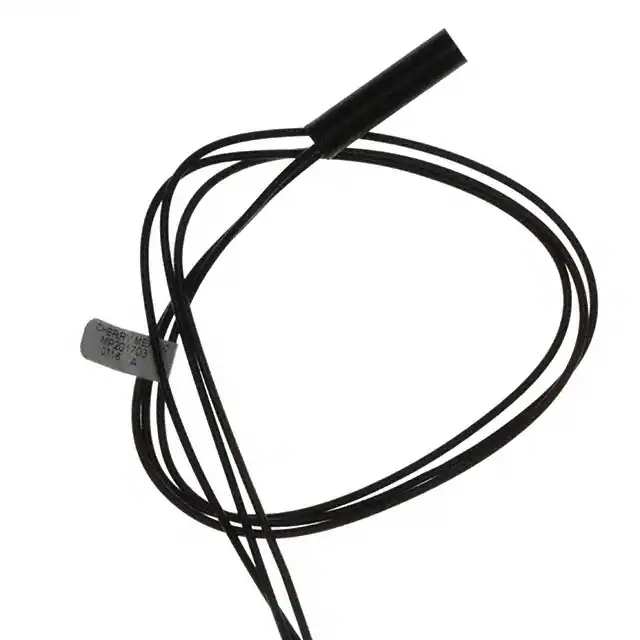

	MP201703 SENSOR REED SW SPDT WIRE LEADS ZF Electronics	5,398	5.97	FFQ		Bulk	MP2	Active	Reed Switch	SPDT	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)

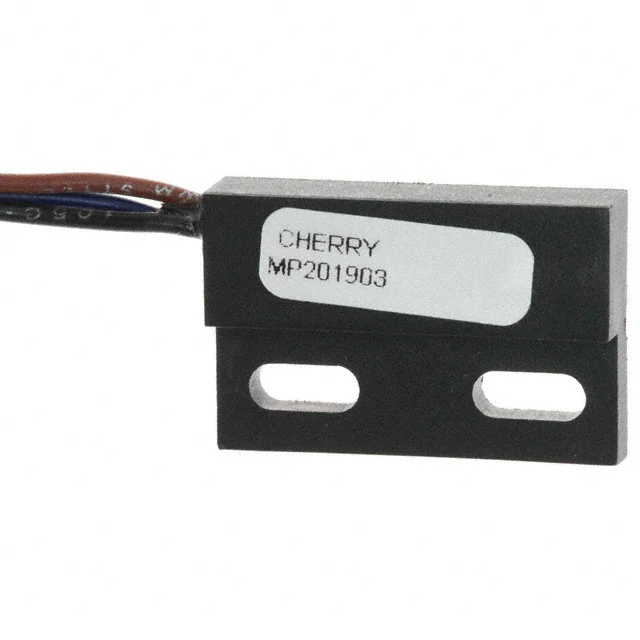

	MP201903 SENSOR REED SW SPDT WIRE LEADS ZF Electronics	5,244	6.18	FFQ		Bulk,Bulk	MP2	Active	Reed Switch	SPDT	Magnet	Wire Leads	-	-	10.16mm	22.86mm	-40°C ~ 105°C (TA)

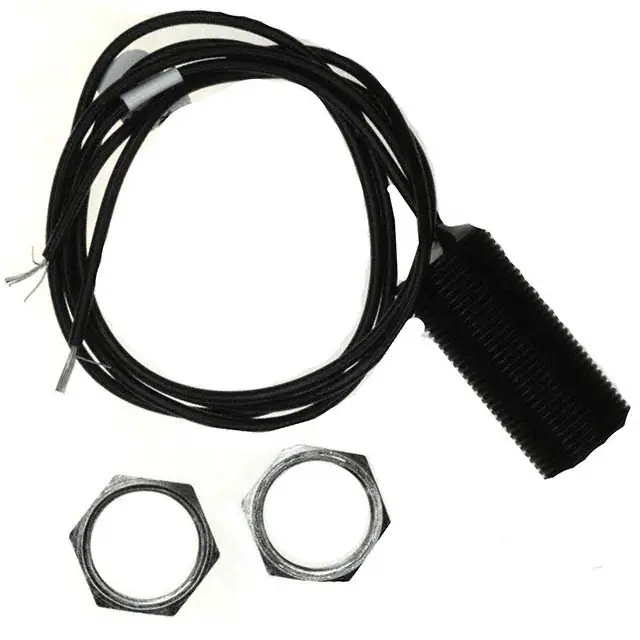

	MP200702 SENSOR REED SW SPST-NC W LEADS ZF Electronics	1,116	13.01	FFQ		Bulk,Bulk	MP2	Active	Reed Switch	SPST-NC	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)

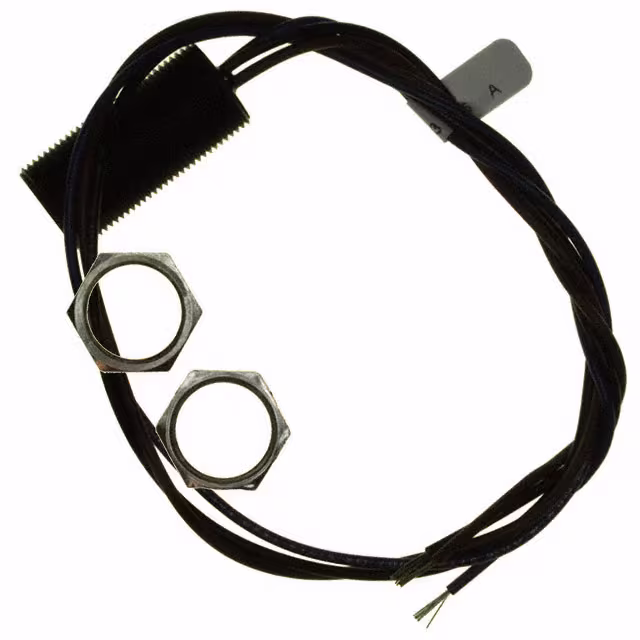

	MP200703 SENSOR REED SW SPDT WIRE LEADS ZF Electronics	3,259	13.13	FFQ		Bulk	MP2	Active	Reed Switch	SPDT	Magnet	Wire Leads	-	-	3.81mm	12.70mm	-40°C ~ 105°C (TA)
