Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Type OutputType ActuatorMaterial TerminationStyle Frequency Voltage-Supply MustOperate MustRelease OperatingTemperature

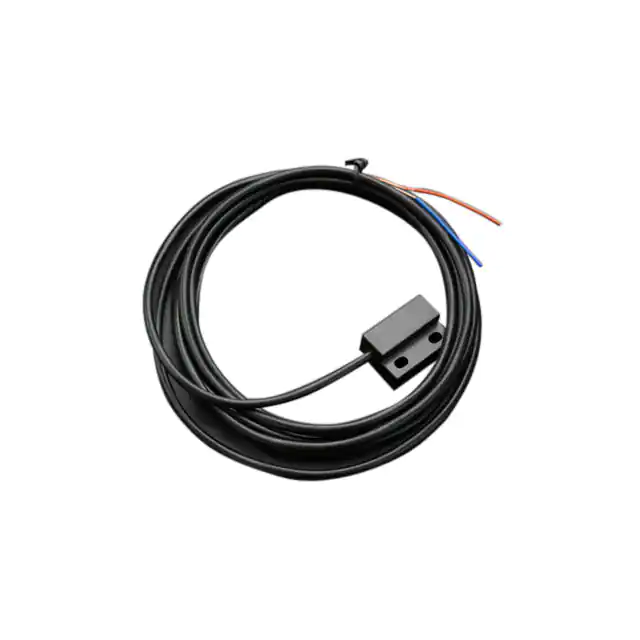

SEN0387

SEN0387

MAGNETIC SWITCH

5,966

4.50

FFQ

Bulk

-

Active

Reed Switch

-

Magnet

-

200 Hz

0 ~ 380VAC/DC

-

-

-10°C ~ 70°C

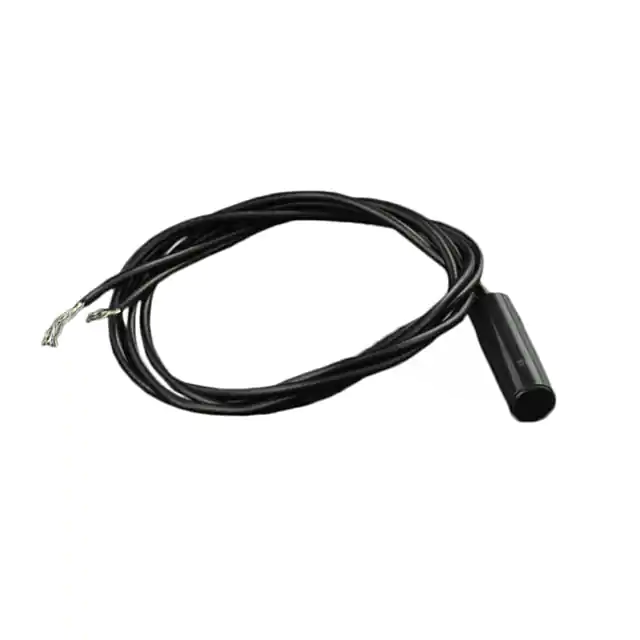

SEN0481

SEN0481

MAGNETIC CONTACT SWITCH SENSOR F

8,383

4.00

FFQ

Bulk

-

Active

Reed Switch

Digital

Magnet

Cable

-

0V ~ 100V

-

-

-

Request a Quote
