Manufacturer	Packaging	Series	ProductStatus	Wavelength	Voltage-Max	RiseTime(Typ)	FallTime(Typ)	CellResistance(Min)@Dark	CellResistance@Illuminance	OperatingTemperature	MountingType
Adafruit Industries LLC Advanced Photonix Gearbox Labs NTE Electronics, Inc Parallax Inc.	- Bag Bulk Tray	* - LDR	Active Obsolete	- 515nm 520nm 540nm 550nm 560nm 615nm 690nm	- 100VDC 100Vpk 120Vpk 125Vpk 150VDC 150Vpk 170Vpk 250VDC 250Vpk 320Vpk 350VDC 350Vpk 500VDC 80Vpk	- 20 ms 30 ms 35 ms 50 ms 55 ms 60 ms 70 ms	- 15 ms 20 ms 25 ms 30 ms 5 ms	- 1 MOhms @ 10 s 1 MOhms @ 15 s 1 MOhms @ 5 s 1.3 MOhms @ 5 s 1.5 MOhms @ 5 s 1.8 MOhms @ 5 s 10 MOhms @ 10 s 100 kOhms @ 5 s 11 MOhms @ 5 s 150 kOhms @ 10 s 2 MOhms @ 10 s 2.5 MOhms @ 10 s 20 MOhms @ 10 s 20 MOhms @ 5 s 200 kOhms @ 10 s 220 kOhms @ 5 s 3 MOhms @ 10 s 300 kOhms @ 10 s 5 MOhms @ 10 s 5 MOhms @ 5 s 500 kOhms @ 10 s 67 kOhms @ 5 s 67 MOhms @ 5 s 670 kOhms @ 5 s 8 MOhms @ 10 s 800 kOhms @ 5 s	- 0.17 ~ 2kOhms @ 21 lux 0.25 ~ 7.5kOhms @ 21 lux 0.5 ~ 17kOhms @ 10 lux 0.7 ~ 10kOhms @ 10 lux 1 ~ 2kOhms @ 21 lux 1.34 ~ 2.66kOhms @ 21 lux 10 ~ 100kOhms @ 10 lux 10 ~ 200kOhms @ 10 lux 10 ~ 20kOhm @ 10 lux 10 ~ 20kOhms @ 21 lux 10 ~ 30kOhms @ 10 lux 10 ~ 50kOhms @ 10 lux 100 ~ 200kOhms @ 10 lux 11 ~ 27kOhms @ 10 lux 110 ~ 220kOhms @ 21 lux 12 ~ 30kOhms @ 10 lux 12 ~ 58kOhms @ 10 lux 15 ~ 60kOhm @ 10 lux 16 ~ 33kOhms @ 10 lux 18 ~ 42kOhms @ 10 lux 2 ~ 6kOhms @ 10 lux 2.2 ~ 4.4kOhms @ 21 lux 20 ~ 100kOhms @ 10 lux 20 ~ 38kOhms @ 10 lux 20 ~ 40kOhms @ 21 lux 20 ~ 45kOhms @ 10 lux 20 ~ 60kOhms @ 10 lux 23 ~ 33kOhms @ 10 lux 25 ~ 250Ohms @ 21 lux 27 ~ 60kOhms @ 10 lux 3 ~ 100kOhms @ 10 lux 3 ~ 11kOhms @ 10 lux 3.6 ~ 14.4kOhms @ 10 lux 30 ~ 50kOhm @ 10 lux 4 ~ 11kOhms @ 10 lux 4 ~ 20kOhms @ 10 lux 40 ~ 120kOhms @ 10 lux 400 ~ 800Ohms @ 21 lux 48 ~ 140kOhms @ 10 lux 5 ~ 10kOhm @ 10 lux 5 ~ 10kOhms @ 10 lux 5.4 ~ 12.6kOhms @ 10 lux 50 ~ 100kOhm @ 10 lux 50 ~ 100kOhms @ 10 lux 50 ~ 140kOhms @ 10 lux 50 ~ 150kOhms @ 10 lux 50 ~ 94kOhms @ 10 lux 6 ~ 14kOhms @ 21 lux 8 ~ 16kOhms @ 10 lux 8 ~ 24kOhms @ 10 lux 8.4 ~ 19.6kOhms @ 10 lux 80 ~ 200kOhms @ 10 lux 80 ~ 240kOhms @ 10 lux 9 ~ 15kOhms @ 21 lux 9 ~ 20kOhms @ 10 lux	- -25°C ~ 75°C (TA) -30°C ~ 70°C (TA) -30°C ~ 75°C (TA) -40°C ~ 75°C (TA) -60°C ~ 75°C (TA)	- Through Hole

Reset All

Apply All

Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Wavelength	Voltage-Max	RiseTime(Typ)	FallTime(Typ)	CellResistance(Min)@Dark	CellResistance@Illuminance	OperatingTemperature	MountingType
	02-LDR3 PHOTOCELL 100-200K OHM NTE Electronics, Inc	13,842	0.23	FFQ	Datasheet	Bag	LDR	Active	540nm	100VDC	-	-	-	100 ~ 200kOhms @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR1 PHOTOCELL 50-100K OHM NTE Electronics, Inc	11,935	0.23	FFQ	Datasheet	Bag	LDR	Active	540nm	100VDC	-	-	-	50 ~ 100kOhms @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR4 5MM LDR 30K-50K OHM NTE Electronics, Inc	13,147	0.23	FFQ	Datasheet	Bag	LDR	Active	540nm	150VDC	20 ms	30 ms	3 MOhms @ 10 s	30 ~ 50kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR15 12MM LDR 50K-100K OHM NTE Electronics, Inc	14,933	0.93	FFQ	Datasheet	Bag	LDR	Active	560nm	250VDC	30 ms	30 ms	8 MOhms @ 10 s	50 ~ 100kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR14 10MM LDR 30K-50K OHM NTE Electronics, Inc	10,221	0.93	FFQ	Datasheet	Bag	LDR	Active	560nm	250VDC	30 ms	30 ms	5 MOhms @ 10 s	30 ~ 50kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR13 12MM LDR 10K-20K OHM NTE Electronics, Inc	11,310	0.93	FFQ	Datasheet	Bag	LDR	Active	560nm	250VDC	30 ms	30 ms	2 MOhms @ 10 s	10 ~ 20kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR12 12MM LDR 5K-10K OHM NTE Electronics, Inc	10,886	0.93	FFQ	Datasheet	Bag	LDR	Active	560nm	250VDC	30 ms	30 ms	1 MOhms @ 10 s	5 ~ 10kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR22 20MM LDR 30K-50K OHM NTE Electronics, Inc	8,118	2.78	FFQ	Datasheet	Bag	LDR	Active	560nm	500VDC	30 ms	30 ms	5 MOhms @ 10 s	30 ~ 50kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR23 20MM LDR 50K-100K OHM NTE Electronics, Inc	8,810	2.78	FFQ	Datasheet	Bag	LDR	Active	560nm	500VDC	30 ms	30 ms	8 MOhms @ 10 s	50 ~ 100kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR20 20MM LDR 5K-10K OHM NTE Electronics, Inc	9,695	2.78	FFQ	Datasheet	Bag	LDR	Active	560nm	500VDC	30 ms	30 ms	1 MOhms @ 10 s	5 ~ 10kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole

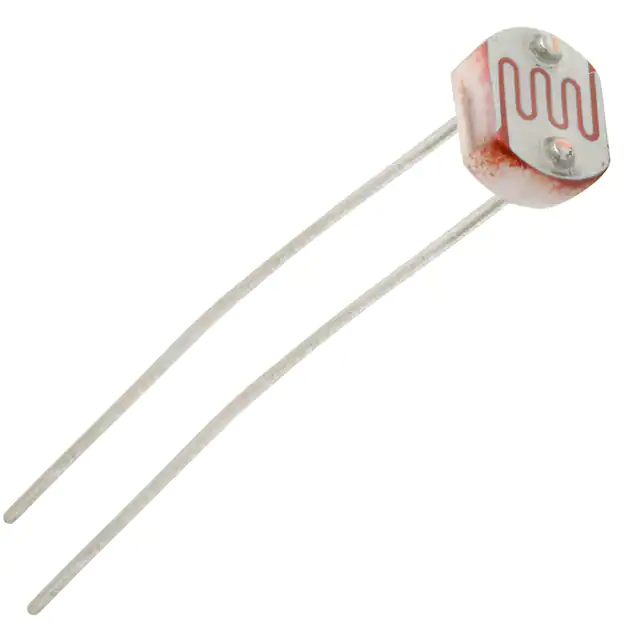

	02-LDR21 20MM LDR 10K-20K OHM NTE Electronics, Inc	7,047	2.78	FFQ	Datasheet	Bag	LDR	Active	560nm	500VDC	30 ms	30 ms	2 MOhms @ 10 s	10 ~ 20kOhm @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
	02-LDR2 PHOTOCELL 5-10K OHM NTE Electronics, Inc	10,500	0.23	FFQ	Datasheet	Bag	LDR	Active	540nm	100VDC	-	-	-	5 ~ 10kOhms @ 10 lux	-30°C ~ 70°C (TA)	Through Hole
