| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N137VLOGIC IC OUTPUT OPTOCOUPLER |
2,794 | 0.61 |
FFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
6N137SDLOGIC IC OUTPUT OPTOCOUPLER |
3,216 | 0.87 |
FFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FOD0738LOGIC IC OUTPUT OPTOCOUPLER |
3,918 | 3.27 |
FFQ |
Datasheet |
Box | - | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
FOD0738R1LOGIC IC OUTPUT OPTOCOUPLER |
3,906 | 3.28 |
FFQ |
Datasheet |
Bulk | - | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2630SDVLOGIC IC OUTPUT OPTOCOUPLER, 2-E |
9,330 | 1.02 |
FFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL2631VLOGIC IC OUTPUT OPTOCOUPLER, 2-E |
8,817 | 1.11 |
FFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
HCPL2630VLOGIC IC OUTPUT OPTOCOUPLER, 2-E |
6,096 | 1.21 |
FFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL0601R2HIGH SPEED-10MBIT/S LOGIC GATE O |
5,974 | 1.31 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
FOD0720R2HIGH CMR, 25MBIT/SEC LOGIC GATE |
8,646 | 1.85 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|

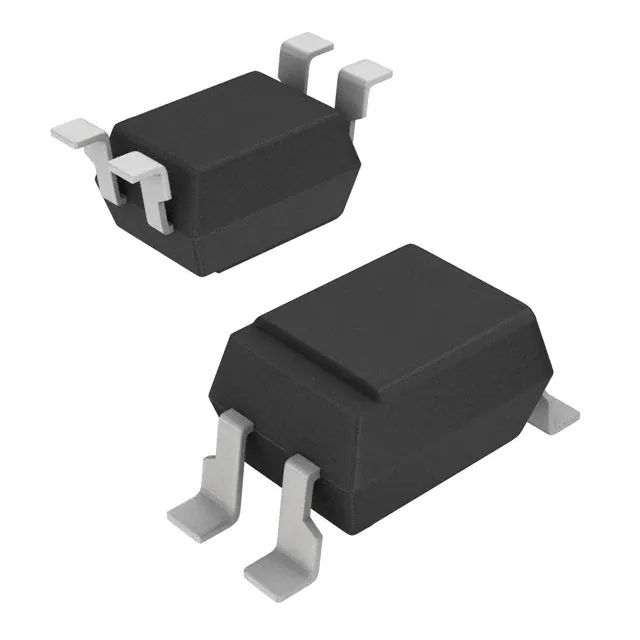

FOD8163SDAC IN-DARLINGTON OUT OPTOCOUPLER |
3,424 | 0.19 |
FFQ |
Datasheet |
Bulk | - | Obsolete | 1 | - | 5000Vrms | - | AC, DC | Darlington | 80 mA | - | - | 60µs, 53µs | 1.2V | 50mA | - | -30°C ~ 100°C | Surface Mount |
|
|
HCPL0600VLOGIC IC OUTPUT OPTOCOUPLER |
3,992 | 1.14 |
FFQ |
Datasheet |
Box | - | Obsolete | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|

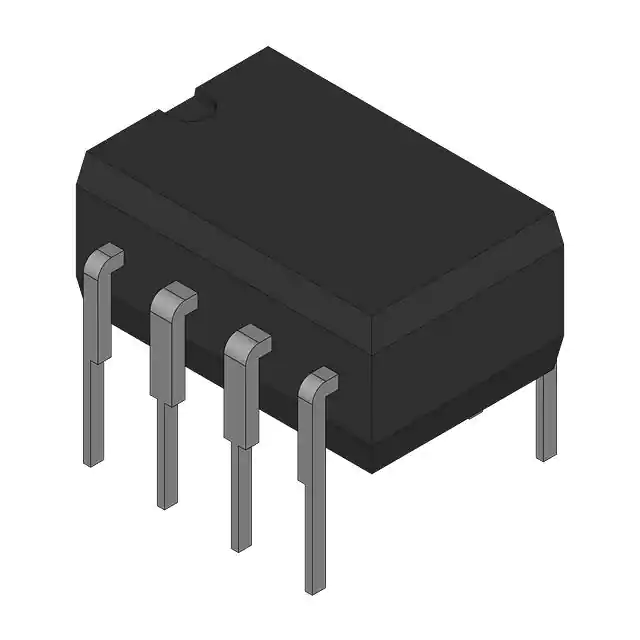

HCPL2611VLOGIC IC OUTPUT OPTOCOUPLER |
3,686 | 1.23 |
FFQ |
Datasheet |
Tube | - | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
FOD2200LOGIC IC OUTPUT OPTOCOUPLER |
502 | 1.87 |
FFQ |
Datasheet |
Tube | - | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 80ns, 25ns | 1.4V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
6N137SVMHIGH SPEED 10MBIT/S LOGIC GATE O |
12,623 | 0.72 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2530LOGIC IC OUTPUT OPTOCOUPLER, 2-E |
10,707 | 0.74 |
FFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCPL260110 MBIT/S SINGLE-CHANNEL HIGH SP |
10,664 | 0.86 |
FFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCPL2631LOGIC IC OUTPUT OPTOCOUPLER, 2-E |
799 | 1.14 |
FFQ |
Bulk | - | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 5.5V | -40°C ~ 85°C | Through Hole | |
|
|
HCPL2601V10 MBIT/S SINGLE-CHANNEL HIGH SP |
6,253 | 1.21 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL0601VHIGH SPEED-10MBIT/S LOGIC GATE O |
8,613 | 1.31 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2611SV10 MBIT/S SINGLE-CHANNEL HIGH SP |
9,309 | 1.41 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
-
