| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

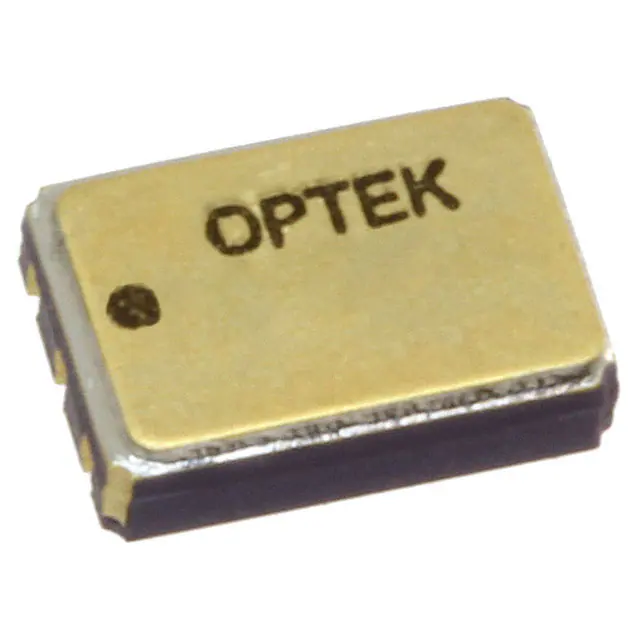

4N49UOPTOISO 1KV TRANS W/BASE 6LCC |
4,609 | 21.64 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000Vrms | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.5V | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
4N49UTXOPTOISO 1KV TRANS W/BASE 6LCC |
4,470 | 34.44 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 45V | - | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|

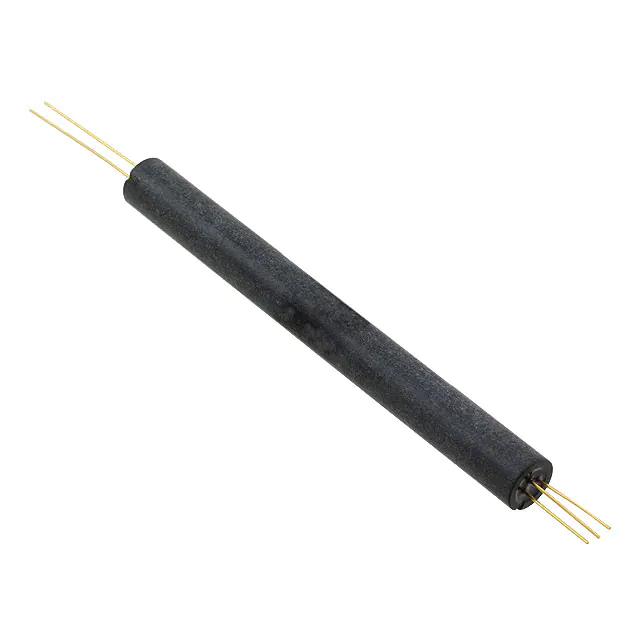

OPI150OPTOISO 50KV TRANS W/BASE AXIAL |
1,294 | 55.01 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 50000VDC | 10% @ 10mA | - | 120µs, 70µs | - | DC | Transistor with Base | 30V | 25mA | 1.3V | 50 mA | 500mV | -40°C ~ 85°C | Through Hole |
|

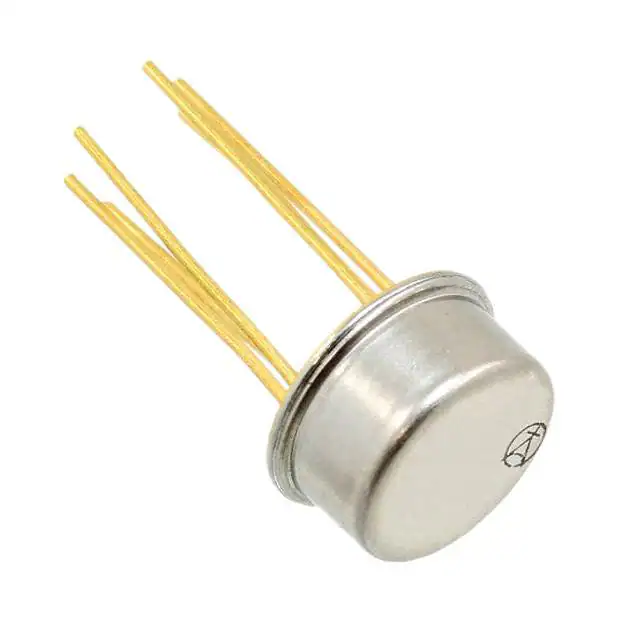

JANTX4N49AOPTOISO 1KV TRANS W/BASE TO78-6 |
1,227 | 29.10 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
4N24UOPTOISO 1KV TRANS W/BASE 6LCC |
3,074 | 25.99 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | - | 1.3V (Max) | 40 mA | 300mV | -65°C ~ 125°C | Surface Mount |
|
3C92COPTOISOLATOR 1KV TRANS TO72-4 |
3,482 | 18.76 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | -55°C ~ 125°C | Through Hole |
|
|

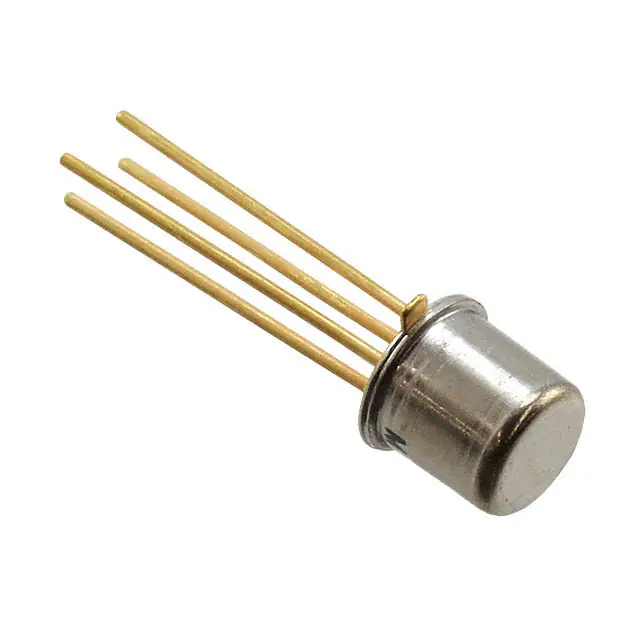

3C91COPTOISOLATOR 1KV TRANS TO72-4 |
4,923 | 17.15 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | -55°C ~ 125°C | Through Hole |
|
|
JAN4N24AOPTOISO 1KV TRANS W/BASE TO78-6 |
4,064 | 25.80 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3C92CTXOPTOISOLATOR 1KV TRANS TO72-4 |
1,563 | 38.67 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | -55°C ~ 125°C | Through Hole |
|
OPI110COPTOISOLATOR 10KV TRANS AXIAL |
6,595 | 2.66 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 100% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|

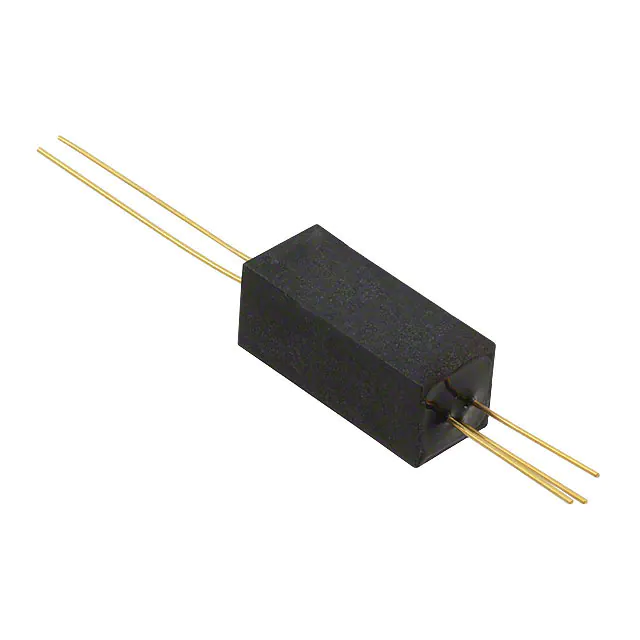

OPI120OPTOISO 15KV TRANS W/BASE AXIAL |
1,166 | 10.27 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 15000VDC | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 25V | - | 1.5V (Max) | 150 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
JANTX4N24AOPTOISO 1KV TRANS W/BASE TO78-6 |
4,193 | 29.10 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|

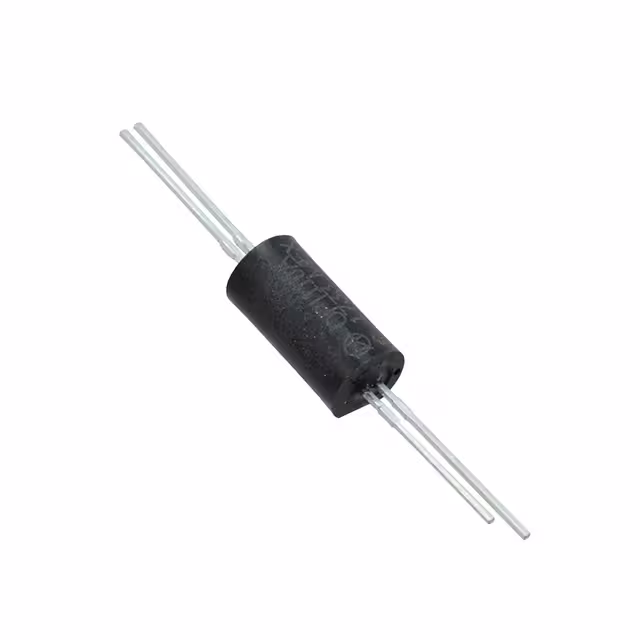

OPI110AOPTOISOLATOR 10KV TRANS AXIAL |
7,038 | 2.59 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 25% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|

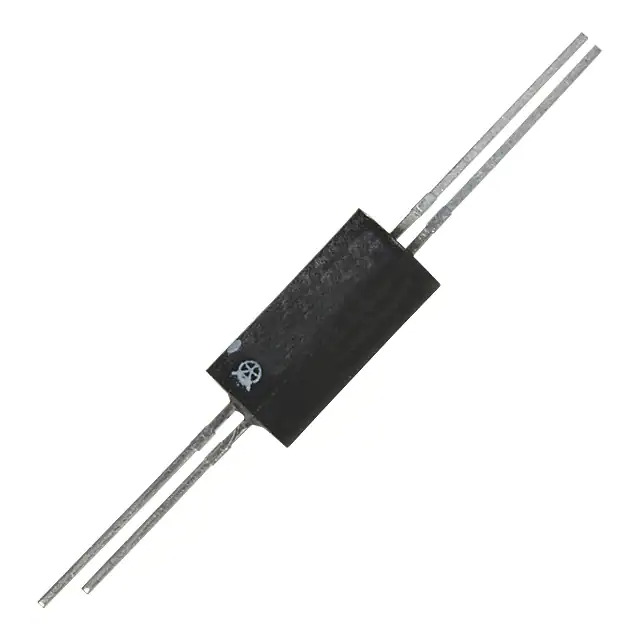

OPI1264AOPTOISOLATOR 10KV TRANS AXIAL |
9,245 | 2.72 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 25% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|
OPI1264BOPTOISOLATOR 10KV TRANS AXIAL |
8,012 | 2.72 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 50% @ 10mA | 125% @ 10mA | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|
OPI1264COPTOISOLATOR 10KV TRANS AXIAL |
7,324 | 2.72 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 100% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|
JAN4N24OPTOISO 1KV TRANS W/BASE TO78-6 |
4,175 | 25.80 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
OPI7002OPTOISOLATR 6KV TRANSISTOR 4-DIP |
7,977 | 2.53 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 6000VDC | 20% @ 10mA | - | 4µs, 3µs | - | DC | Transistor | 30V | - | 1.2V | 50 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|
OPI110OPTOISOLATOR 10KV TRANS AXIAL |
8,305 | 2.59 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 12.5% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
|

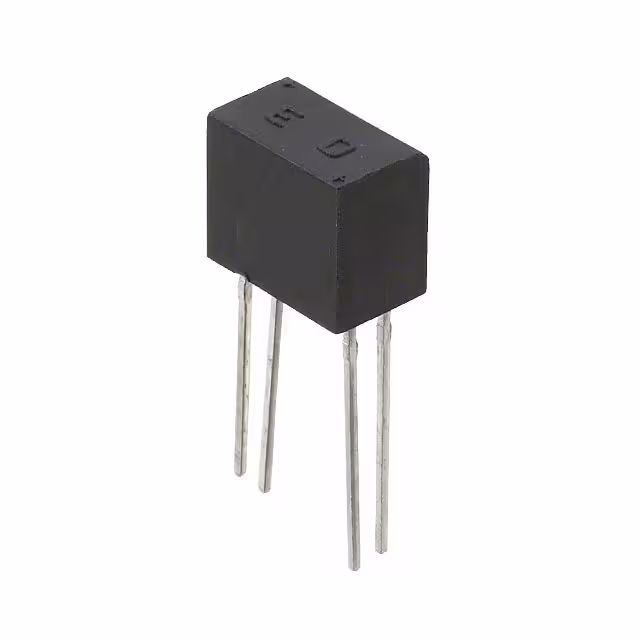

OPI7010OPTOISOLATR 6KV TRANSISTOR 4-DIP |
7,486 | 2.70 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 6000VDC | 100% @ 10mA | - | 4µs, 3µs | - | DC | Transistor | 30V | - | 1.2V (Max) | 50 mA | 400mV | -40°C ~ 85°C | Through Hole |
-
