| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

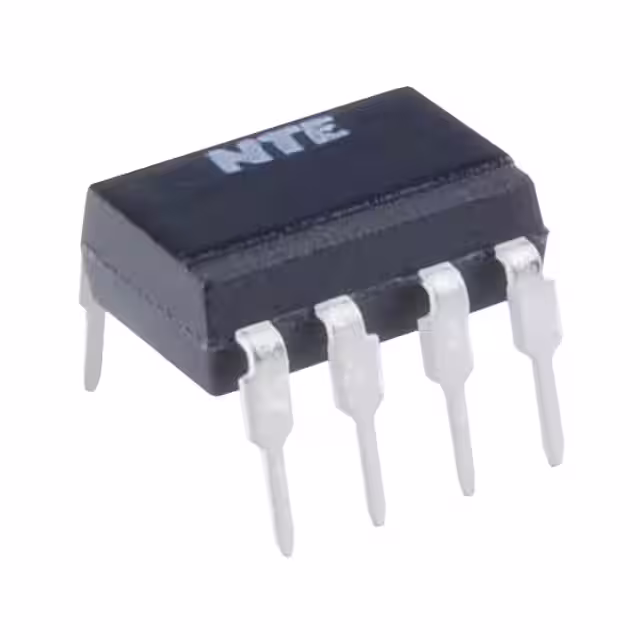

NTE3220OPTOCOUPLER-NPN DUAL TRAN |
5,952 | 1.77 |
FFQ |
Datasheet |
Bag | - | Active | 2 | 5000Vrms | 50% @ 5mA | - | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
NTE3040OPTOISOLATOR/TRANS |
8,439 | 2.17 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500VAC | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor | 30V | - | 1.18V | 100 mA | 500mV | -55°C ~ 100°C | Through Hole |
|

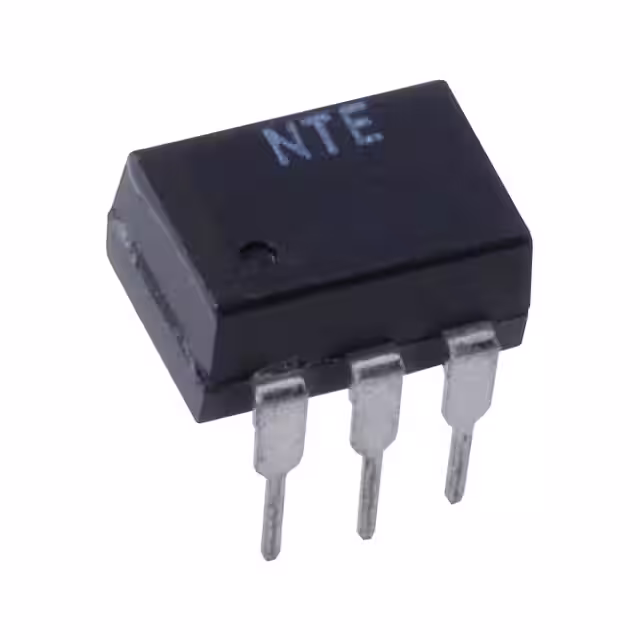

NTE3044OPTOISOLATOR/DARL |
6,180 | 2.48 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | - | - | 3.5µs, 95µs | 1µs, 2µs | DC | Darlington | 80V | 30mA | 1.15V | 10 mA | - | -55°C ~ 100°C | Through Hole |
|
NTE3084OPTOISOLATOR/TRANS |
5,992 | 2.52 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | 100% @ 10mA | - | - | - | DC | Darlington | - | - | 1.5V (Max) | - | 1V | - | Through Hole |
|

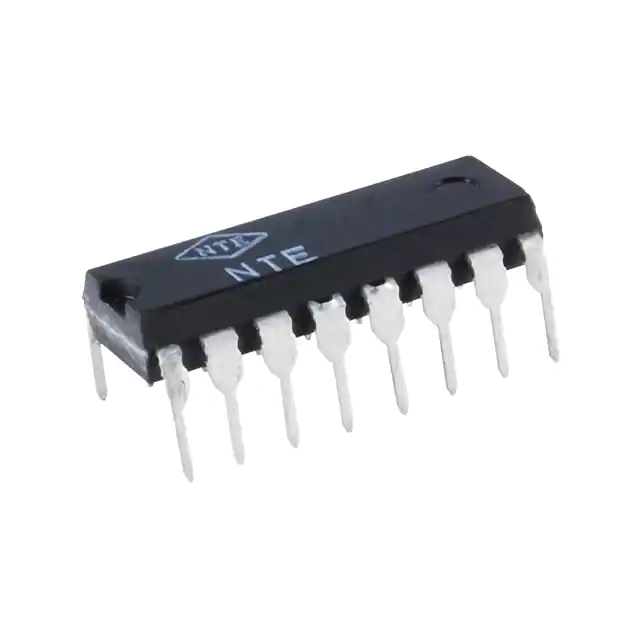

NTE3221OPTOCOUPLER-NPN QUAD TRAN |
6,387 | 3.48 |
FFQ |
Datasheet |
Bag | - | Active | 4 | 5000Vrms | 50% @ 5mA | - | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
NTE3083OPTOISOLATOR/TRANS |
8,567 | 3.55 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 3550VDC | 200% @ 10mA | - | 200µs, 400µs | 80µs, 80µs | DC | Transistor | 30V | 125mA | 1.15V | 60 mA | 1.2V | -55°C ~ 100°C | Through Hole |
|
NTE3088OPTOISOLATOR/HV TRANS |
9,199 | 4.40 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor | 300V | 100mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3092OPTOCOUPLER/TRANSISTOR |
8,882 | 4.92 |
FFQ |
Datasheet |
Bag | - | Active | 1 | - | 19% @ 16mA | - | 500ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.65V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|

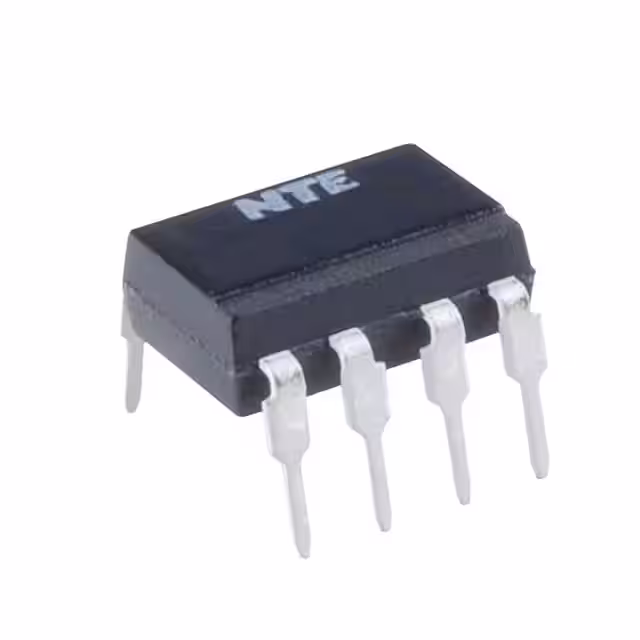

NTE3089OPTOISOLATOR/TRANSISTOR |
8,521 | 4.95 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 1500Vpk | 20% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 100mA | 1.5V (Max) | 60 mA | 400mV | -55°C ~ 150°C | Through Hole |
|
NTE3093OPTOCOUPLER/DARLINGTON |
5,959 | 5.29 |
FFQ |
Datasheet |
Bag | - | Active | 1 | - | 500% @ 1.6mA | - | 5µs, 5µs | - | DC | Darlington | 18V | 60mA | 1.4V | 40 mA | - | 0°C ~ 70°C | Through Hole |
|

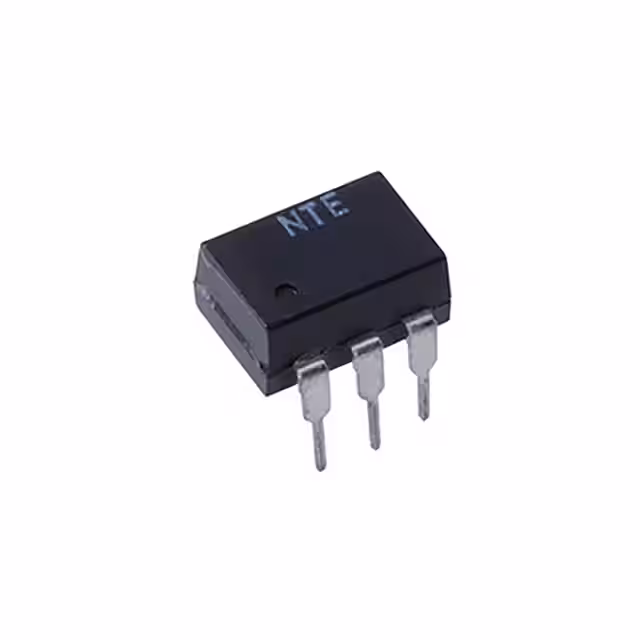

NTE3085OPTOISOLATOR/FET |
9,236 | 6.10 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | - | - | 25µs, 25µs | - | DC | MOSFET | - | - | 1.3V | 60 mA | - | -40°C ~ 100°C | Through Hole |
|
NTE3095OPTOCOUPLER/DUAL TRANS |
2,254 | 14.00 |
FFQ |
Datasheet |
Bag | - | Active | 2 | 2500Vrms | 19% @ 16mA | - | 300ns, 200ns | - | DC | Transistor | 15V | 8mA | 1.66V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
NTE3222OPTOCOUPLER-NPN TRANS |
7,053 | 1.98 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
NTE3045OPTOISOLATOR/DARL |
6,278 | 2.59 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | - | - | 3.5µs, 95µs | 1µs, 2µs | DC | Darlington | 80V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|

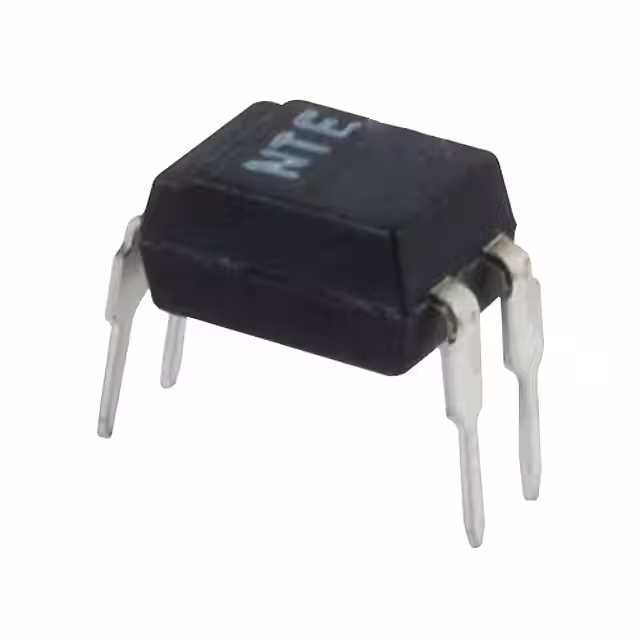

NTE3098OPTO-ISOLATOR TRANS OUT |
5,233 | 2.64 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 20 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3096OPTOCOUPLER/TRANSISTOR |
7,331 | 2.70 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500VAC | 50% @ 1mA | - | 20µs, 20µs (Max) | - | DC | Transistor | 30V | 100mA | 1.1V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
NTE3043OPTOISOLATOR/TRANS |
6,083 | 3.10 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 4000VDC | 70% @ 10mA | 210% @ 10mA | 4.5µs, 3.5µs | - | DC | Transistor | 80V | - | 1.5V (Max) | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3086OPTOISOLATOR/TRANS |
9,640 | 5.23 |
FFQ |
Datasheet |
Bag | - | Active | 2 | 1500Vrms | 20% @ 10mA | - | 5s, 25s | 15s, 2.4s | DC | Transistor | 30V | - | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3042OPTOISOLATOR/TRANS |
7,607 | 1.73 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500VAC | 20% @ 10mA | - | 1.2µs, 1.2µs | 2µs, 2µs | DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3041OPTOISOLATOR/TRANS |
8,694 | 2.11 |
FFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | - | - | 7.5s, 5.7s | 3.2s, 4.7s | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
