Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	SwitchType	NumberofOutputs	Ratio-Input:Output	OutputConfiguration	OutputType	Interface	Voltage-Load	Voltage-Supply(Vcc/Vdd)	Current-Output(Max)	RdsOn(Typ)	InputType	Features	FaultProtection	OperatingTemperature	MountingType

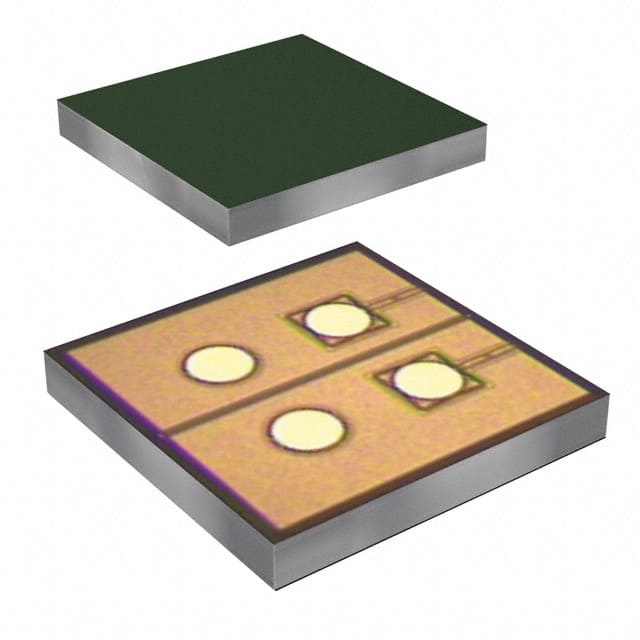

	FC4B22180L1 IC PWR DRIVER N-CHANNEL 1:1 4SMD Panasonic Electronic Components	1,618	0.87	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	20V (Max)	Not Required	5A	9.4mOhm	-	-	-	-	Surface Mount

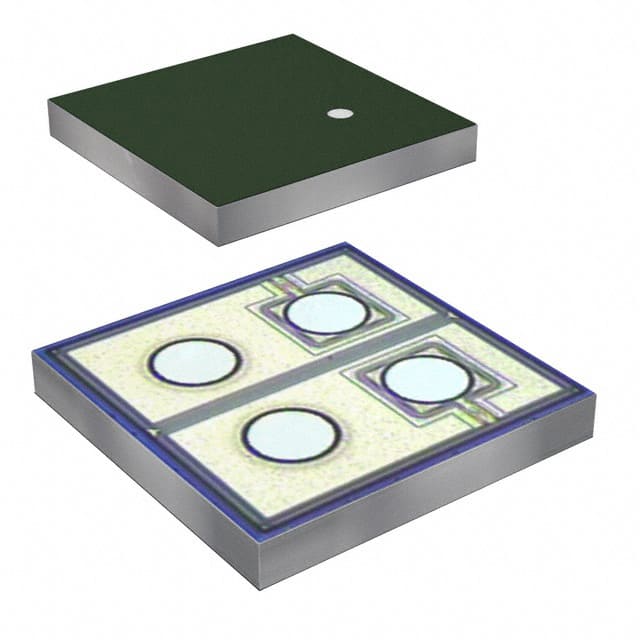

	FC4B21300L1 IC PWR DRIVER N-CHANNEL 1:1 4SMD Panasonic Electronic Components	710	0.63	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	12V (Max)	Not Required	1.5A	70mOhm	-	-	-	-	Surface Mount

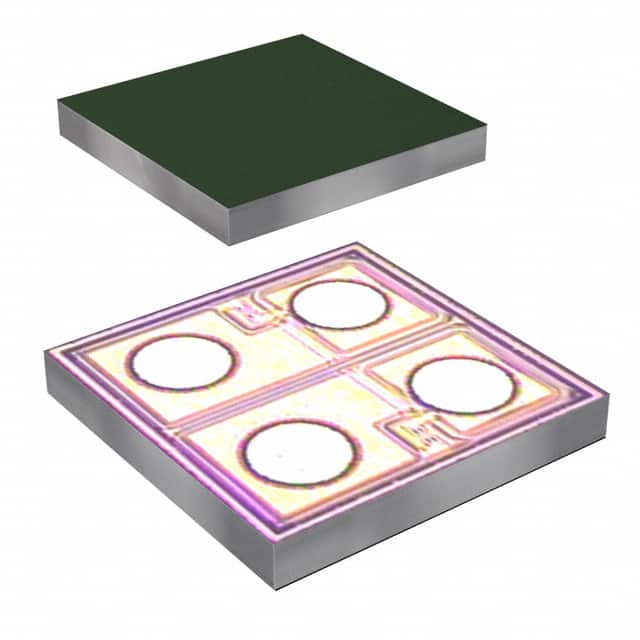

	FC4B21320L1 IC PWR DRIVER N-CHANNEL 1:1 4SMD Panasonic Electronic Components	308	0.75	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	12V (Max)	Not Required	2.5A	36mOhm	-	-	-	-	Surface Mount

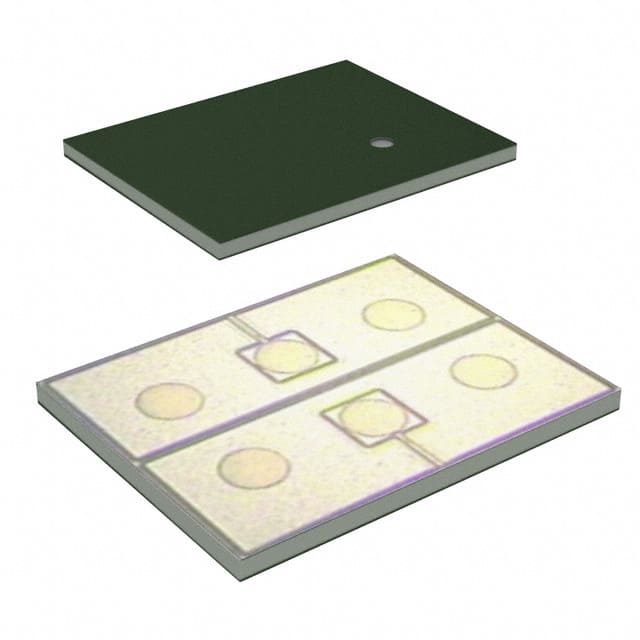

	FC6B21150L1 IC PWR DRIVER N-CHANNEL 1:1 6SMD Panasonic Electronic Components	470	1.05	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	12V (Max)	Not Required	8A	4mOhm	-	-	-	-	Surface Mount

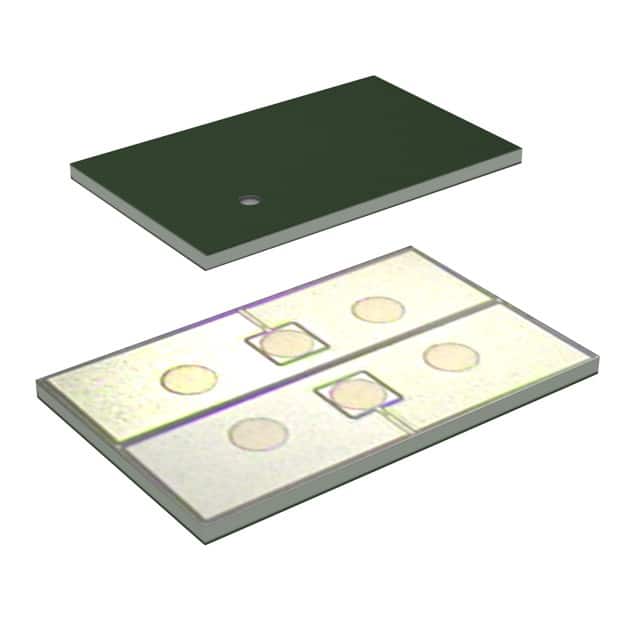

	FC6B22160L1 IC PWR DRIVER N-CHANNEL 1:1 6SMD Panasonic Electronic Components	750	1.15	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	20V (Max)	Not Required	8A	4.7mOhm	-	-	-	-	Surface Mount

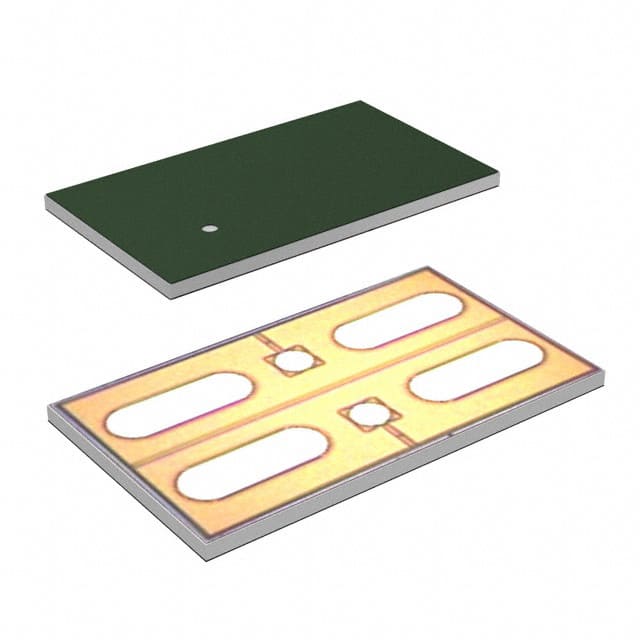

	FCAB21350L1 IC PWR DRIVER N-CHANNEL 1:1 6SMD Panasonic Electronic Components	500	1.59	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	12V (Max)	Not Required	12A	2.1mOhm	-	-	-	-	Surface Mount

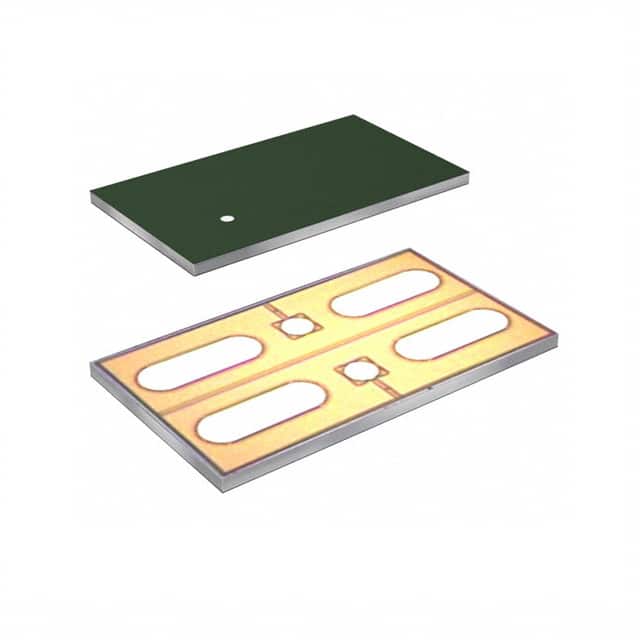

	FCAB22370L1 IC PWR DRIVER N-CHANNEL 1:1 6SMD Panasonic Electronic Components	810	1.67	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	General Purpose	1	1:1	Low Side	N-Channel	On/Off	20V (Max)	Not Required	10A	3.1mOhm	-	-	-	-	Surface Mount
