Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	SwitchType	NumberofOutputs	Ratio-Input:Output	OutputConfiguration	OutputType	Interface	Voltage-Load	Voltage-Supply(Vcc/Vdd)	Current-Output(Max)	RdsOn(Typ)	InputType	Features	FaultProtection	OperatingTemperature	MountingType

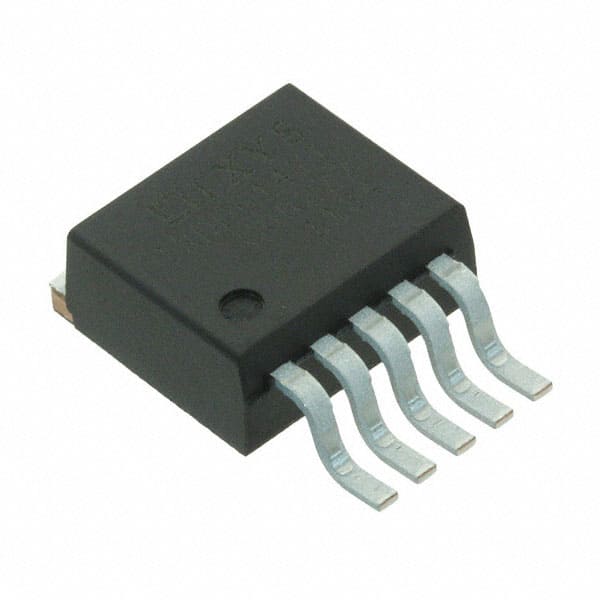

	IXDD614YI IC PWR DRIVER 1:1 TO263-5 IXYS Integrated Circuits Division	5,003	6.27	FFQ	Datasheet	Tube	-	Active	General Purpose	1	1:1	Low Side	-	On/Off	4.5V ~ 35V	Not Required	4A	-	Non-Inverting	-	-	-40°C ~ 125°C (TA)	Surface Mount

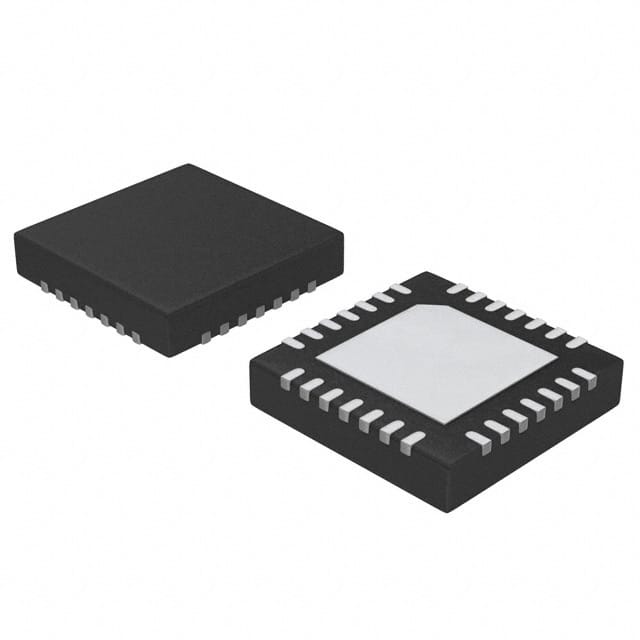

	MX878R IC PWR DRIVER 1:1 28QFN IXYS Integrated Circuits Division	2,463	0.00	FFQ	Datasheet	Tube	-	Obsolete	General Purpose	8	1:1	-	-	SPI, Parallel	6V ~ 60V	2.7V ~ 5.5V	250mA	-	-	-	-	-40°C ~ 85°C (TA)	Surface Mount
	MX878RTR IC PWR DRIVER 1:1 28QFN IXYS Integrated Circuits Division	2,156	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	General Purpose	8	1:1	-	-	SPI, Parallel	6V ~ 60V	2.7V ~ 5.5V	250mA	-	-	-	-	-40°C ~ 85°C (TA)	Surface Mount
	MX879R IC PWR DRIVER 1:1 28QFN IXYS Integrated Circuits Division	3,389	0.00	FFQ	Datasheet	Tube	-	Obsolete	General Purpose	8	1:1	-	-	SPI, Parallel	6V ~ 60V	2.7V ~ 5.5V	150mA	7Ohm	-	-	-	-40°C ~ 85°C (TA)	Surface Mount
	MX877R IC PWR SWITCH 1:1 28QFN IXYS Integrated Circuits Division	2,679	0.00	FFQ		Tube	-	Obsolete	General Purpose	8	1:1	-	-	SPI, Parallel	6V ~ 60V	2.7V ~ 5.5V	100mA	-	-	-	-	-40°C ~ 85°C (TA)	Surface Mount
	MX877RTR IC PWR SWITCH 1:1 28QFN IXYS Integrated Circuits Division	2,926	0.00	FFQ		Tape & Reel (TR)	-	Obsolete	General Purpose	8	1:1	-	-	SPI, Parallel	6V ~ 60V	2.7V ~ 5.5V	100mA	-	-	-	-	-40°C ~ 85°C (TA)	Surface Mount
