Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	BaseResonator	Type	ProgrammableType	AvailableFrequencyRange	Function	Output	Voltage-Supply	FrequencyStability	FrequencyStability(Total)	OperatingTemperature	SpreadSpectrumBandwidth	Current-Supply(Max)	Ratings	MountingType	Size/Dimension

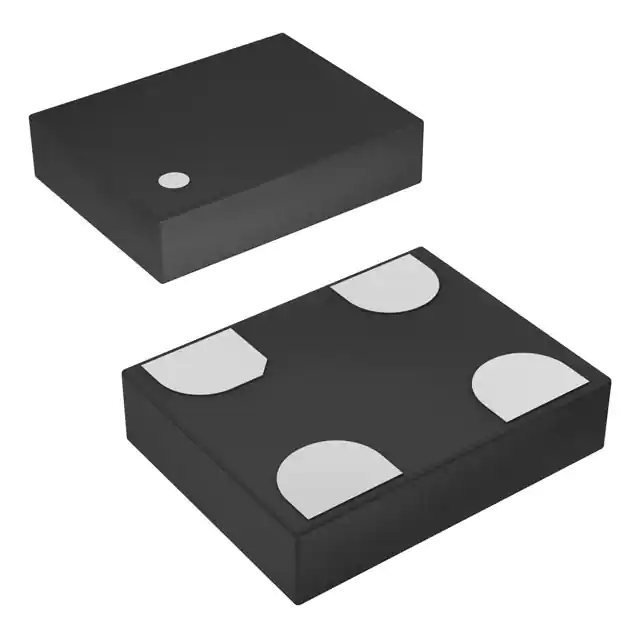

	SIT9003AI-23-18XX-000.FP000X MEMS OSC PROG BLANK 1MHZ-110MHZ SiTime	7,904	1.12	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9003	Active	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 110 MHz	Enable/Disable, Standby	LVCMOS, LVTTL	1.8V	-	±50ppm	-40°C ~ 85°C	±0.25% ~ ±2% Center Spread, -0.5% ~ -4% Down Spread	3.5mA	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)
	SIT9003AI-23-33XX-000.FP000X MEMS OSC PROG BLANK 1MHZ-110MHZ SiTime	14,060	0.00	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9003	Active	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 110 MHz	Enable/Disable, Standby	LVCMOS, LVTTL	3.3V	-	±50ppm	-40°C ~ 85°C	±0.25% ~ ±2% Center Spread, -0.5% ~ -4% Down Spread	4.1mA	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)
	SIT3821AI-1B2-XXXX000.FP0000X SIT3821 - FIELD PROGRAMMABLE OSC SiTime	9,889	7.65	FFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	SIT3821AI-2B2-XXXX000.FP0000X SIT3821 - FIELD PROGRAMMABLE OSC SiTime	5,442	7.65	FFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

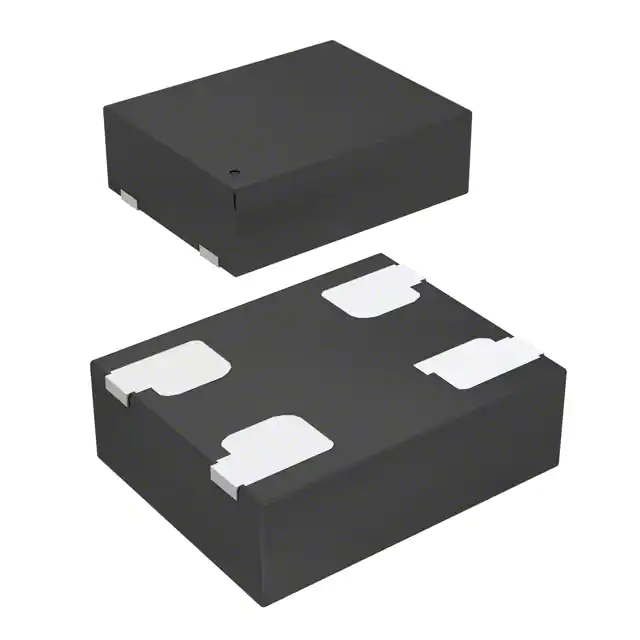

	SIT8924BM-11-XXX-000.FP0000G MEMS OSC PROG BLANK 1MHZ-110MHZ SiTime	8,050	1.00	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT8924B	Active	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 110 MHz	Enable/Disable, Standby	LVCMOS, LVTTL	2.5V ~ 3.3V	-	±20ppm	-55°C ~ 125°C	-	4.8mA	AEC-Q100	Surface Mount	0.098 L x 0.079 W (2.50mm x 2.00mm)

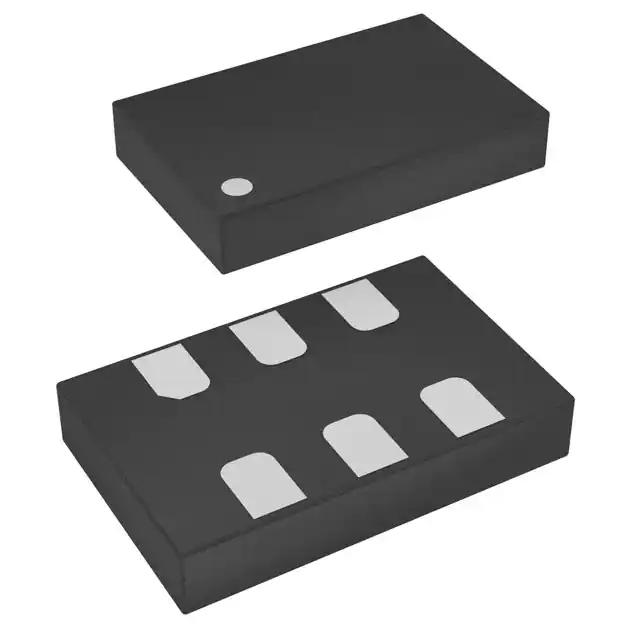

	SIT3821AI-1C2-XXXX000.FP0000X MEMS OSC PROG BLANK 1MHZ-220MHZ SiTime	5,905	7.65	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3821	Active	MEMS	VCXO	Blank (User Must Program)	1 MHz ~ 220 MHz	Enable/Disable, Standby	LVPECL	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	69mA	-	Surface Mount	0.197 L x 0.126 W (5.00mm x 3.20mm)

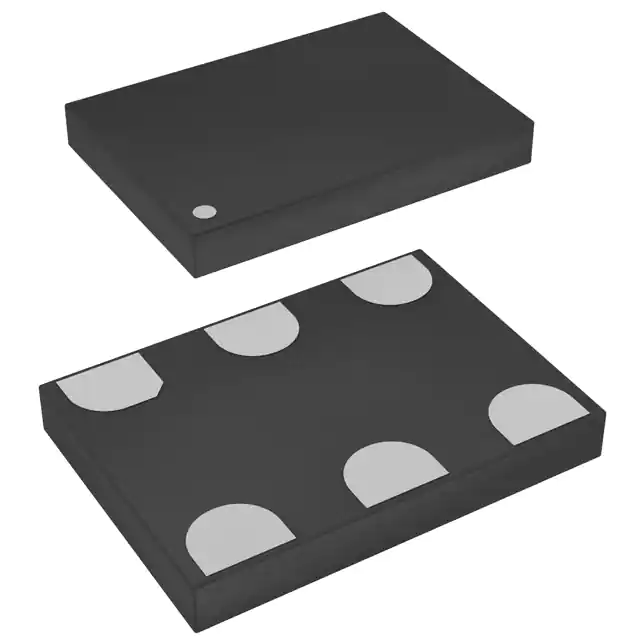

	SIT3821AI-1D2-XXXX000.FP0000X MEMS OSC PROG BLANK 1MHZ-220MHZ SiTime	5,376	7.65	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3821	Active	MEMS	VCXO	Blank (User Must Program)	1 MHz ~ 220 MHz	Enable/Disable, Standby	LVPECL	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	69mA	-	Surface Mount	0.276 L x 0.197 W (7.00mm x 5.00mm)
	SIT3821AI-2D2-XXXX000.FP0000X MEMS OSC PROG BLANK 1MHZ-220MHZ SiTime	9,166	7.65	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3821	Active	MEMS	VCXO	Blank (User Must Program)	1 MHz ~ 220 MHz	Enable/Disable, Standby	LVDS	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	55mA	-	Surface Mount	0.276 L x 0.197 W (7.00mm x 5.00mm)
	SIT3808AI-G2-XXXX-000.FP0000X MEMS OSC PROG BLANK 1MHZ-80MHZ SiTime	13,436	0.00	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT3808	Discontinued at Mosen	MEMS	VCXO	Blank (User Must Program)	1 MHz ~ 80 MHz	Enable/Disable, Standby	LVCMOS, LVTTL	1.8V, 2.5V ~ 3.3V	-	±25ppm	-40°C ~ 85°C	-	33mA	-	Surface Mount	0.098 L x 0.079 W (2.50mm x 2.00mm)
	SIT3809AI-G2-XXXX-000.FP0000X PROG OSC BLANK 80-220MHZ LVCMOS SiTime	12,889	0.00	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT3809	Discontinued at Mosen	MEMS	VCXO	Blank (User Must Program)	80.000001 MHz ~ 220 MHz	Enable/Disable, Standby	LVCMOS, LVTTL	1.8V, 2.5V ~ 3.3V	-	±25ppm	-40°C ~ 85°C	-	36mA	-	Surface Mount	0.098 L x 0.079 W (2.50mm x 2.00mm)

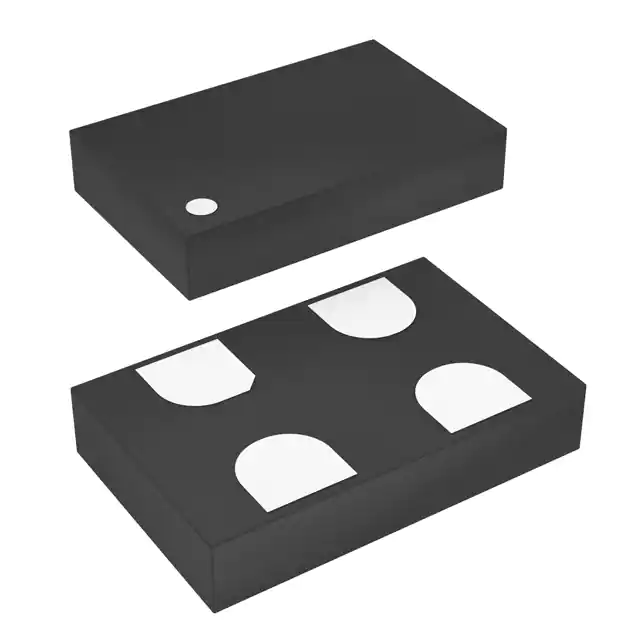

	SIT9001AI-33-XXXX-000.FP000X MEMS OSC PROG BLANK SiTime	240	1.47	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9001	Obsolete	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 200 MHz	Enable/Disable, Standby	LVCMOS	1.8V, 2.5V ~ 3.3V	-	±50ppm	-40°C ~ 85°C	-	34mA	-	Surface Mount	0.197 L x 0.126 W (5.00mm x 3.20mm)
	SIT9001AI-23-XXXX-000.FP000X MEMS OSC PROG BLANK SiTime	250	1.52	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9001	Obsolete	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 200 MHz	Enable/Disable, Standby	LVCMOS	1.8V, 2.5V ~ 3.3V	-	±50ppm	-40°C ~ 85°C	-	34mA	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)

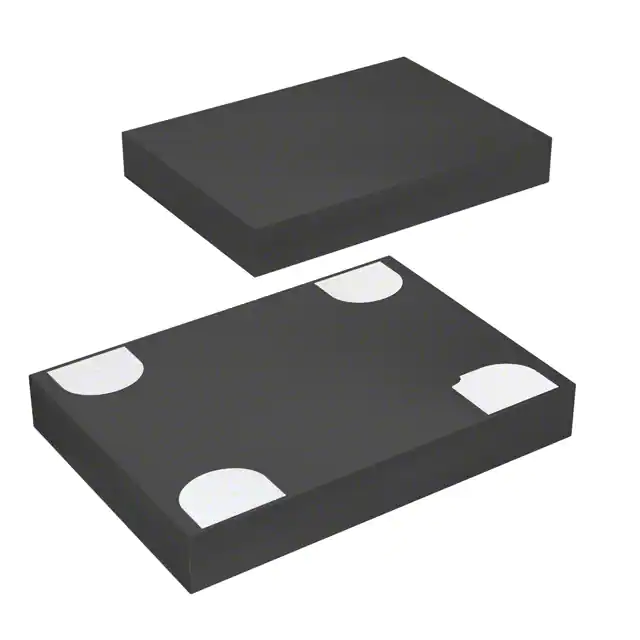

	SIT9001AI-83-XXXX-000.FP000X MEMS OSC PROG BLANK SiTime	250	1.47	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9001	Obsolete	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 200 MHz	Enable/Disable, Standby	LVCMOS	1.8V, 2.5V ~ 3.3V	-	±50ppm	-40°C ~ 85°C	-	34mA	-	Surface Mount	0.276 L x 0.197 W (7.00mm x 5.00mm)
	SIT9001AI-13-XXXX-000.FP000X MEMS OSC PROG BLANK SiTime	3,096	1.00	FFQ	Datasheet	4-SMD, No Lead	Bulk	SiT9001	Obsolete	MEMS	XO (Standard)	Blank (User Must Program)	1 MHz ~ 200 MHz	Enable/Disable, Standby	LVCMOS	1.8V, 2.5V ~ 3.3V	-	±50ppm	-40°C ~ 85°C	-	34mA	-	Surface Mount	0.098 L x 0.079 W (2.50mm x 2.00mm)
	SIT3822AI-2D2-XXXX000.FP0000X MEMS OSC PROG BLANK SiTime	115	12.91	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3822	Obsolete	MEMS	VCXO	Blank (User Must Program)	220 MHz ~ 625 MHz	-	LVDS	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	-	-	Surface Mount	0.276 L x 0.197 W (7.00mm x 5.00mm)
	SIT3822AI-2C2-XXXX000.FP0000X MEMS OSC PROG BLANK SiTime	250	12.91	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3822	Obsolete	MEMS	VCXO	Blank (User Must Program)	220 MHz ~ 625 MHz	-	LVDS	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.126 W (5.00mm x 3.20mm)
	SIT3822AI-1D2-XXXX000.FP0000X MEMS OSC PROG BLANK SiTime	250	12.91	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3822	Obsolete	MEMS	VCXO	Blank (User Must Program)	220 MHz ~ 625 MHz	-	LVPECL	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	-	-	-	0.276 L x 0.197 W (7.00mm x 5.00mm)
	SIT3822AI-1C2-XXXX000.FP0000X MEMS OSC PROG BLANK SiTime	230	12.91	FFQ	Datasheet	6-SMD, No Lead	Bulk	SiT3822	Obsolete	MEMS	VCXO	Blank (User Must Program)	220 MHz ~ 625 MHz	-	LVPECL	2.5V, 3.3V	-	±25ppm	-40°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.126 W (5.00mm x 3.20mm)
