Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

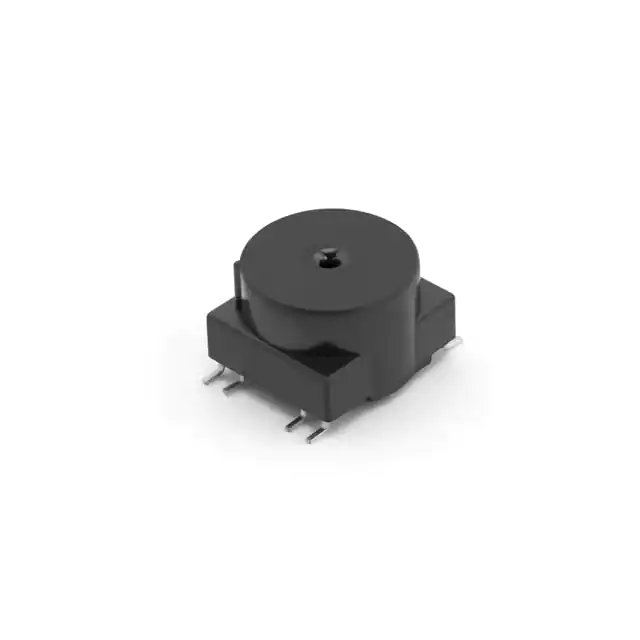

	T60403F5046X100 GATE DRIVE TRANSFORMER SMD 1:1.2 VACUUMSCHMELZE	7,323	6.54	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	1.4mH	80VµS	1:1.2:1.2	Through Hole	0.791 L x 0.630 W (20.10mm x 16.00mm)	0.472 (12.00mm)

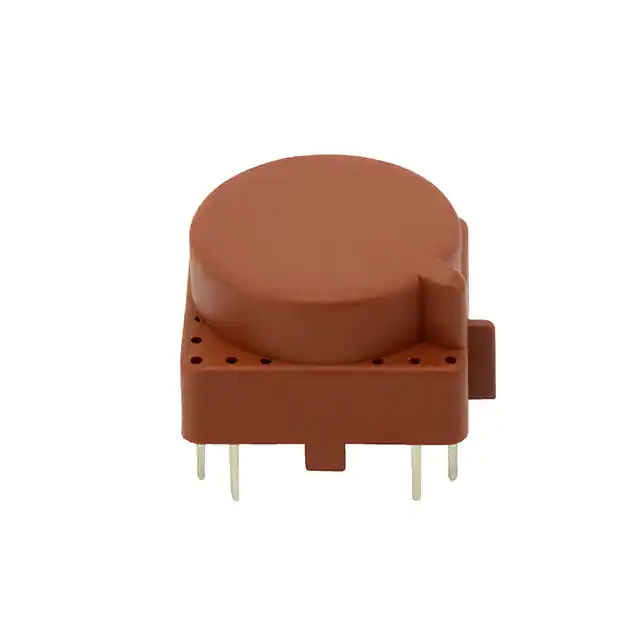

	T60403D4097X055 GATE DRIVE TRANSFORMER PTH 1:1:1 VACUUMSCHMELZE	9,200	6.54	FFQ	Datasheet	Box	-	Active	-	6.5mH	200VµS	1:1:1	Through Hole	0.654 L x 0.583 W (16.60mm x 14.80mm)	0.532 (13.50mm)
	T60403F4099X011 GATE DRIVE TRANSFORMER PTH 1:1:1 VACUUMSCHMELZE	7,334	8.25	FFQ	Datasheet	Box	-	Active	Gate Drive	950µH	85VµS	1:1:1	Through Hole	0.654 L x 0.583 W (16.60mm x 14.80mm)	0.531 (13.50mm)
	T60403F5046X008 GATE DRIVE TRANSFORMER SMD 1:1:1 VACUUMSCHMELZE	2,294	11.32	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	2.32mH	110VµS	1:1:1:1	Through Hole	0.791 L x 0.591 W (20.10mm x 15.00mm)	0.413 (10.50mm)

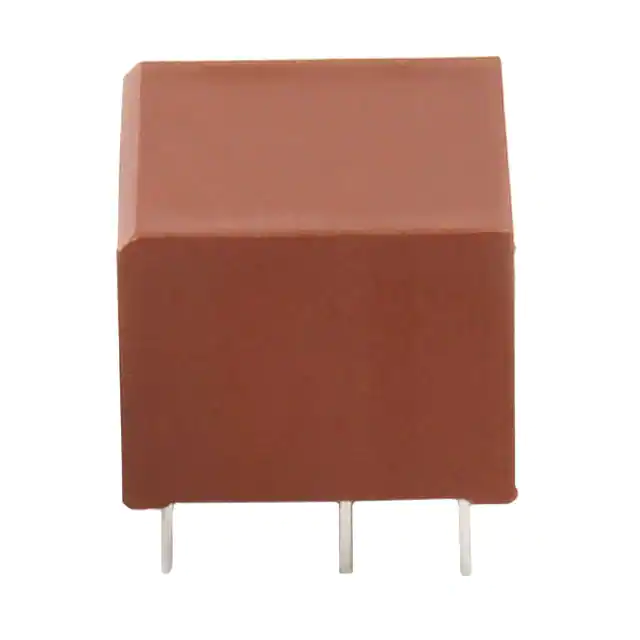

	T60403D4721X004 GATE DRIVE TRANSFORMER PTH 1:1:1 VACUUMSCHMELZE	9,409	7.52	FFQ	Datasheet	Box	-	Active	Gate Drive	850µH	250VµS	1:1:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
	T60403D4721X007 GATE DRIVE TRANSFORMER PTH 3:1:1 VACUUMSCHMELZE	7,696	7.32	FFQ	Datasheet	Box	-	Active	Gate Drive	8.5mH, 16mH	250VµS	3:1:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
	T60403D4721X002 GATE DRIVE TRANSFORMER PTH 1:1 5 VACUUMSCHMELZE	753	7.45	FFQ	Datasheet	Box	-	Obsolete	Gate Drive	3.6mH	500VµS	1:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)

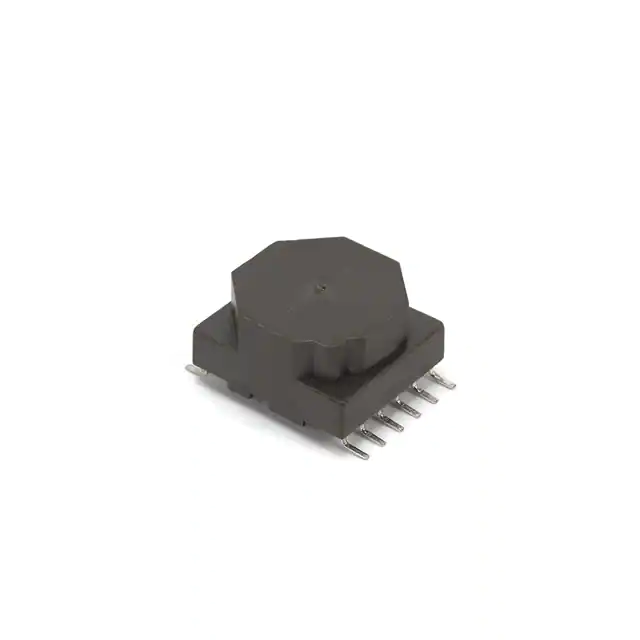

	T60403F5046X007 GATE DRIVE TRANSFORMER SMD 1:1:1 VACUUMSCHMELZE	7,511	6.31	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	1.4mH	85VµS	1:1:1	Through Hole	0.791 L x 0.591 W (20.10mm x 15.00mm)	0.413 (10.50mm)
	T60403D4721X005 GATE DRIVE TRANSFORMER PTH 2:1 2 VACUUMSCHMELZE	8,279	2.35	FFQ	Datasheet	Box	-	Active	Gate Drive	3.4mH	250VµS	2:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
	T60403D4721X01280 GATE DRIVE TRANSFORMER FOR IGBT VACUUMSCHMELZE	2,464	0.00	FFQ		Bulk	*	Obsolete	-	-	-	-	-	-	-
	T60404B4721X02180 GATE DRIVE TRANSFORMER FOR IGBT VACUUMSCHMELZE	2,996	0.00	FFQ		Bulk	*	Obsolete	-	-	-	-	-	-	-
