Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

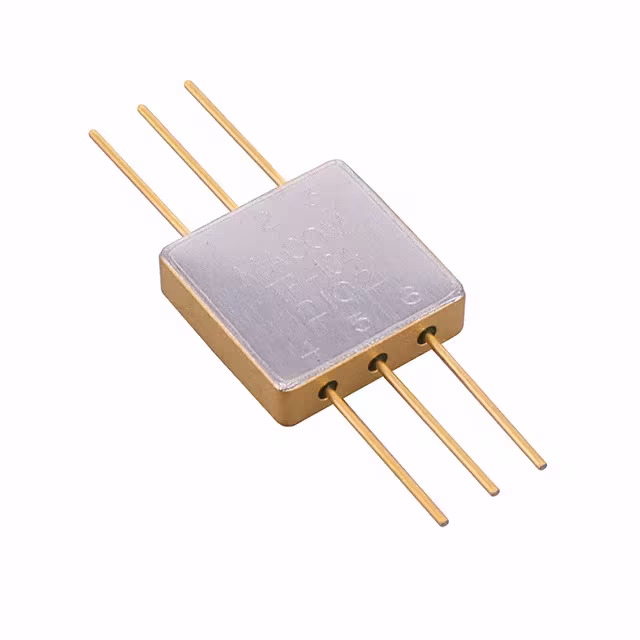

	TP-104-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	943	159.60	FFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)
	TP-102-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	385	277.75	FFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)

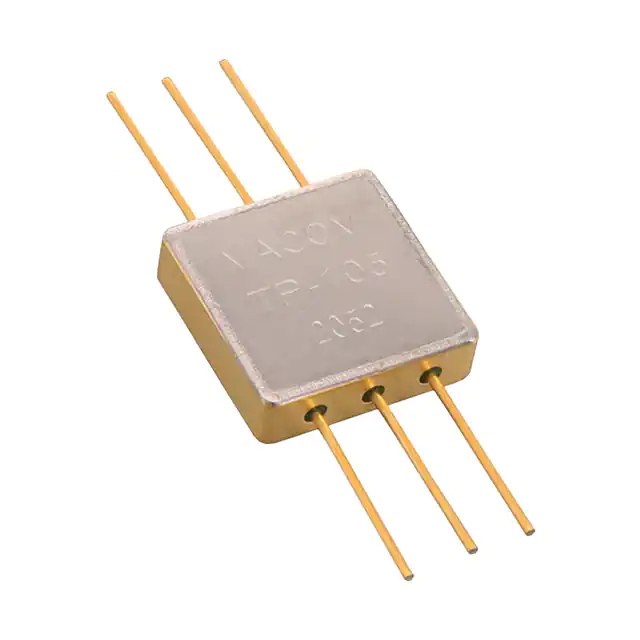

	TP-105-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	898	278.43	FFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)

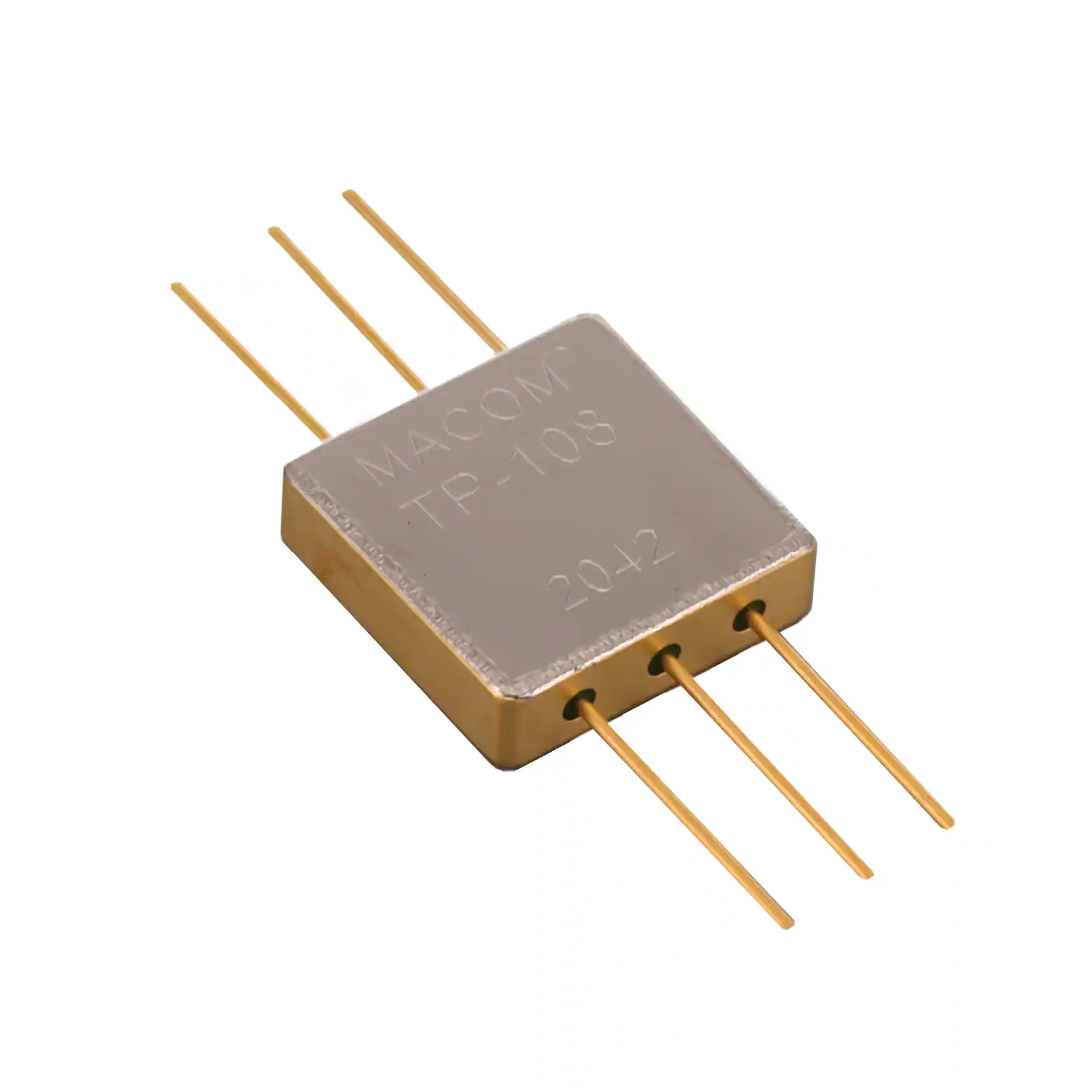

	TP-108-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	934	423.15	FFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)
	TPX-75-4N TRANSFORMER,WIDE-BAND MACOM Technology Solutions	13,239	0.00	FFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	1.343 L x 1.343 W (34.10mm x 34.10mm)	0.752 (19.10mm)
	MABA-011111 TRANSFORMER GIGABIT ETH MACOM Technology Solutions	14,872	0.00	FFQ		Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	0.231 L x 0.211 W (5.86mm x 5.36mm)	0.167 (4.25mm)
