Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

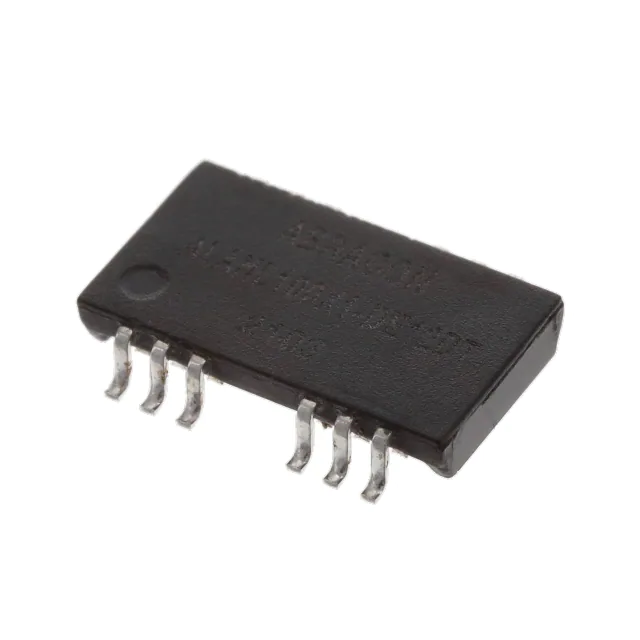

ALANL100X1-DE12DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	7,866	4.83	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.16mm)

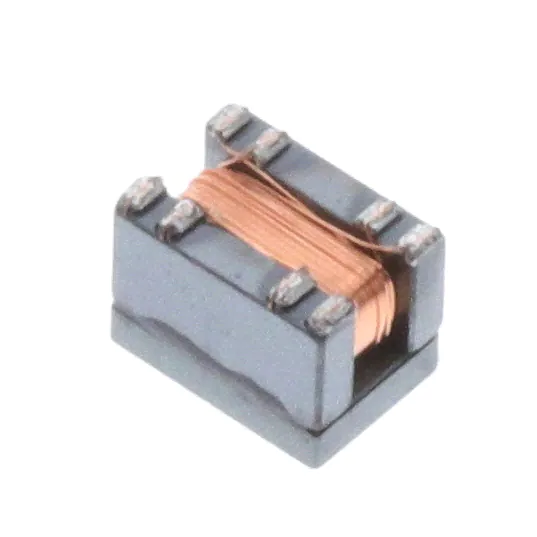

ALANC10001-CDB3DT LAN SGL XFMR 8PIN Abracon LLC	6,695	1.41	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	200µH	-	1CT:1CT	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.138 (3.50mm)
ALAN-2204 PULSE XFMR 1CT:1CT 350UH Abracon LLC	6,726	6.44	FFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
ALANS100X1-2F30LT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	5,789	3.98	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

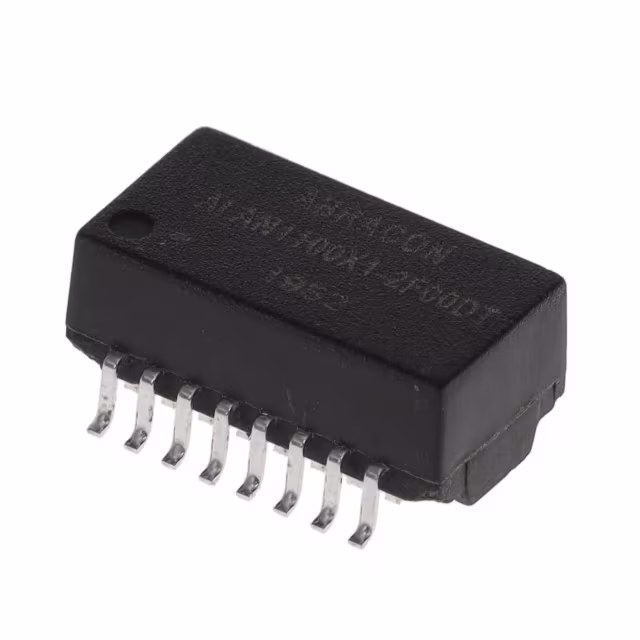

ALAN1100X1-2F00DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	6,265	6.20	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

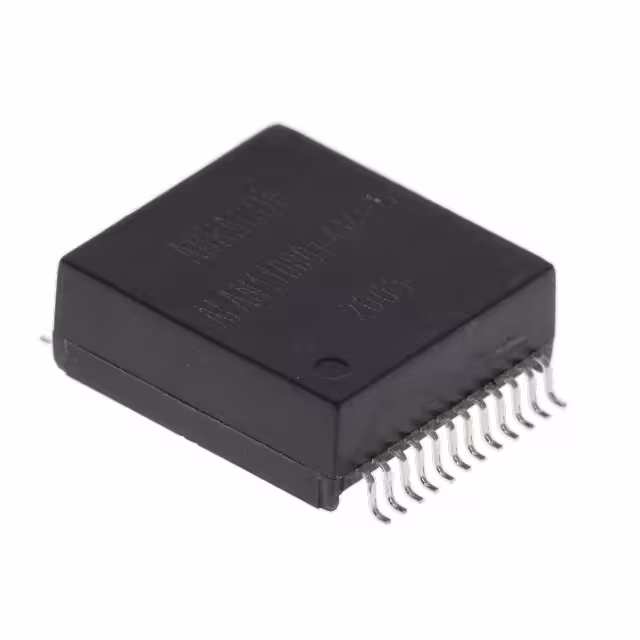

ALAN110001-4J41DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	8,960	5.35	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)

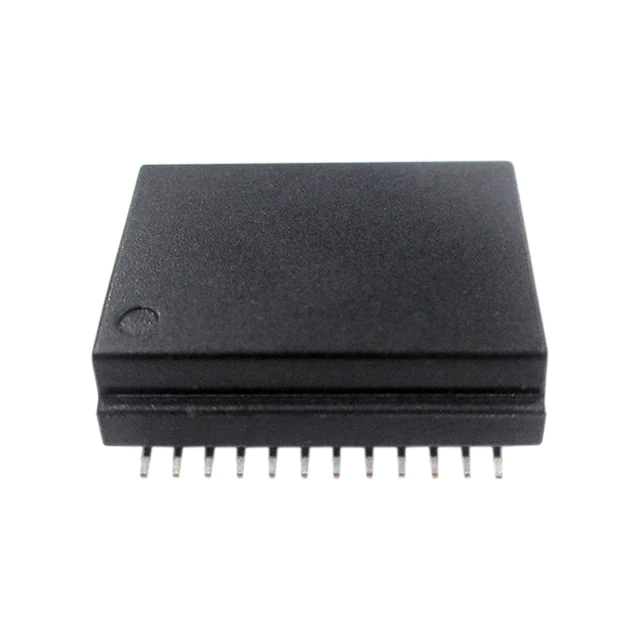

ALAN-2301 PULSE XFMR 1CT:1CT 350UH Abracon LLC	8,207	9.58	FFQ	Datasheet	Strip	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.689 L x 0.559 W (17.50mm x 14.20mm)	0.219 (5.55mm)
ALANS100X1-2F00DT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	7,032	1.97	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F10ET LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	9,490	2.12	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

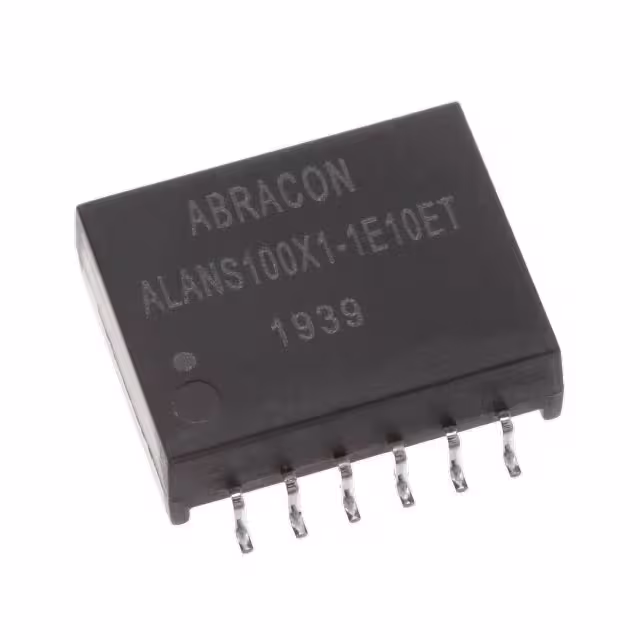

ALANS100X1-1E10ET LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	5,813	2.10	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)

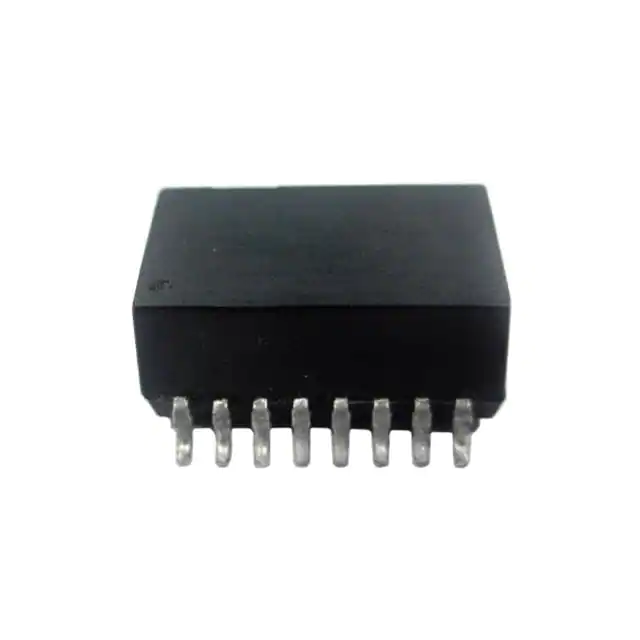

ALAN-101-T LAN XFRMR 10/100 1PORT EXT-TEMP Abracon LLC	9,977	3.10	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.217 (5.51mm)
ALANL100X1-EF62DT 10/100BASE-TX LAN XFMR Abracon LLC	6,110	4.83	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.16mm)

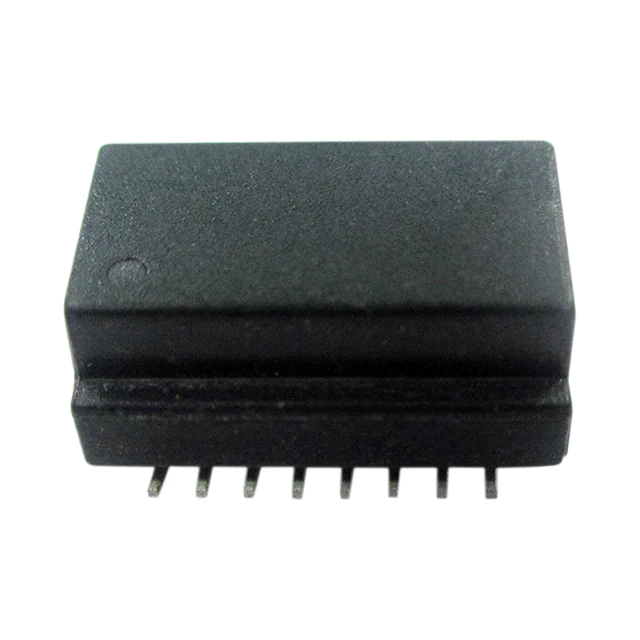

ALAN-508 PULSE XFMR 1CT:1CT 350UH Abracon LLC	8,977	5.07	FFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
ALANL100X1-EF10ET 10/100BASE-TX LAN XFMR Abracon LLC	5,701	4.69	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)

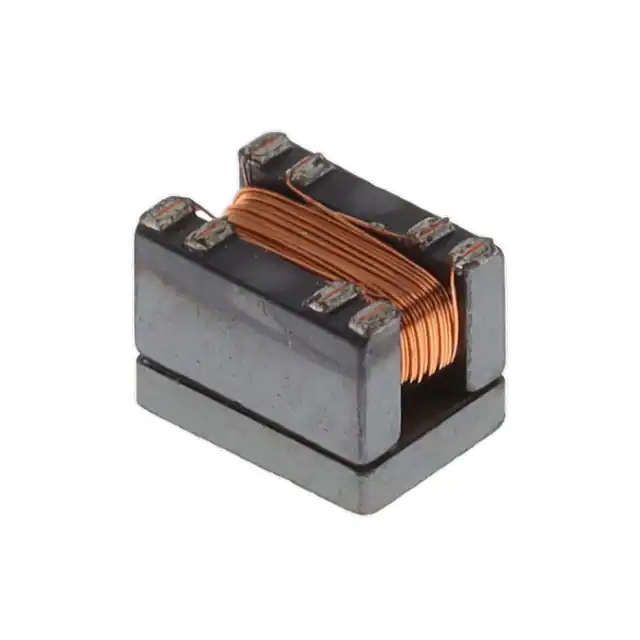

ALANC10001-CDB3ET LAN SGL XFMR 8PIN Abracon LLC	13,984	0.43	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	200µH	-	1CT:1CT	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.138 (3.50mm)
ALANS100X1-2F30ET LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	5,844	1.26	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

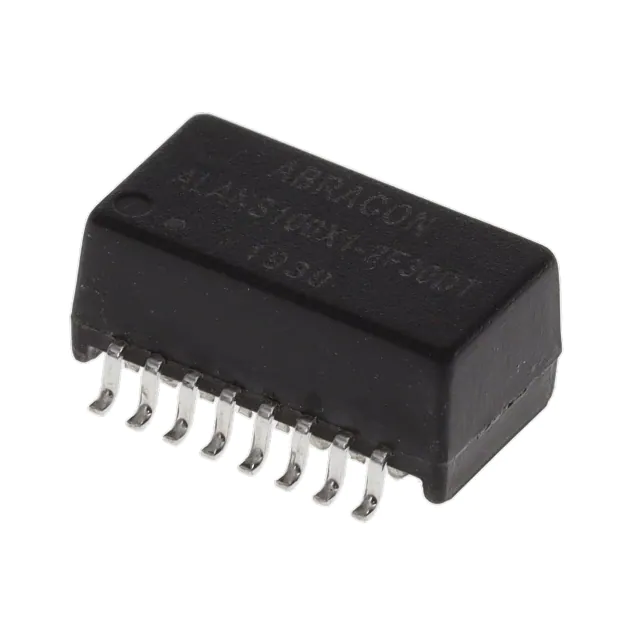

ALANS100X1-2F30DT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	9,031	1.17	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F02DT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	5,007	1.17	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F10DT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	7,945	1.17	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F00ET LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	9,703	1.26	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
