| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

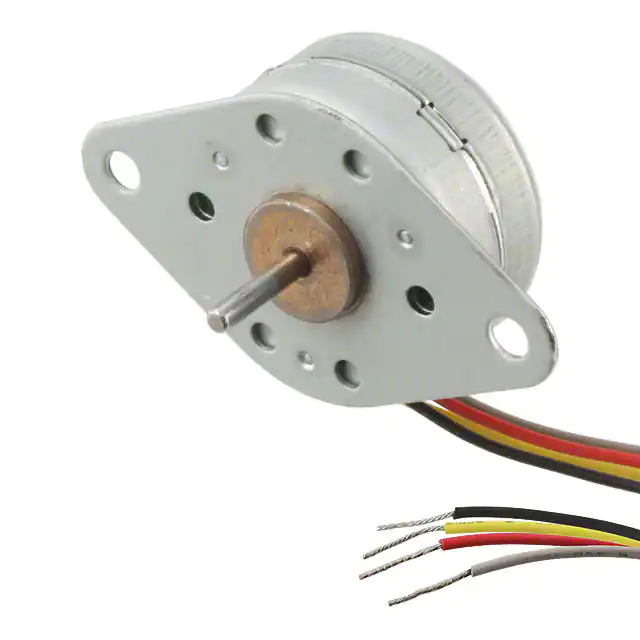

26M048B1BSTEPPER MOTOR PM BIPOLAR 5V |
4,375 | 28.21 |
FFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 48 | 7.5° | ±15% | 1.5 / 10.6 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.8 Ohms |
|

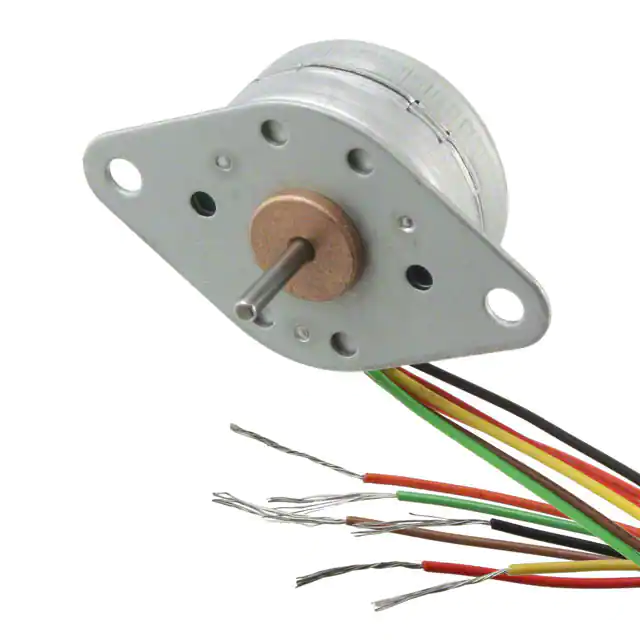

26M048B2USTEPPER MOTOR PM UNIPOLAR 12V |
1,078 | 29.10 |
FFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 48 | 7.5° | ±15% | 1.3 / 9.2 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|

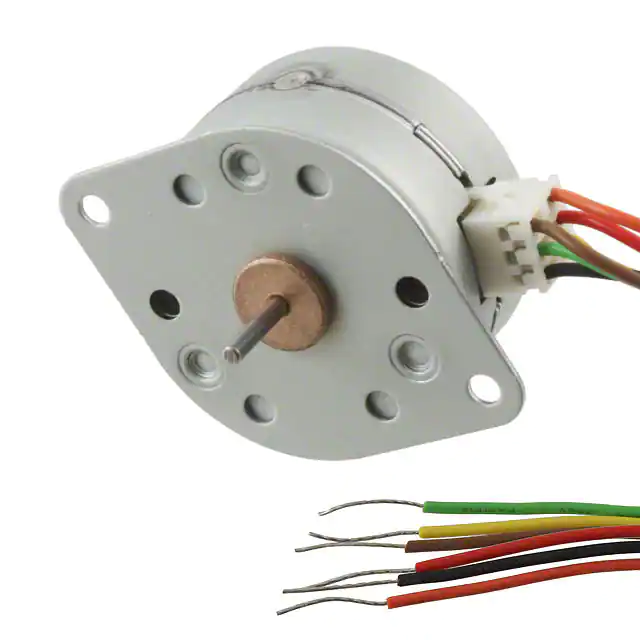

35L048B2USTEPPER MOTOR PM UNIPOLAR 12V |
1,013 | 37.92 |
FFQ |
Datasheet |
Bulk | 35L | Active | Permanent Magnet | Unipolar | 12VDC | 190 mA | 48 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 64 Ohms |
|

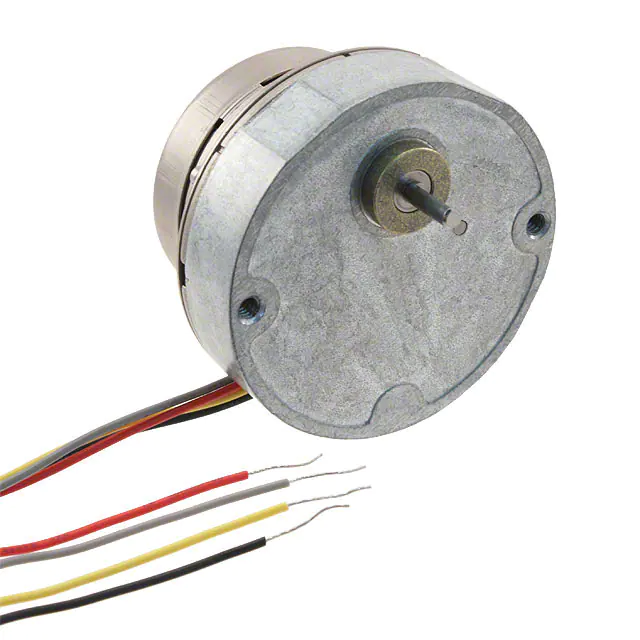

42M048C2B-R21STEP MOTOR PM GEARED BIPOLAR 12V |
1,628 | 61.05 |
FFQ |
Datasheet |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Bipolar | 12VDC | 550 mA | 480 | 0.75° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|

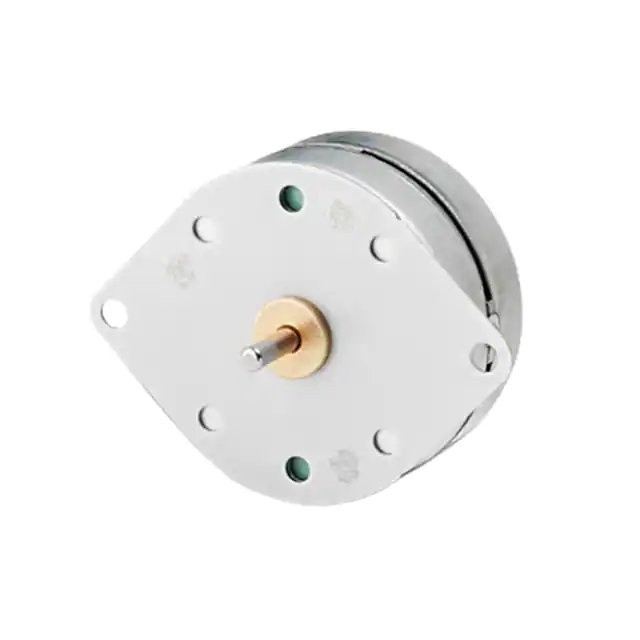

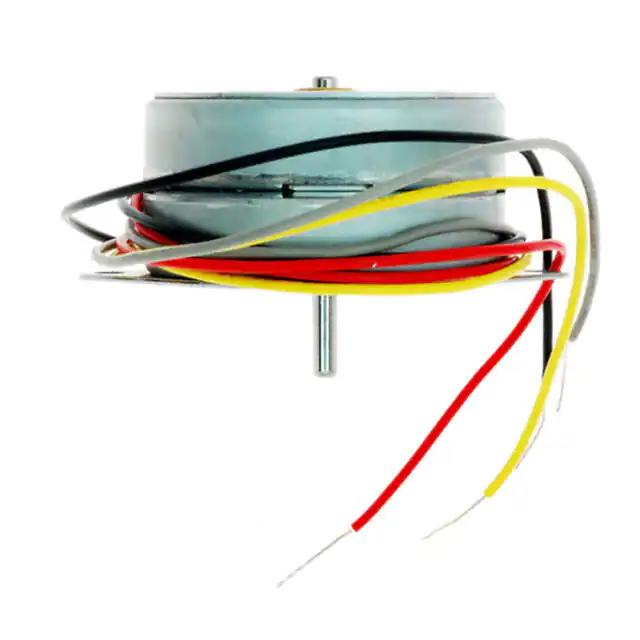

42M048C1BSTEPPER MOTOR PM BIPOLAR 5V |
3,653 | 32.13 |
FFQ |
Datasheet |
Bulk | 42M | Active | Permanent Magnet | Bipolar | 5VDC | 550 mA | 48 | 7.5° | ±15% | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|

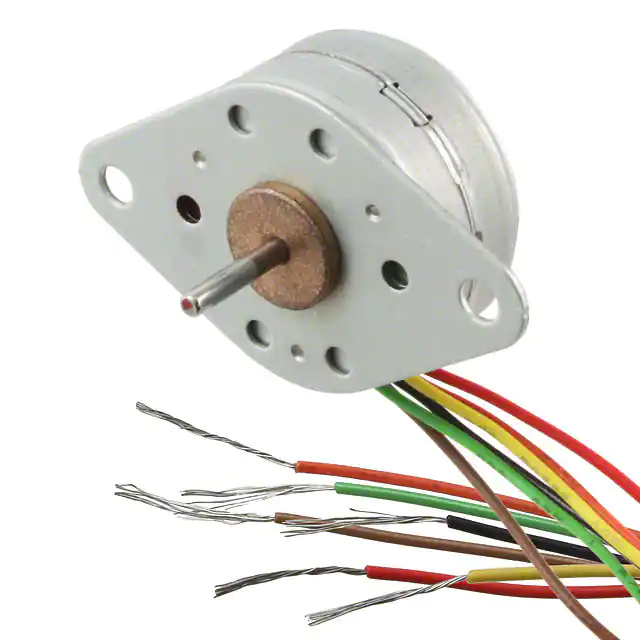

26M024B2USTEPPER MOTOR PM UNIPOLAR 12V |
2,335 | 27.82 |
FFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 24 | 15° | ±15% | 0.9 / 6.3 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|

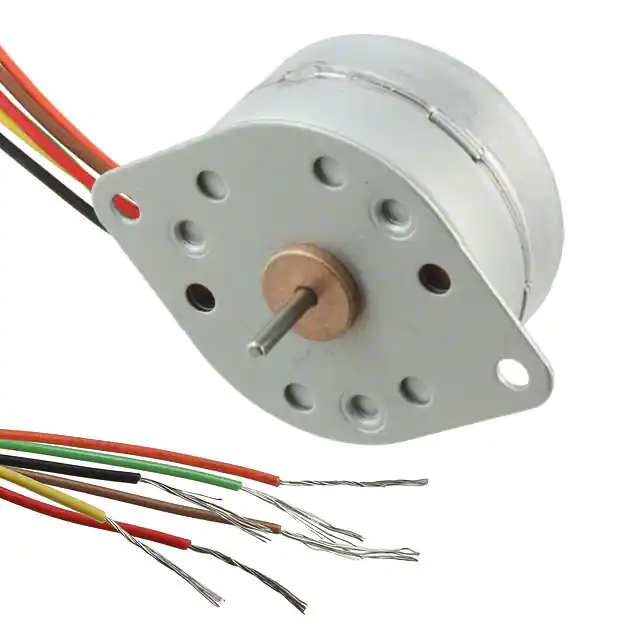

35L048B1USTEPPER MOTOR PM UNIPOLAR 5V |
2,811 | 29.64 |
FFQ |
Datasheet |
Bulk | 35L | Active | Permanent Magnet | Unipolar | 5VDC | 450 mA | 48 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 11 Ohms |
|

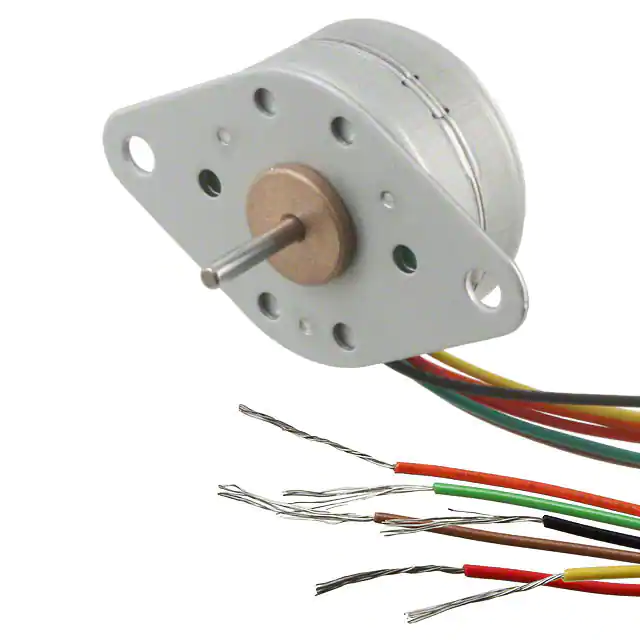

26M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
2,073 | 29.10 |
FFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 5VDC | 260 mA | 24 | 15° | ±15% | 1.35 / 9.5 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.6 Ohms |
|
|
20M020D1USTEPPER MOTOR PM UNIPOLAR 5V |
3,382 | 29.10 |
FFQ |
Datasheet |
Bulk | 20M | Active | Permanent Magnet | Unipolar | 5VDC | 100 mA | 20 | 18° | ±12% | 1.1 / 7.77 | Round - 0.807 Dia (20.50mm) | - | 0.059 (1.50mm) | 0.335 (8.50mm) | 0.984 (25.00mm) | Wire Leads | -20°C ~ 70°C | 115.2 Ohms |
|
42M048C2USTEPPER MOTOR PM UNIPOLAR 12V |
1,693 | 31.99 |
FFQ |
Datasheet |
Bulk | 42M | Active | Permanent Magnet | Unipolar | 12VDC | 230 mA | 48 | 7.5° | ±6.66% | 9.4 / 66.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 52.4 Ohms |
|

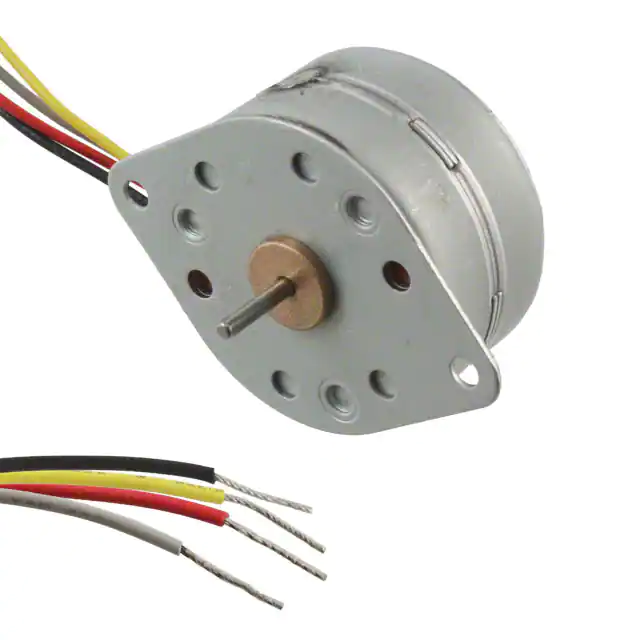

35L048B1BSTEPPER MOTOR PM BIPOLAR 5V |
2,193 | 29.64 |
FFQ |
Datasheet |
Bulk | 35L | Active | Permanent Magnet | Bipolar | 5VDC | 450 mA | 48 | 7.5° | ±15% | 4 / 28.25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 11 Ohms |
|

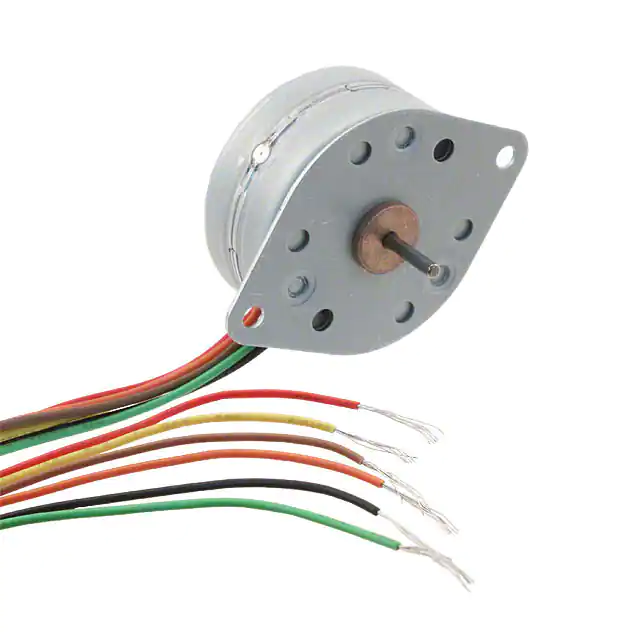

35M048B2USTEPPER MOTOR PM UNIPOLAR 12V |
3,691 | 30.91 |
FFQ |
Datasheet |
Bulk | 35M | Active | Permanent Magnet | Unipolar | 12VDC | 170 mA | 48 | 7.5° | ±15% | 2.6 / 18.35 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 72 Ohms |
|

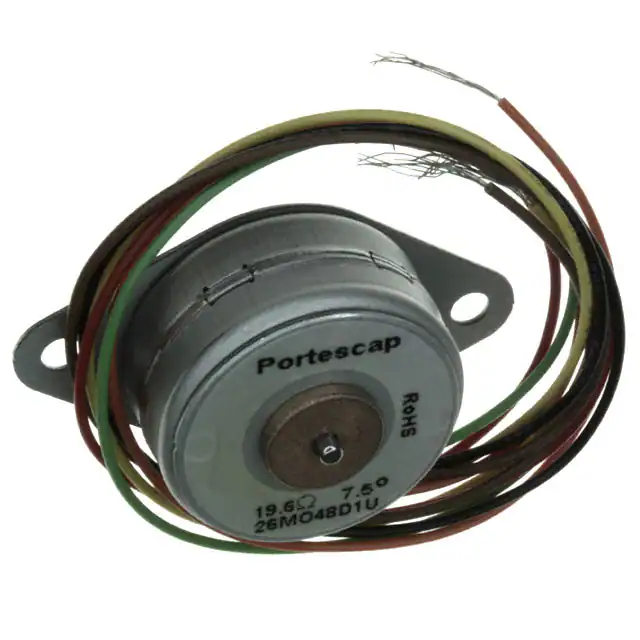

26M048D1USTEPPER MOTOR PM UNIPOLAR 5V |
2,877 | 31.66 |
FFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 5VDC | 260 mA | 48 | 7.5° | ±15% | 1.6 / 11.3 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.6 Ohms |
|

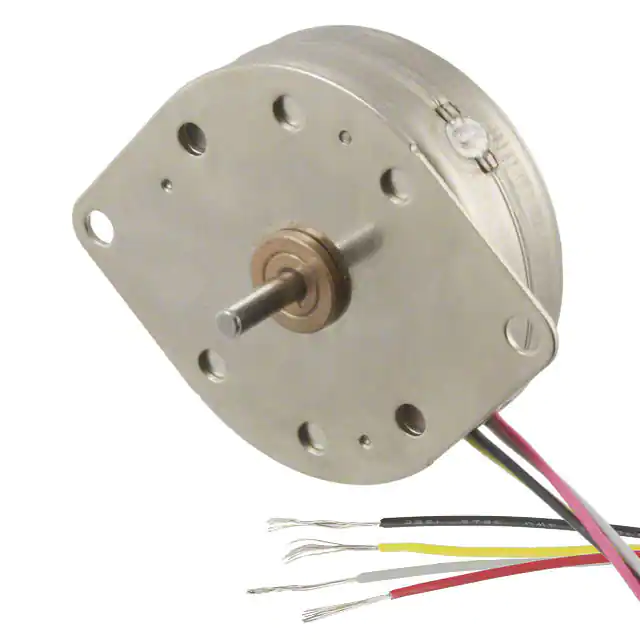

42M100B1BSTEPPER MOTOR PM BIPOLAR 5V |
1,697 | 35.57 |
FFQ |
Datasheet |
Bulk | 42M | Active | Permanent Magnet | Bipolar | 5VDC | 400 mA | 100 | 3.6° | ±11% | 7 / 49.4 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 12.5 Ohms |
|

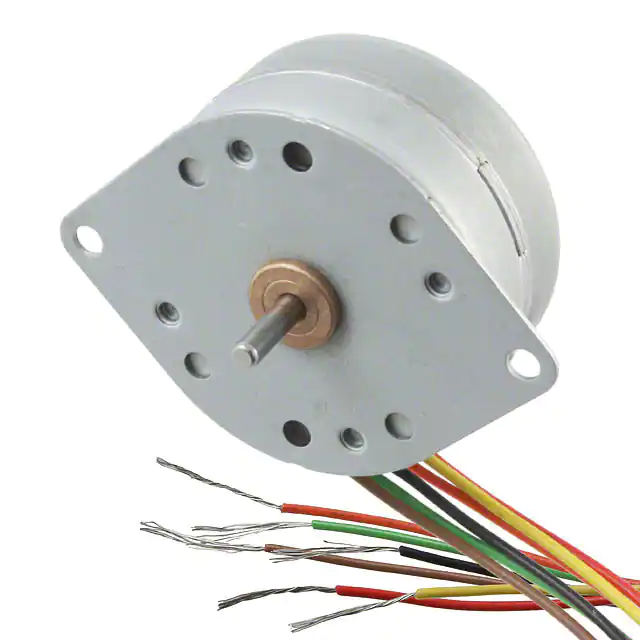

42L048D1USTEPPER MOTOR PM UNIPOLAR 5V |
3,100 | 41.38 |
FFQ |
Datasheet |
Bulk | 42L | Active | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48 | 7.5° | ±15% | 15.1 / 106 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms |
|

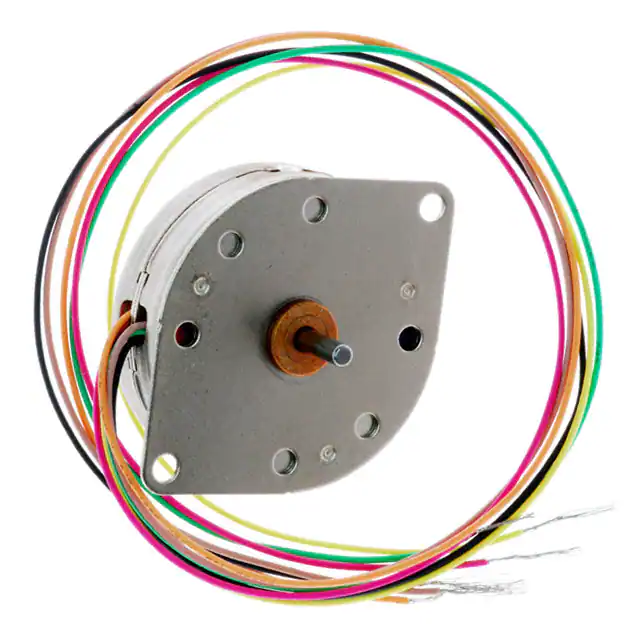

42M100B2USTEPPER MOTOR PM UNIPOLAR 12V |
1,571 | 31.99 |
FFQ |
Datasheet |
Bulk | 42M | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 100 | 3.6° | ±11% | 6.4 / 45.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms |
|

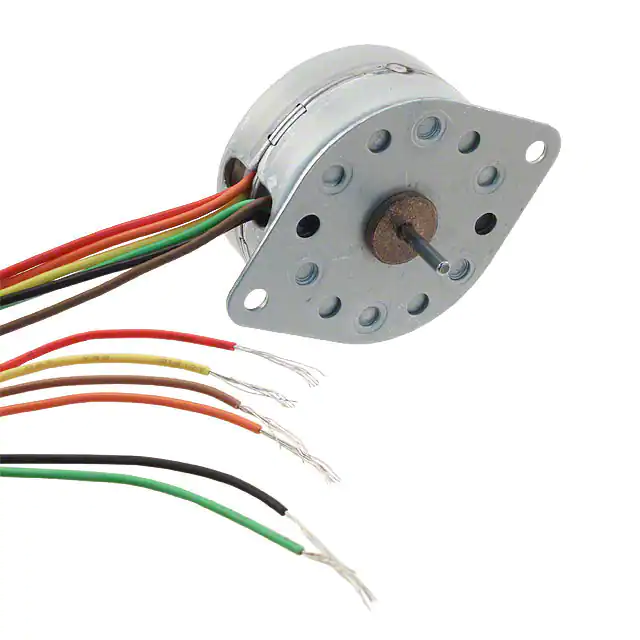

35M048B1USTEPPER MOTOR PM UNIPOLAR 5V |
2,178 | 33.07 |
FFQ |
Datasheet |
Bulk | 35M | Active | Permanent Magnet | Unipolar | 5VDC | 400 mA | 48 | 7.5° | ±15% | 2.6 / 18.35 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 12.5 Ohms |
|

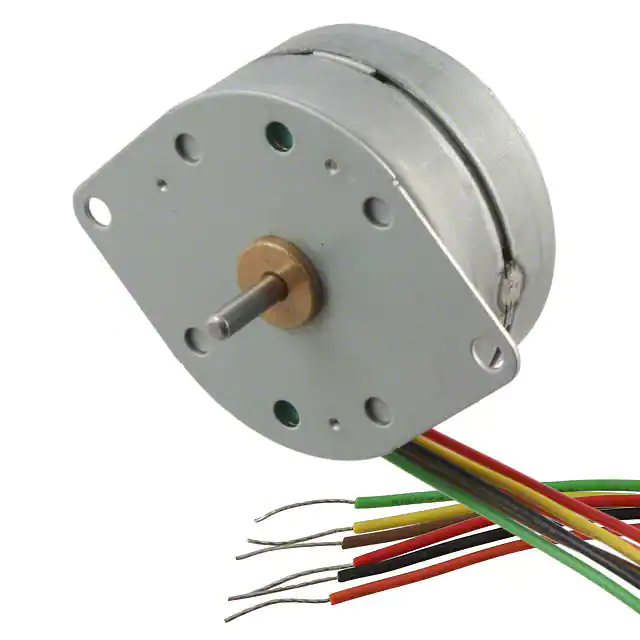

42M048C1USTEPPER MOTOR PM UNIPOLAR 5V |
1,178 | 34.38 |
FFQ |
Datasheet |
Bulk | 42M | Active | Permanent Magnet | Unipolar | 5VDC | 550 mA | 48 | 7.5° | ±15% | 9.4 / 66.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|

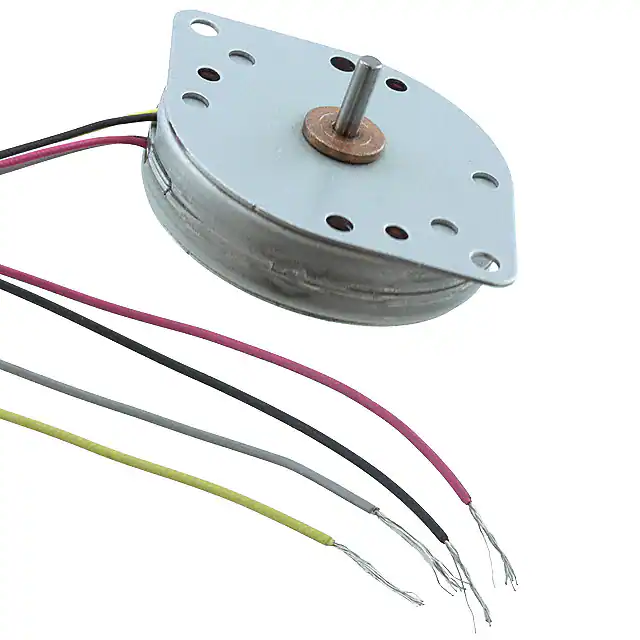

44M100D1BSTEPPER MOTOR PM BIPOLAR 5V |
2,540 | 25.09 |
FFQ |
Datasheet |
Bulk | 44M | Active | Permanent Magnet | Bipolar | 5VDC | - | 100 | 3.6° | ±11% | 5.5 / 38.8 | Round - 1.732 Dia (44.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | 0°C ~ 60°C | 12.5 Ohms |
|

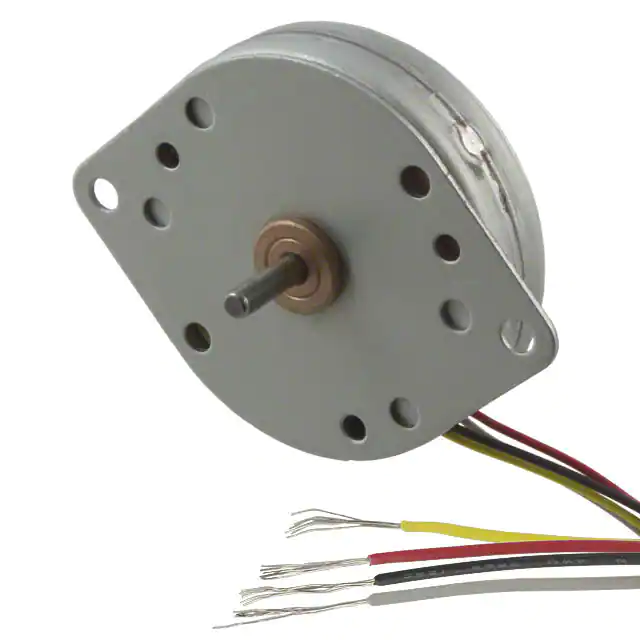

44M100D2BSTEPPER MOTOR PM BIPOLAR 12V |
2,289 | 26.13 |
FFQ |
Datasheet |
Bulk | 44M | Active | Permanent Magnet | Bipolar | 12VDC | - | 100 | 3.6° | ±11% | 6.6 / 46.6 | Round - 1.732 Dia (44.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | 0°C ~ 60°C | 70 Ohms |
