| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

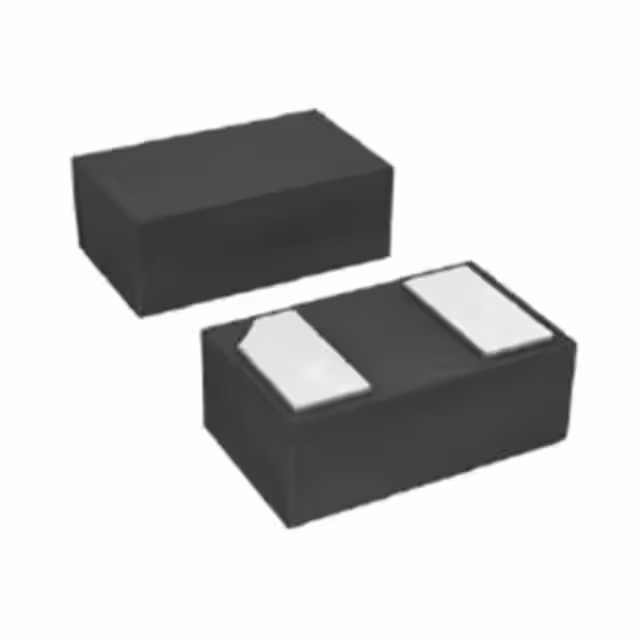

ESD0801PBTVS DIODE 5VWM 9.5VC DFN1006 |
12,826 | 0.04 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | - | 1 | 5V (Max) | 5.6V | - | 1A (8/20µs) | 60W | Yes | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD8D12VTVS DIODE 12VWM 50VC DFN1006 |
13,713 | 0.07 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | 1A (8/20µs) | 104W | Yes | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
.jpg)
|
ESD8D8V0TVS DIODE 8VWM 15VC DFN1006 |
14,639 | 0.07 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | 1 | - | 8V (Max) | 8.5V | - | 5A (8/20µs) | 108W | Yes | General Purpose | 65pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD0501LTVS DIODE 5VWM 15VC DFN1006 |
12,892 | 0.09 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | 1 | - | 5V (Max) | 6V | - | 4A (8/20µs) | 60W | Yes | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD0301BLTVS DIODE 3.3VWM 12VC DFN1006 |
10,223 | 0.09 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 100W | Yes | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

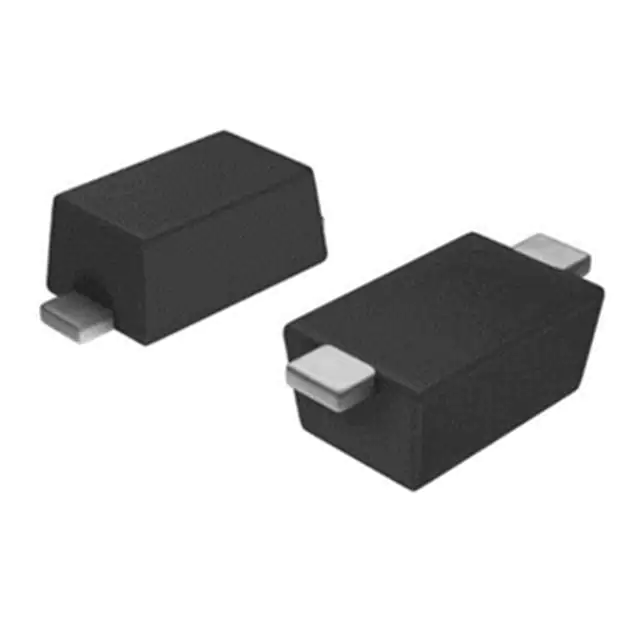

ESD5Z3V3TVS DIODE 3.3VWM 8.4VC SOD523 |
12,439 | 0.09 |
FFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | 1 | - | 3.3V | 5V | 8.4V | 5A (8/20µs) | 134W | No | General Purpose | 105pF @ 1MHz | -50°C ~ 150°C | Surface Mount |
.jpg)
|
ESD5Z5V0TVS DIODE 5VWM 11.6VC SOD523 |
11,528 | 0.09 |
FFQ |
Datasheet |
SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | 1 | - | 5V | 6.2V | - | 5A (8/20µs) | 174W | Yes | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5Z7V0TVS DIODE 7VWM 13.5VC SOD523 |
10,322 | 0.09 |
FFQ |
Datasheet |
SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | 1 | - | 7V | 7.5V | - | 5A (8/20µs) | 200W | Yes | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5Z12VTVS DIODE 12VWM 23VC SOD523 |
12,029 | 0.09 |
FFQ |
Datasheet |
SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | 1 | - | 12V | 14.1V | - | 5A (8/20µs) | 174W | Yes | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

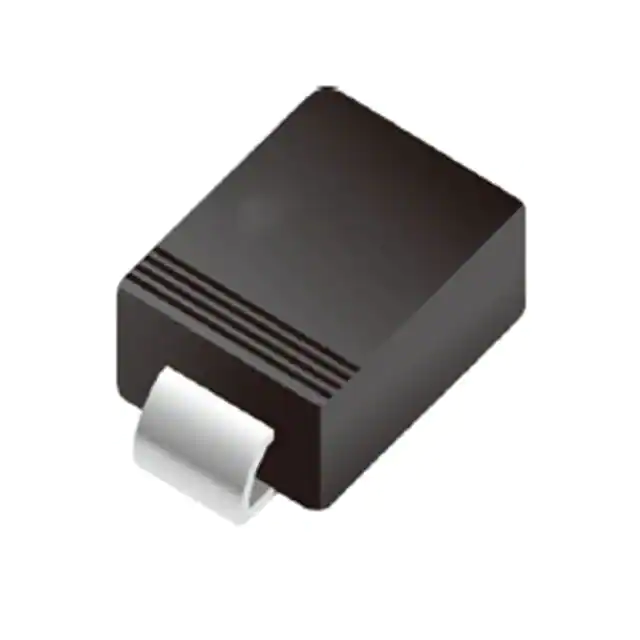

SMBJ110ATVS DIODE 110VWM 177VC SMB |
11,482 | 0.27 |
FFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR) | SMB | Active | - | 1 | - | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ150CATVS DIODE 150VWM 243VC SMB |
12,999 | 0.27 |
FFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR) | SMB | Active | - | - | 1 | 150V | 167V | 243V | 2.5A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5Z3.3CTVS DIODE 3.3VWM 12VC SOD523 |
14,961 | 0.11 |
FFQ |
Datasheet |
SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | - | 1 | 3.3V | 3.6V | - | 5A (8/20µs) | 60W | Yes | General Purpose | 16.5pF @ 1MHz | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5B5CUTVS DIODE 5VWM 10.5VC SOD523 |
13,509 | 0.11 |
FFQ |
Datasheet |
SOD-523 | Tape & Reel (TR) | SOD-523 | Active | Zener | - | 1 | 5V (Max) | 5.6V | - | 1A (8/20µs) | 35W | Yes | General Purpose | 3.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

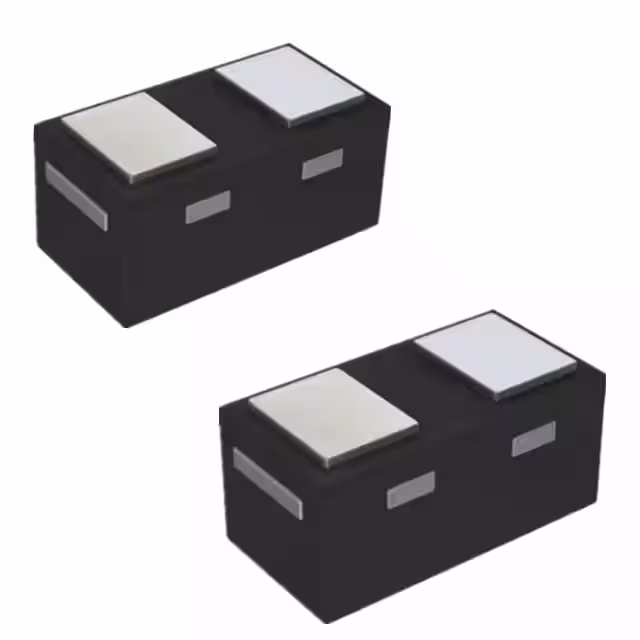

ESD03D6BUTVS DIODE 3.3VWM 12VC DFN0603 |
13,883 | 0.12 |
FFQ |
Datasheet |
DFN0603 | Tape & Reel (TR) | DFN0603 | Active | Zener | - | 1 | 3.3V (Max) | 12V | - | 1A (8/20µs) | 96W | Yes | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
.jpg)
|

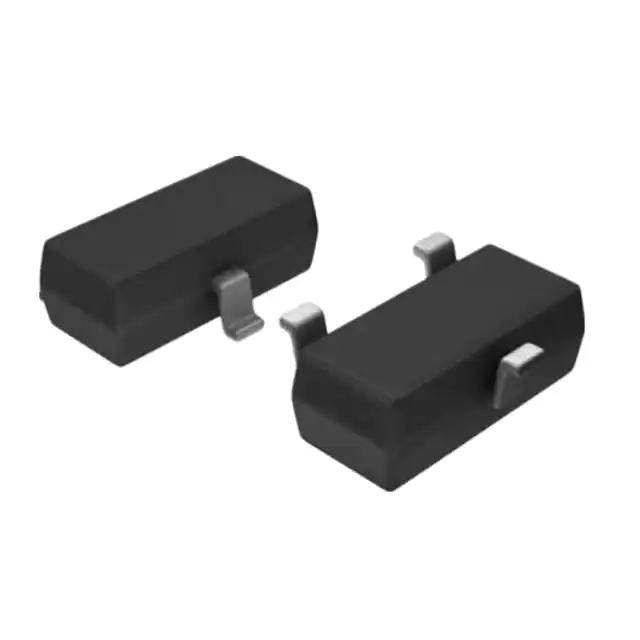

ESD0302TLTVS DIODE 3.3VWM 10VC SOT23 |
12,651 | 0.13 |
FFQ |
Datasheet |
SOT-23 | Tape & Reel (TR) | SOT-23 | Active | Zener | 2 | - | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 56W | Yes | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD1201OCTVS DIODE 12VWM 19VC DFN1006 |
10,676 | 0.13 |
FFQ |
Datasheet |
DFN1006 | Tape & Reel (TR) | DFN1006 | Active | Zener | - | 1 | 12V (Max) | 13.3V | - | 1A (8/20µs) | 150W | Yes | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD0502TLTVS DIODE 5VWM 10VC SOT23 |
10,427 | 0.13 |
FFQ |
Datasheet |
SOT-23 | Tape & Reel (TR) | SOT-23 | Active | Zener | 2 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 60W | Yes | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
.jpg)
|

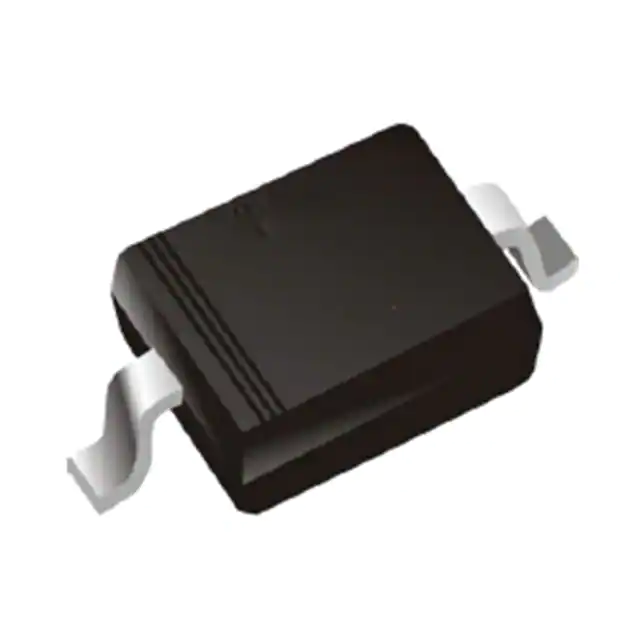

SD12TVS DIODE 12VWM 19VC SOD323 |
14,580 | 0.13 |
FFQ |
Datasheet |
SOD-323 | Tape & Reel (TR) | SOD-323 | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 130pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD3B5CMTVS DIODE 5VWM 9.8VC SOD323 |
14,368 | 0.13 |
FFQ |
Datasheet |
SOD-323 | Tape & Reel (TR) | SOD-323 | Active | Zener | - | 1 | 5V (Max) | 5.8V | - | 1A (8/20µs) | 400W | Yes | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SD05TVS DIODE 5VWM 9.8VC SOD323 |
13,103 | 0.13 |
FFQ |
Datasheet |
SOD-323 | Tape & Reel (TR) | SOD-323 | Active | Zener | 1 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
