Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Form	NumberofPoles	Voltage-ContinuousOperating(Max)(MCOV)	Current-Discharge(Nom)(8/20µS)	Current-Discharge(Max)(8/20µS)	Current-ShortCircuitRating(SCRR)	Voltage-ProtectionRating(VPR)	Voltage-ProtectionLevel(VP)(2416)	OperatingTemperature	Features	MountingType
	792-805 SP-D 5VDC X2-C WAGO Corporation	722	139.09	FFQ	Datasheet	Box	-	Active	-	Module Only	1	4.2VAC, 6VDC	5 kA	10 kA	-	-	27 V	-40°C ~ 80°C	-	DIN Rail

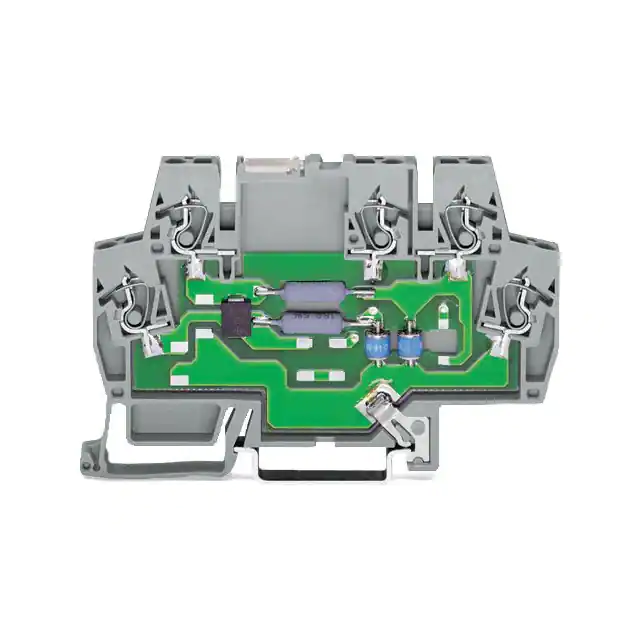

	792-801 SP-D 24VDC X2-C WAGO Corporation	752	104.52	FFQ	Datasheet	Box	-	Active	-	Module Only	1	23VAC, 33VDC	5 kA	10 kA	-	-	50 V	-40°C ~ 80°C	-	DIN Rail
	792-804 SP-D 48VDC X2-C WAGO Corporation	470	111.04	FFQ	Datasheet	Box	-	Active	-	Module Only	1	38.5VAC, 55VDC	5 kA	10 kA	-	-	100 V	-40°C ~ 80°C	-	DIN Rail

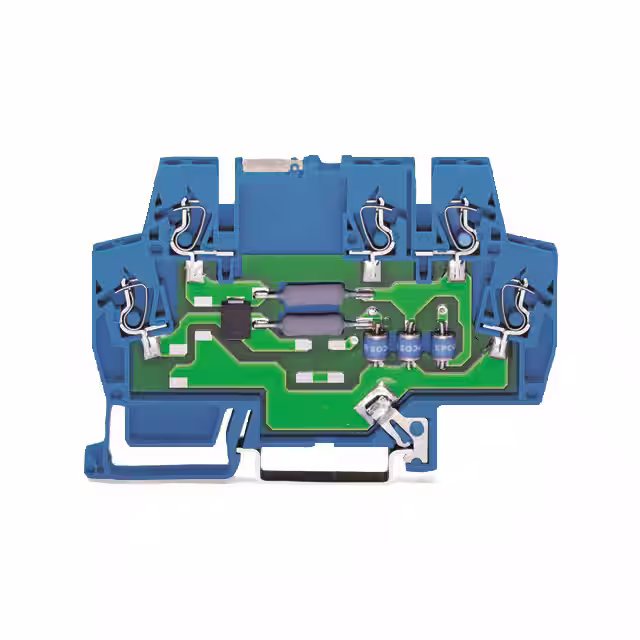

	792-803 SP-D 24VDC X2-C WAGO Corporation	494	111.04	FFQ	Datasheet	Box	-	Active	-	Module Only	1	23VAC, 33VDC	5 kA	10 kA	-	-	50 V	-40°C ~ 80°C	-	DIN Rail

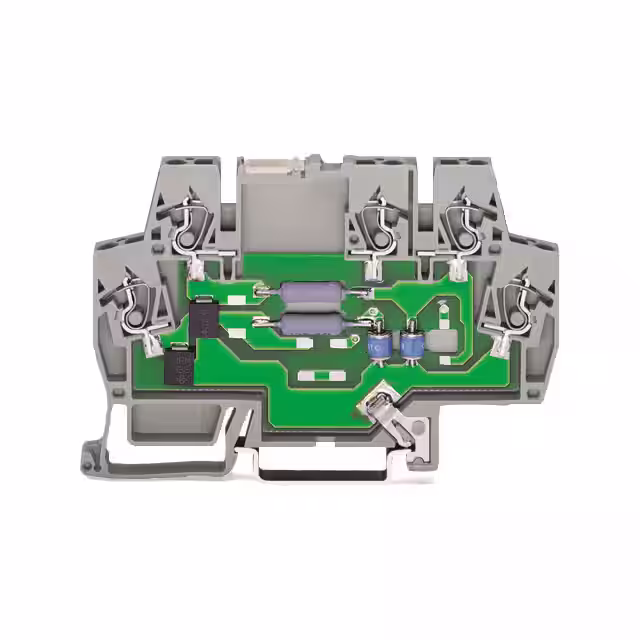

	792-800 SP-D 24VDC X2-C WAGO Corporation	759	111.04	FFQ	Datasheet	Box	-	Active	-	Module Only	1	23VAC, 33VDC	5 kA	10 kA	-	-	110 V	-40°C ~ 80°C	-	DIN Rail

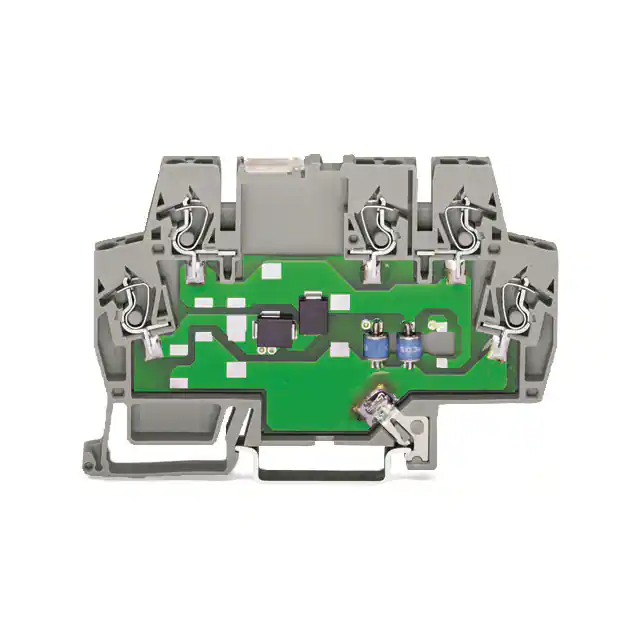

	792-802 SP-D 24VDC X2-C WAGO Corporation	616	111.04	FFQ	Datasheet	Box	-	Active	-	Module Only	1	23VAC, 33VDC	300 A	5 kA	-	-	50 V	-40°C ~ 80°C	-	DIN Rail
