Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	Resistor-Base(R1)	Resistor-EmitterBase(R2)	DCCurrentGain(hFE)(Min)@IcVce	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	Frequency-Transition	Power-Max	MountingType

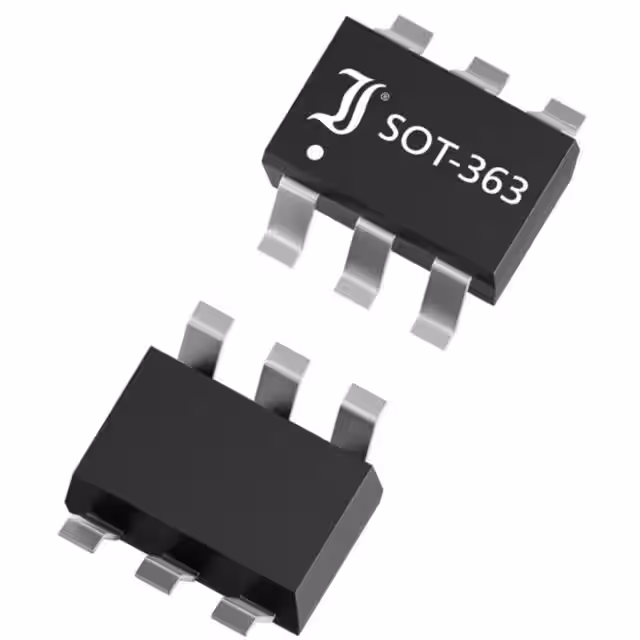

	BCR22PN DIGITAL TR SOT-363 60V 100MA Diotec Semiconductor	13,296	0.05	FFQ	Datasheet	Tape & Reel (TR)	-	Active	1 NPN, 1 PNP - Pre-Biased (Dual)	100mA	60V	22kOhms	22kOhms	70 @ 5mA, 5V	300mV @ 500µA, 10mA	100nA (ICBO)	170MHz	250mW	Surface Mount
	BCR08PN DIGITAL TR SOT-363 50V 100MA Diotec Semiconductor	14,962	0.07	FFQ	Datasheet	Tape & Reel (TR)	-	Active	1 NPN, 1 PNP - Pre-Biased (Dual)	100mA	60V	2.2kOhms	47kOhms	70 @ 5mA, 5V	300mV @ 500µA, 10mA	100nA (ICBO)	170MHz	250mW	Surface Mount
	BCR22PN DIGITAL TR,SOT-363,60V,100MA Diotec Semiconductor	14,193	0.35	FFQ	Datasheet	Strip	-	Active	1 NPN, 1 PNP - Pre-Biased (Dual)	100mA	60V	22kOhms	22kOhms	70 @ 5mA, 5V	300mV @ 500µA, 10mA	100nA (ICBO)	170MHz	250mW	Surface Mount
	BCR08PN DIGITAL TR,SOT-363,50V,100MA Diotec Semiconductor	10,404	0.44	FFQ	Datasheet	Strip	-	Active	1 NPN, 1 PNP - Pre-Biased (Dual)	100mA	60V	2.2kOhms	47kOhms	70 @ 5mA, 5V	300mV @ 500µA, 10mA	100nA (ICBO)	170MHz	250mW	Surface Mount
	BCR22PN-AQ DI Trst. 60V, 100mA Diotec Semiconductor	11,719	0.44	FFQ	Datasheet	Tape & Reel (TR),Tape & Reel (TR)	-	Active	1 NPN, 1 PNP - Pre-Biased (Dual)	100mA	60V	22kOhms	22kOhms	70 @ 5mA, 5V	300mV @ 500µA, 10mA	100nA (ICBO)	170MHz	250mW	Surface Mount

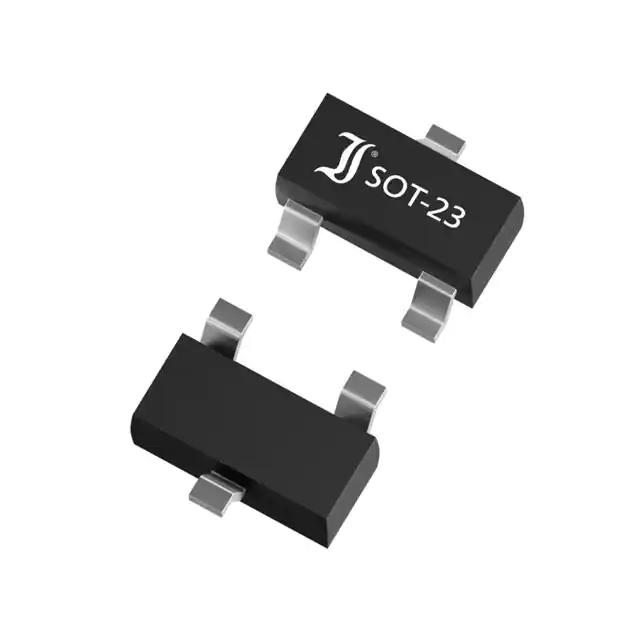

	MMDTD141 DIGITAL TRANSISTOR, SOT-23, 50V Diotec Semiconductor	14,081	0.00	FFQ		Tape & Reel (TR)	-	Active	-	500mA	50V	10kOhms	10kOhms	-	-	-	200MHz	200mW	Surface Mount

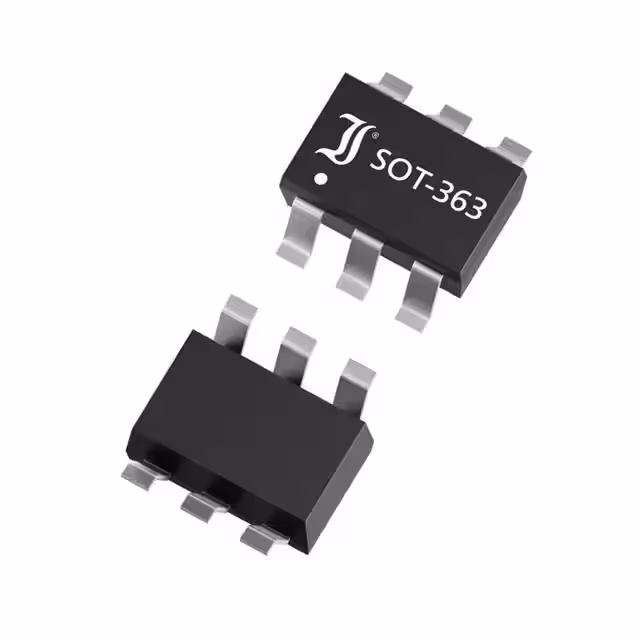

	MMDTA141DW DIGITAL TRANSISTOR, SOT-363, 60V Diotec Semiconductor	10,226	0.00	FFQ		Tape & Reel (TR)	-	Active	-	100mA	60V	10kOhms	10kOhms	-	-	-	250MHz	200mW	Surface Mount
