Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	Resistor-Base(R1)	Resistor-EmitterBase(R2)	DCCurrentGain(hFE)(Min)@IcVce	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	Frequency-Transition	Power-Max	MountingType
	NTE2417 T-PNP SI WITH 22K RES NTE Electronics, Inc	11,640	0.62	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	22 kOhms	22 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	200 MHz	200 mW	Surface Mount
	NTE2367 T-NPN SI DIGITAL 4.7K NTE Electronics, Inc	12,194	0.68	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	4.7 kOhms	4.7 kOhms	30 @ 10mA, 5V	300mV @ 250µA, 5mA	500nA	250 MHz	300 mW	Through Hole

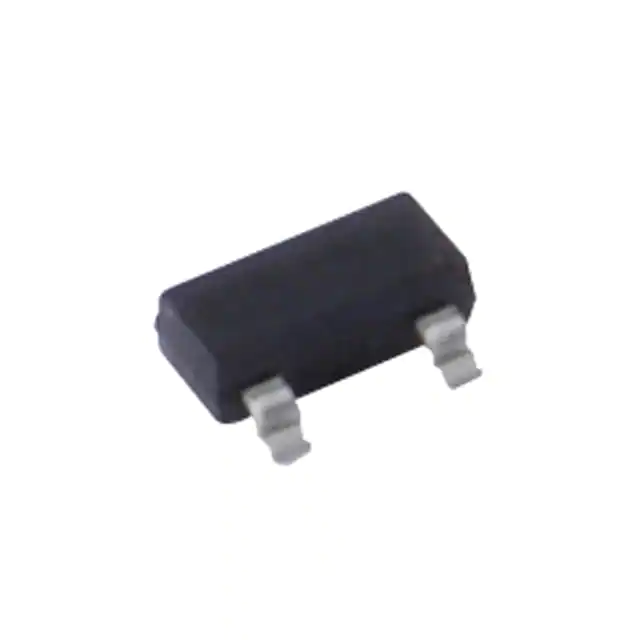

	NTE2414 T-NPN SI WITH 10K RES NTE Electronics, Inc	11,048	0.78	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	10 kOhms	10 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	250 MHz	200 mW	Surface Mount
	NTE2355 T-NPN SI W/10K RESISTOR NTE Electronics, Inc	13,660	0.89	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	10 kOhms	10 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	250 MHz	300 mW	Through Hole
	NTE2360 T-PNP SI W/47K RESISTOR NTE Electronics, Inc	6,780	1.00	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	47 kOhms	47 kOhms	50 @ 5mA, 5V	300mV @ 250µA, 5mA	500nA	200 MHz	300 mW	Through Hole
	NTE2357 T-NPN SI W/22K RESISTOR NTE Electronics, Inc	9,292	1.26	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	22 kOhms	22 kOhms	50 @ 5mA, 5V	300mV @ 500µA, 10mA	500nA	250 MHz	300 mW	Through Hole
	NTE2356 T-PNP SI W/10K RESISTOR NTE Electronics, Inc	6,123	1.76	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	10 kOhms	10 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	200 MHz	300 mW	Through Hole

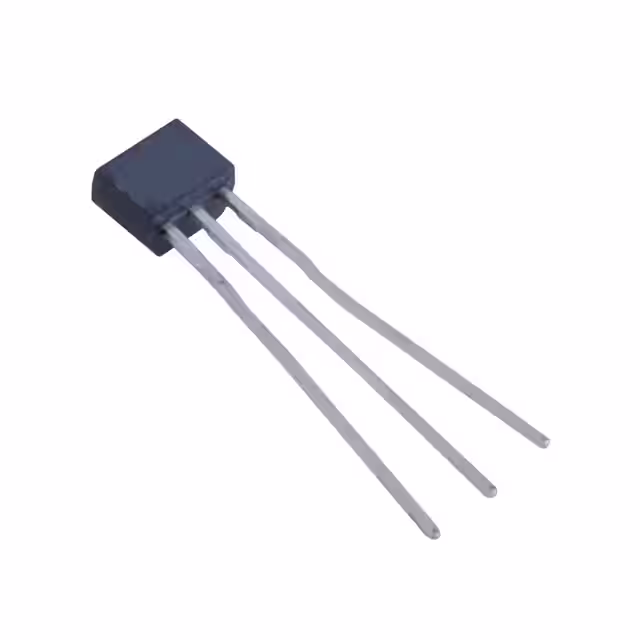

	NTE2369 T-NPN SI DIGITAL 4.7K/47K NTE Electronics, Inc	13,741	0.58	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	4.7 kOhms	4.7 kOhms	80 @ 10mA, 5V	300mV @ 250µA, 5mA	500nA	250 MHz	300 mW	Through Hole
	NTE2419 T-PNP SI WITH 47K RES NTE Electronics, Inc	14,732	0.62	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	47 kOhms	47 kOhms	50 @ 10mA, 5V	300mV @ 250µA, 5mA	500nA	200 MHz	200 mW	Surface Mount
	NTE2415 T-PNP SI WITH 10K RES NTE Electronics, Inc	12,437	0.71	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	10 kOhms	10 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	200 MHz	200 mW	Surface Mount
	NTE2358 T-PNP SI W/22K RESISTOR NTE Electronics, Inc	12,990	0.80	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	22 kOhms	22 kOhms	50 @ 5mA, 5V	300mV @ 500µA, 10mA	500nA	200 MHz	300 mW	Through Hole
	NTE2416 T-NPN SI WITH 22K RES NTE Electronics, Inc	12,638	0.80	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	22 kOhms	22 kOhms	50 @ 10mA, 5V	300mV @ 500µA, 10mA	500nA	250 MHz	200 mW	Surface Mount
	NTE2359 T-NPN SI W/47K RESISTOR NTE Electronics, Inc	14,222	0.91	FFQ	Datasheet	Bag	-	Active	NPN - Pre-Biased	100 mA	50 V	47 kOhms	47 kOhms	50 @ 5mA, 5V	300mV @ 250µA, 5mA	500nA	250 MHz	300 mW	Through Hole
	NTE2370 T-PNP SI DIGITAL 4.7K/47K NTE Electronics, Inc	7,740	1.09	FFQ	Datasheet	Bag	-	Active	PNP - Pre-Biased	100 mA	50 V	4.7 kOhms	4.7 kOhms	80 @ 10mA, 5V	300mV @ 250µA, 5mA	500nA	200 MHz	200 mW	Through Hole
