Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Thread/Screw/HoleSize	Diameter-Inside	Diameter-Outside	Diameter-Shoulder	Thickness-Overall	Length-BelowHead

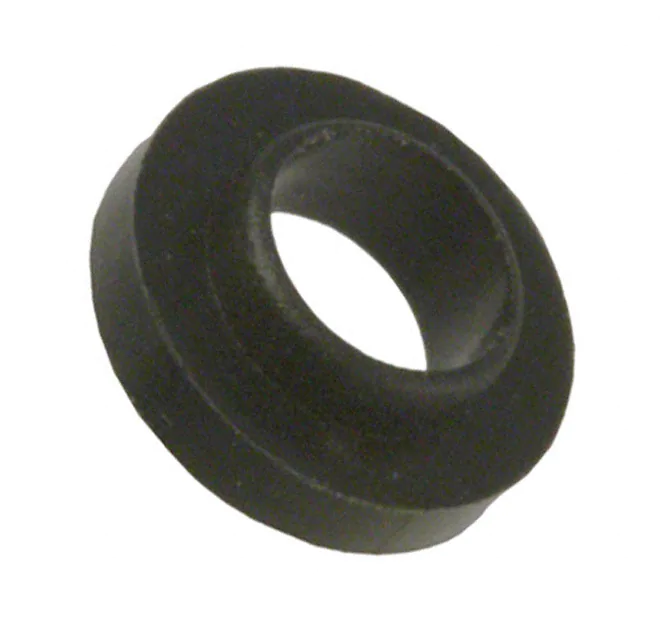

	7721-7PPSG INSULATING SHOULDER WASHER Aavid, Thermal Division of Boyd Corporation	14,320	0.78	FFQ	Datasheet	Bulk	-	Active	#4	0.139 (3.53mm)	0.215 (5.46mm)	0.116 (2.95mm)	0.072 (1.83mm)	0.032 (0.81mm)

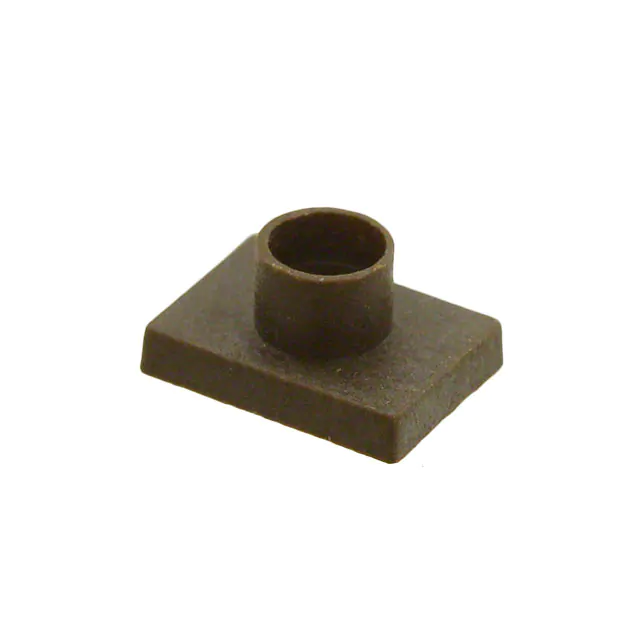

	7721-10PPSG WASHER SHOULDER POLY SULFIDE Aavid, Thermal Division of Boyd Corporation	11,637	0.77	FFQ	Datasheet	Bulk	-	Active	-	0.117 (2.97mm)	0.300 (7.62mm)	0.300 (7.62mm)	0.150 (3.80mm)	0.095 (2.41mm)

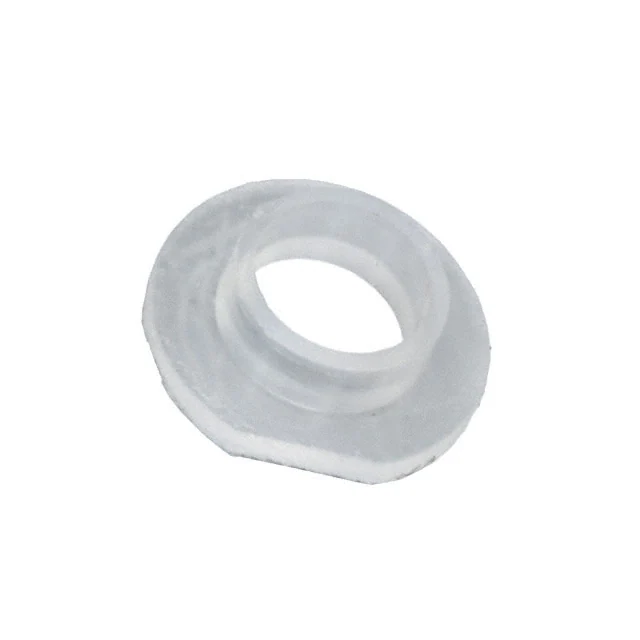

	7721-15NG WASHER SHOULDER NYLON Aavid, Thermal Division of Boyd Corporation	10,423	0.33	FFQ		Bulk	-	Active	-	0.115 (2.92mm)	0.234 (5.94mm)	0.135 (3.43mm)	0.023 (0.58mm)	0.050 (1.27mm)

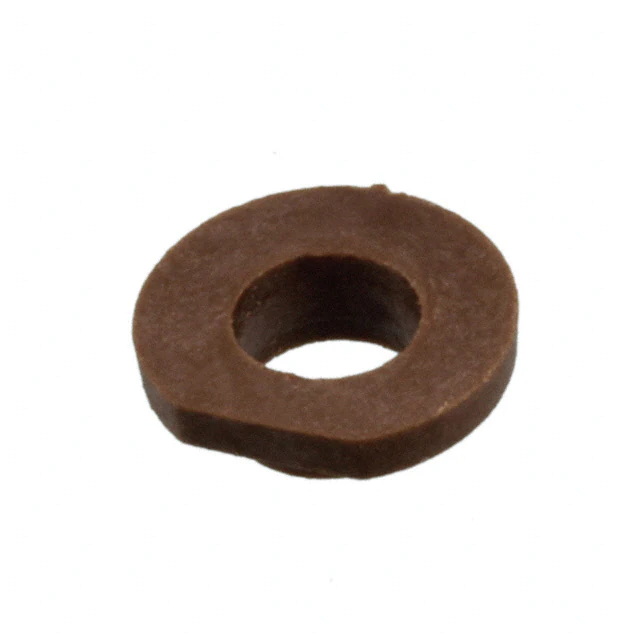

	7721-8PPSG WASHER SHOULDER POLY SULFIDE Aavid, Thermal Division of Boyd Corporation	13,777	0.60	FFQ	Datasheet	Bulk	-	Active	-	0.119 (3.02mm)	0.245 (6.22mm)	0.140 (3.56mm)	0.040 (1.02mm)	0.040 (1.02mm)

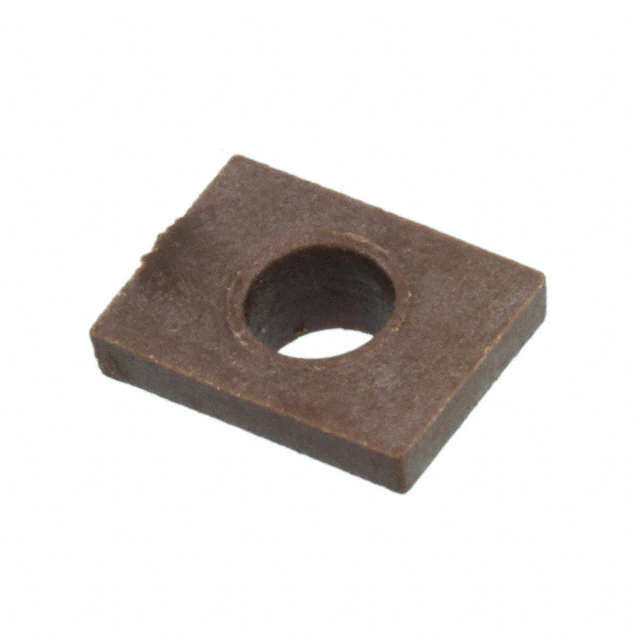

	7721-9PPS WASHER SHOULDER POLY SULFIDE Aavid, Thermal Division of Boyd Corporation	10,861	0.78	FFQ	Datasheet	Bulk	-	Active	-	0.117 (2.97mm)	0.300 (7.62mm)	0.140 (3.56mm)	0.055 (1.40mm)	0.048 (1.22mm)

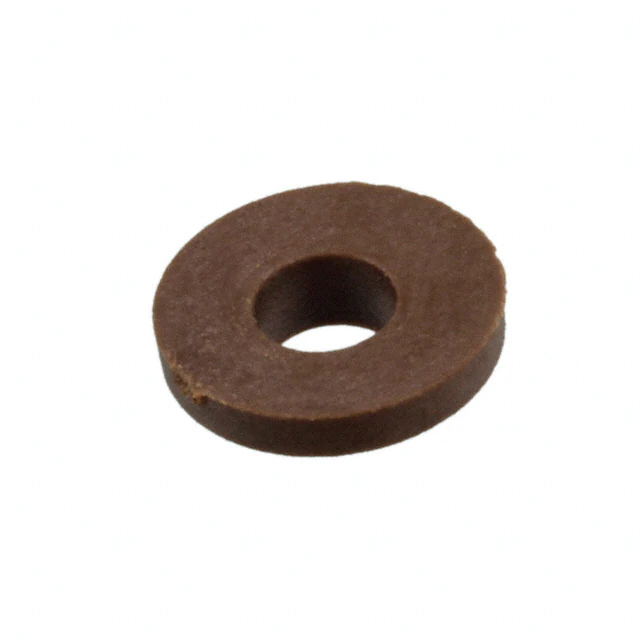

	7721-6PPSG WASHER SHOULDER POLY SULFIDE Aavid, Thermal Division of Boyd Corporation	8,438	1.77	FFQ		Bulk	-	Active	-	0.118 (3.00mm)	0.280 (7.11mm)	0.145 (3.68mm)	0.047 (1.19mm) 3/64	0.031 (0.79mm) 1/32

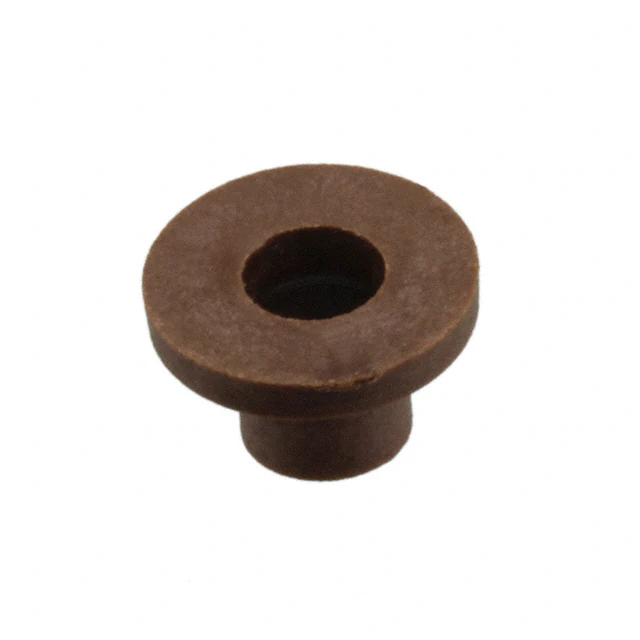

	7721-3PPSG WASHER SHOULDER POLY SULFIDE Aavid, Thermal Division of Boyd Corporation	13,971	0.81	FFQ		Bulk	-	Active	-	0.112 (2.84mm)	0.280 (7.11mm)	0.140 (3.56mm)	0.042 (1.07mm)	0.125 (3.18mm) 1/8
	7721-9PPSG HEATSINK WASHER Aavid, Thermal Division of Boyd Corporation	10,997	0.52	FFQ		Bulk	-	Active	-	0.156 (3.96mm)	0.300 (7.62mm)	0.245 (6.23mm)	0.103 (2.62mm)	0.048 (1.22mm)
	7721-13NG WASHER SHOULDER NYLON Aavid, Thermal Division of Boyd Corporation	12,490	0.55	FFQ		Bulk	-	Active	-	0.115 (2.92mm)	0.235 (5.97mm)	0.135 (3.43mm)	0.051 (1.30mm)	0.125 (3.18mm) 1/8
	7721-11NG WASHER SHOULDER NYLON Aavid, Thermal Division of Boyd Corporation	11,048	0.61	FFQ		Bulk	-	Active	-	0.115 (2.92mm)	0.313 (7.95mm) 5/16	0.135 (3.43mm)	0.048 (1.22mm)	0.098 (2.49mm)
	7721-12NG HEATSINK Aavid, Thermal Division of Boyd Corporation	10,849	0.72	FFQ		Bulk	-	Active	-	-	-	-	-	-
	7721-5PPSG WASHER SHOULDER 7.92 OD 3.66ID Aavid, Thermal Division of Boyd Corporation	12,832	0.87	FFQ		Bulk	-	Active	#6	0.177 (4.50mm)	0.312 (7.93mm)	-	0.047 (1.19mm)	-
