| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

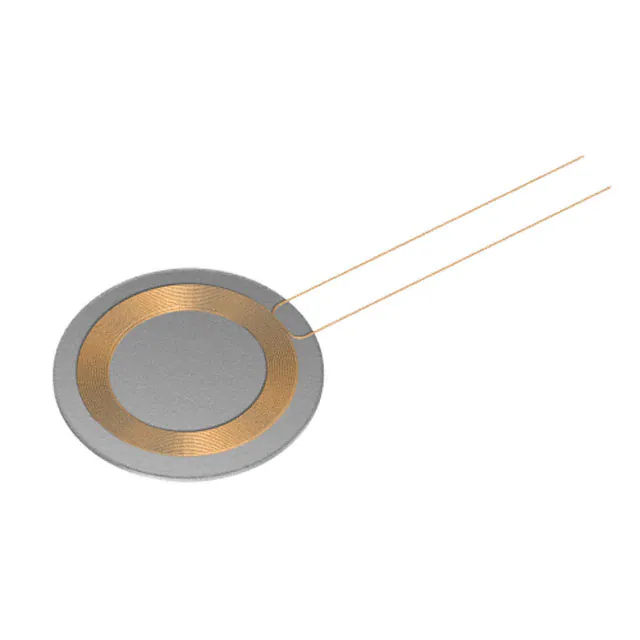

WR222230-26M8-GRX 1 COIL 2 LYR 27UH |
7,076 | 3.18 |
FFQ |
Tray | WR | Active | Receiver | 1 Coil, 2 Layer | 27µH | - | 1.1Ohm Max | - | - | - | - | - | |
|

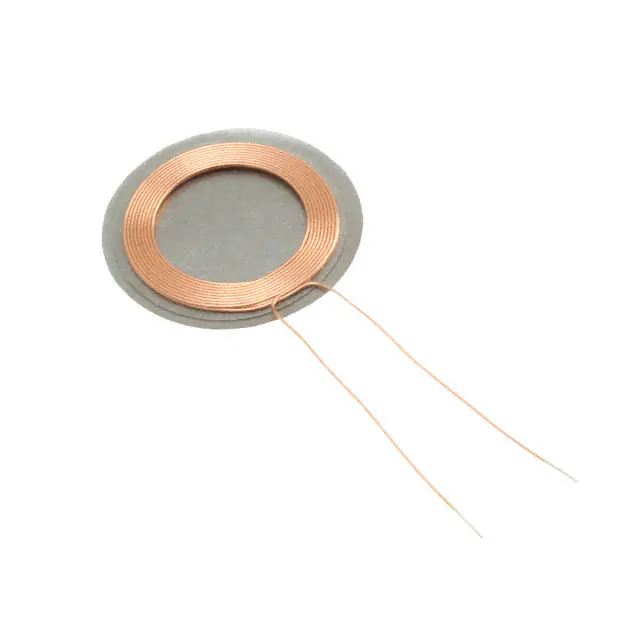

WR202010-18M8-IDRX 1 COIL 2 LYR 11UH |
7,839 | 4.15 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 2 Layer | 11µH | ±5% | 350mOhm | - | - | - | - | - |
|

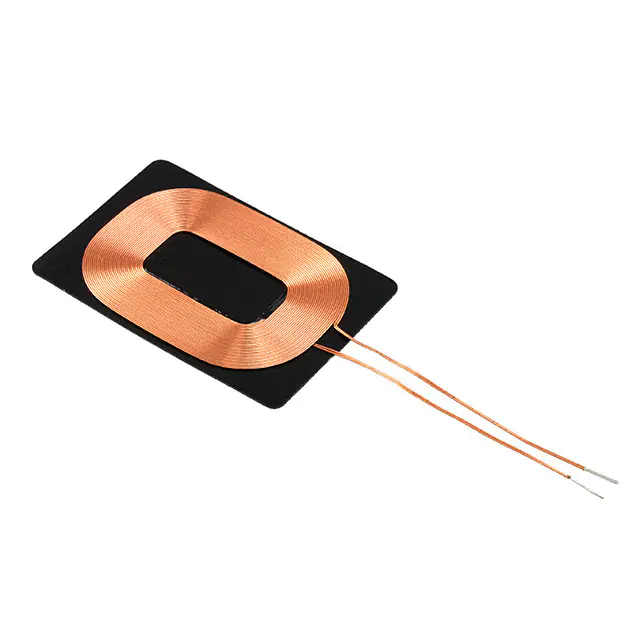

WR483245-15F5-GRX 1 COIL 1 LYR 13UH |
7,969 | 6.03 |
FFQ |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 13µH | - | 200mOhm | - | - | - | - | - | |
|

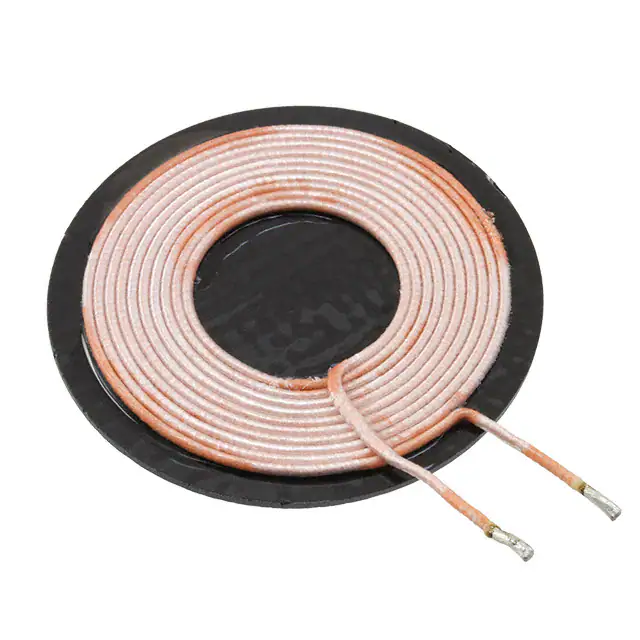

WT505090-10K2-A11-GTX 1 COIL 1 LYR 6.3UH |
7,739 | 6.72 |
FFQ |
Tray | WT | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | |
|

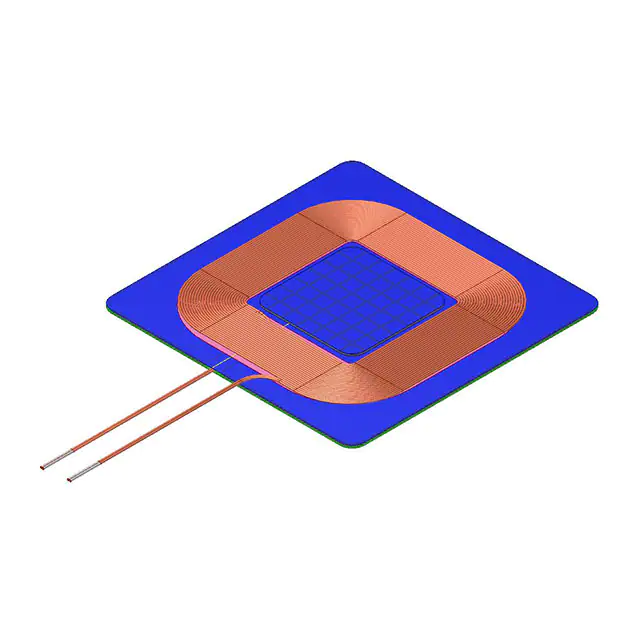

WR424245-13K2-GRX 1 COIL, 1 LYR 11.9UH |
9,706 | 7.19 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 11.9µH | - | 220mOhm | - | - | - | - | - |
|

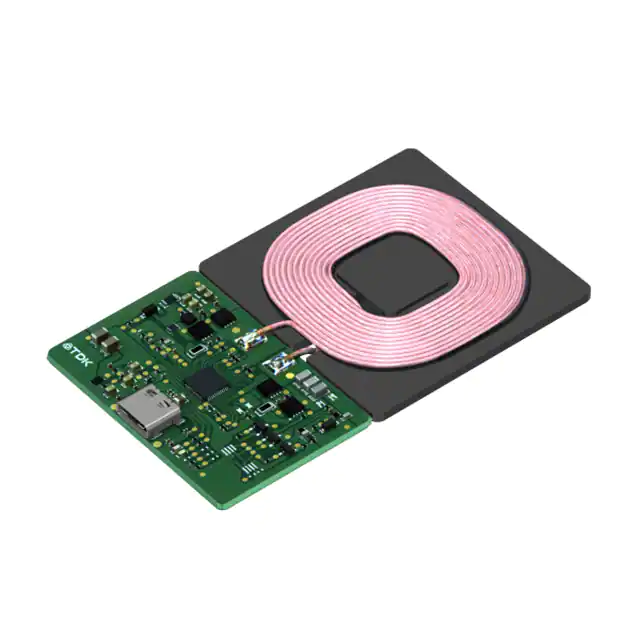

WTM905525-12F2-12V-GWIRELESS POWER TRANSFER TX COIL |
3,365 | 44.13 |
FFQ |
Datasheet |
Box | WTM | Active | Transmitter | 1 Coil, 1 Layer | - | - | - | - | - | - | - | - |
|

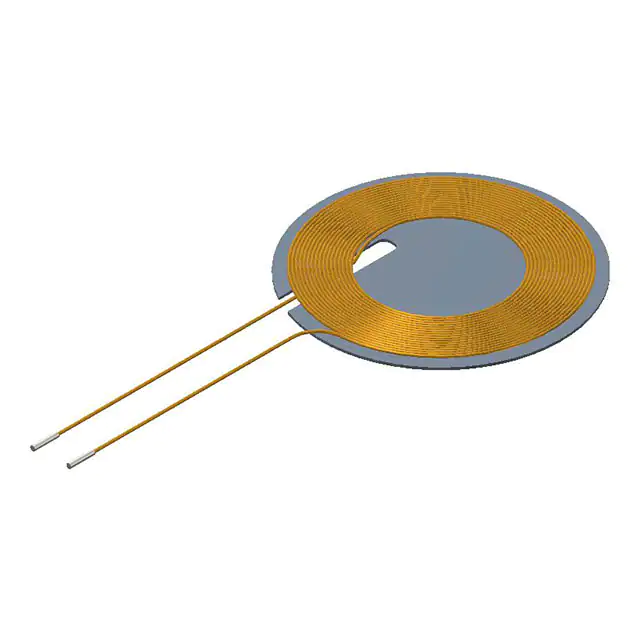

WR202020-18M8-GRX 1 COIL, 1 LYR 9.9UH |
7,448 | 4.18 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 9.9µH | - | 520mOhm | - | - | - | - | - |
|

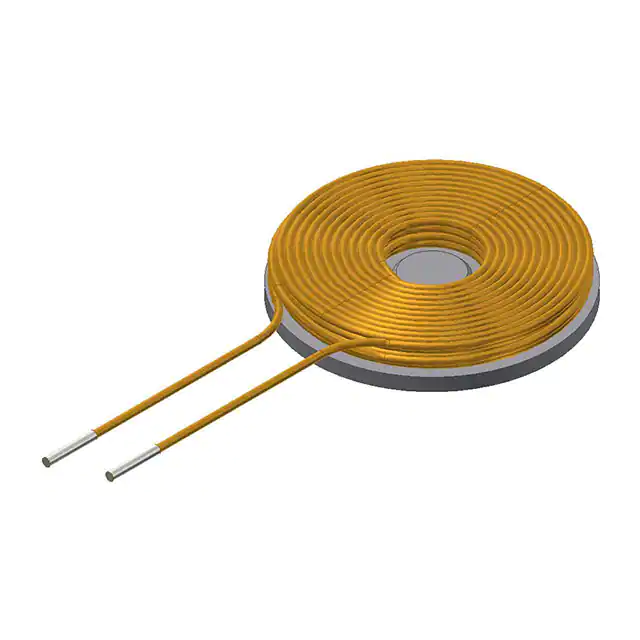

WR151580-48F2-GRX 1 COIL 4 LYR 27.1UH |
6,303 | 4.24 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 4 Layer | 27.1µH | - | 500mOhm | - | - | - | - | - |
|

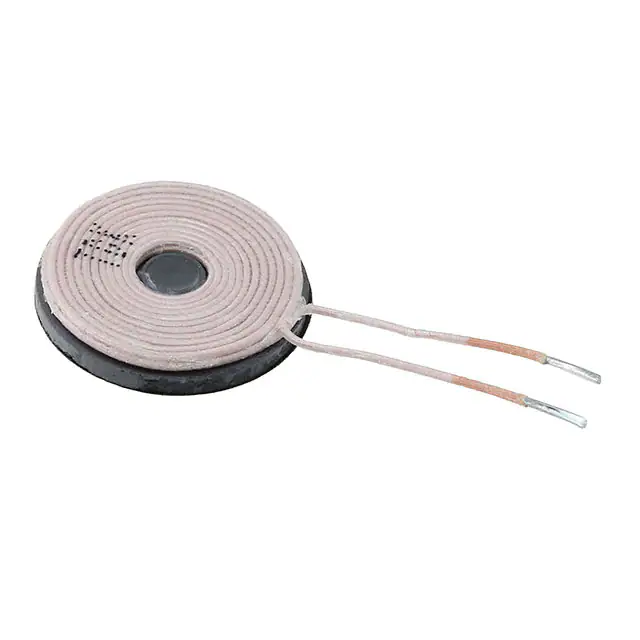

WT151512-22F2-IDTX 1 COIL 2 LYR 6.8UH |
9,171 | 4.30 |
FFQ |
Datasheet |
Box | WT | Active | Transmitter | 1 Coil, 2 Layer | 6.8µH | ±5% | 170mOhm | - | - | - | - | - |
|

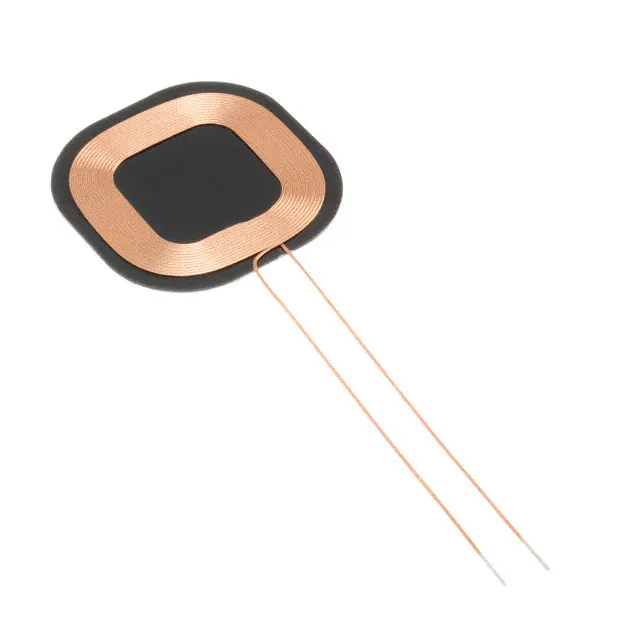

WR303050-12F5-IDRX 1 COIL 1 LYR 8.23UH |
6,946 | 5.27 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 8.23µH | ±5% | 260mOhm | - | - | - | - | - |
|

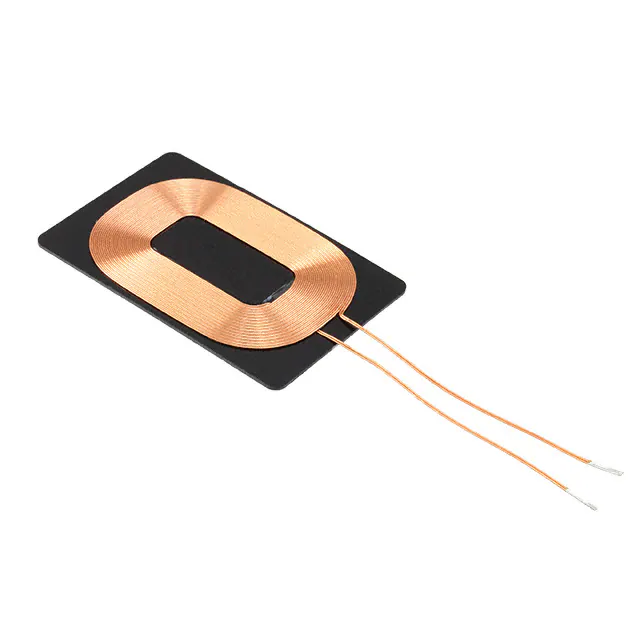

WR483265-15F5-GRX 1 COIL 1 LYR 13.3UH |
7,218 | 5.61 |
FFQ |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 13.3µH | - | 200mOhm | - | - | - | - | - | |
|

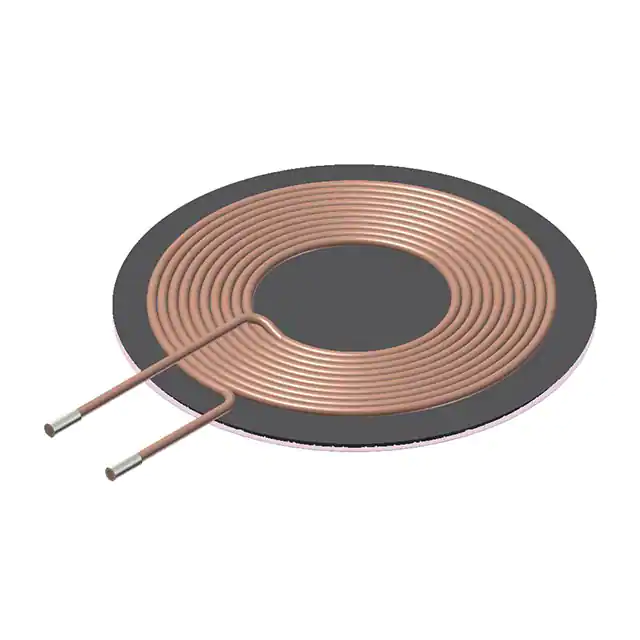

WT505090-10F2-A11-G1TX 1 COIL, 1 LYR 6.3UH |
5,254 | 5.69 |
FFQ |
Datasheet |
Bulk | WT | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - |
|

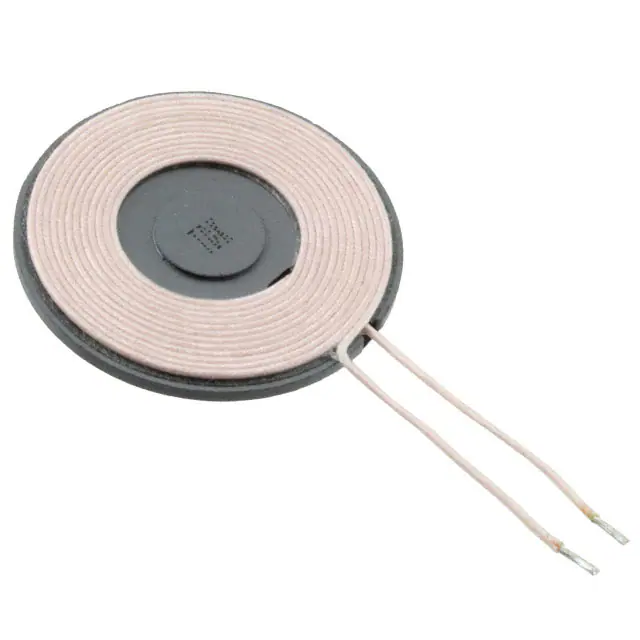

WT303012-12F2-IDTX 1 COIL 2 LYR 6.3UH |
9,615 | 5.72 |
FFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 2 Layer | 6.3µH | ±5% | 90mOhm | - | - | - | - | - |
|

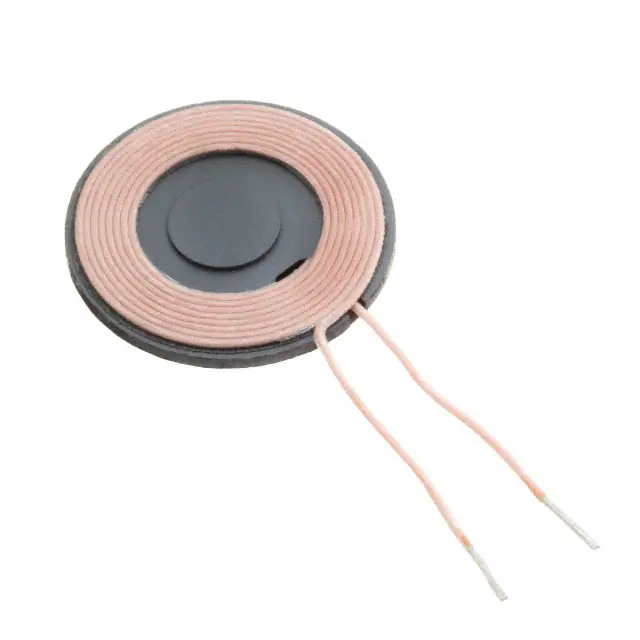

WT252512-8F2-SMTX 1 COIL 1 LYR 2.76UH |
7,314 | 5.94 |
FFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 1 Layer | 2.76µH | ±5% | 70mOhm | - | - | - | - | - |
|

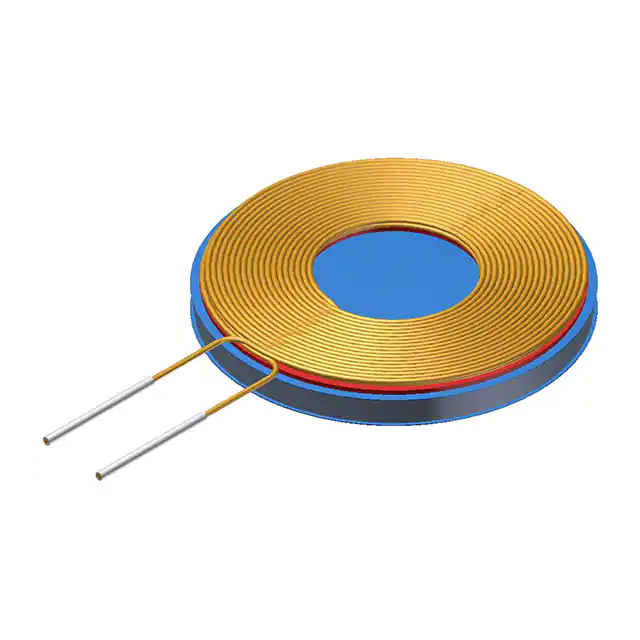

WR111180-36F5-B1RX 1 COIL 2 LYR 16.6UH |
7,726 | 6.08 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 2 Layer | 16.6µH | - | 1Ohm | - | - | - | - | - |
|

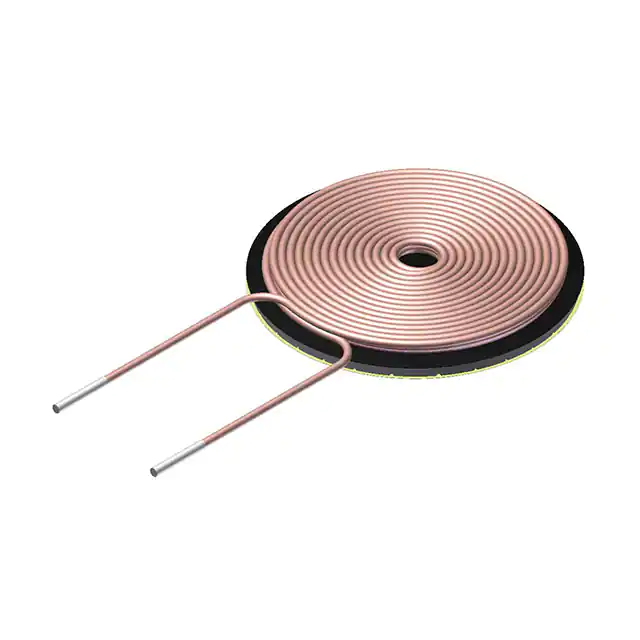

WT242490-30F2-GTX 1 COIL 2 LYR 12.9UH |
5,259 | 6.61 |
FFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 2 Layer | 12.9µH | ±10% | 165mOhm | - | - | - | - | - |
|

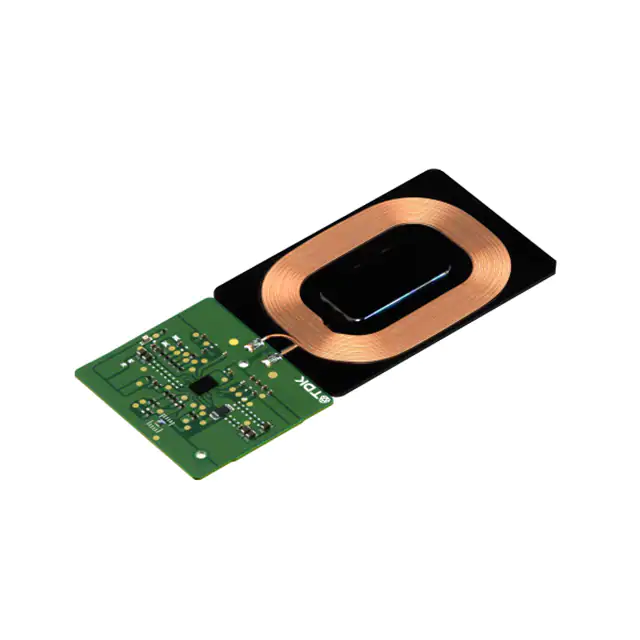

WRM483265-10F5-12V-GWIRELESS POWER TRANSFER RX COIL |
1,720 | 19.27 |
FFQ |
Datasheet |
Box | WRM | Active | Receiver | 1 Coil, 1 Layer, Bifilar | - | - | - | - | 1.25A | - | - | -30°C ~ 70°C |
|

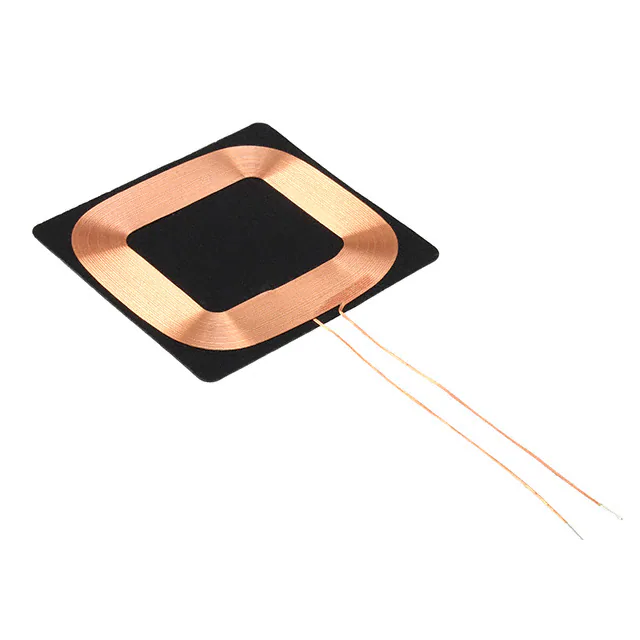

WR444030-16F3-GRX 1 COIL 1 LYR 19UH |
5,238 | 6.30 |
FFQ |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 19µH | - | 700mOhm | - | - | - | - | - | |
|

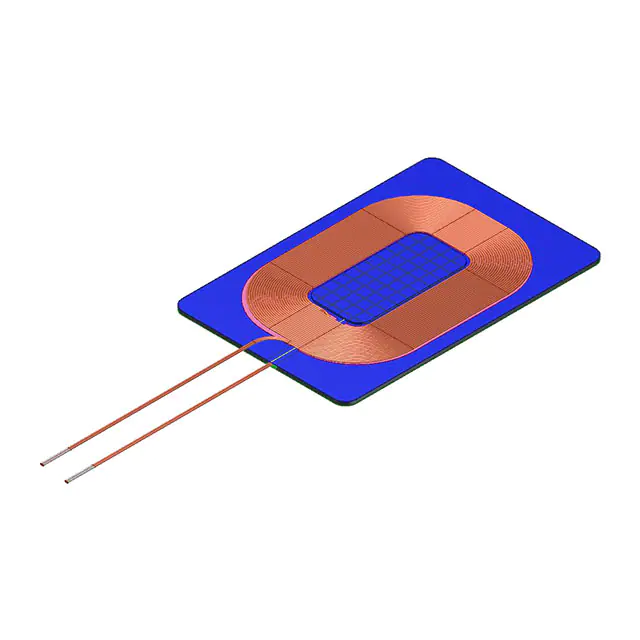

WR483265-13F5-GRX 1 COIL, 1 LYR 10.1UH |
6,330 | 6.30 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 10.1µH | - | 270mOhm | - | - | - | - | - |
|

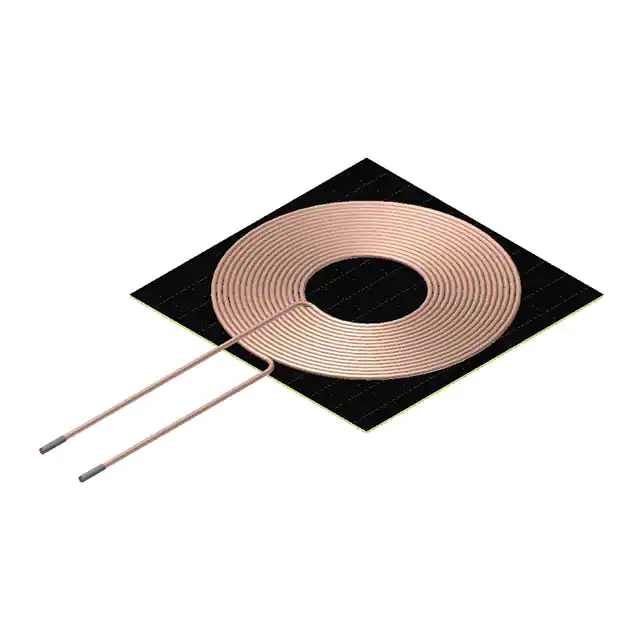

WR555540-16K2-FS2RX 1 COIL 2 LYR 15.8UH |
5,938 | 7.58 |
FFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 2 Layer | 15.8µH | - | 100mOhm | 98 @ 100kHz | - | - | - | - |
-
