Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature

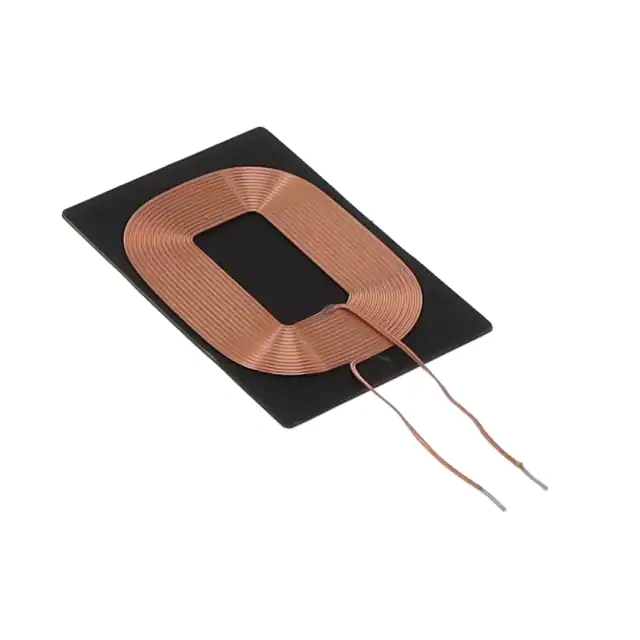

IWAS4832AEEB120KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	5,313	2.89	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	33 @ 100kHz	3A	-	-	-40°C ~ 85°C
IWAS4532AGEB140KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	5,795	2.40	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm Max	24 @ 100kHz	1.2A	-	-	-40°C ~ 85°C
IWTX50R0DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	7,427	3.70	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C
IWTX5050DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	5,508	3.70	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C
IWAS3827ABEB110JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	5,262	5.56	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	185mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C
IWAS4832ABEB110JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	9,786	6.39	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.8µH	±5%	187mOhm	60 @ 200kHz	-	-	-	-40°C ~ 105°C
IWTX50R0CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	6,559	2.79	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C
IWTX47R0EBEB240JF1 IWTX-47R0EB-F1 24 5% EB E2 Vishay Dale	7,710	3.79	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C
IWTX4646DCEB240JF1 IWTX-4646DC-F1 24 5% EB E2 Vishay Dale	8,283	4.38	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	185 @ 200kHz	6A	20A	-	-40°C ~ 105°C

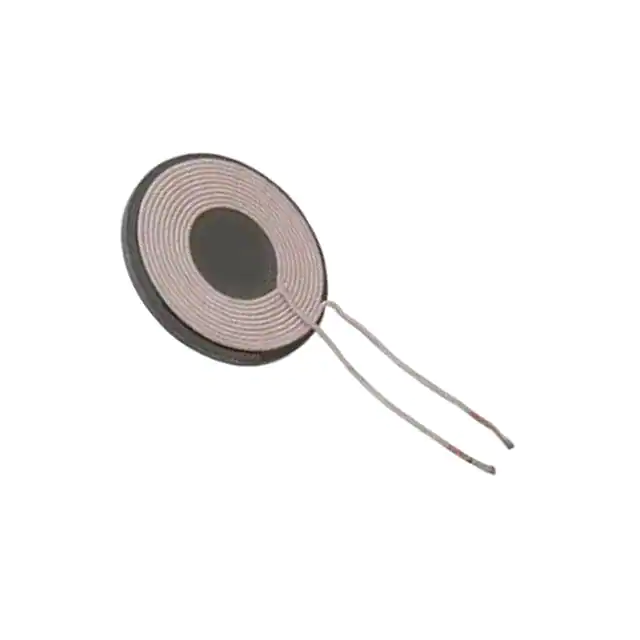

IWTX47R0BEEB6R3J11 WIRELESS CHARGING COIL Vishay Dale	3,335	0.00	FFQ	Datasheet	Bulk	-	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	38mOhm	190 @ 200kHz	7A	22A	22MHz	-55°C ~ 105°C
IWTX5050CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	6,255	1.38	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C
IWAS3010AZEB130KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	7,303	1.59	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	12.9µH	±10%	780mOhm Max	11 @ 100kHz	800mA	-	-	-40°C ~ 85°C
IWTX55R0DZEB8R9KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	7,747	2.00	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	8.9µH	±10%	55mOhm Max	98.5 @ 100kHz	6A	-	-	-40°C ~ 125°C
IWTX5555DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	8,994	2.32	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	80mOhm Max	99 @ 100kHz	6A	-	-	-40°C ~ 85°C
IWAS3827ABEB100JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	7,285	2.97	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	178mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C
IWTX5050FEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	8,520	3.12	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C
IWTX5050DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	6,487	3.30	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C
IWAS4832ADEB150JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	5,143	3.43	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	15µH	±5%	240mOhm	65 @ 200kHz	-	-	-	-40°C ~ 105°C
IWTX47R0DAEB6R3JF1 IWTX-47R0DA-F1 6.3 5% EB E2 Vishay Dale	8,768	3.43	FFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C
IWAS4832AAEB220JF1 IWAS-4832AA-F1 22 5% EB E2 Vishay Dale	8,412	3.43	FFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	22µH	±5%	427mOhm	38 @ 200kHz	-	-	-	-40°C ~ 105°C

Total 51 Records«Prev12 3 Next»
