| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVK2V680MHD1TNCAP ALUM 68UF 20% 350V RADIAL |
9,305 | 2.21 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 68 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 640 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-TP1C221APCAP ALUM 220UF 20% 16V SMD |
6,868 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1E101APCAP ALUM 100UF 20% 25V SMD |
6,426 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1V101APCAP ALUM 100UF 20% 35V SMD |
6,525 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCV1V471MNL1GSCAP ALUM 470UF 20% 35V SMD |
8,348 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCV | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
865080357016CAP ALUM 680UF 20% 16V SMD |
11,698 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLI | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 468 mA @ 120 Hz | 720 mA @ 100 kHz | 160 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
865080257013CAP ALUM 680UF 20% 10V SMD |
10,492 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLI | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 442 mA @ 120 Hz | 680 mA @ 100 kHz | 200 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
SK2R2M450STCAP ALUM 2.2UF 20% 450V RADIAL |
7,165 | 1.18 |
RFQ |
Datasheet |
Bulk | SK | Active | 2.2 µF | ±20% | 450 V | 120.63Ohm | 2000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
ELXY630ELL221MK20SCAP ALUM 220UF 20% 63V RADIAL |
5,781 | 1.18 |
RFQ |
Datasheet |
Bulk | LXY | Active | 220 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 435 mA @ 120 Hz | 870 mA @ 100 kHz | 110 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXZ250ELL102MJ30SCAP ALUM 1000UF 20% 25V RADIAL |
7,410 | 1.18 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.014 A @ 120 Hz | 1.69 A @ 100 kHz | 37 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
63ZLJ180M10X16CAP ALUM 180UF 20% 63V RADIAL |
9,707 | 1.18 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 180 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | 76 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UCYW6100MPDCAP ALUM 10UF 20% 420V RADIAL |
6,308 | 1.18 |
RFQ |
Datasheet |
Bulk | UCY | Active | 10 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
EEU-FR1E152BCAP ALUM 1500UF 20% 25V RADIAL |
7,420 | 1.24 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1500 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
Series.jpg)
|
EEE-FT1E561ULCAP ALUM 560UF 20% 25V SMD |
8,174 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 560 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FT1C821ULCAP ALUM 820UF 20% 16V SMD |
8,611 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 820 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UBX2D330MHL1TOCAP ALUM 33UF 20% 200V RADIAL |
8,536 | 2.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 33 µF | ±20% | 200 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | 210 mA @ 120 Hz | 378 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|

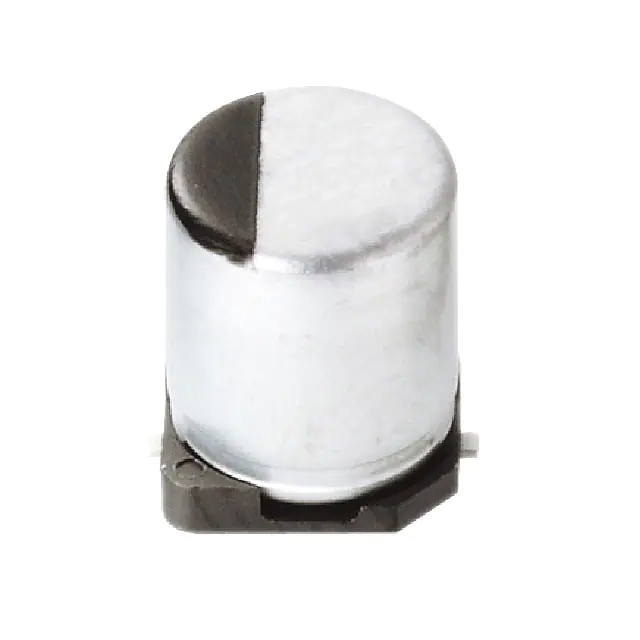

EEE-TC1A331UPCAP ALUM 330UF 20% 10V SMD |
6,845 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1A471UPCAP ALUM 470UF 20% 10V SMD |
8,619 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 470 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1A561UPCAP ALUM 560UF 20% 10V SMD |
7,561 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1C331UPCAP ALUM 330UF 20% 16V SMD |
6,948 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
