| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UEP1E471MHDCAP ALUM 470UF 20% 25V RADIAL |
7,061 | 1.91 |
RFQ |
Datasheet |
Bulk | UEP | Not For New Designs | 470 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 380 mA @ 120 Hz | 705 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

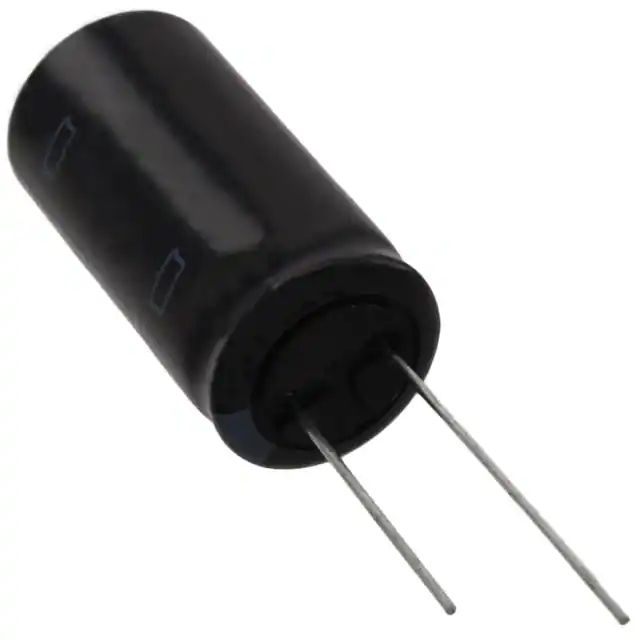

ESMG350ELL472MMP1SCAP ALUM 4700UF 20% 35V RADIAL |
9,567 | 4.42 |
RFQ |
Datasheet |
Bulk | SMG | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 2.916 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

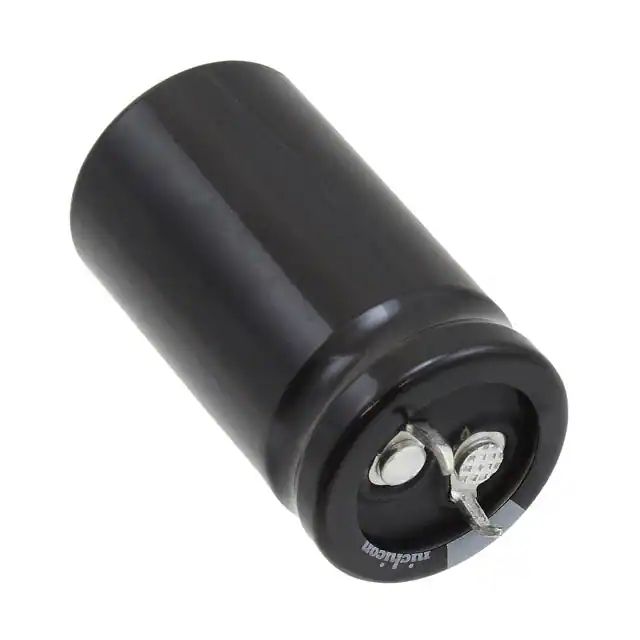

LGU2D561MELZCAP ALUM 560UF 20% 200V SNAP |
6,651 | 4.23 |
RFQ |
Datasheet |
Bulk | LGU | Active | 560 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.505 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
200VXH470MEFCSN25X25CAP ALUM 470UF 20% 200V SNAP |
9,554 | 4.23 |
RFQ |
Datasheet |
Bulk | VXH | Active | 470 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 2.355 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

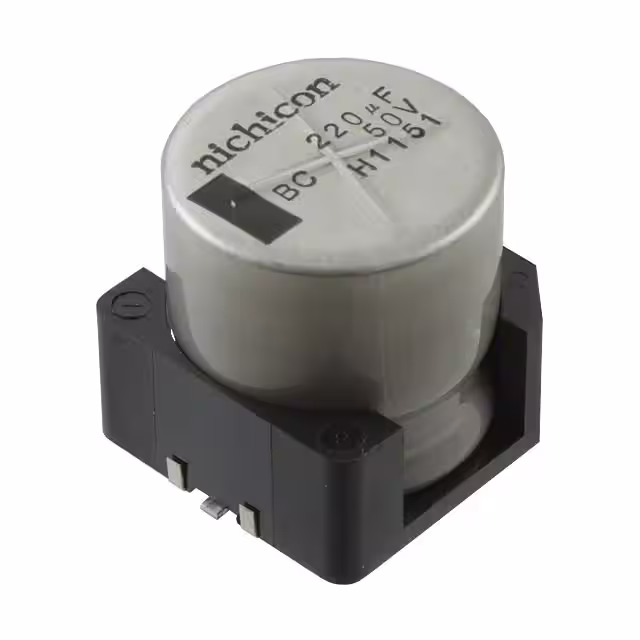

UBC1H221MNS1MSCAP ALUM 220UF 20% 50V SMD |
7,819 | 3.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UBC | Not For New Designs | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 368.5 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
450MXG120MEFCSN20X35CAP ALUM 120UF 20% 450V SNAP |
5,433 | 4.24 |
RFQ |
Datasheet |
Bulk | MXG | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.386 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

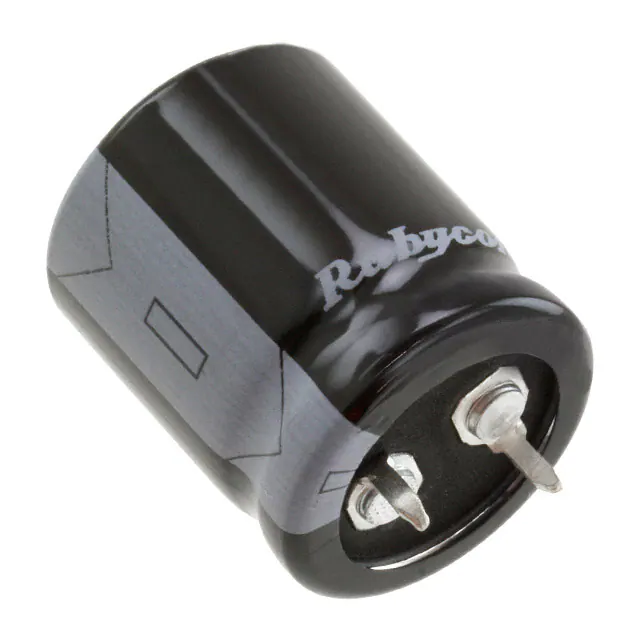

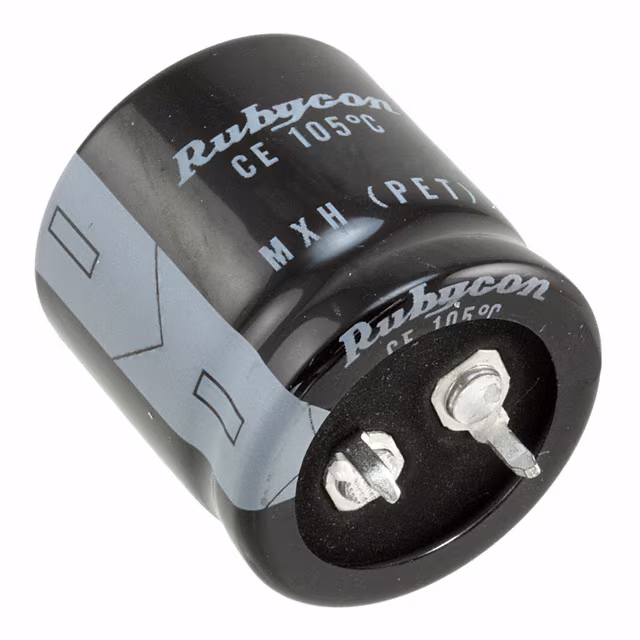

450MXH100MEFCSN22X25CAP ALUM 100UF 20% 450V SNAP |
8,706 | 4.24 |
RFQ |
Datasheet |
Bulk | MXH | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V221CAP ALUM 220UF 20% 35V RADIAL |
7,234 | 1.92 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 220 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|

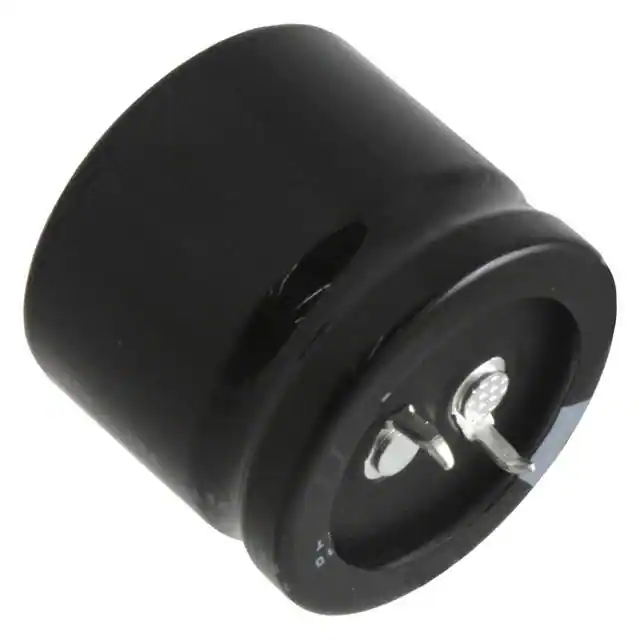

LLS2Z821MELBCAP ALUM 820UF 20% 180V SNAP |
5,053 | 4.25 |
RFQ |
Datasheet |
Bulk | LLS | Active | 820 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 4.035 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
400MXH180MEFCSN25X25CAP ALUM 180UF 20% 400V SNAP |
8,564 | 4.25 |
RFQ |
Datasheet |
Bulk | MXH | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

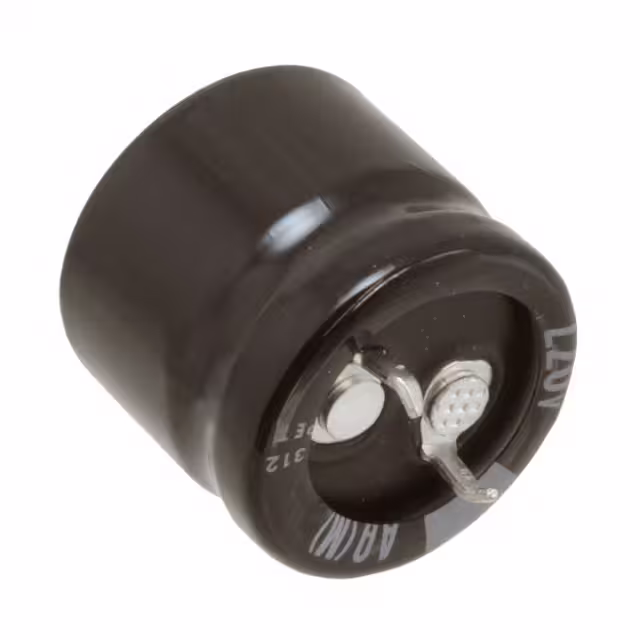

LAQ2P101MELZ20CAP ALUM 100UF 20% 220V SNAP |
7,659 | 4.25 |
RFQ |
Datasheet |
Bulk | LAQ | Active | 100 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 600 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

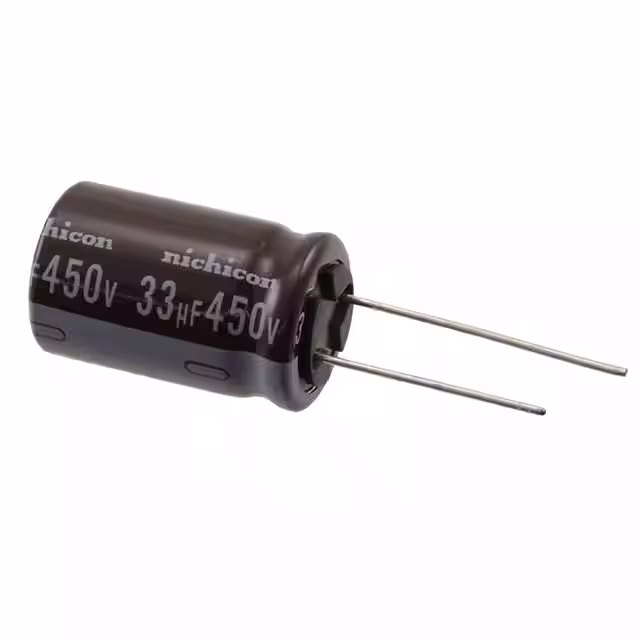

ULD2W330MHD1TNCAP ALUM 33UF 20% 450V RADIAL |
7,607 | 3.64 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 33 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 392 mA @ 120 Hz | 705.6 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
450MXG150MEFCSN25X30CAP ALUM 150UF 20% 450V SNAP |
5,055 | 4.25 |
RFQ |
Datasheet |
Bulk | MXG | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.554 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

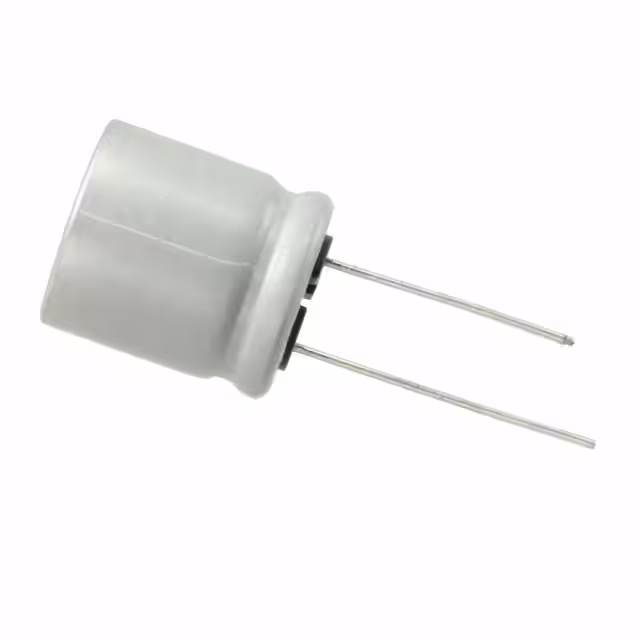

UBY1V272MHL6TNCAP ALUM 2700UF 20% 35V RADIAL |
7,458 | 3.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBY | Active | 2700 µF | ±20% | 35 V | 30mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
100USC2200MEFCSN30X30CAP ALUM 2200UF 20% 100V SNAP |
7,122 | 4.27 |
RFQ |
Datasheet |
Bulk | USC | Active | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.588 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
EKMH630VSN472MA30SCAP ALUM 4700UF 20% 63V SNAP |
8,239 | 4.46 |
RFQ |
Datasheet |
Bulk | KMH | Active | 4700 µF | ±20% | 63 V | 53mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 120 Hz | 3.348 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

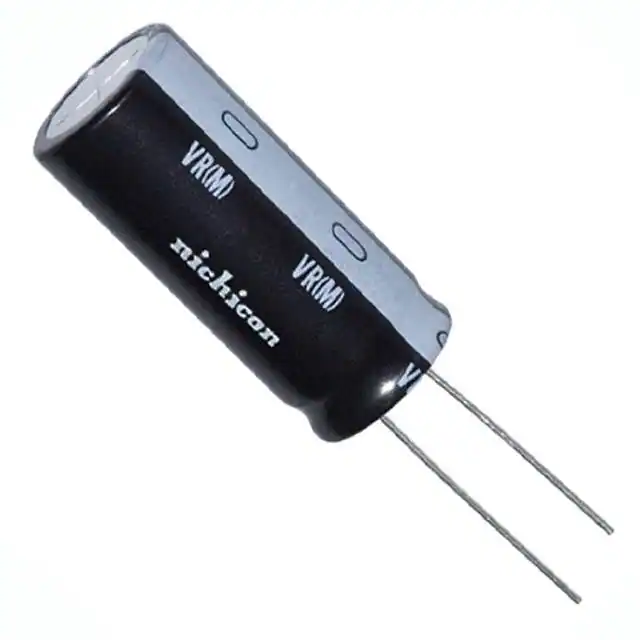

UVR1C223MRDCAP ALUM 22000UF 20% 16V RADIAL |
9,831 | 4.47 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 4.83 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

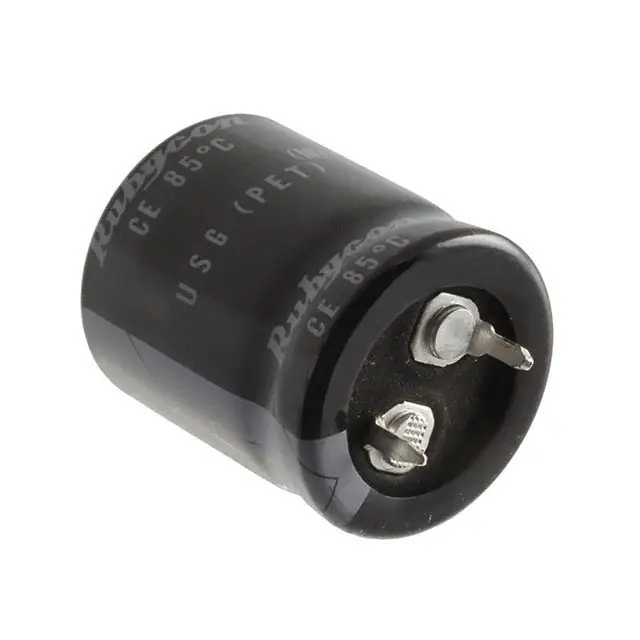

450USG100MEFCSN22X25CAP ALUM 100UF 20% 450V SNAP |
9,436 | 4.28 |
RFQ |
Datasheet |
Bulk | USG | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.302 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

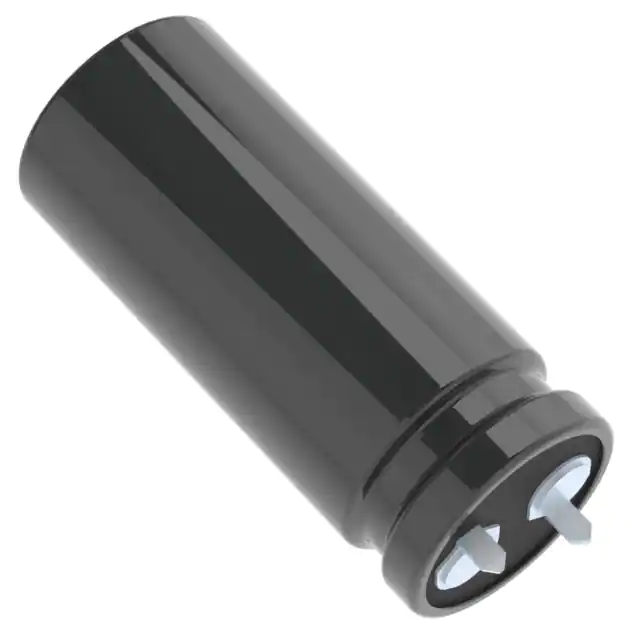

ESMQ201VSN122MP50SCAP ALUM 1200UF 20% 200V SNAP |
7,687 | 4.28 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

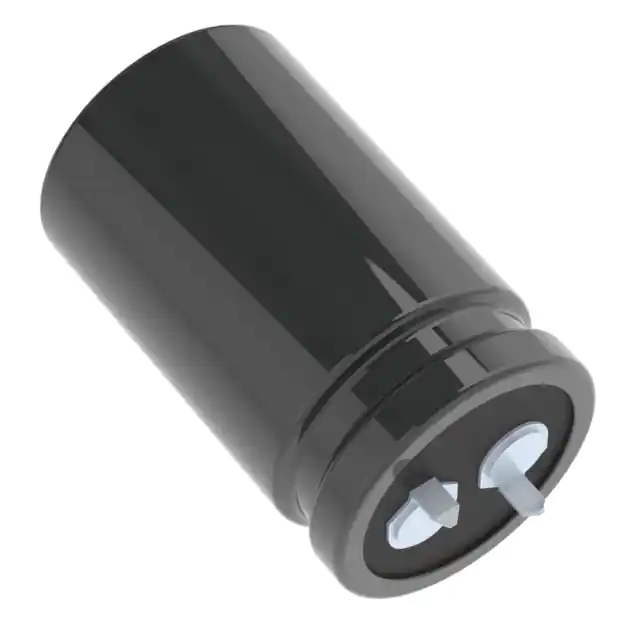

EKMQ351VSN331MQ40SCAP ALUM 330UF 20% 350V SNAP |
5,127 | 4.29 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 330 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.654 (42.00mm) | - | Through Hole |
