| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCY2V820MHD3CAP ALUM 82UF 20% 350V RADIAL |
5,724 | 3.21 |
RFQ |
Datasheet |
Bulk | UCY | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 765 mA @ 120 Hz | 1.53 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEE-TP1E332VCAP ALUM 3300UF 20% 25V SMD |
5,459 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 3300 µF | ±20% | 25 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-TP1V242VCAP ALUM 2400UF 20% 35V SMD |
5,121 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 2400 µF | ±20% | 35 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-TP1H132VCAP ALUM 1300UF 20% 50V SMD |
9,231 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 1300 µF | ±20% | 50 V | 60mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.175 A @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-TP70821VCAP ALUM 820UF 20% 70V SMD |
5,791 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 820 µF | ±20% | 70 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
400MXG330MEFCSN25X45CAP ALUM 330UF 20% 400V SNAP |
6,262 | 7.27 |
RFQ |
Datasheet |
Bulk | MXG | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LLS1J222MELZCAP ALUM 2200UF 20% 63V SNAP |
8,939 | 3.22 |
RFQ |
Datasheet |
Bulk | LLS | Active | 2200 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

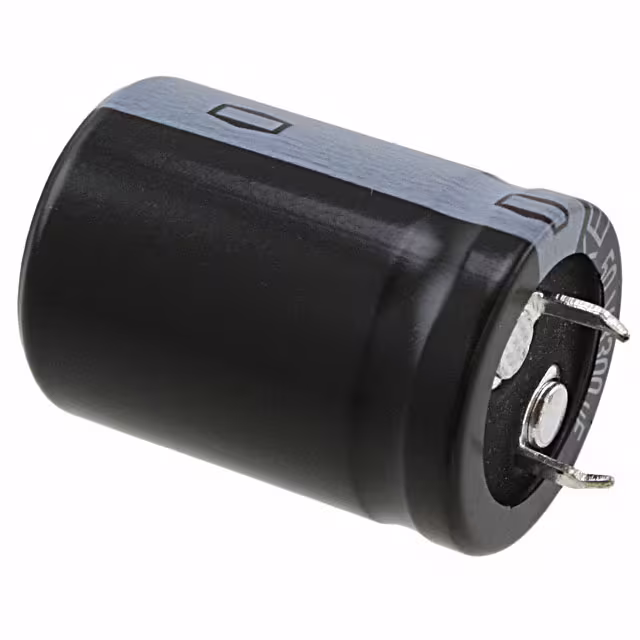

ELH107M400AQ2AACAP ALUM 100UF 20% 400V SNAP |
5,909 | 3.22 |
RFQ |
Datasheet |
Bulk | ELH | Active | 100 µF | ±20% | 400 V | 582mOhm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.305 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGY1E682MELZ30CAP ALUM 6800UF 20% 25V SNAP |
7,727 | 3.23 |
RFQ |
Datasheet |
Bulk | LGY | Active | 6800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.185 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

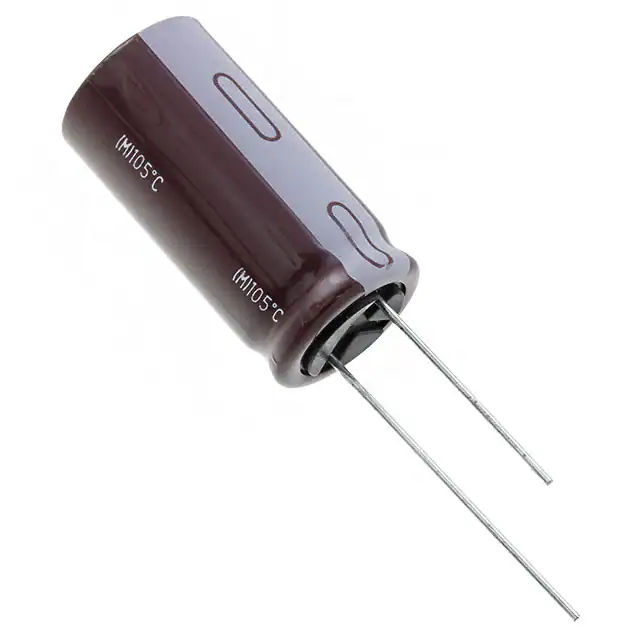

EKZN500ELL152MLN3SCAP ALUM 1500UF 20% 50V RADIAL |
5,911 | 3.23 |
RFQ |
Datasheet |
Bulk | KZN | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.418 A @ 120 Hz | 4.03 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
EKZN800ELL821MLN3SCAP ALUM 820UF 20% 80V RADIAL |
6,375 | 3.23 |
RFQ |
Datasheet |
Bulk | KZN | Active | 820 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.584 A @ 120 Hz | 2.64 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
EKZN101ELL471MLN3SCAP ALUM 470UF 20% 100V RADIAL |
9,142 | 3.23 |
RFQ |
Datasheet |
Bulk | KZN | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 2.64 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
LLS2W391MELBCAP ALUM 390UF 20% 450V SNAP |
6,585 | 7.30 |
RFQ |
Datasheet |
Bulk | LLS | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.3605 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
100USG4700MEFCSN35X40CAP ALUM 4700UF 20% 100V SNAP |
5,500 | 7.30 |
RFQ |
Datasheet |
Bulk | USG | Active | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.13 A @ 120 Hz | 5.9 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

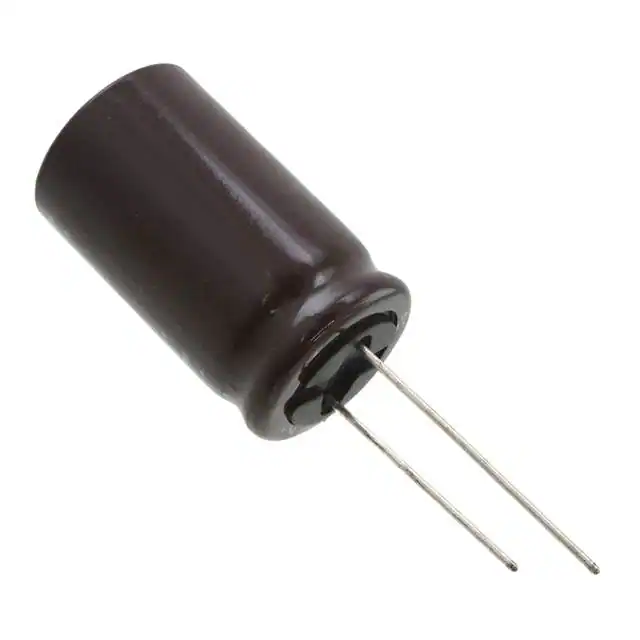

UCA2W470MHDCAP ALUM 47UF 20% 450V RADIAL |
7,746 | 3.24 |
RFQ |
Datasheet |
Bulk | UCA | Not For New Designs | 47 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 900 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

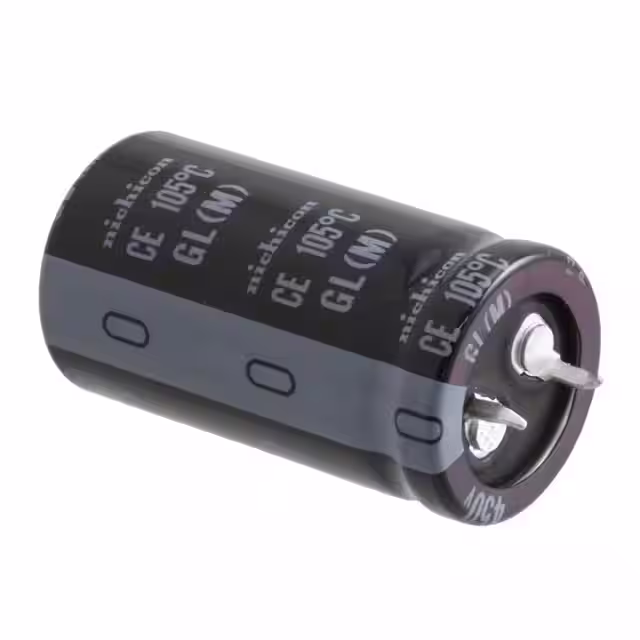

LGL2W221MELZ40CAP ALUM 220UF 20% 450V SNAP |
7,232 | 7.32 |
RFQ |
Datasheet |
Bulk | LGL | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.2155 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
35USG27000MEFCSN35X45CAP ALUM 27000UF 20% 35V SNAP |
7,921 | 7.32 |
RFQ |
Datasheet |
Bulk | USG | Active | 27000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.9 A @ 120 Hz | 7.935 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UHW1K681MHD6TNCAP ALUM 680UF 20% 80V RADIAL |
7,911 | 3.25 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 680 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.458 A @ 120 Hz | 2.43 A @ 100 kHz | 40 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

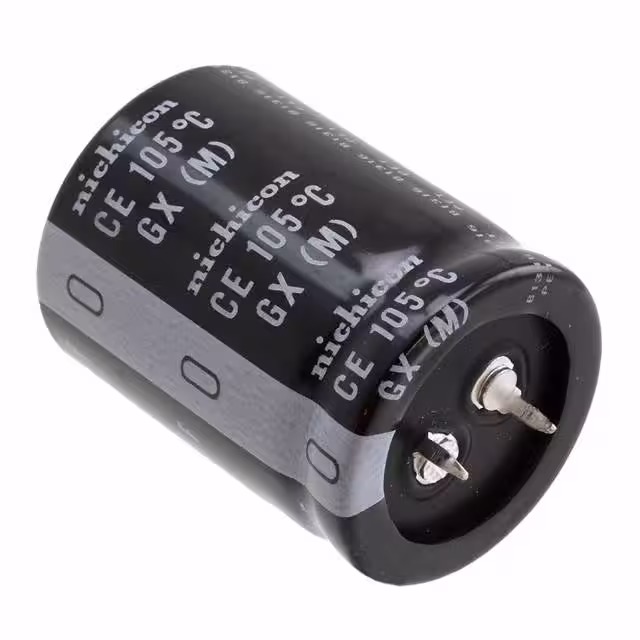

LGX2E102MELB40CAP ALUM 1000UF 20% 250V SNAP |
5,792 | 7.35 |
RFQ |
Datasheet |
Bulk | LGX | Active | 1000 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

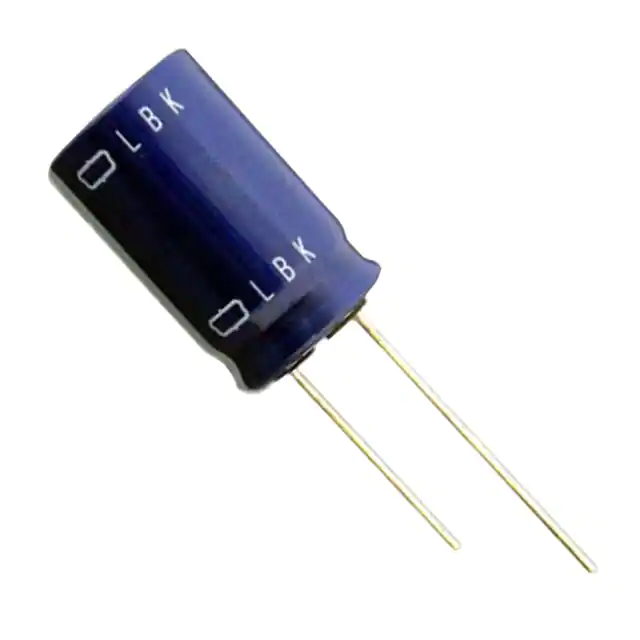

ELBK250ELL422AL20SCAP ALUM 4200UF 25V RADIAL |
5,228 | 3.26 |
RFQ |
Datasheet |
Bulk | LBK | Active | 4200 µF | 0%, +30% | 25 V | 33mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.9125 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
