Aluminum Electrolytic Capacitors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
ULD2D4R7MED1TD CAP ALUM 4.7UF 20% 200V RADIAL Nichicon	14,113	0.61	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ULD	Not For New Designs	4.7 µF	±20%	200 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	49 mA @ 120 Hz	98 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.512 (13.00mm)	-	Through Hole
UWG1C470MCL1GB CAP ALUM 47UF 20% 16V SMD Nichicon	14,780	0.57	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWG	Active	47 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	-	AEC-Q200	General Purpose	70 mA @ 120 Hz	140 mA @ 100 kHz	1 Ohms	-	0.248 Dia (6.30mm)	0.213 (5.40mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
UCS2D820MHD1TN CAP ALUM 82UF 20% 200V RADIAL Nichicon	8,981	1.71	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCS	Active	82 µF	±20%	200 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	690 mA @ 120 Hz	1.38 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.846 (21.50mm)	-	Through Hole
UBX2D150MPL1TD CAP ALUM 15UF 20% 200V RADIAL Nichicon	6,404	2.01	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UBX	Active	15 µF	±20%	200 V	-	1000 Hrs @ 150°C	-40°C ~ 150°C	Polar	-	Automotive	130 mA @ 120 Hz	234 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UPS2F3R3MPD1TD CAP ALUM 3.3UF 20% 315V RADIAL Nichicon	11,562	0.54	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	3.3 µF	±20%	315 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	34 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EEE-FN1J100L CAP ALUM 10UF 20% 63V SMD Panasonic Electronic Components	13,471	0.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FN, Halogen Free	Active	10 µF	±20%	63 V	1.5Ohm @ 100kHz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	52 mA @ 120 Hz	80 mA @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
EEE-FN1A151L CAP ALUM 150UF 20% 10V SMD Panasonic Electronic Components	12,671	0.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FN, Halogen Free	Active	150 µF	±20%	10 V	360mOhm @ 100kHz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	156 mA @ 120 Hz	240 mA @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
EEE-FN1V470L CAP ALUM 47UF 20% 35V SMD Panasonic Electronic Components	12,941	0.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FN, Halogen Free	Active	47 µF	±20%	35 V	360mOhm @ 100kHz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	156 mA @ 120 Hz	240 mA @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount

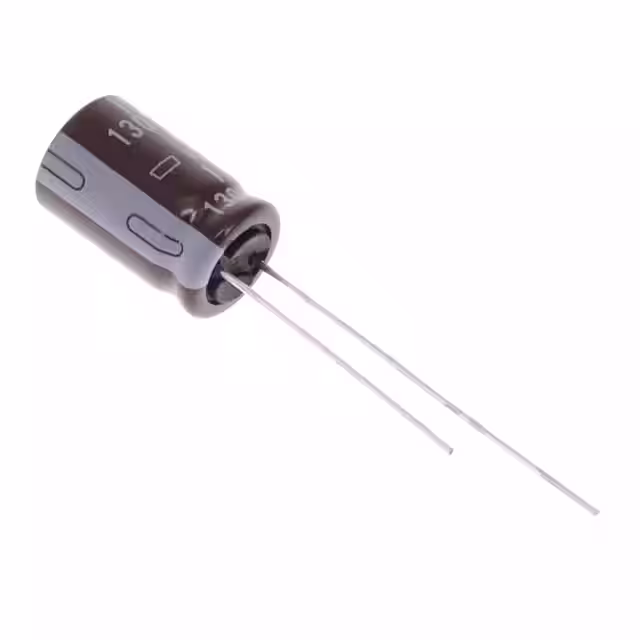

EKYC160ELL132MJ16S CAP ALUM 1300UF 20% 16V RADIAL United Chemi-Con	11,692	0.90	RFQ	Datasheet	Bulk	KYC	Active	1300 µF	±20%	16 V	100mOhm @ 100kHz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	942 mA @ 120 Hz	1.57 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
ESMG100ELL102MJC5S CAP ALUM 1000UF 20% 10V RADIAL United Chemi-Con	14,638	0.92	RFQ	Datasheet	Bulk	SMG	Active	1000 µF	±20%	10 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	650 mA @ 120 Hz	975 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
ESMG630ELL101MJC5S CAP ALUM 100UF 20% 63V RADIAL United Chemi-Con	13,115	0.92	RFQ	Datasheet	Bulk	SMG	Active	100 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	300 mA @ 120 Hz	450 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

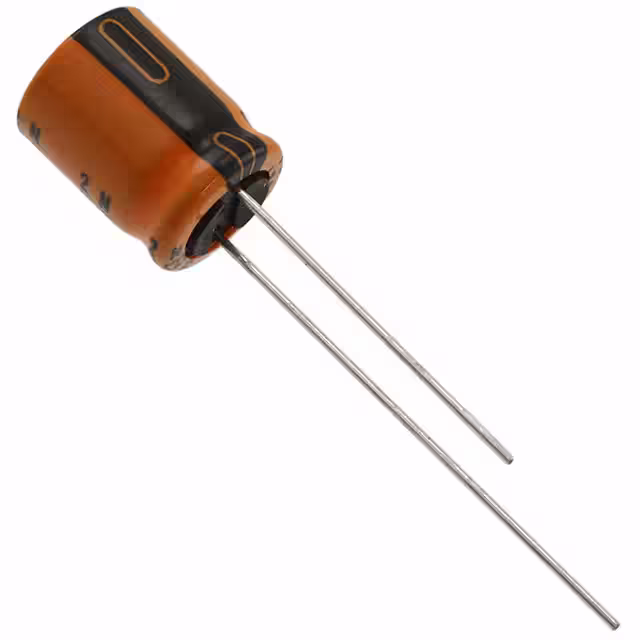

EGXL100ELL471MJC5S CAP ALUM 470UF 20% 10V RADIAL United Chemi-Con	11,662	0.92	RFQ	Datasheet	Bulk	GXL	Active	470 µF	±20%	10 V	-	5000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	400 mA @ 120 Hz	800 mA @ 100 kHz	170 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
UHW1A152MPD CAP ALUM 1500UF 20% 10V RADIAL Nichicon	13,964	0.92	RFQ	Datasheet	Bulk	UHW	Not For New Designs	1500 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.2 A @ 120 Hz	2 A @ 100 kHz	30 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UCL1C680MCL1GS CAP ALUM 68UF 20% 16V SMD Nichicon	14,836	0.60	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCL	Active	68 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	300 mA @ 100 kHz	260 mOhms	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
UPJ1V122MHD6TN CAP ALUM 1200UF 20% 35V RADIAL Nichicon	5,076	1.75	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	1200 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.74 A @ 120 Hz	1.98 A @ 10 kHz	41 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UPS2E3R3MPD1TD CAP ALUM 3.3UF 20% 250V RADIAL Nichicon	12,288	0.56	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	3.3 µF	±20%	250 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	42 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EEE-HP0J100R CAP ALUM 10UF 20% 6.3V SMD Panasonic Electronic Components	11,933	0.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HB	Active	10 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Bi-Polar	AEC-Q200	Automotive	-	-	-	-	0.157 Dia (4.00mm)	0.228 (5.80mm)	-	Surface Mount
865060243004 CAP ALUM 100UF 20% 10V SMD Würth Elektronik	12,800	0.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLL	Active	100 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	156 mA @ 120 Hz	240 mA @ 100 kHz	440 mOhms	-	0.248 Dia (6.30mm)	0.217 (5.50mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
UHE1V561MPD CAP ALUM 560UF 20% 35V RADIAL Nichicon	13,202	0.94	RFQ	Datasheet	Bulk	UHE	Not For New Designs	560 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.238 A @ 120 Hz	1.65 A @ 100 kHz	42 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.984 (25.00mm)	-	Through Hole
UCS2V100MPD CAP ALUM 10UF 20% 350V RADIAL Nichicon	12,612	0.94	RFQ	Datasheet	Bulk	UCS	Active	10 µF	±20%	350 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	175 mA @ 120 Hz	350 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole

Total 115368 Records«Prev 1... 1348 1349 1350 135113521353 1354 1355...5769 Next»
