| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHW2A820MPDCAP ALUM 82UF 20% 100V RADIAL |
5,985 | 1.21 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 82 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 416 mA @ 120 Hz | 1.04 A @ 100 kHz | 115 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
LGR2G151MELB30CAP ALUM 150UF 20% 400V SNAP |
8,893 | 6.21 |
RFQ |
Datasheet |
Bulk | LGR | Active | 150 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.1726 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
450MXH220MEFCSN30X30CAP ALUM 220UF 20% 450V SNAP |
6,511 | 6.21 |
RFQ |
Datasheet |
Bulk | MXH | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LQS2W181MELA35CAP ALUM 180UF 20% 450V SNAP |
5,874 | 6.23 |
RFQ |
Datasheet |
Bulk | LQS | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ESMQ161VSN182MA30SCAP ALUM 1800UF 20% 160V SNAP |
9,837 | 6.24 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 1800 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 6.3 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UVY2A221MHDCAP ALUM 220UF 20% 100V RADIAL |
6,564 | 1.22 |
RFQ |
Datasheet |
Bulk | UVY | Not For New Designs | 220 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 585 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UBW1K101MPDCAP ALUM 100UF 20% 80V RADIAL |
8,310 | 1.22 |
RFQ |
Datasheet |
Bulk | UBW | Active | 100 µF | ±20% | 80 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 395 mA @ 120 Hz | 790 mA @ 100 kHz | 390 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPJ2C220MHDCAP ALUM 22UF 20% 160V RADIAL |
6,859 | 1.22 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 22 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 224 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|

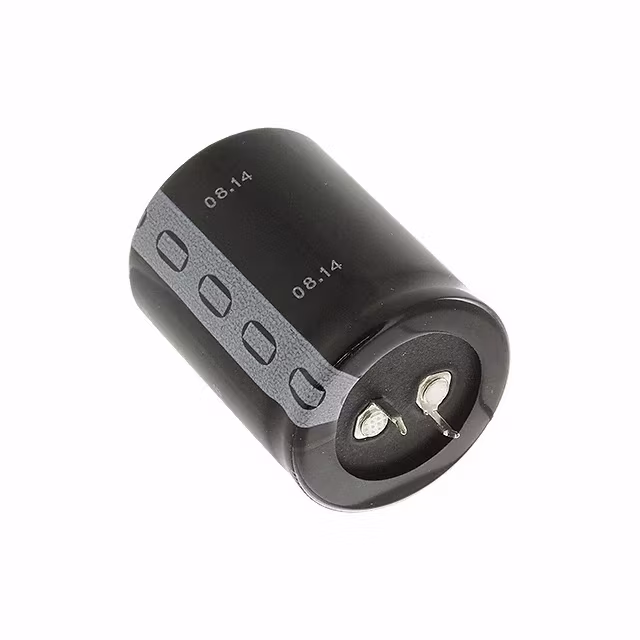

B41231A7229M000CAP ALUM 22000UF 20% 35V SNAP |
9,365 | 6.26 |
RFQ |
Datasheet |
Bulk | B41231 | Active | 22000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.07 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
B43504C5107M000CAP ALUM 100UF 20% 450V SNAP |
6,247 | 6.26 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 100 µF | ±20% | 450 V | 1.35Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 100 Hz | - | 1.6 Ohms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
16MXG15000MEFCSN25X30CAP ALUM 15000UF 20% 16V SNAP |
8,142 | 6.28 |
RFQ |
Datasheet |
Bulk | MXG | Active | 15000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 3.082 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
25MXG10000MEFCSN25X30CAP ALUM 10000UF 20% 25V SNAP |
6,969 | 6.28 |
RFQ |
Datasheet |
Bulk | MXG | Active | 10000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.0475 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGR2W221MELB50CAP ALUM 220UF 20% 450V SNAP |
5,419 | 6.29 |
RFQ |
Datasheet |
Bulk | LGR | Active | 220 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
500MXH180MEFCSN30X35CAP ALUM 180UF 20% 500V SNAP |
6,188 | 6.32 |
RFQ |
Datasheet |
Bulk | MXH | Active | 180 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.792 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

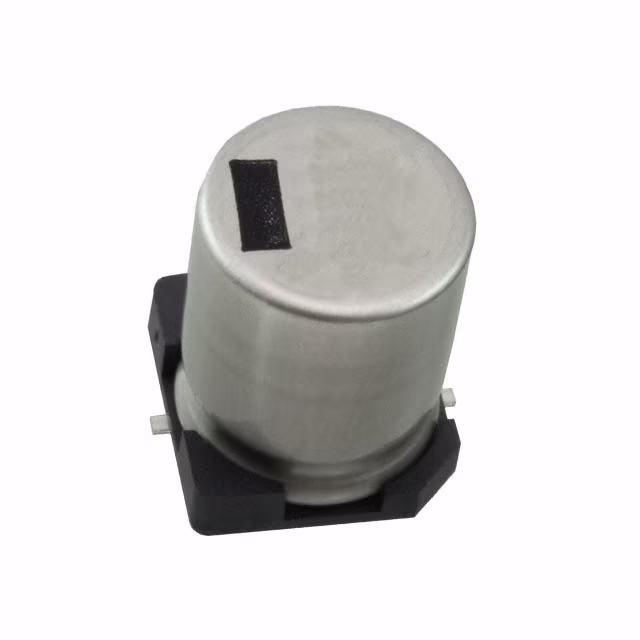

25TGV820M12.5X16CAP ALUM 820UF 20% 25V SMD |
9,686 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 820 µF | ±20% | 25 V | 74mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
LAQ2P471MELB30CAP ALUM 470UF 20% 220V SNAP |
9,865 | 6.33 |
RFQ |
Datasheet |
Bulk | LAQ | Active | 470 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.74 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
200MXG680MEFCSN22X40CAP ALUM 680UF 20% 200V SNAP |
5,266 | 6.32 |
RFQ |
Datasheet |
Bulk | MXG | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LGL2W181MELZ35CAP ALUM 180UF 20% 450V SNAP |
6,737 | 6.33 |
RFQ |
Datasheet |
Bulk | LGL | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.1011 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
B43508A2687M000CAP ALUM 680UF 20% 200V SNAP |
7,886 | 6.35 |
RFQ |
Datasheet |
Bulk | B43508 | Active | 680 µF | ±20% | 200 V | 170mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 100 Hz | - | 230 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
80USG3900MEFCSN25X40CAP ALUM 3900UF 20% 80V SNAP |
9,220 | 6.35 |
RFQ |
Datasheet |
Bulk | USG | Active | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.62 A @ 120 Hz | 4.163 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
